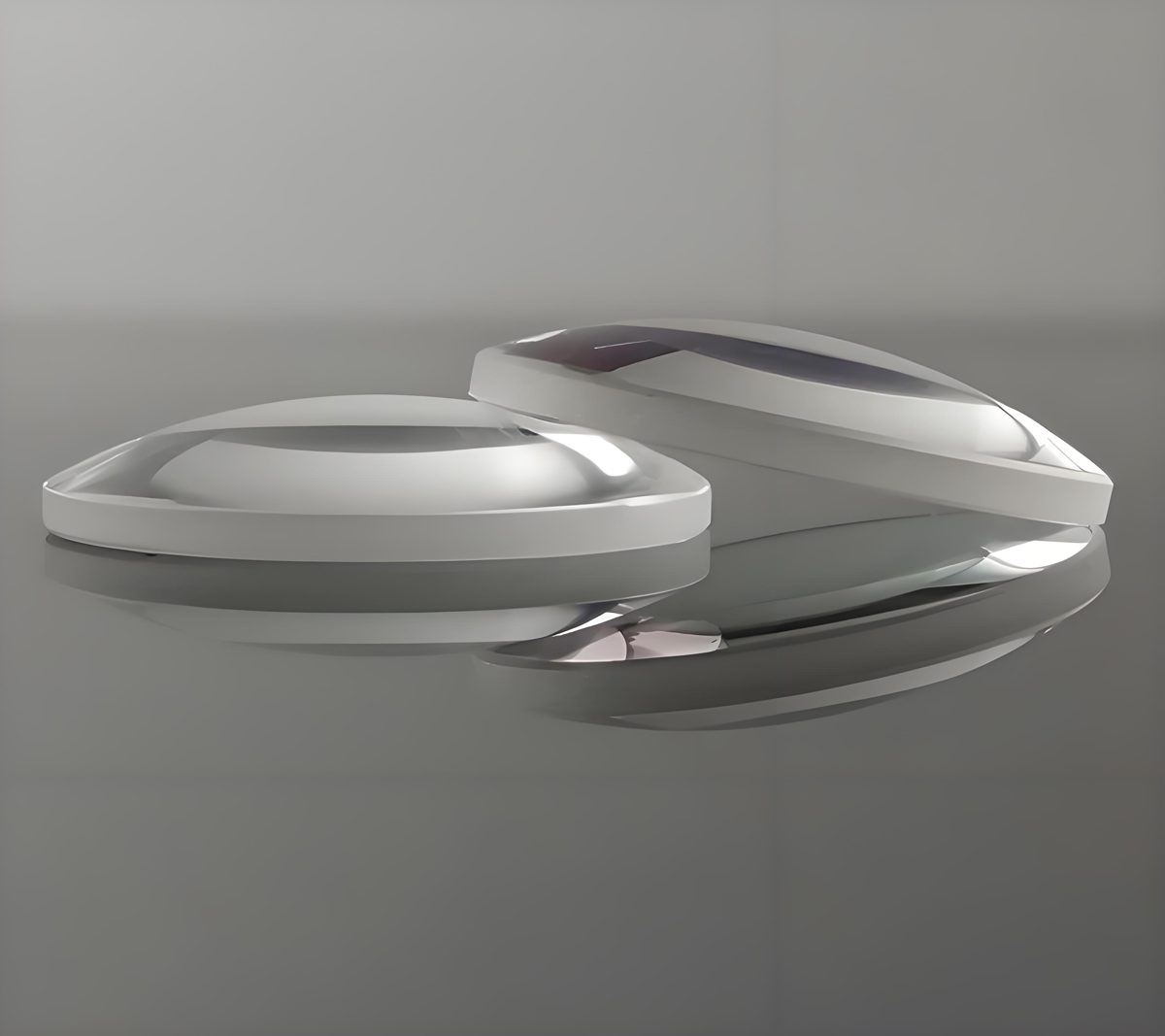

100 mm Fused Silica Plano-convex Lens, AR Coated
High-quality plano-convex fused silica lens with customizable options for precise optical applications.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 100 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), mgf2
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 100 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), mgf2
Product description
This plano-convex lens made from fused silica is ideal for applications requiring high-quality optical performance. With a clear aperture greater than 90% and a surface quality rating of 40/20, it ensures minimal distortion and high transmittance. Designed for various optical applications, it can be customized to meet specific needs, making it suitable for R&D and manufacturing in sectors like IR imaging and laser systems.
Key Features
- Surface quality of 40/20 for minimal distortion, enhancing image clarity.
- Clear aperture greater than 90% ensures maximum light transmission.
- Focal length tolerance of ±1% allows for precise optical performance.
- Centration tolerance of ±3 arc minutes for accurate alignment in optical systems.
- Customizable with OEM, ODM support for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 100 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR), mgf2 |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Aspherical Lens, Plano Convex Lens, Biconvex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Weight | 0.01 |
| Focal Length Tolerance | ±1% |
| Clear Aperture | >90% |
| Color | Clear transparent |
| Tolerance | ±0.1mm |
| Surface Figure | lambda/2 @632.8nm |
| Centration | ±3 arc minutes |
| Effective Focal Length | ±5mm~±1000mm |
FAQ
Can I get custom sizes for this lens?
Yes, the lens can be customized with OEM and ODM support.
What is the tolerance for thickness?
The lens has a thickness tolerance of ±0.1mm.
