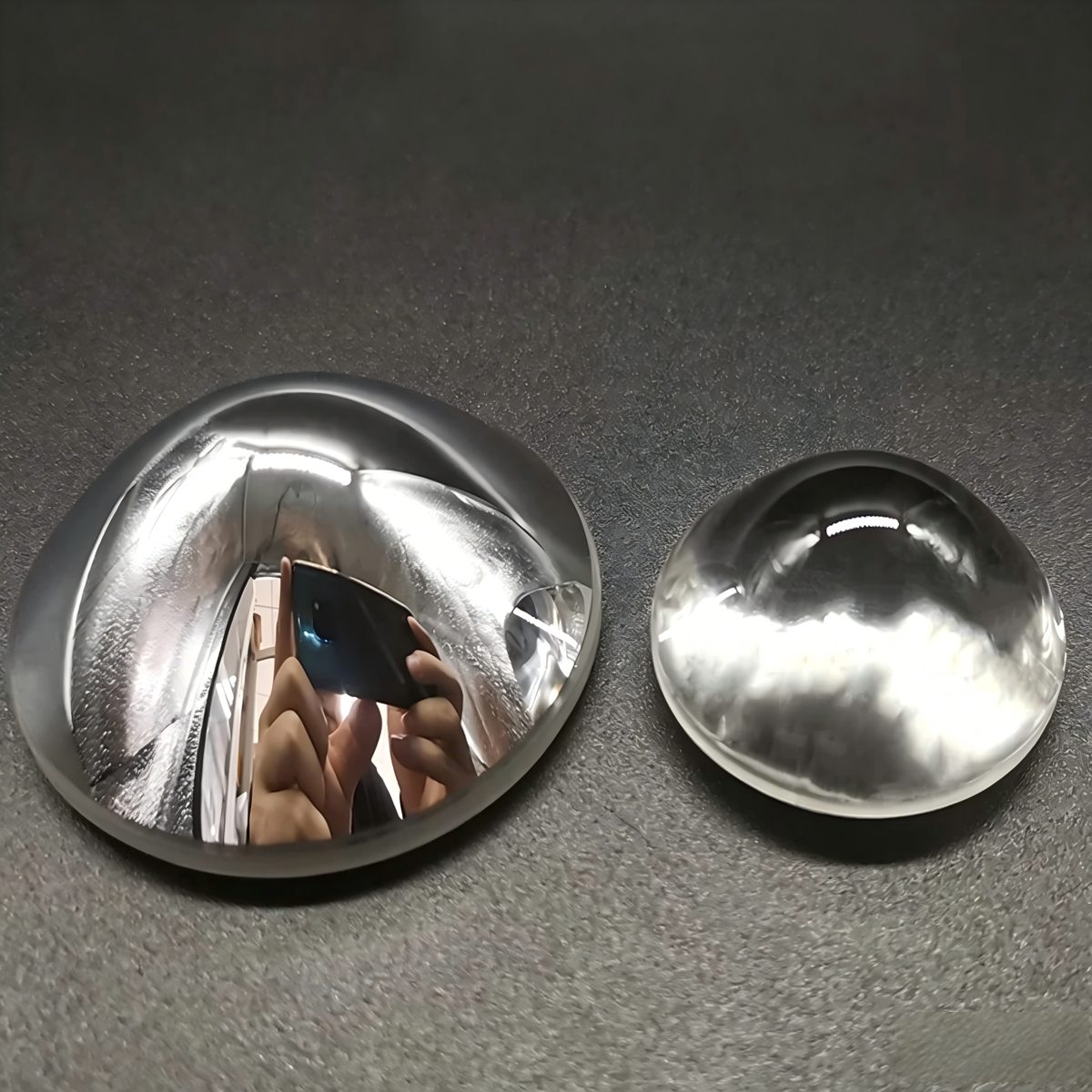

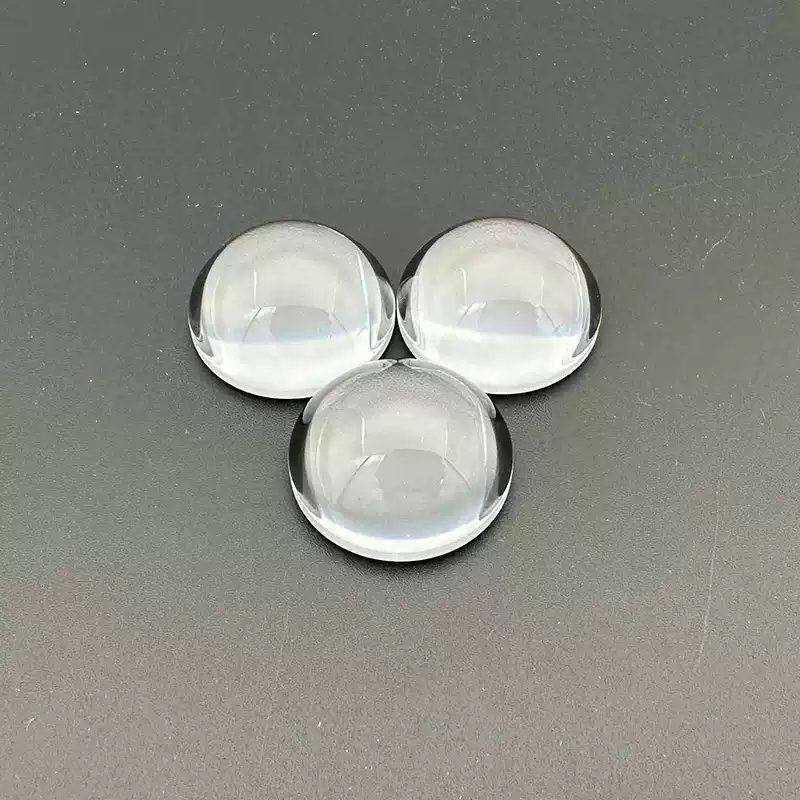

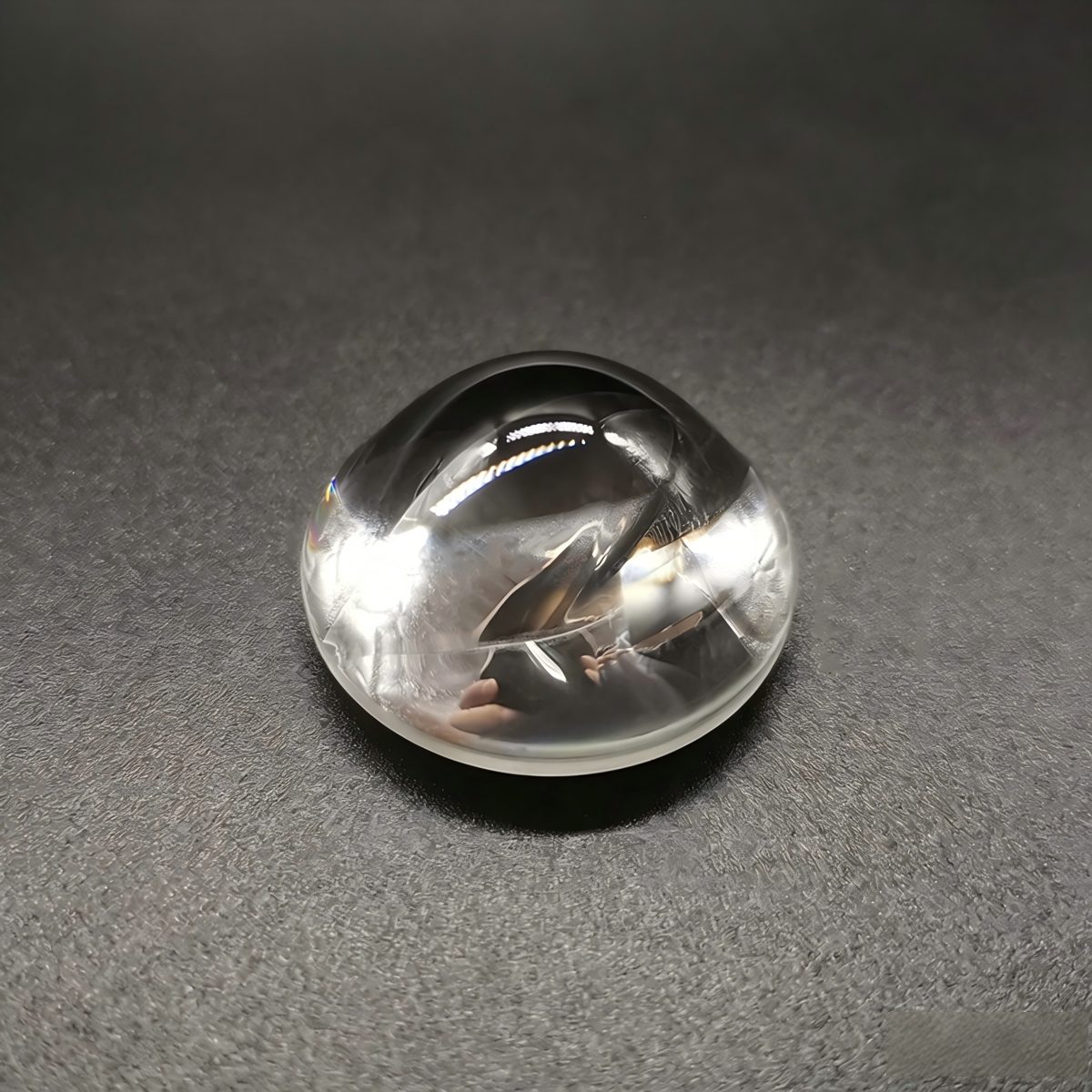

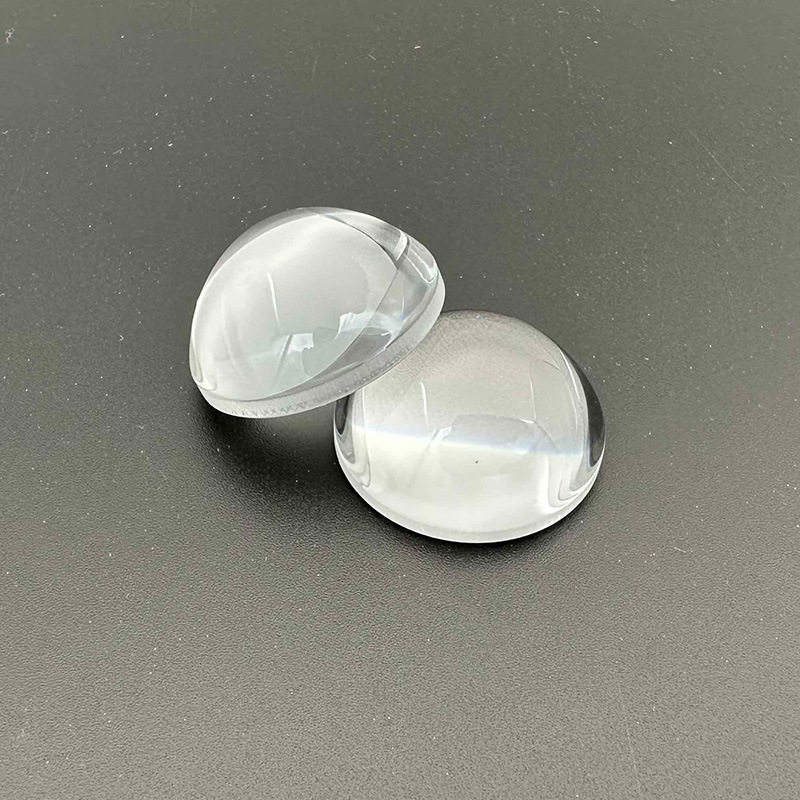

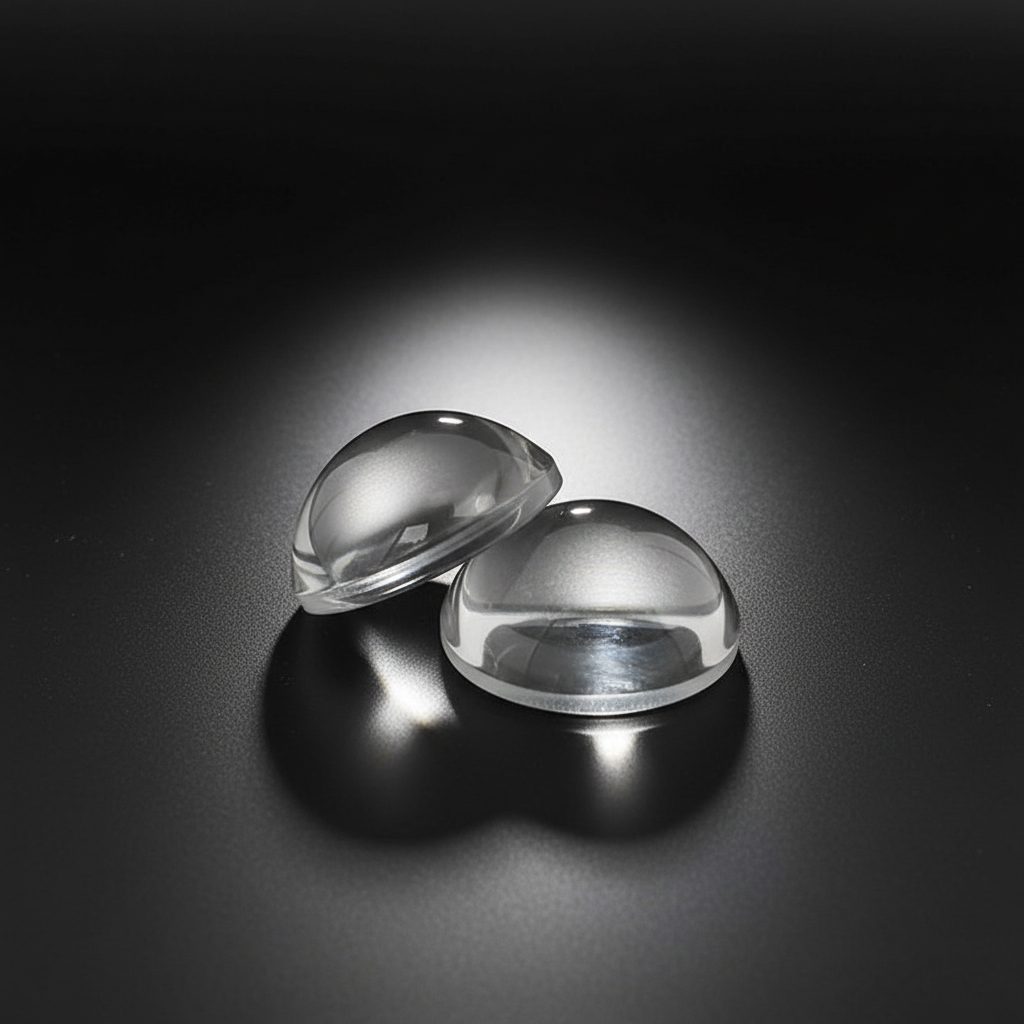

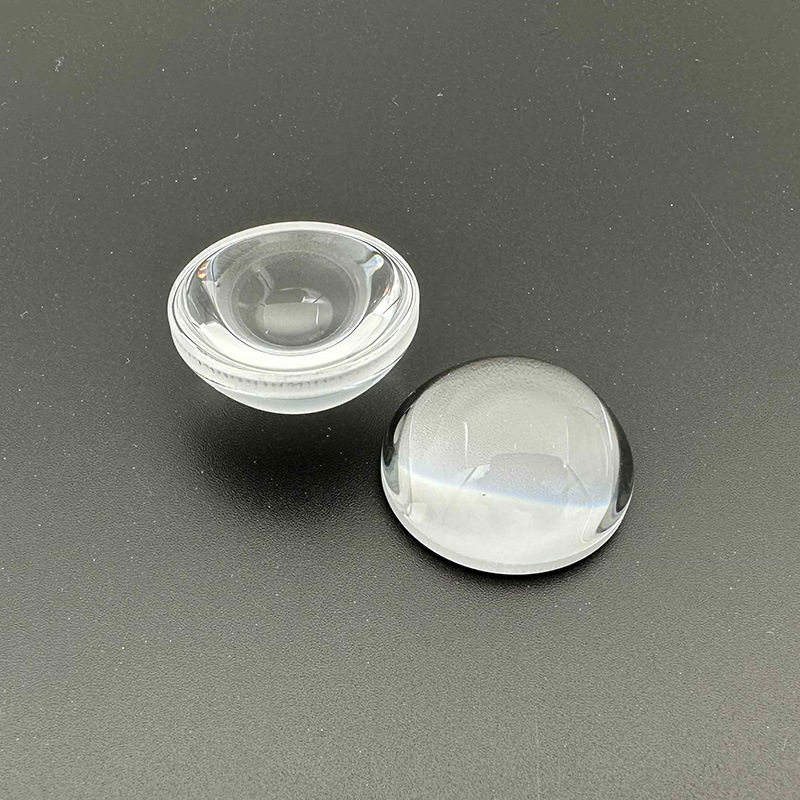

12.5 mm Fused Silica Plano-convex Lens, AR Coated

Product description

This plano-convex lens made from fused silica is ideal for applications in collimation and imaging across the 400-700 nm and <400 nm wavelength ranges. With anti-reflective coatings, it enhances visibility by reducing glare. The lens features a surface quality of 60/40, ensuring reliable performance in demanding optical systems. Its customizable sizes from 0.5 to 300 mm in diameter make it suitable for various project specifications, while its origin in Henan ensures consistent quality and supply reliability.

Key Features

Wavelength range: 245 - 420 nm for versatile application fit.
Surface quality: 60/40 for reliable imaging performance.
Customizable sizes: Available in diameters from 0.5 to 300 mm.
Tolerance: ±0.2 mm for precision in optical setups.
AR coating: Reduces glare for improved clarity.

Applications

Collimation, Imaging

Specification Summary

Item	Value
Material	Fused Silica
Shape	Plano-convex
Diameter	12.5 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.5
Wavelength	245 - 420 nm
Tolerance	0.2mm
Center Thickness Tolerance	±0.1mm
Package	safe

FAQ

What are the available custom sizes?

Custom sizes range from 0.5 mm to 300 mm in diameter.

What is the tolerance for this lens?

The lens has a tolerance of ±0.2 mm and a center thickness tolerance of ±0.1 mm.
