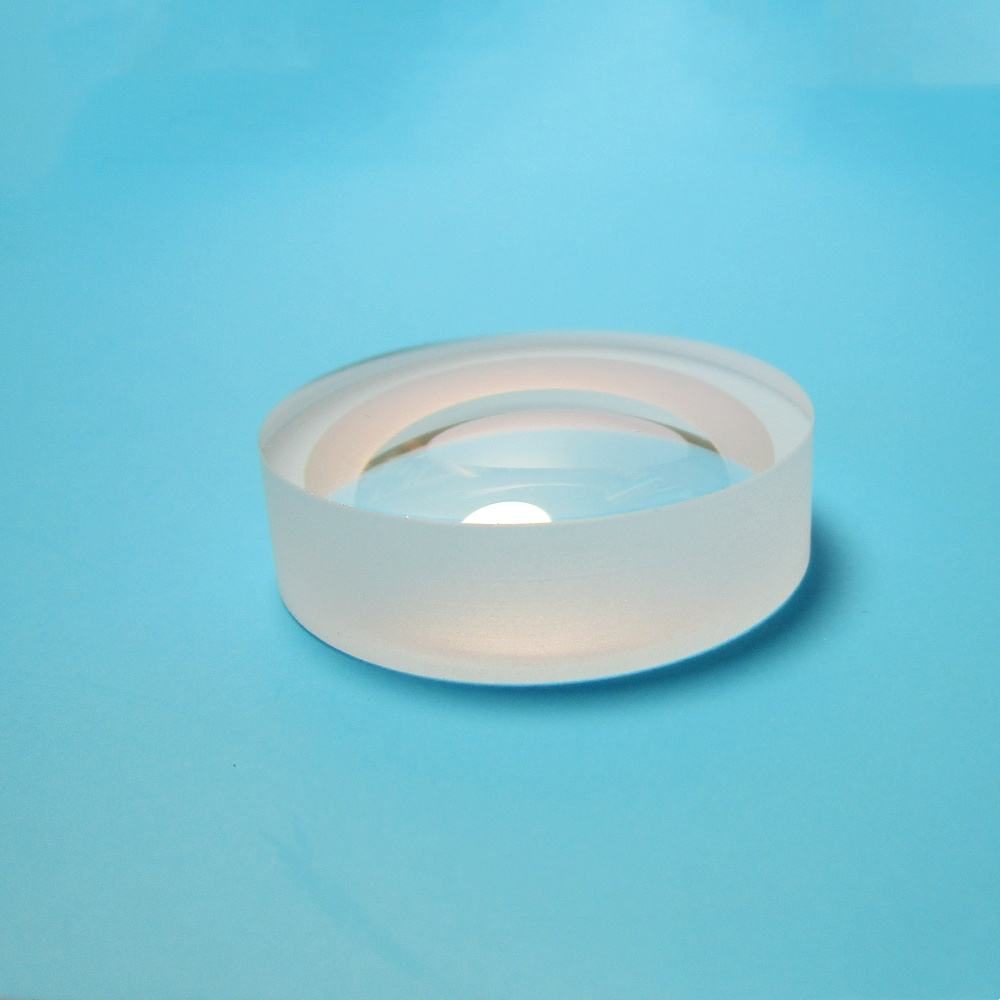

1 mm Fused Silica Plano-convex Lens, AR Coated
High-quality plano-convex lens for collimation, suitable for 0.7-1.7 μm and 8-14 μm applications. Custom sizes available.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 1 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- LWIR (8-14 μm), NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 1 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- LWIR (8-14 μm), NIR (0.7-1.7 μm)
Product description
This plano-convex lens, crafted from high-quality fused silica, is designed for optimal light collimation across a broad spectrum of applications, including IR imaging and LIDAR. With a wavelength range of 0.7-1.7 μm and 8-14 μm, it is suitable for various laser and optical systems. The lens is available in diameters from 1.0 mm to 300.0 mm, providing flexibility for different setups. Its anti-reflective coatings enhance transmittance, ensuring efficient performance in demanding environments.
Key Features
- Wavelength compatibility: 0.7-1.7 μm and 8-14 μm for diverse applications.
- Diameter range: 1.0 mm to 300.0 mm, accommodating various design requirements.
- Customizable options available through OEM/ODM support for tailored solutions.
- Dimension tolerance of ±0.03 mm ensures precision in optical setups.
- Lightweight design at 0.04 KG facilitates easy integration into systems.
Applications
Collimation
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 1 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm), NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Fresnel Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano… |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 months |
| Weight | 0.04KG |
| Dimension | 1mm-300mm |
| Dimension Tolerance | ±0.03 |
| Keywords | Laser Cutting Spare Parts |
| Wavelength | 1064nm/10.6um |
FAQ
What custom sizes are available?
The lens can be produced in diameters ranging from 1.0 mm to 300.0 mm.
What is the dimension tolerance?
The dimension tolerance for this lens is ±0.03 mm.
