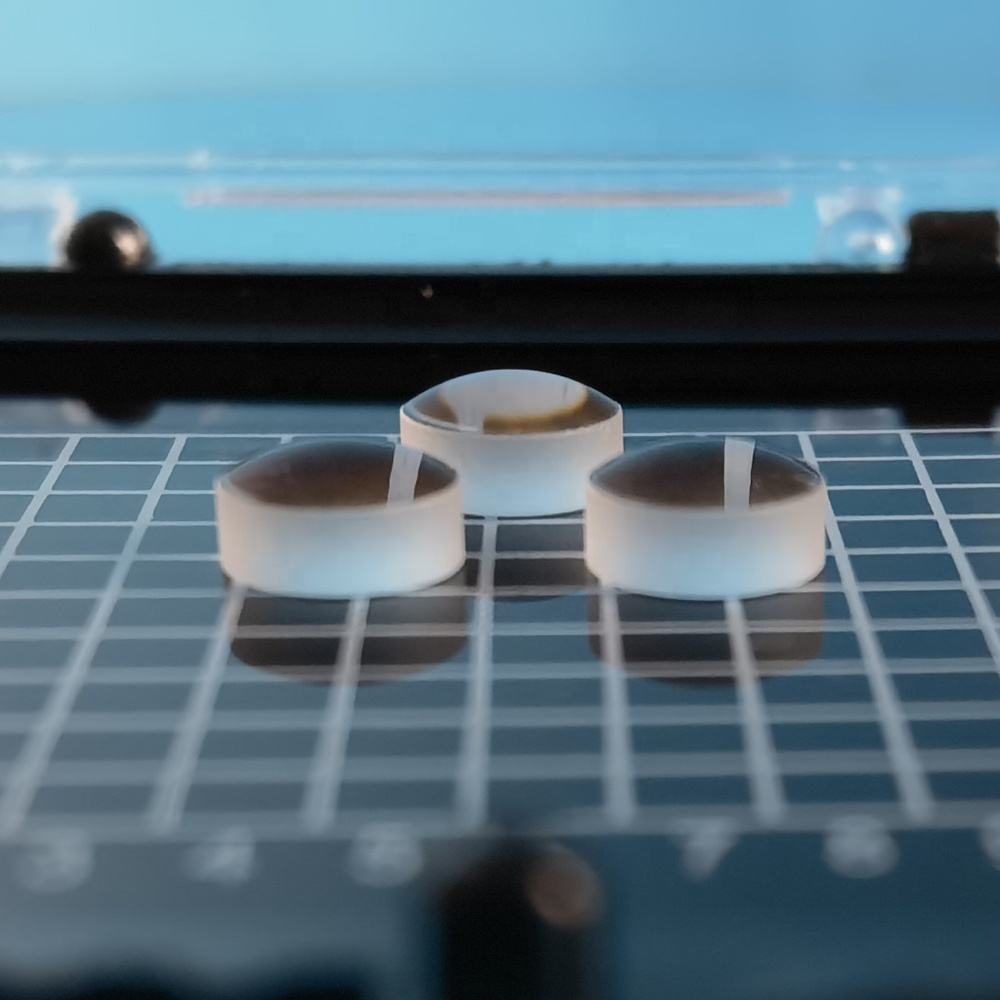

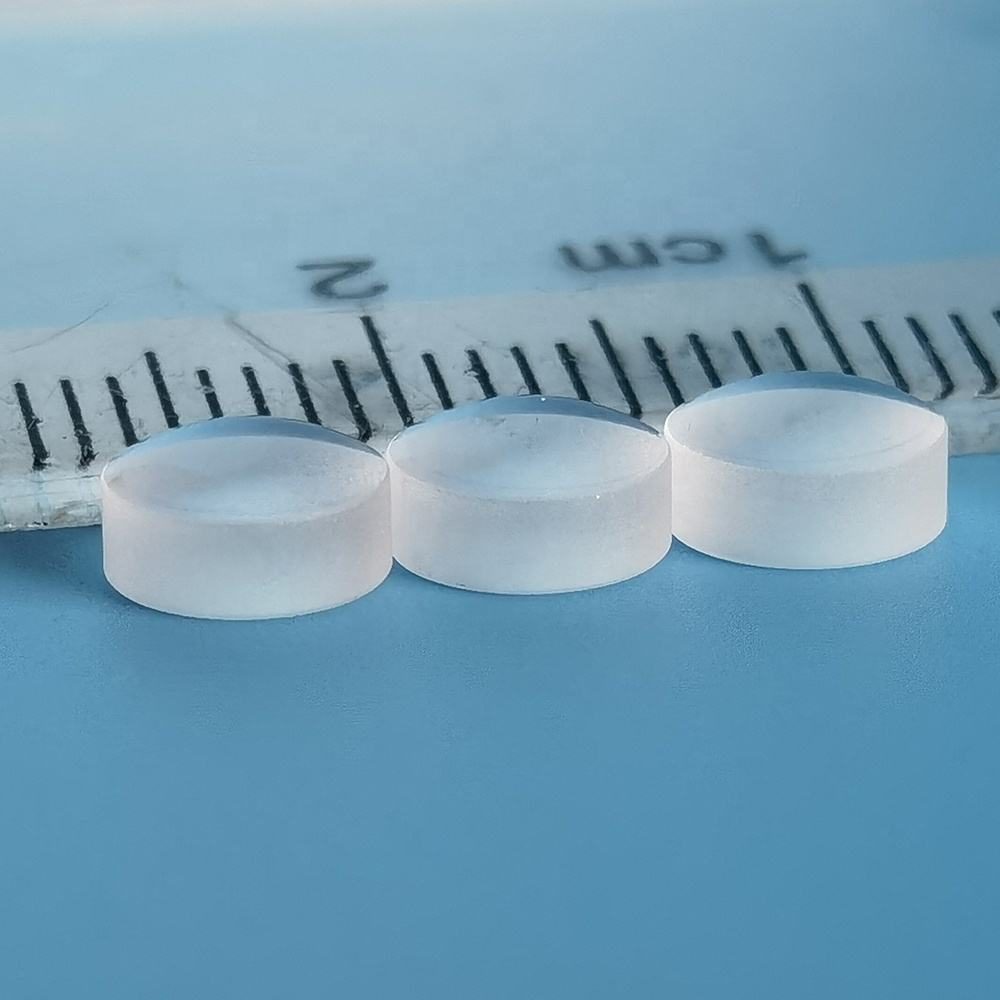

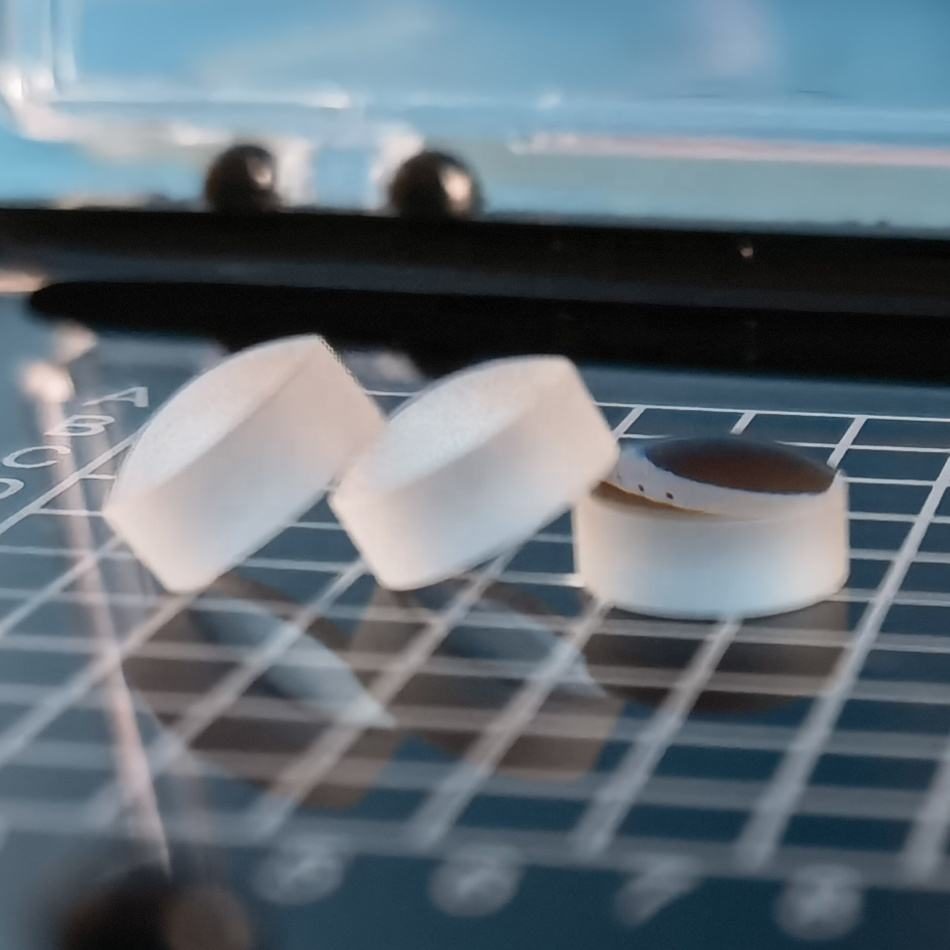

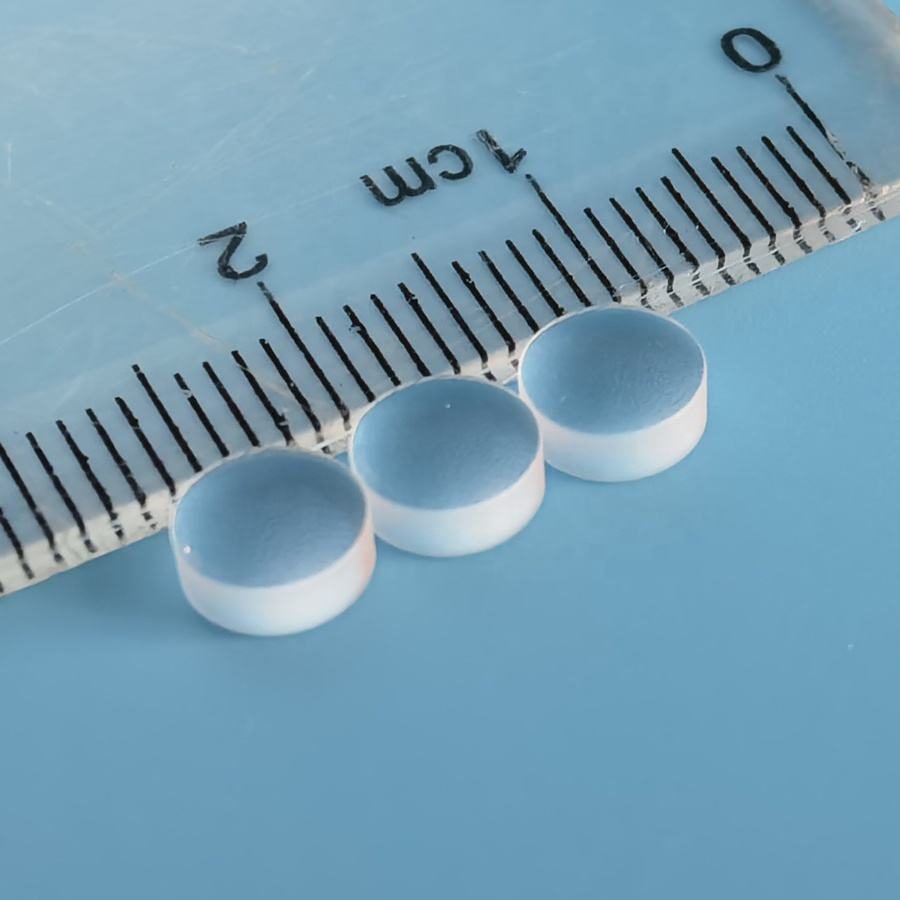

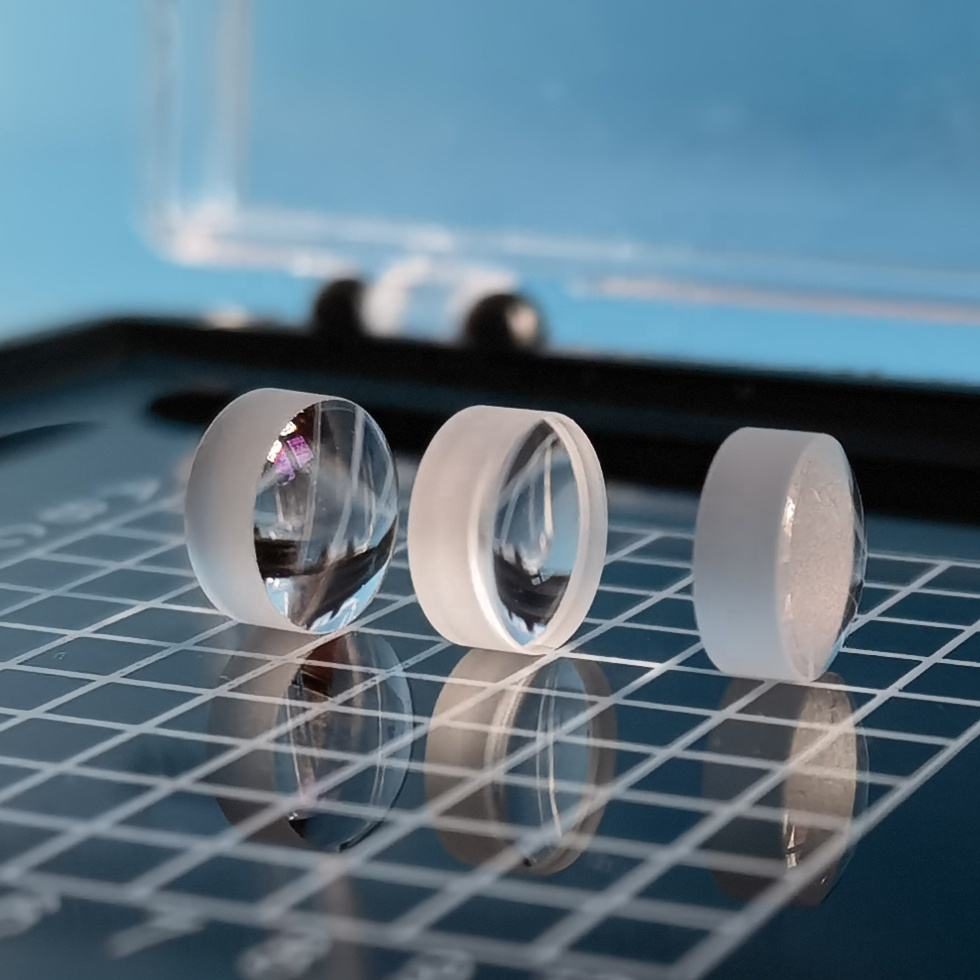

1 mm Fused Silica Plano-convex Lens, AR Coated
Fused silica plano-convex lens for medical and imaging applications, featuring high surface quality and customizable options.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 1 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 1 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
This plano-convex lens made from fused silica is designed for applications in medical imaging, collimation, and other optical systems operating within the 400-700 nm wavelength range. Its high surface quality of 40/20 and a clear aperture greater than 90% ensure optimal light transmission and minimal distortion. This lens is ideal for precise applications where performance and reliability are critical.
Key Features
- Surface quality of 40/20 ensures minimal optical distortion, enhancing image clarity.
- Clear aperture greater than 90% maximizes light throughput for efficient performance.
- Centration of 3 arc minutes allows for accurate alignment in optical systems.
- Tolerance of ±0.1 mm supports precise integration into custom setups.
- OEM customization available for tailored solutions to meet specific project needs.
Applications
Medical, Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 1 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM |
| Warranty | 3 months |
| Weight | 0.05 |
| Flatness | L/4 |
| Clear Aperture | >90% |
| Centration | 3 arc minutes |
| Tolerance | +-0.1mm |
| Chamfer | 0.25mm*45 degree |
FAQ
Is custom sizing available?
Yes, OEM customization is available for tailored solutions.
What is the tolerance on the lens dimensions?
The lens has a tolerance of ±0.1 mm.
