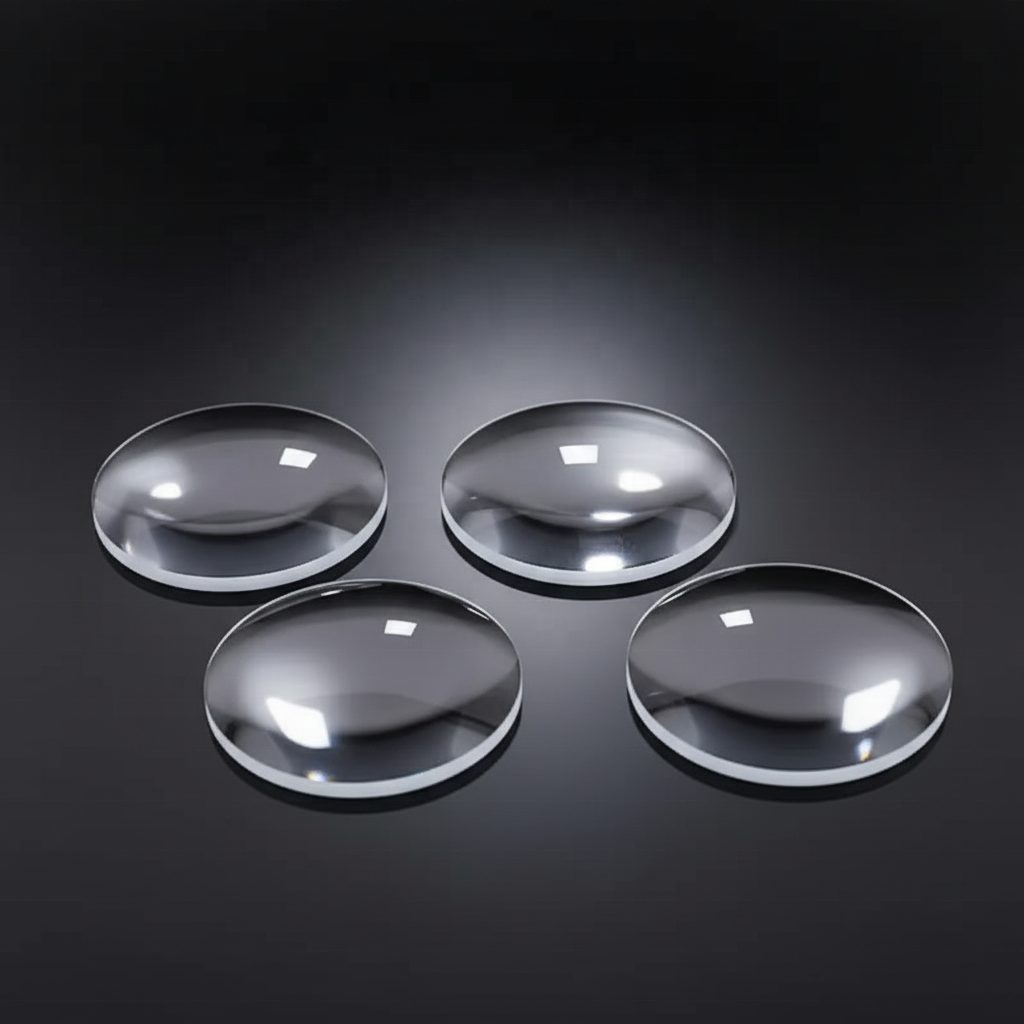

1 mm Fused Silica Plano-convex Lens, AR Coated
Fused silica plano-convex lens with high transmittance for UV and visible light, customizable sizes, and superior durability.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product description
This plano-convex lens made from fused silica is designed for applications in the ultraviolet (UV) and visible light range (400-700 nm). It offers high transmittance and excellent optical uniformity, making it suitable for precision light transmission and refraction. With a diameter range from 1.0 mm to 200.0 mm, this lens is ideal for various optical systems requiring reliable performance under temperature variations and environmental stress.
Key Features
- High transmittance in UV and visible light (400-700 nm) for versatile applications.
- Diameter range from 1.0 mm to 200.0 mm, accommodating various project needs.
- Surface quality of 60/40 ensures effective light transmission and minimal distortion.
- Customized support available for OEM, ODM, and OBM projects to meet specific requirements.
- Durable design with superior chemical stability and scratch resistance for long service life.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 1 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.03 |
| Diameter Tolerance | +/-0.1 |
| Surface Flatness | 1/4@633nm |
| Clear Aperture | >=central 80% of diameter |
FAQ
What is the diameter tolerance for this lens?
The diameter tolerance is +/-0.1 mm.
Is custom sizing available for this lens?
Yes, customized support is available for OEM, ODM, and OBM.
