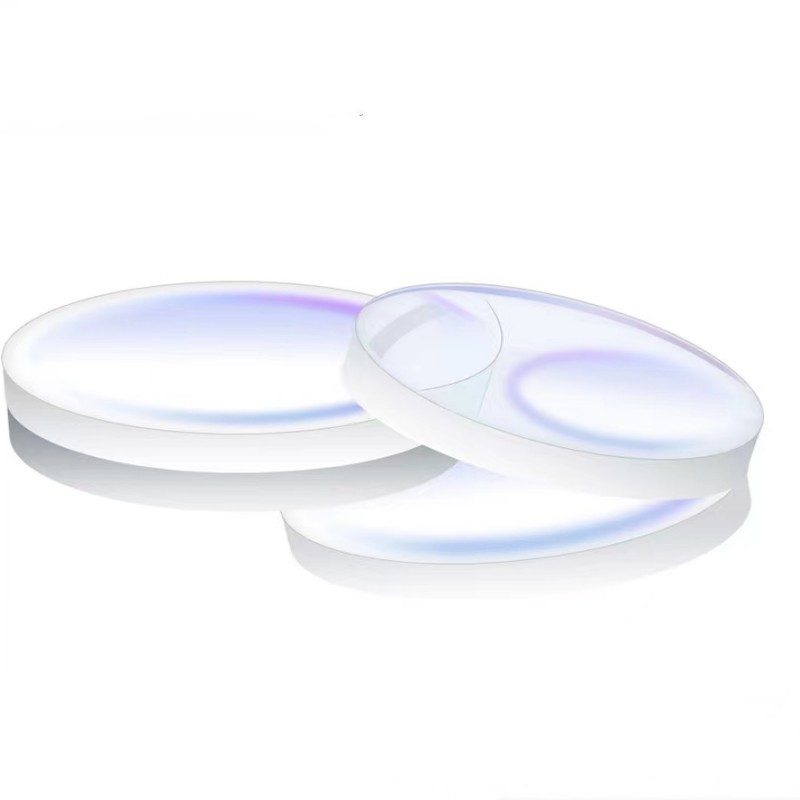

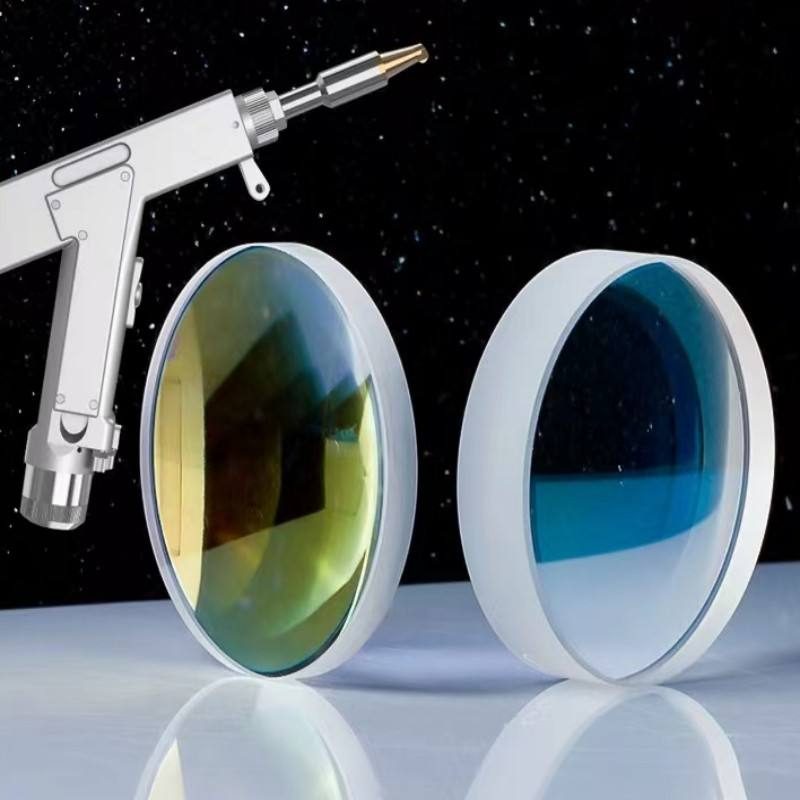

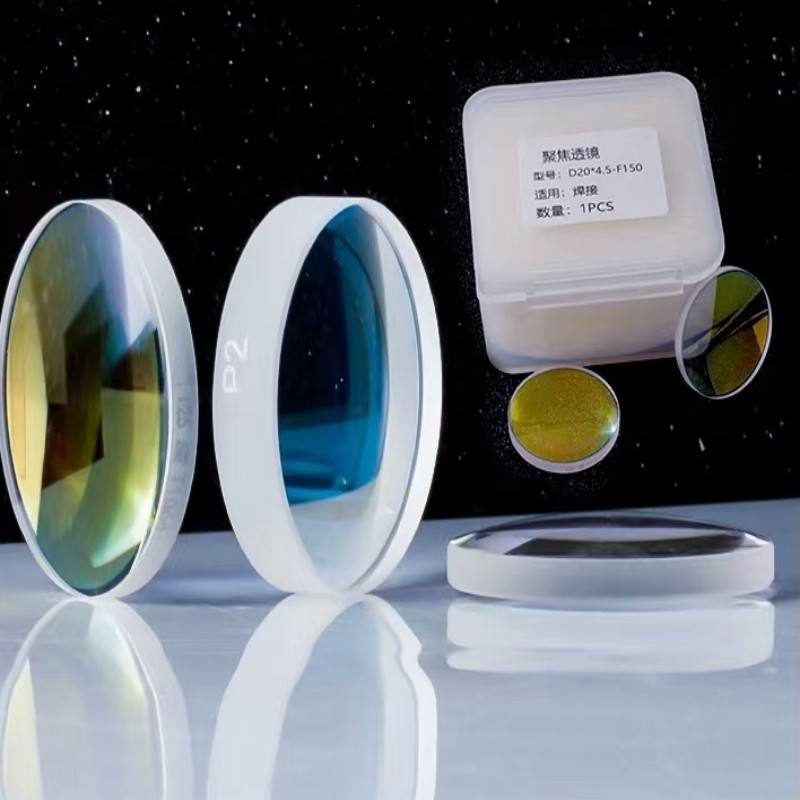

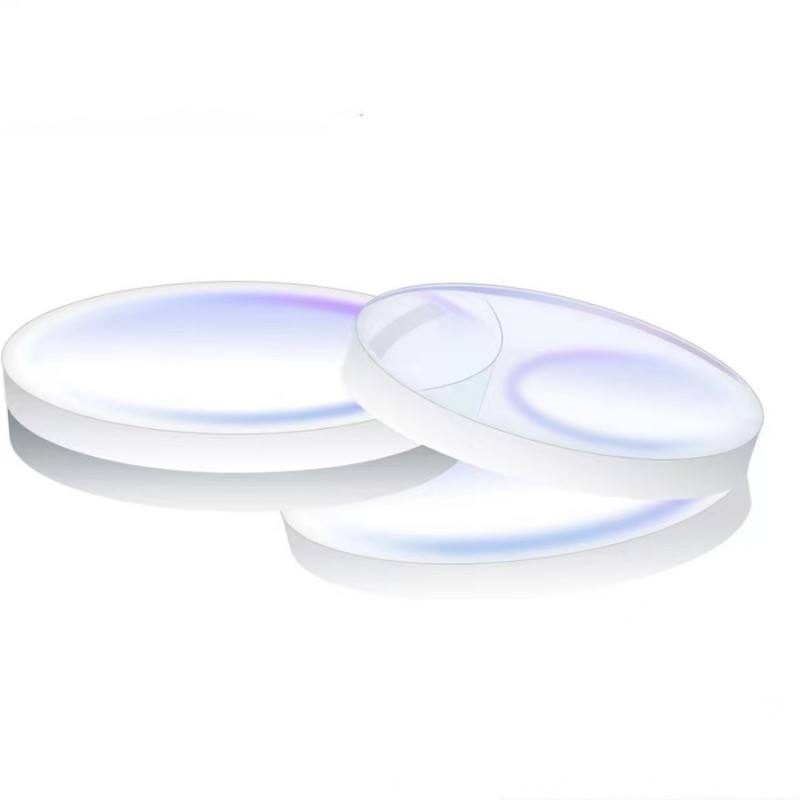

20x150 mm Fused Silica Plano-convex Lens, AR Coated

Product description

This plano-convex lens is designed for applications in the medical field, particularly effective within the 0.7-1.7 μm wavelength range. With a diameter of 20 mm and a focal length of 150 mm, it provides optimal light transmission and focus for various medical imaging systems. The lens is made from high-quality fused silica and features anti-reflective coatings, ensuring high transmittance and clarity. Custom sizes and configurations are available to meet specific project requirements, making it a versatile choice for R&D and procurement engineers.

Key Features

Wavelength range: 0.7-1.7 μm for diverse medical applications.
Diameter: 20 mm for compatibility with standard optical systems.
Focal length: 150 mm for precise focusing capabilities.
Centration tolerance: < 3 arcmin for enhanced optical performance.
Customizable designs available, including OEM and ODM options.

Available Sizes

Diameter x Focal Length (mm)
20 x 150

Applications

Medical

Specification Summary

Item	Value
Material	Fused Silica
Shape	Plano-convex
Diameter	20 mm
Focal Length	150 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM, OBM, As drawings
Warranty	3 Years
Weight	0.02
Centration	< 3arcmin
Bevel	0.2-0.5mmx45°
Clear Aperture	>90%
Certification	ISO9001

FAQ

What custom sizes are available?

Custom sizes can be made according to customer drawings, with variant sizes including 20.0 mm diameter and 150.0 mm focal length.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing flexibility for small or large orders.
