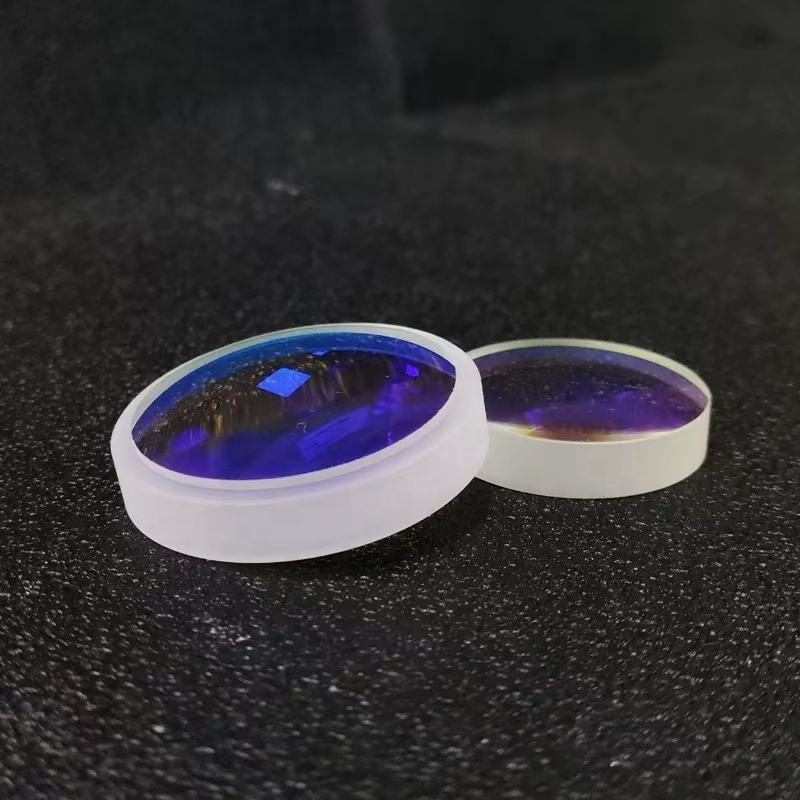

20x150 mm Fused Silica Plano-convex Lens, AR Coated
Plano-convex lens in fused silica for laser-cutting and collimation with customizable options and high precision.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 20 mm
- Focal Length
- 150 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 20 mm
- Focal Length
- 150 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The plano-convex lens made from fused silica is designed for applications in laser-cutting and collimation. With a diameter of 20 mm and a focal length of 150 mm, it provides precise laser focusing essential for welding and other high-precision tasks. The lens features an anti-reflective coating that minimizes glare and enhances light transmission, ensuring optimal performance in demanding environments.
Key Features
- Diameter of 20 mm with a tolerance of +/-0.05 mm for precise alignment
- Focal length of 150 mm, ideal for laser-cutting applications
- Surface quality rated at 60/40 for reliable performance
- Clear aperture of 90% maximizes light transmission
- Customizable options available for OEM, ODM, and OBM support
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 20 x 150 |
Applications
Laser Cutting, Collimation
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 20 mm |
| Focal Length | 150 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Weight | 0.03 |
| Center Thickness | 4.5mm |
| Diameter Tolerance | +/-0.05mm |
| Clear Aperture | 90% |
FAQ
Is custom sizing available?
Yes, customizable solutions support OEM, ODM, and OBM options.
What is the diameter tolerance?
The diameter tolerance is +/-0.05 mm, ensuring precise alignment.
