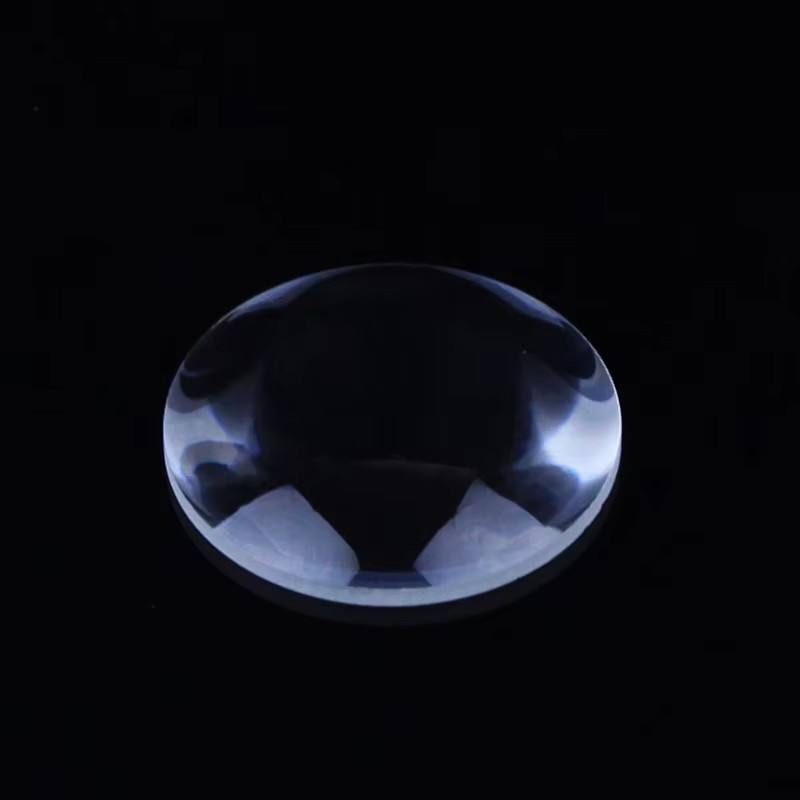

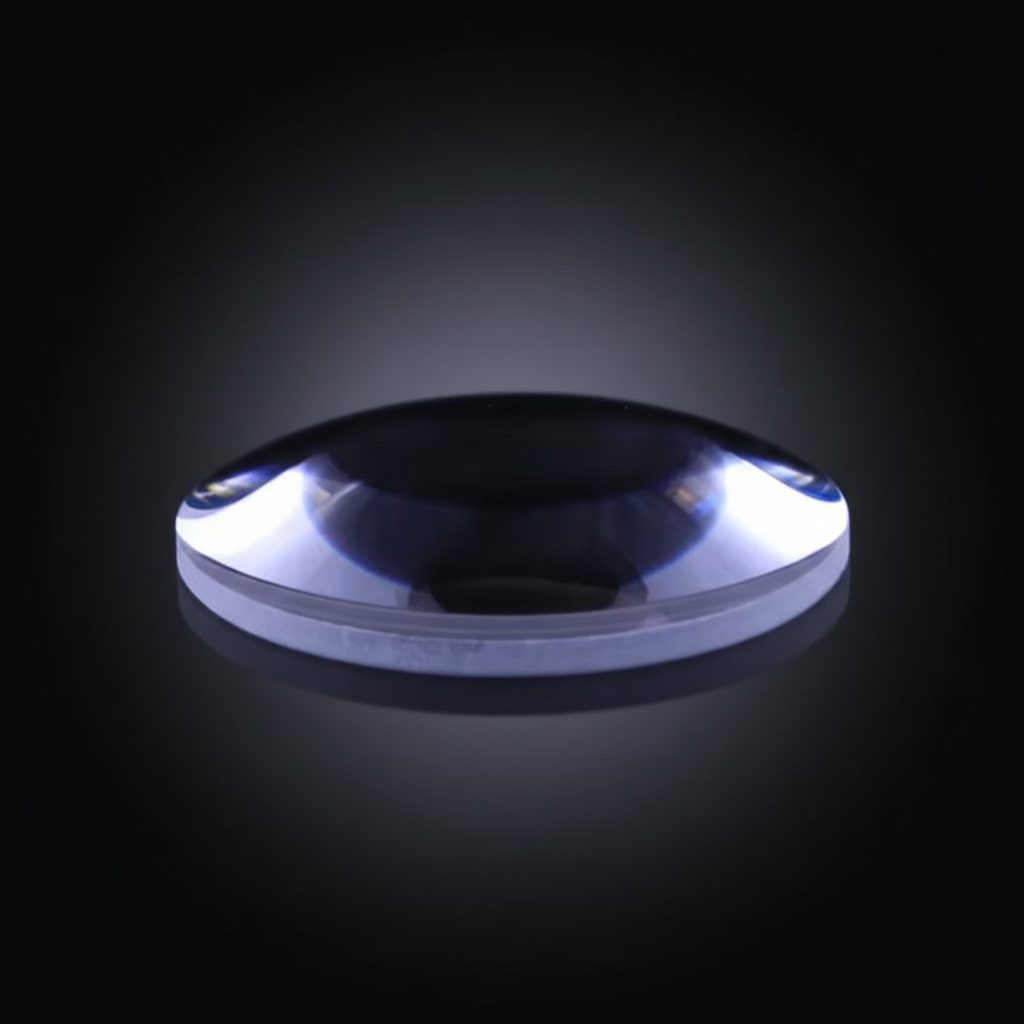

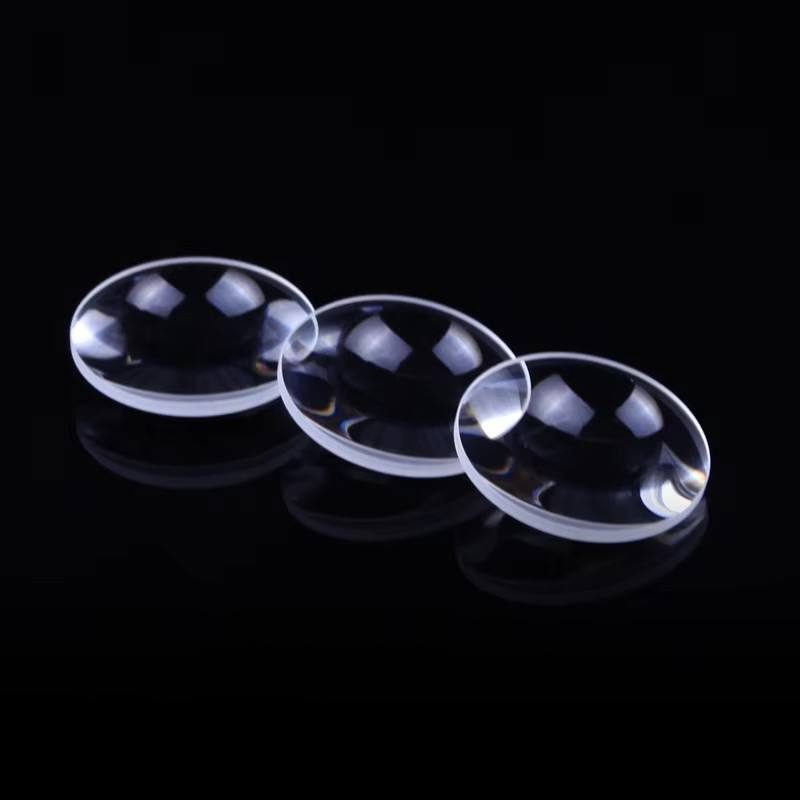

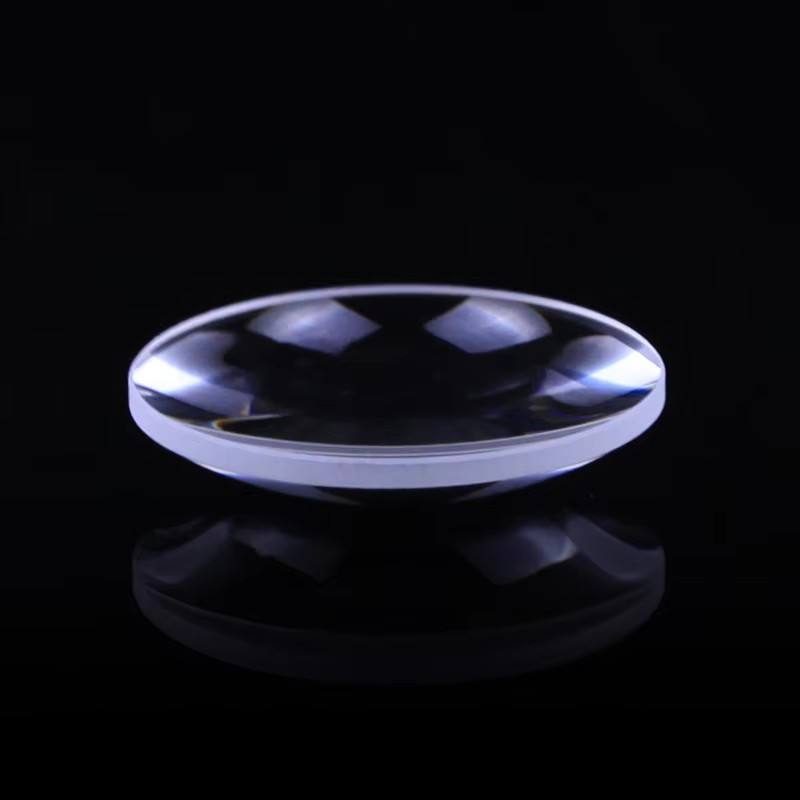

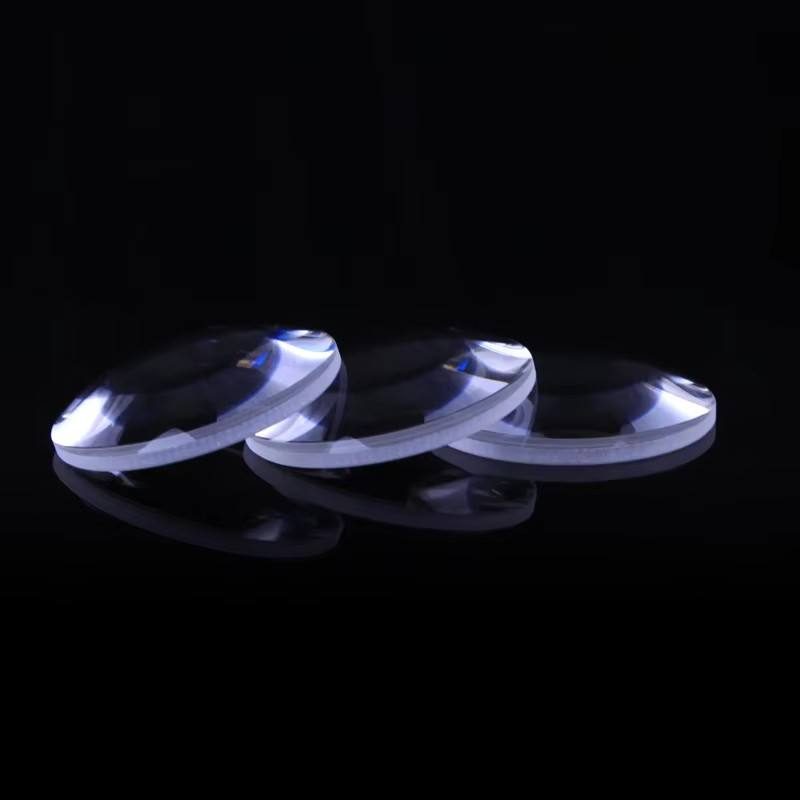

22.2x57 mm Fused Silica Plano-convex Lens, AR Coated
Plano-convex fused silica lens for collimation and semiconductor applications, 400-700 nm range, customizable sizes available.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 22.2 mm
- Focal Length
- 57 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 22.2 mm
- Focal Length
- 57 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
This plano-convex lens made from high-purity fused silica is designed for applications in collimation and semiconductor processes, operating effectively across a wide wavelength range of 400-700 nm. With a focal length of 57.0 mm and a diameter of 22.23 mm, it ensures high-performance light focusing and collimation. The lens features anti-reflective coatings for enhanced transmittance and is suitable for various optical systems, including UV laser applications and precision scientific research.
Key Features
- Diameter of 22.23 mm for compatibility with standard optical setups.
- Focal length of 57.0 mm for effective light collimation.
- Surface quality rated at 60/40 for reliable performance.
- Customizable options available, including OEM, ODM, and OBM support.
- Weight of 0.3 kg for easy integration into various systems.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 22.2 x 57 |
Applications
Collimation, Semiconductor
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 22.2 mm |
| Focal Length | 57 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.3 |
| Diameter Tolerance | +/-0.1 |
| Surface Flatness | 1/4@633nm |
| Clear Aperture | >=central 80% of diameter |
FAQ
What is the diameter tolerance for this lens?
The diameter tolerance is +/-0.1 mm.
Are custom sizes available for this lens?
Yes, customizable options include OEM, ODM, and OBM support.
