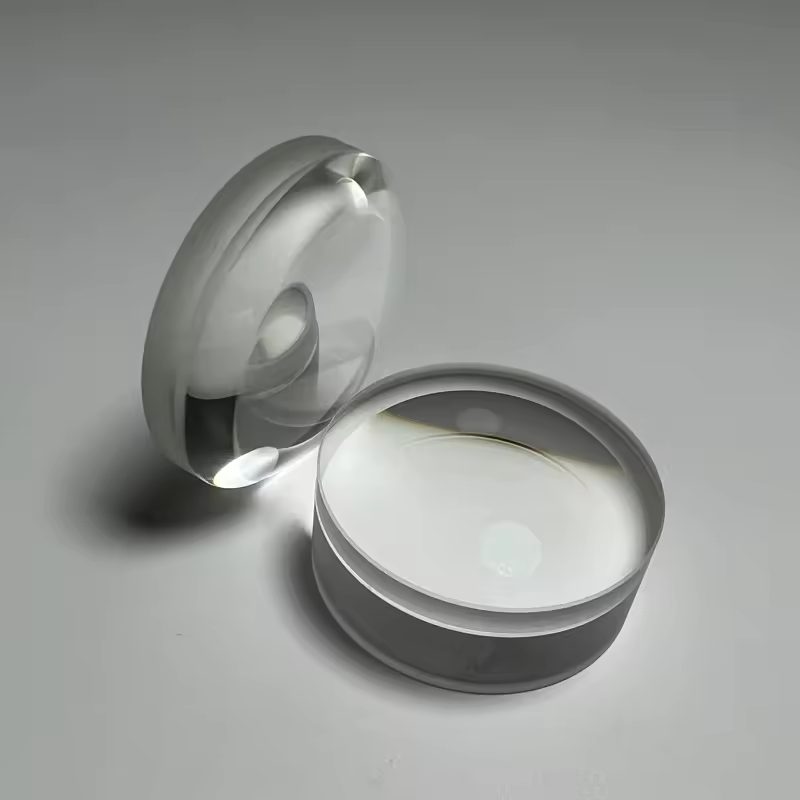

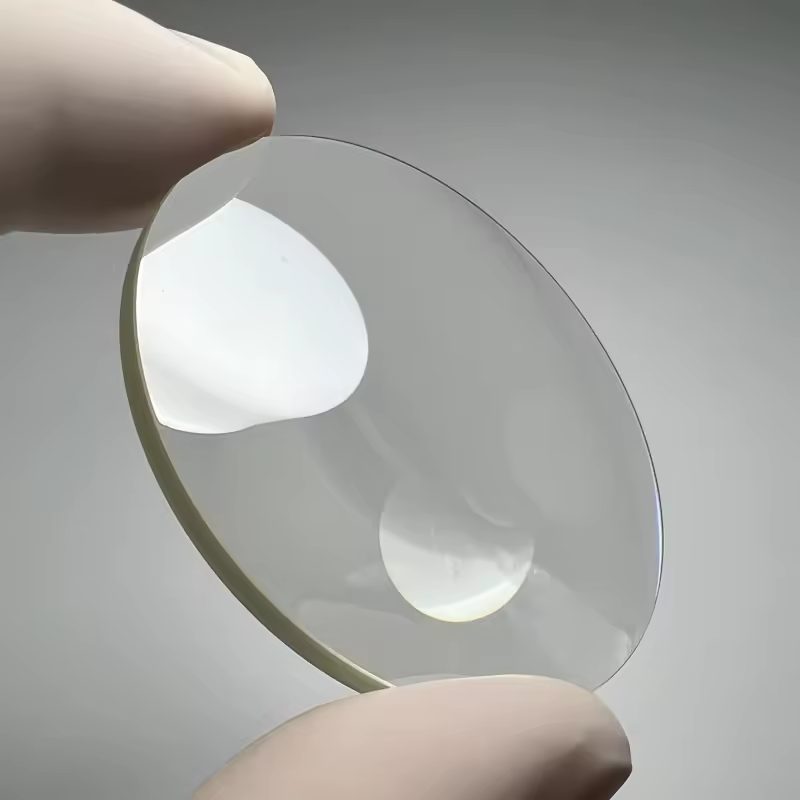

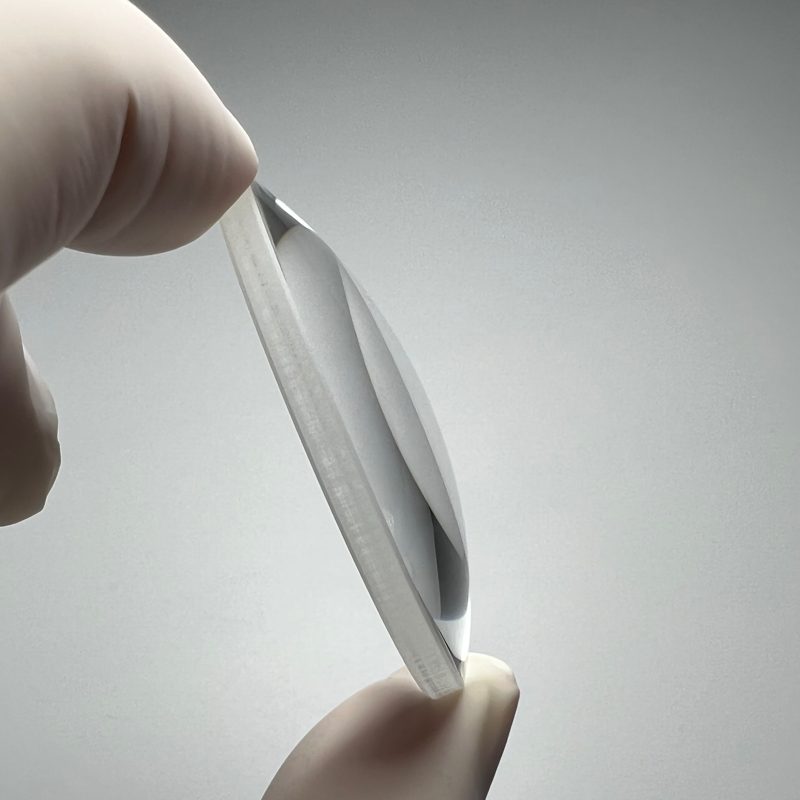

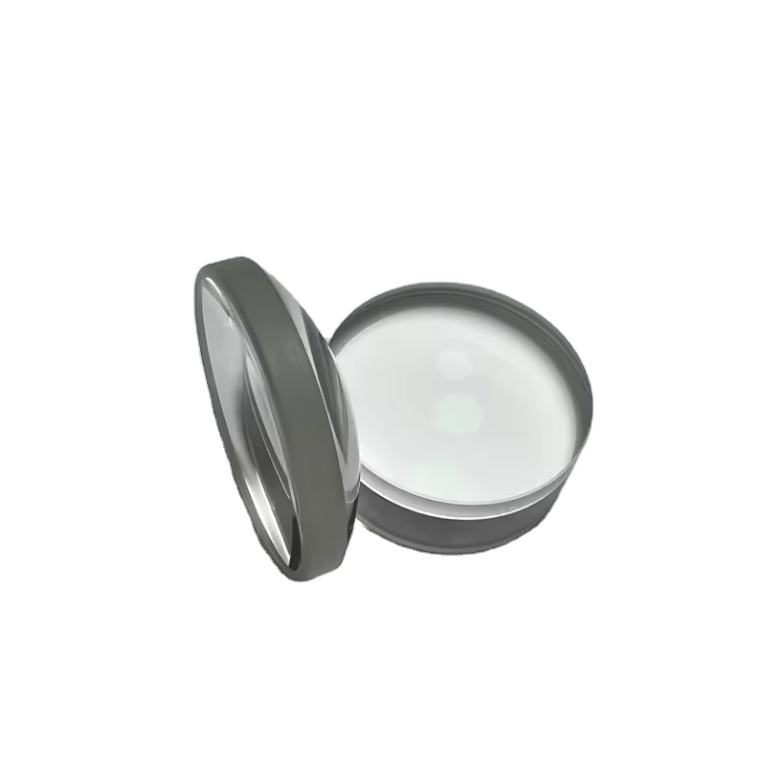

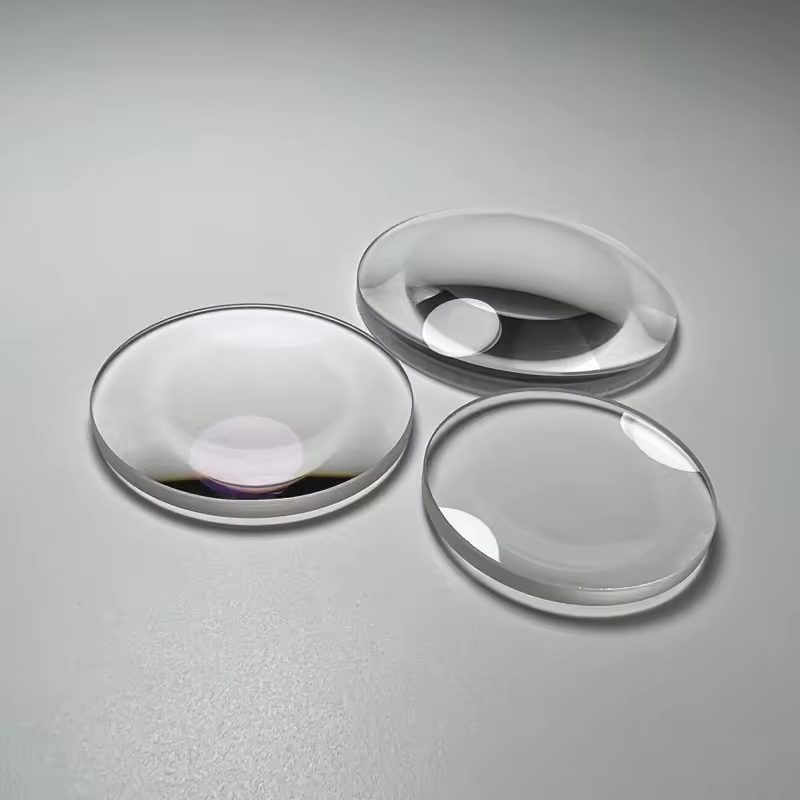

25.4x4.6 mm Fused Silica Plano-convex Lens, AR Coated
Fused silica plano-convex lens for IR applications, customizable sizes, and OEM/ODM support available.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 25.4 mm
- Focal Length
- 4.6 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 25.4 mm
- Focal Length
- 4.6 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This plano-convex lens made from fused silica is designed for high-performance applications in the infrared spectrum, particularly in microscopy. With a wavelength range of 200-2500 nm, it ensures excellent transmittance for various light bands, including 1.7-3 μm and 0.7-1.7 μm. The lens features a surface quality of 60/40 and is available in a standard diameter of 25.4 mm with a focal length of 4.61 mm, making it suitable for precise optical tasks. Custom sizes can be accommodated to meet specific project requirements.
Key Features
- Wavelength range: 200-2500 nm for versatile application in IR and visible light.
- Diameter of 25.4 mm ensures compatibility with standard optical systems.
- Surface quality of 60/40 provides reliable performance in microscopy.
- Custom sizes available to fit unique project specifications.
- OEM, ODM, and OBM support for tailored optical solutions.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 25.4 x 4.6 |
Applications
Microscopy
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 25.4 mm |
| Focal Length | 4.6 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.3 |
| Wavelength | 200-2500nm |
| Diameter Tolerance | 0.2mm |
| Center Thickness Tolerance | ±0.1mm |
| Package | safe |
FAQ
What are the tolerances for diameter and center thickness?
Diameter tolerance is ±0.2 mm and center thickness tolerance is ±0.1 mm.
Is there a minimum order quantity (MOQ) for this lens?
The minimum order quantity is not specified, allowing for flexible purchasing.
