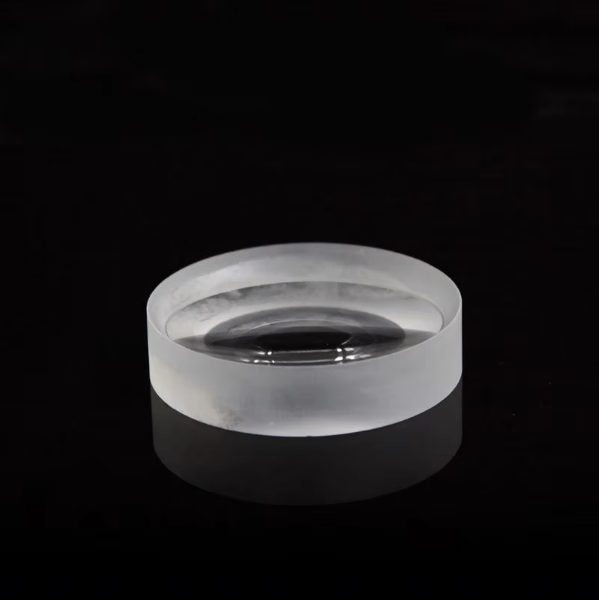

25.4 mm Fused Silica Plano-convex Lens, AR Coated

Product description

This plano-convex lens made from fused silica is engineered for optimal performance across a wide wavelength range of 200-2500 nm, making it suitable for applications in IR imaging, LIDAR, and medical devices. With a surface quality of 60/40, it ensures high optical clarity, while its customizable diameter allows for tailored solutions to meet specific project requirements. The lens is designed to provide reliable performance in demanding environments.

Key Features

Wavelength range: 200-2500 nm for versatile application fit.
60/40 surface quality ensures high optical clarity for precise measurements.
Customizable diameter (±0.2 mm tolerance) to meet specific design needs.
OEM, ODM, OBM support for flexible production options.
Lightweight design (0.3 kg) for easy integration into various systems.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Plano-convex
Diameter	25.4 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.3
Wavelength	200-2500nm
Diameter Tolerance	0.2mm
Center Thickness Tolerance	±0.1mm
Package	safe

FAQ

Can I get custom sizes for this lens?

Yes, the lens offers customizable diameters to meet specific customer needs.

What are the tolerances for diameter and center thickness?

Diameter tolerance is ±0.2 mm and center thickness tolerance is ±0.1 mm.
