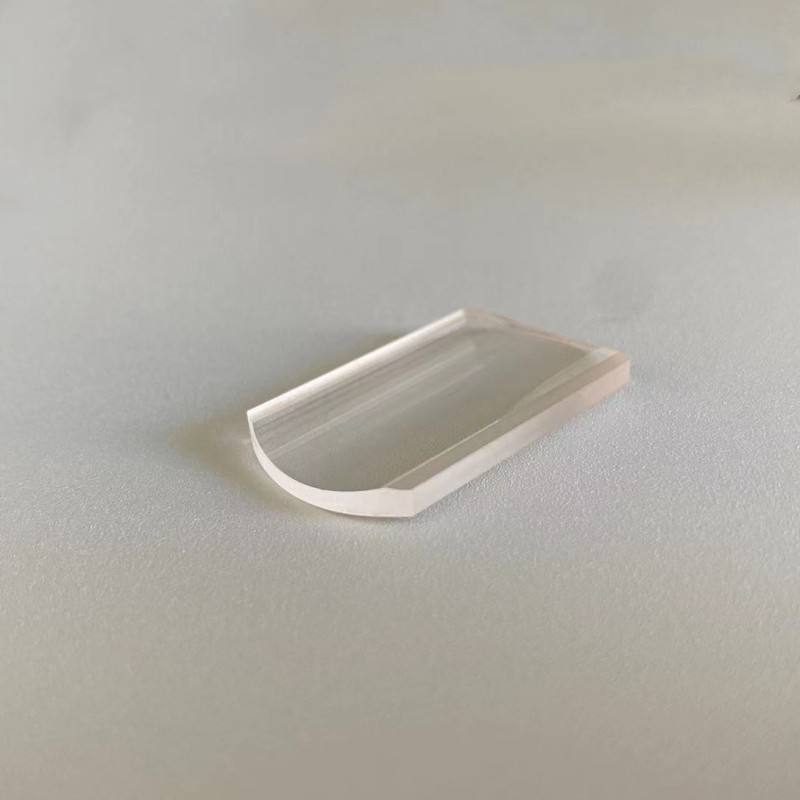

2 mm Fused Silica Plano-convex Lens, AR Coated
Explore our plano-convex fused silica lens for high clarity across multiple wavelengths.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 2 mm
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 2 mm
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This plano-convex lens made from fused silica is ideal for applications requiring high clarity and durability across a range of wavelengths, including 0.7-1.7 μm, 400-700 nm, and <400 nm. With a surface quality of 1/4 and an anti-reflective coating, it minimizes light reflection, enhancing transmission and performance. The lens is available in diameters from 2.0 mm to 300.0 mm, making it suitable for various optical systems and projects.
Key Features
- Material: Fused Silica for high clarity and durability.
- Surface Quality: 1/4 ensuring minimal distortion.
- Customizable Sizes: Available diameters from 2.0 mm to 300.0 mm.
- Dimension Tolerance: +0.0/-0.1 mm for precise fitting.
- Centration: <3’ for accurate alignment.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 2 mm |
| Surface Quality | 1/4 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano Convex Lens… |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.04 |
| Dimension | 1.0mm-200.0 mm |
| Focus Length | 1mm-100000mm |
| Dimension Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Centration | <3' |
| Clear Aperture | >90% |
| Bevelling | <0.2x45° |
FAQ
What are the available custom sizes?
Custom sizes range from 1.0 mm to 200.0 mm in diameter.
What are the tolerances for dimensions?
Dimension tolerance is +0.0/-0.1 mm, and thickness tolerance is ±0.1 mm.
