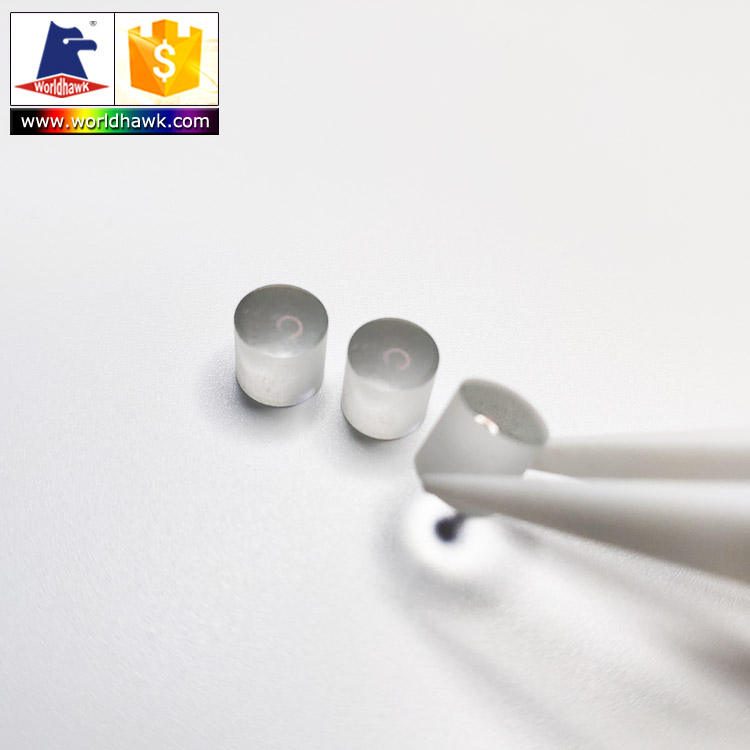

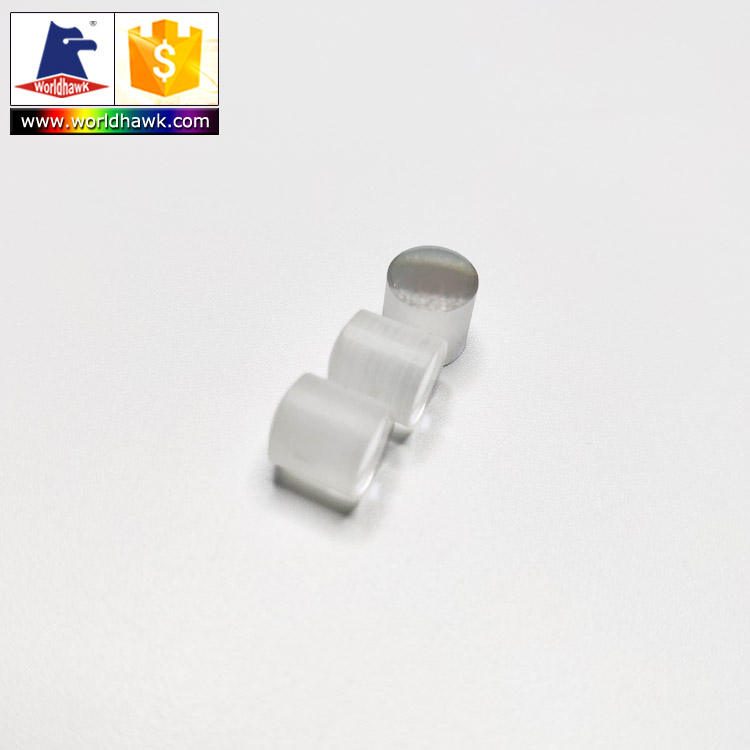

2 mm Fused Silica Plano-convex Lens, AR Coated

Product description

The plano-convex lens made from fused silica is designed for applications in medical imaging and microscopy, effectively focusing light in the 400-700 nm and <400 nm wavelength ranges. Its high-quality construction ensures optimal performance in diverse optical systems. With a diameter of 2.0 mm and a center thickness of 7.70 mm, this lens is suitable for compact devices requiring precise light manipulation. Customization options are available to meet specific project needs.

Key Features

Diameter of 2.0 mm for compact applications.
Center thickness of 7.70 +/- 0.03 mm for precise optical performance.
Surface quality S/D of 3/0.5 ensures minimal distortion.
Centration of 4/4’ for accurate light alignment.
ISO9001 certification guarantees reliable manufacturing standards.

Applications

Medical, Microscopy, Imaging

Specification Summary

Item	Value
Material	Fused Silica
Shape	Plano-convex
Diameter	2 mm
Coating	anti-reflective (AR), mgf2
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM
Center Thickness	7.70+/-0.03mm
S/D	3/0.5
Centration	4/4'
Bevel	<0.2mm*45°
Certification	ISO9001

FAQ

Can I get custom sizes for this lens?

Custom-made spherical lenses are available in sizes from 2.0 mm to 500 mm.

What are the tolerances for diameter and center thickness?

Diameter tolerance is +/-0.1 mm, and center thickness tolerance is +/-0.1 mm.
