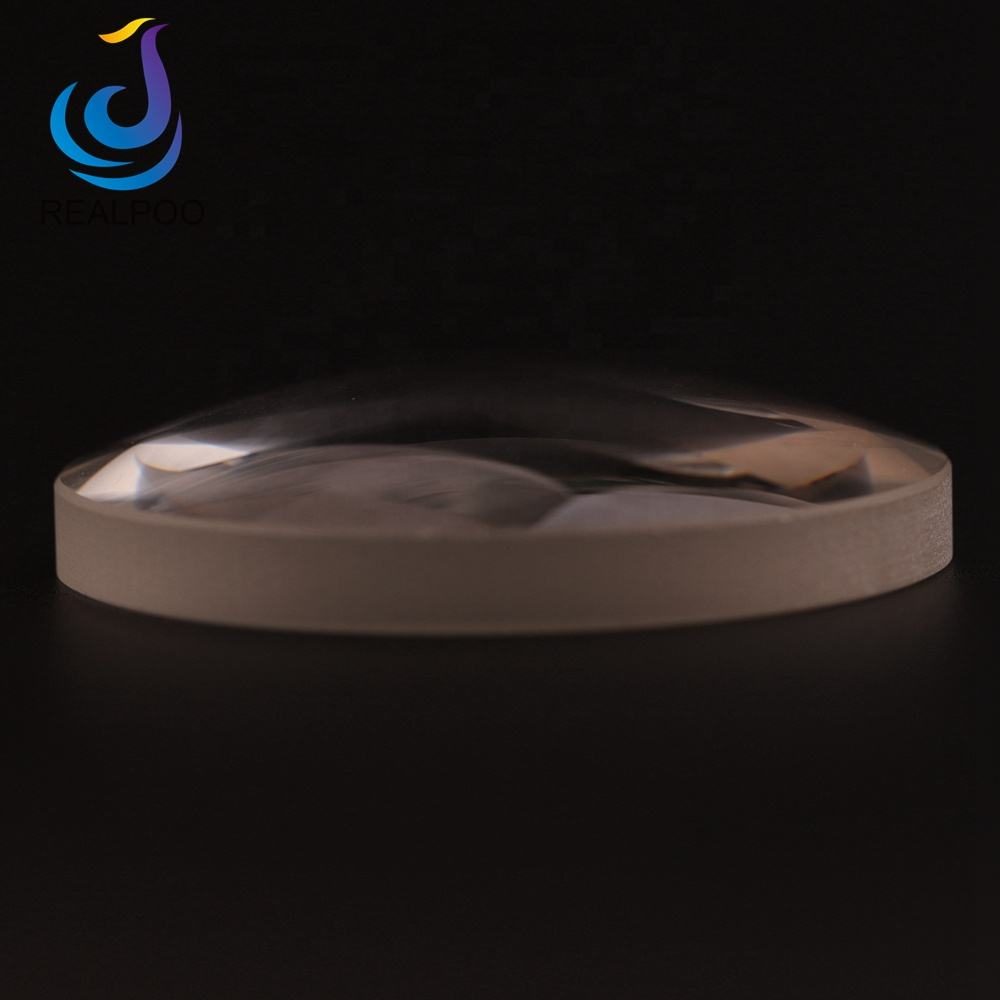

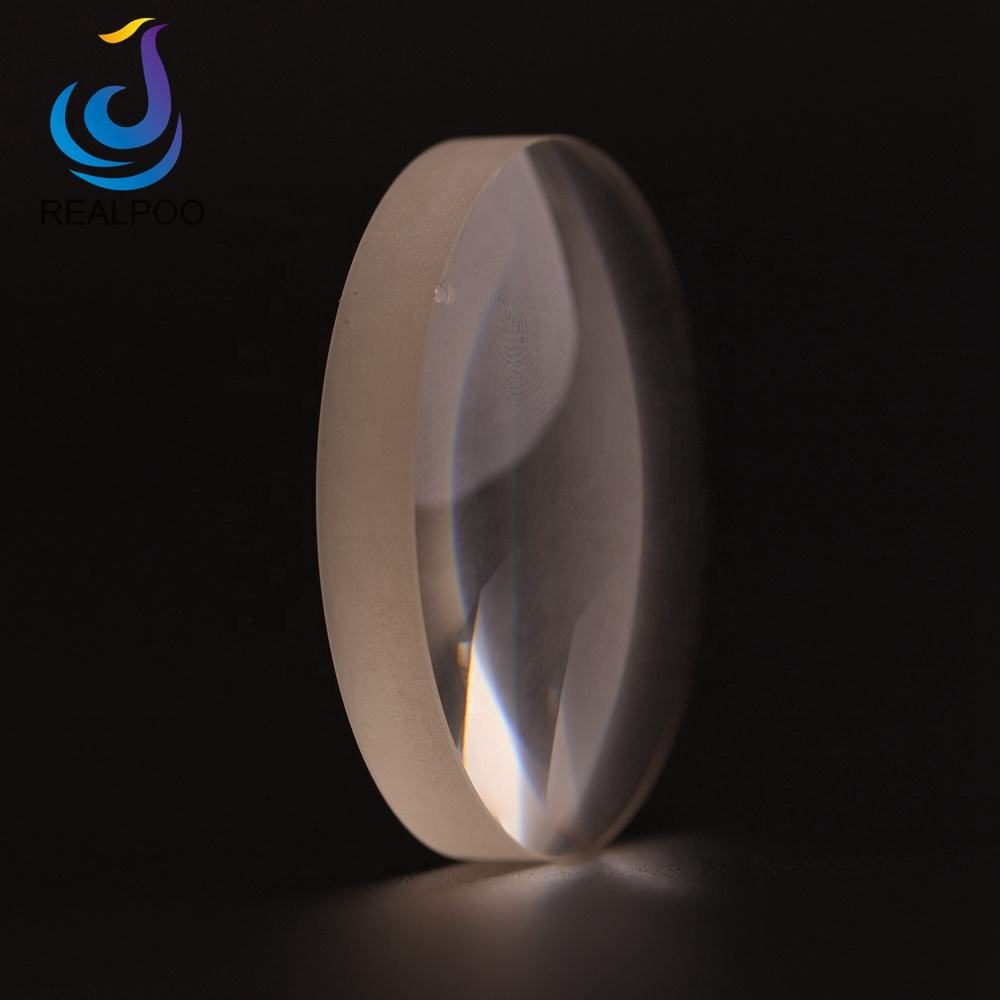

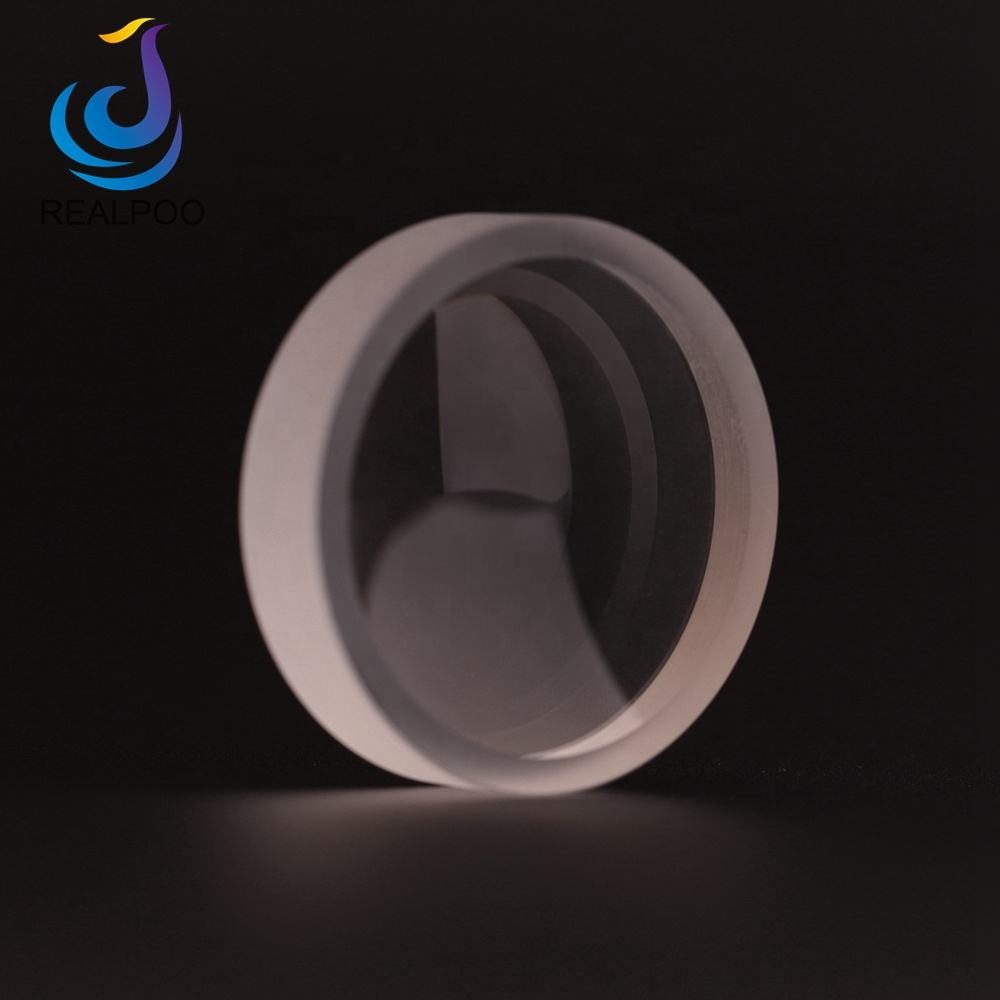

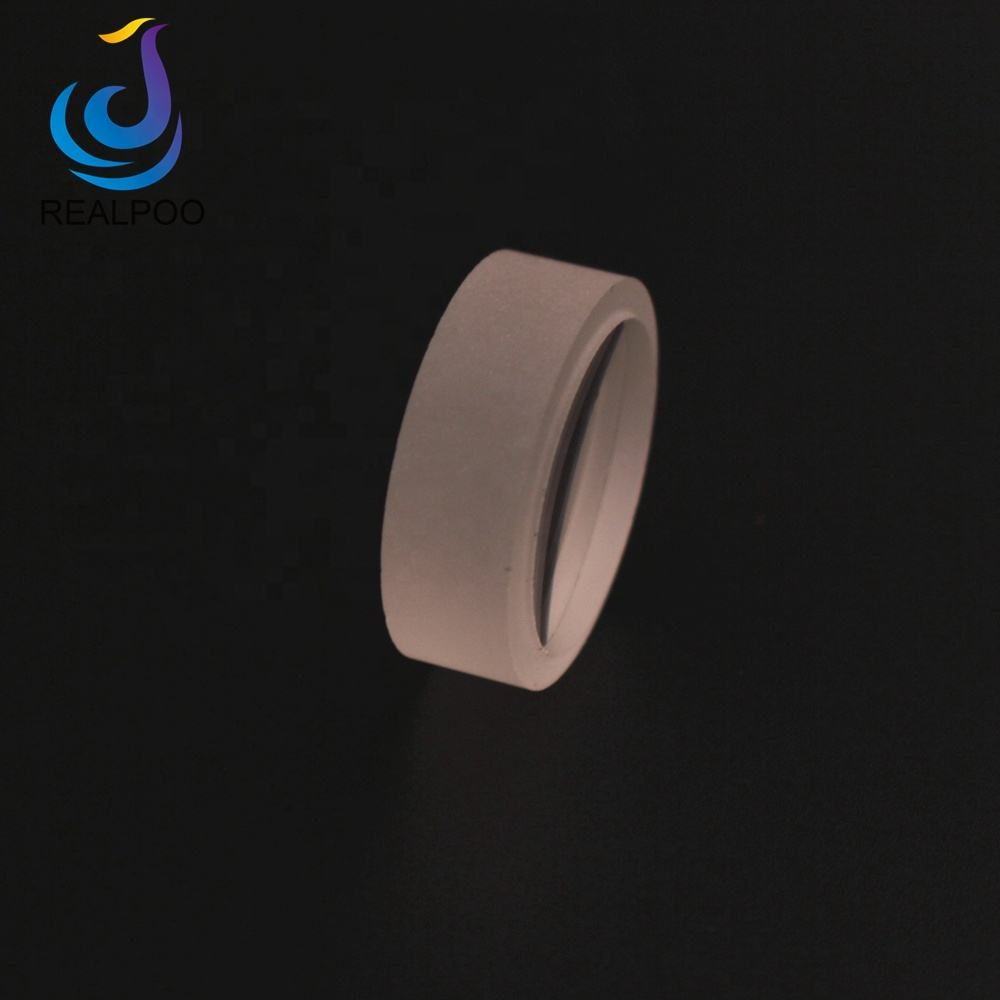

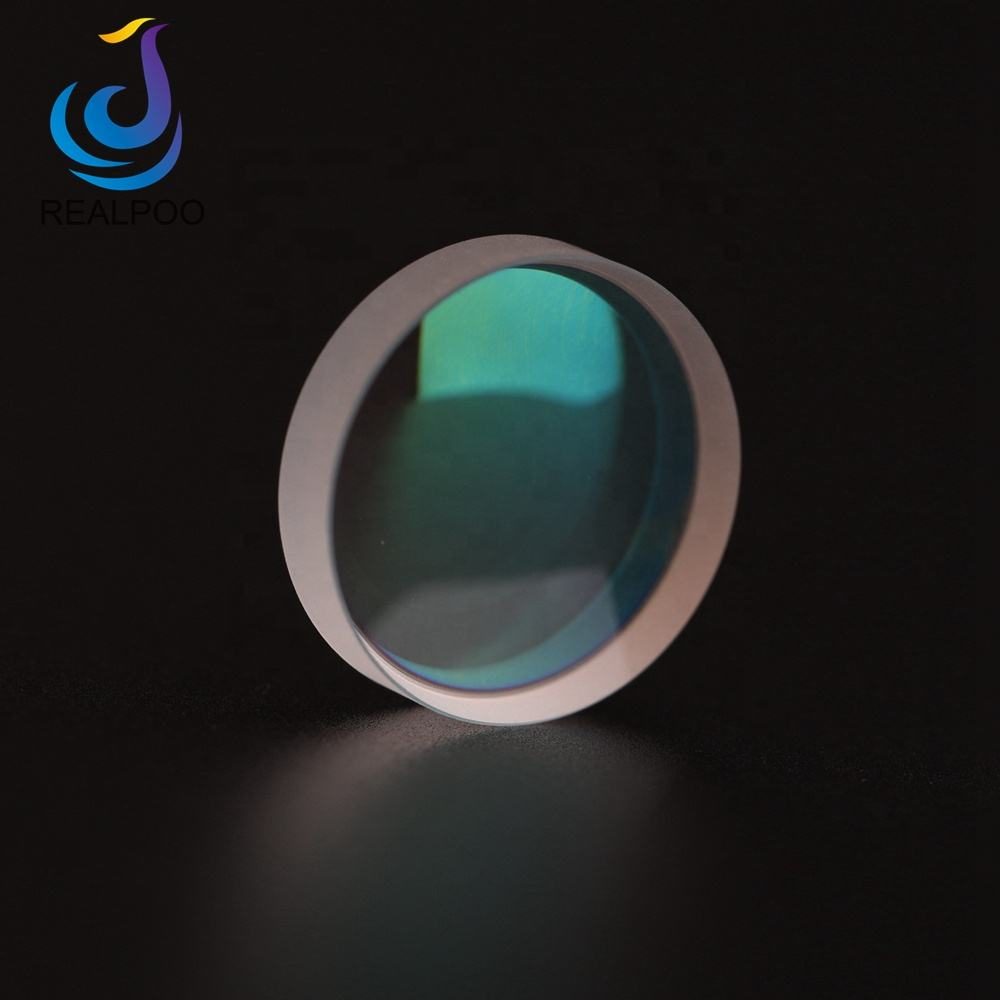

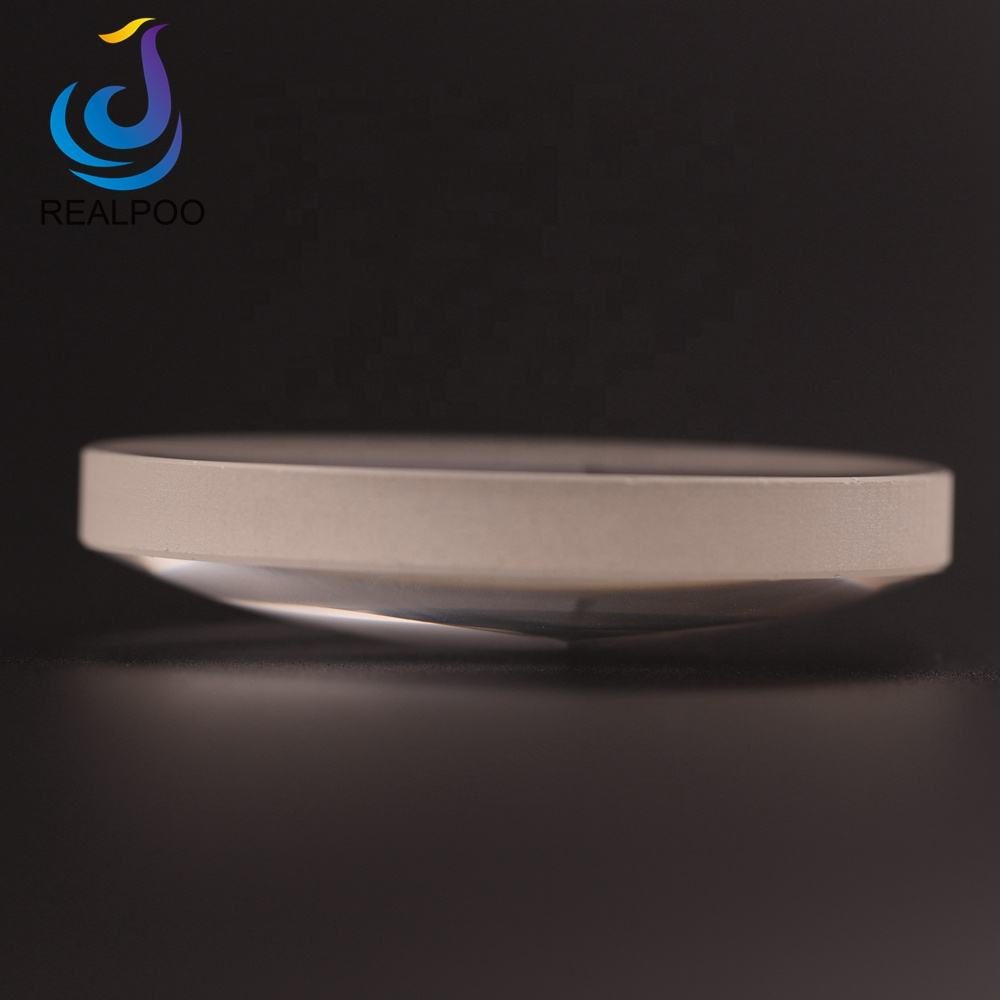

3 mm Fused Silica Plano-convex Lens, AR Coated

Product description

This plano-convex lens, made from fused silica, is designed for applications requiring precise collimation across a broad wavelength range of 0.7-1.7 μm and <400 nm. Its excellent surface quality of 20/10 ensures minimal distortion, making it ideal for demanding optical systems. The lens can be sourced in diameters ranging from 3.0 mm to 150.0 mm, providing flexibility for various applications in IR imaging, LIDAR, and medical devices.

Key Features

Wavelength range: 0.7-1.7 μm and <400 nm for versatile application fit.
Surface quality of 20/10 for high clarity and minimal distortion.
Diameter options from 3.0 mm to 150.0 mm for customized solutions.
Diameter tolerance of +0.0, -0.05 mm ensures precise fitting.
OEM support available for tailored design and manufacturing.

Applications

Collimation

Specification Summary

Item	Value
Material	Fused Silica
Shape	Plano-convex
Diameter	3 mm
Surface Quality	20/10
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Concave Lens
Customized Support	OEM
Weight	0.1
Diameter Tolerance	+0.0, -0.05mm
Thickness Tolerance	+/-0.1
Clear Aperture	>90%

FAQ

Can I get custom sizes?

Yes, diameters are available from 3.0 mm to 150.0 mm, allowing for custom sizing.

What are the tolerances for diameter and thickness?

Diameter tolerance is +0.0, -0.05 mm, and thickness tolerance is +/-0.1 mm.
