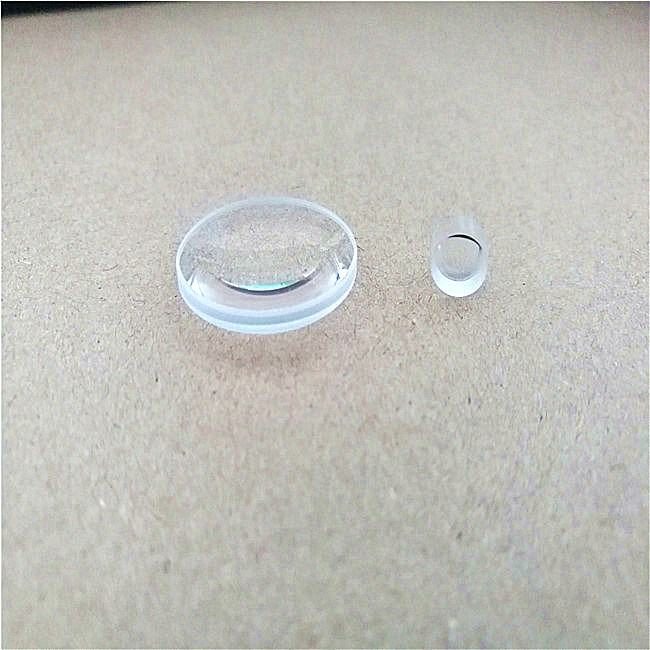

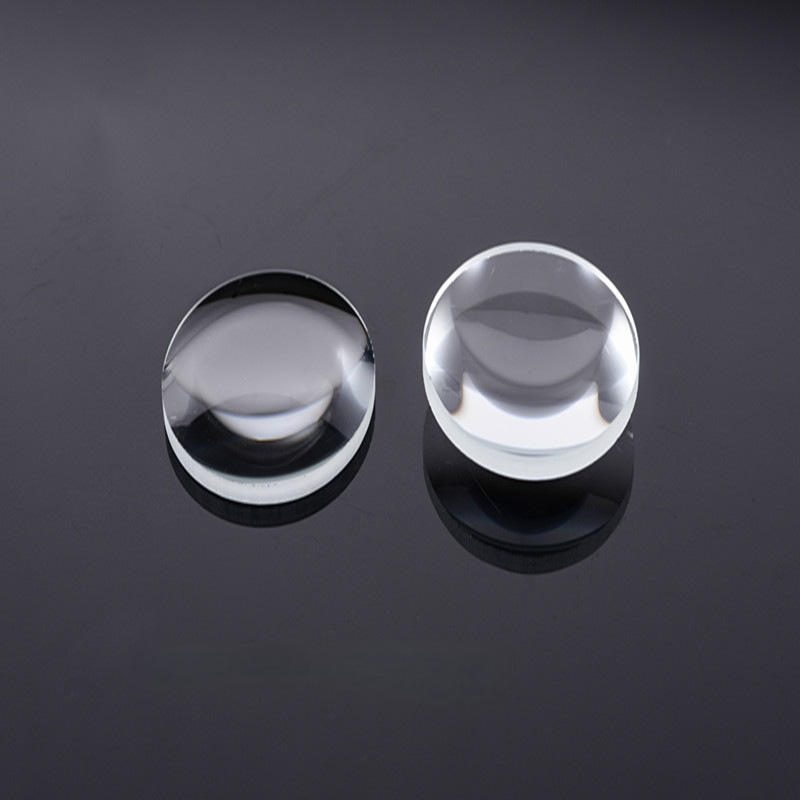

3 mm Fused Silica Plano-convex Lens, AR Coated
Discover customizable plano-convex lenses made from fused silica for laser-cutting and imaging applications.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 3 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 3 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This plano-convex lens made from fused silica is ideal for applications in laser-cutting and imaging across a broad spectral range of 1.7-3 μm, 400-700 nm, and <400 nm. Its design allows for effective light focusing, making it suitable for various optical systems. With high transmittance and excellent chemical and temperature resistance, this lens meets the demands of harsh environments. Custom sizes and low minimum order quantities (MOQ) are supported, ensuring flexibility for R&D and procurement engineers.
Key Features
- High transmittance across 200 nm to 2500 nm, enhancing optical efficiency.
- Plano-convex design for precise light focusing, improving system performance.
- Durable against high temperatures and chemical corrosion, suitable for harsh environments.
- Customizable support for OEM, ODM, and OBM, accommodating specific project needs.
- Tolerance of diameter at +0.0/-0.1 mm, ensuring precise fit in applications.
Applications
Laser Cutting, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 3 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Aspherical Lens, Concave Lens, Plano Convex Lens, Biconvex Lens, Ac… |
| Customized Support | OEM, ODM, OBM |
| Warranty | 2 years |
| Weight | as drawing |
| Tolerance | 0.1mm ~ +/-0.02mm |
| Surface | 40/20 ~80/50 |
FAQ
Can I get custom sizes for this lens?
Yes, the lens is factory customizable to meet specific size requirements.
What is the tolerance for diameter?
The tolerance for diameter is +0.0/-0.1 mm, ensuring precision in applications.
