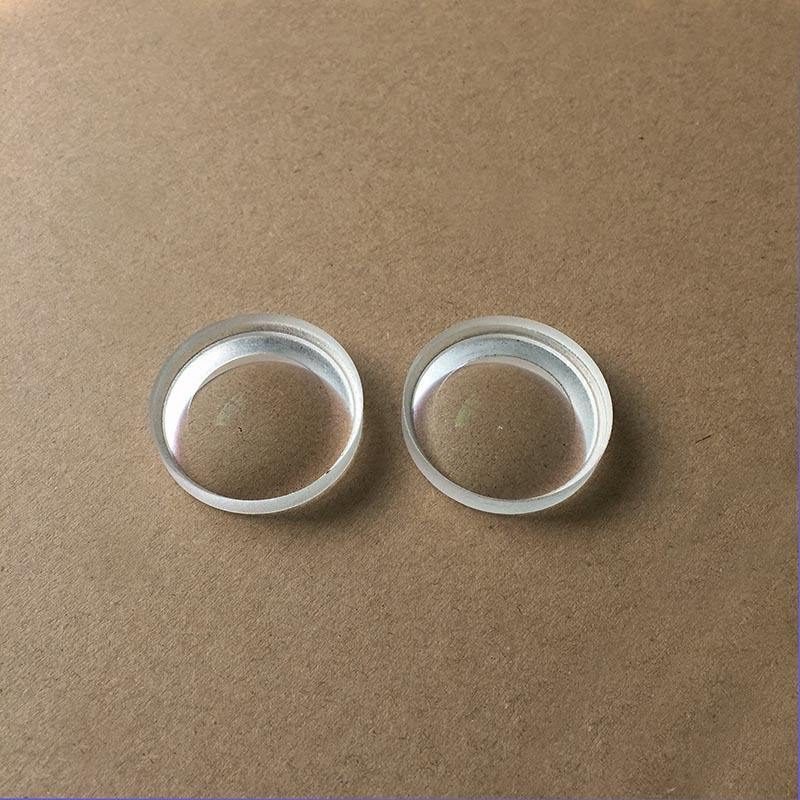

3 mm Fused Silica Plano-convex Lens, AR Coated

Product description

Plano-convex lenses made from Fused Silica are ideal for applications in collimation and imaging across the 400-700 nm wavelength range. These lenses feature a positive focal length and are designed for infinite conjugate use, making them suitable for various optical systems. With a diameter range from 3.0 mm to 1000.0 mm, they can be customized to fit specific project requirements, ensuring versatility and reliability in performance.

Key Features

Diameter options from 3.0 mm to 1000.0 mm for versatile applications.
Clear aperture greater than 90% ensures minimal light loss.
Centration tolerance of < 3 arcmin for precise alignment.
Focal length tolerance of ±1% for consistent focusing performance.
Customized support available for OEM and ODM projects.

Applications

Collimation, Imaging

Specification Summary

Item	Value
Material	Fused Silica
Shape	Plano-convex
Diameter	3 mm
Coating	anti-reflective (AR), high-reflective (HR)
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Focus Lenses, Meniscus Lenses
Customized Support	OEM, ODM, As drawings
Warranty	1 months
Weight	customization
Focal Length Tolerance	±1%
Centration	< 3 arcmin
Bevel	0.2-0.5mmx45°
Clear Aperture	>90%

FAQ

Can these lenses be customized?

Yes, customization is available for sizes and specifications as per drawings.

What is the minimum order quantity?

Minimum order quantity details are not specified; please inquire for specifics.
