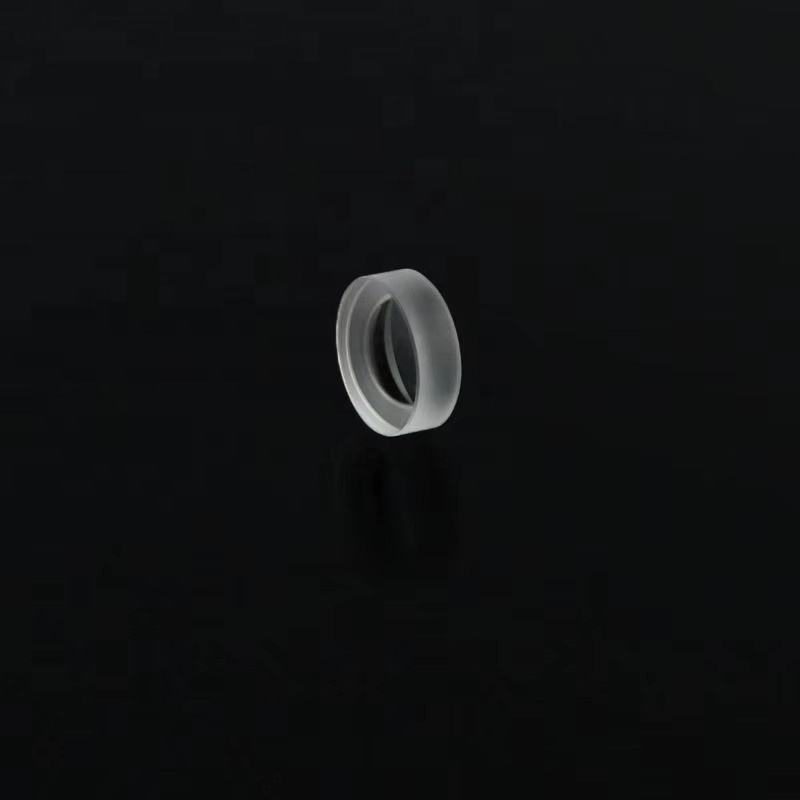

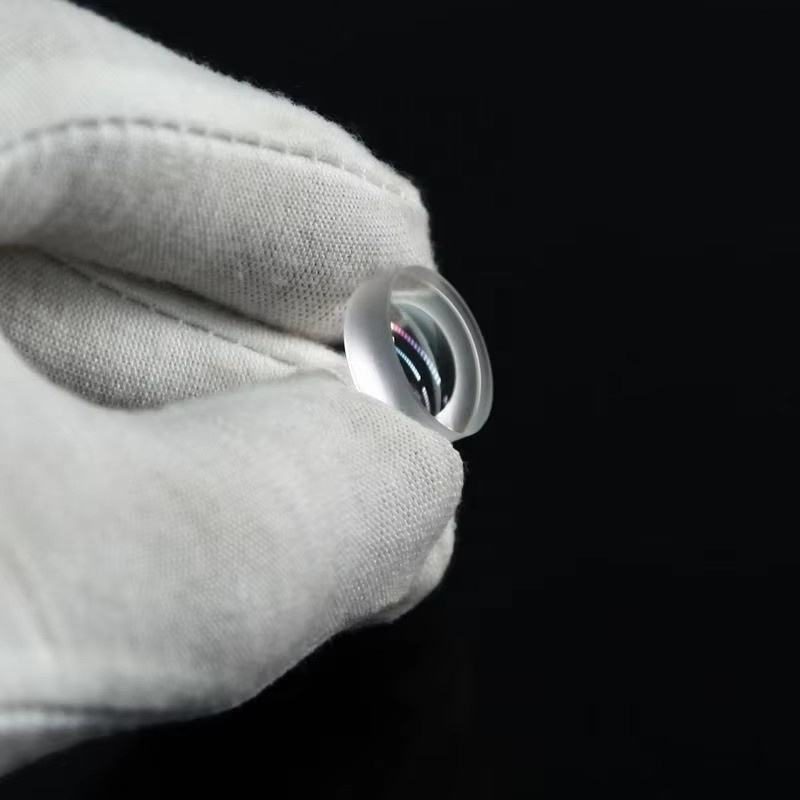

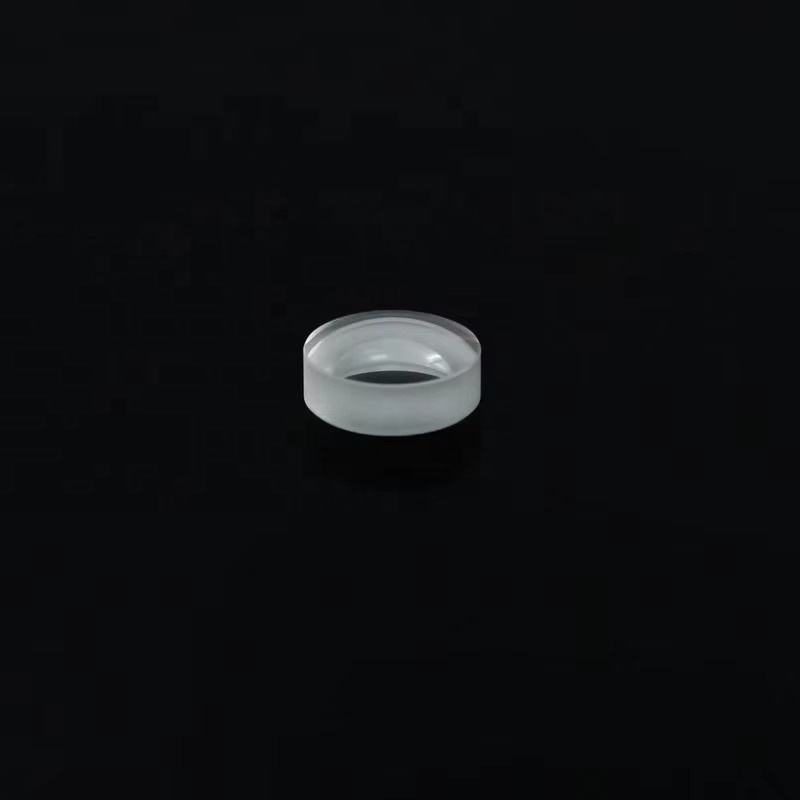

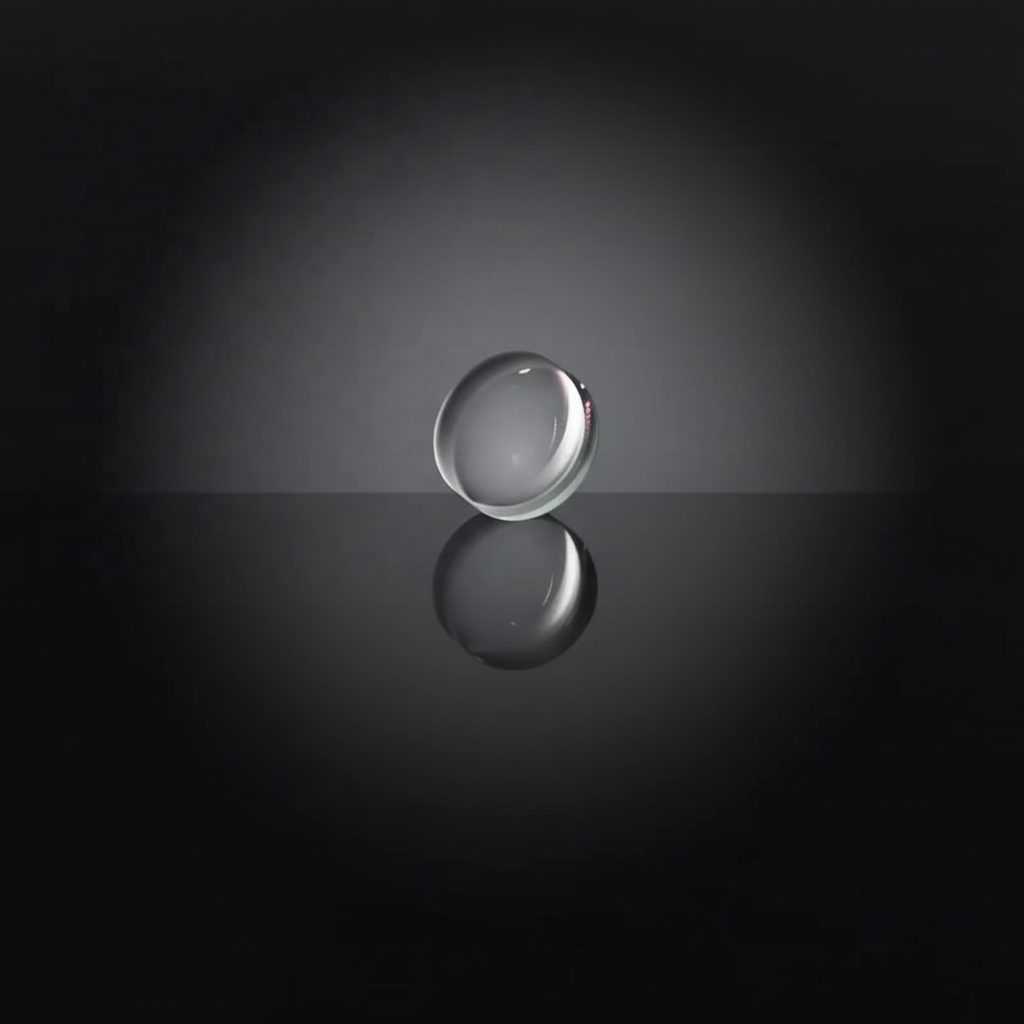

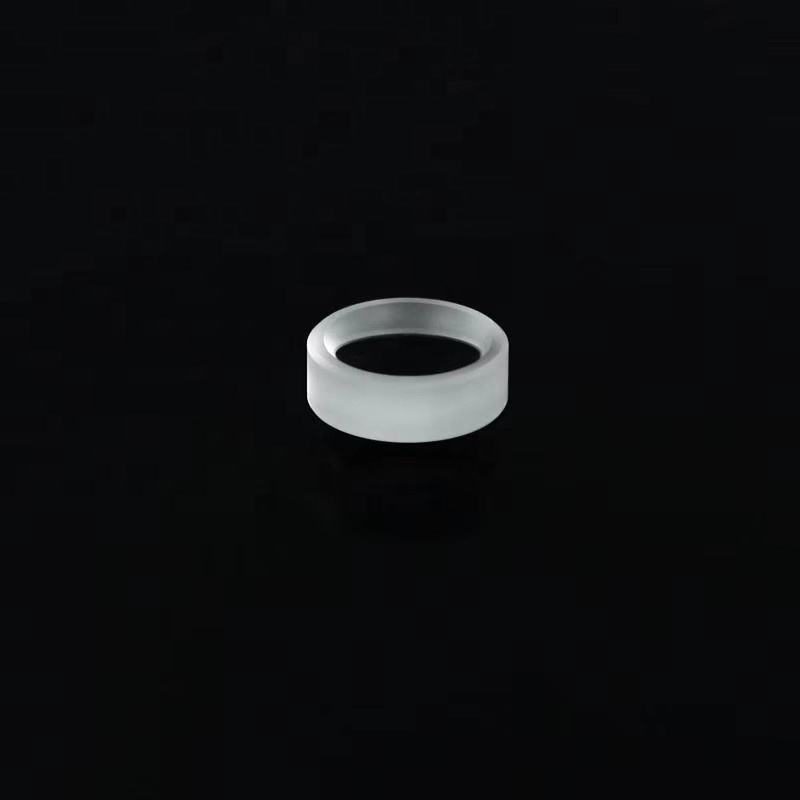

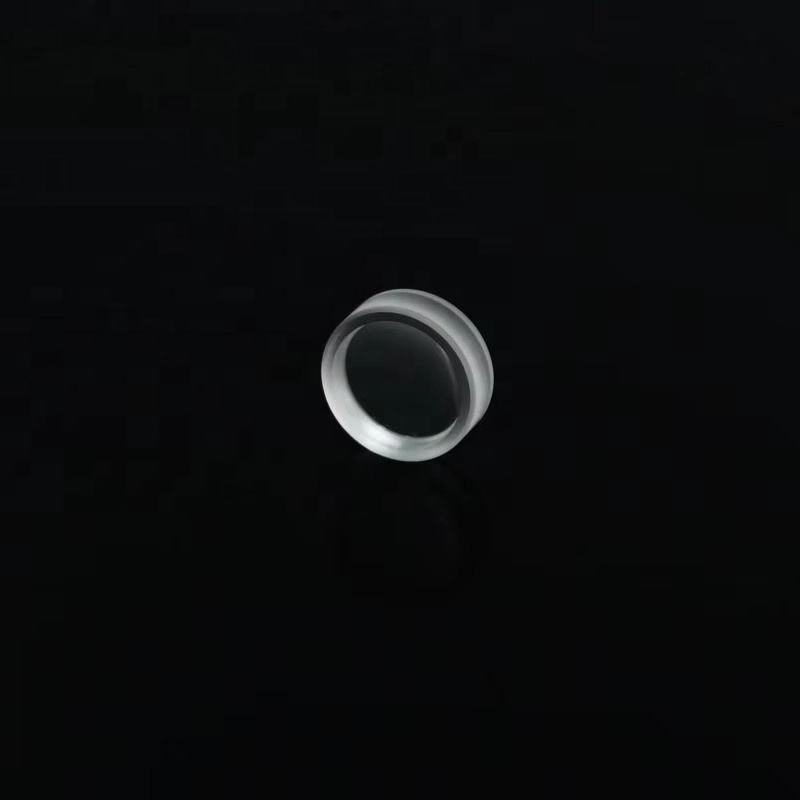

5x10 mm Fused Silica Plano-convex Lens, AR Coated
Plano-convex fused silica lens for collimation in UV and visible applications, with customizable sizes and high thermal stability.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 5 mm
- Focal Length
- 10 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 5 mm
- Focal Length
- 10 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
This plano-convex lens made from high-purity fused silica is ideal for applications requiring effective light collimation and focusing across a wide transmission spectrum of 400-700 nm. Its robust design ensures high thermal stability and chemical resistance, making it suitable for semiconductor lithography and UV laser systems. With a diameter of 5.0 mm and a focal length of 10.0 mm, this lens meets the demands of precision scientific research and optical detection.
Key Features
- Wide transmission spectrum (400-700 nm) for versatile applications.
- High thermal stability ensures reliable performance in demanding environments.
- Surface quality of 60/40 for effective light transmission.
- Diameter tolerance of +/-0.1 mm for precise fitting.
- Custom sizes available, including variants of 5.0 mm and 10.0 mm.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 5 x 10 |
Applications
Collimation, Semiconductor
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 5 mm |
| Focal Length | 10 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.03 |
| Diameter Tolerance | +/-0.1 |
| Surface Flatness | 1/4@633nm |
| Clear Aperture | >=central 80% of diameter |
FAQ
What custom sizes are available?
Variants include sizes of 5.0 mm and 10.0 mm.
What is the surface flatness specification?
The surface flatness is specified at 1/4@633nm.
