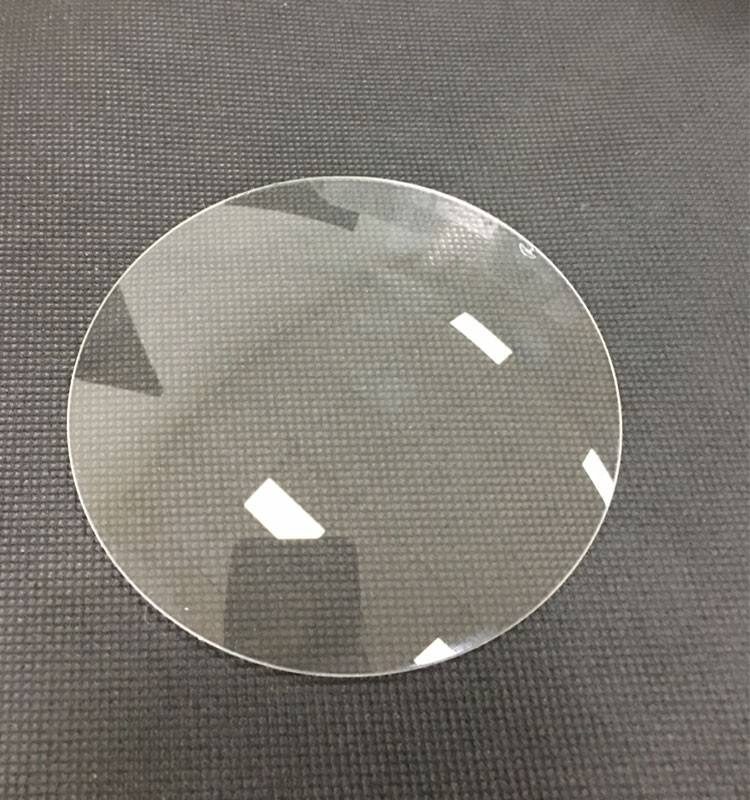

5 mm Fused Silica Plano-convex Lens, AR Coated

Product description

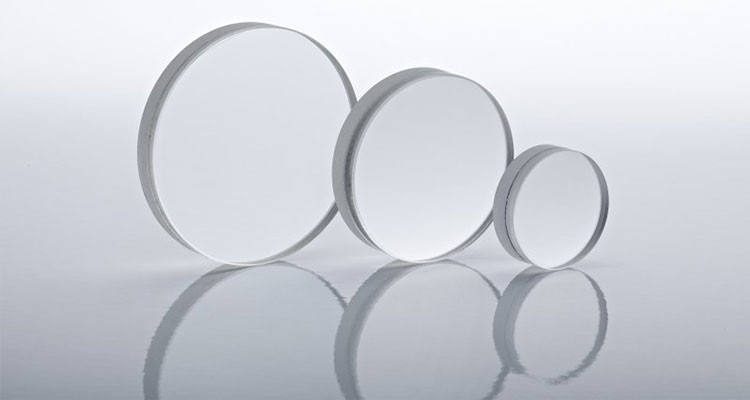

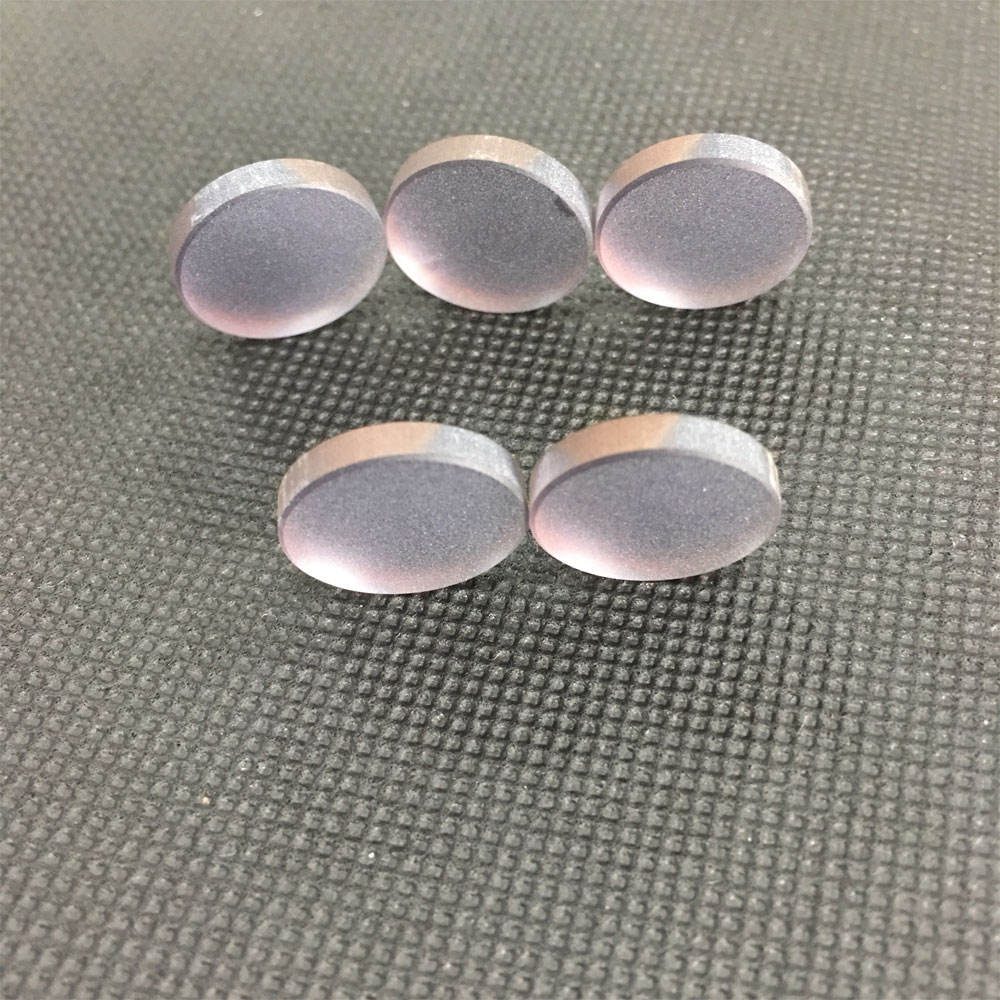

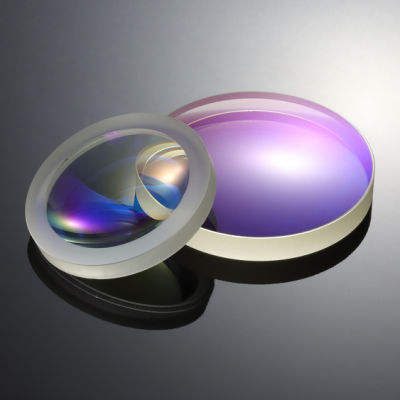

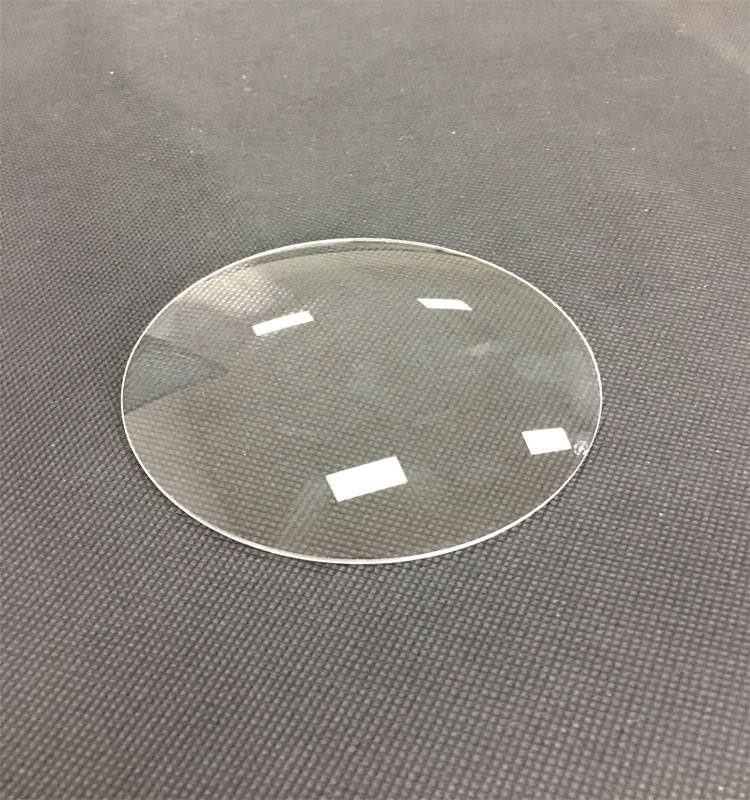

Plano-convex lenses made from Fused Silica are designed for applications in collimation and imaging within the 400-700 nm wavelength range. These lenses feature one spherical surface and one flat surface, providing a positive focal length ideal for focusing parallel light. Their versatility makes them suitable for various optical setups, ensuring effective light convergence in non-critical imaging tasks. Customizable options are available to meet specific project needs.

Key Features

Diameter range from 5.0 mm to 1000.0 mm for diverse applications.
OEM and ODM support for tailored solutions.
Dimension tolerance of +/-0.1 mm ensures precision.
Focal length tolerance of ±1% for consistent performance.
Parallelism specification of < 3 arcmin for enhanced optical accuracy.

Applications

Collimation, Imaging

Specification Summary

Item	Value
Material	Fused Silica
Shape	Plano-convex
Diameter	5 mm
Coating	anti-reflective (AR), high-reflective (HR)
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM
Warranty	6 months
Weight	0.05g
Dimension Tolerance	+/-0.1mm
Focal Length Tolerance	±1%
Parallelism	< 3 arcmin

FAQ

What custom sizes are available?

Custom diameters and thicknesses can be requested, ensuring fit for specific applications.

What is the minimum order quantity?

The minimum order quantity is not specified, allowing flexibility in ordering.
