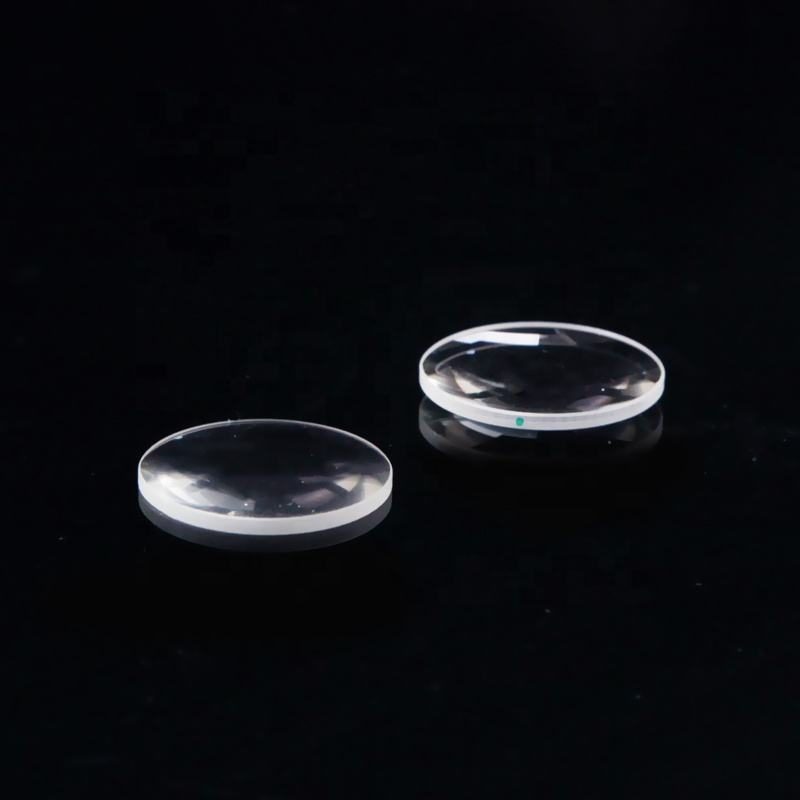

7 mm Fused Silica Plano-convex Lens, AR Coated

Product description

The plano-convex lens made from fused silica is ideal for applications requiring high transmittance in the 0.7-1.7 μm and 400-700 nm bands. With a surface quality of 60/40 and a diameter of 7.0 mm, this lens is designed for precision optical equipment. Its positive focal length makes it suitable for various imaging and optical applications, ensuring reliable performance in demanding environments.

Key Features

Diameter of 7.0 mm with a tolerance of +/-0.1 mm for precise fitting.
Surface quality rated at 60/40 ensures minimal distortion.
AR coating enhances transmittance for improved optical performance.
Customizable options available for OEM, ODM, and OBM projects.
Lightweight design at 0.03 kg facilitates easy integration into systems.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Plano-convex
Diameter	7 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.03
Diameter Tolerance	+/-0.1
Surface Flatness	1/4@633nm
Clear Aperture	>=central 80% of diameter

FAQ

Can I get custom sizes for this lens?

Yes, custom sizes are available, including diameters ranging from 6 mm to 10 mm.

What is the surface flatness specification?

The surface flatness is rated at 1/4 @ 633 nm.
