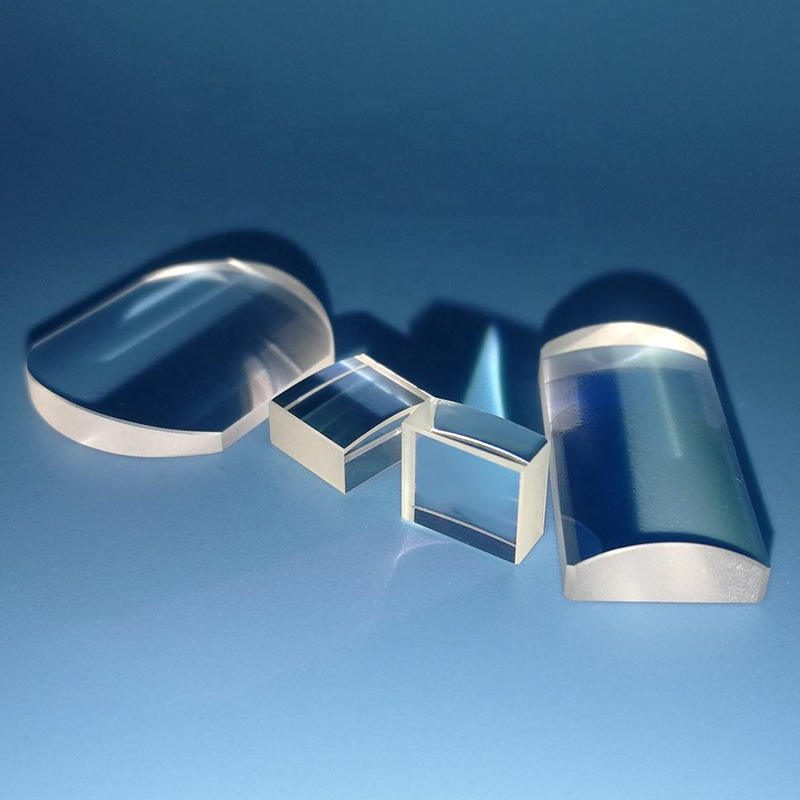

Custom Size Fused Silica Plano-convex Lens
Explore our plano-convex cylindrical lens for machine vision and projection, featuring customizable sizes and no MOQ.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Focal Length
- 10 mm
- Surface Quality
- 60/40
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Focal Length
- 10 mm
- Surface Quality
- 60/40
Product description

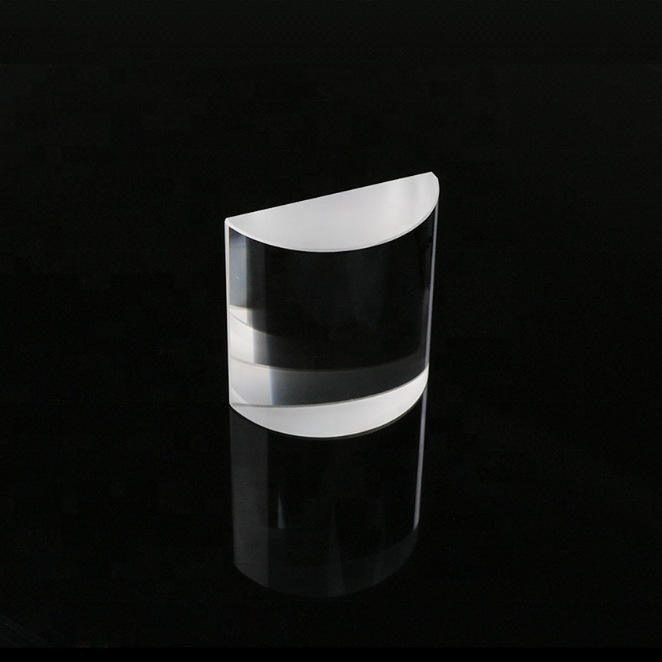

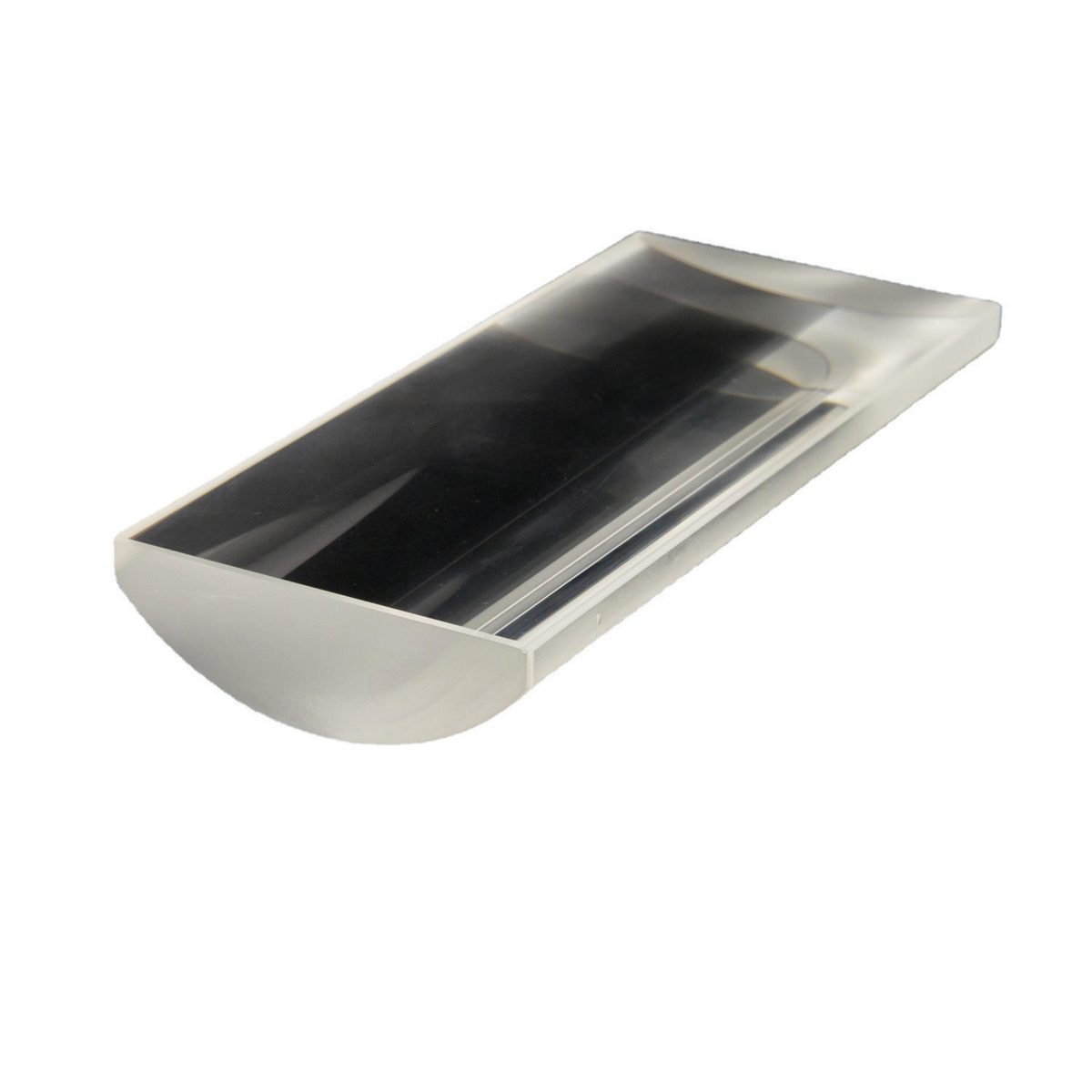

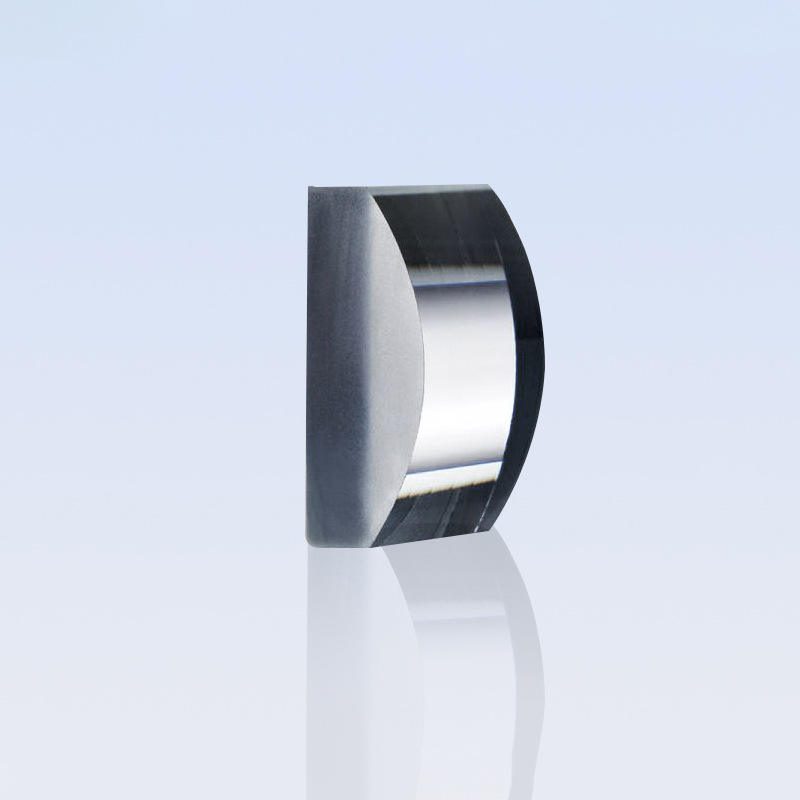

The plano-convex cylindrical lens is designed for machine vision and projection applications, effectively transforming point light sources into lines. Made from Corning 7980 fused silica, it offers excellent performance in UV wavelengths. With a focal length of 10 mm and a surface quality of 60/40, this lens is ideal for precision optical tasks. Its compact size and reliable manufacturing make it suitable for OEM integration without minimum order quantity constraints.
Key Features
- Focal length of 10 mm for precise light focusing.
- Surface quality of 60/40 ensures optimal image clarity.
- Lightweight design at 0.5 grams for easy integration.
- Customizable lengths available: 3/4/8/12 mm as needed.
- No minimum order quantity, facilitating flexible procurement.
Applications
Machine Vision, Projection
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Focal Length | 10 mm |
| Surface Quality | 60/40 |
Full Specifications
| Parameter | Value |
|---|---|
| Type | plano convex cylindrical lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | None |
| Weight | 0.5 |
| Length | 6mm(We can also make 3/4/8/12mm) |
| Center Thickness | 2.19mm |
FAQ
What custom sizes are available?
Custom lengths of 3, 4, 8, and 12 mm can be provided.
What are the tolerances for this lens?
The lens has a tolerance of +/-0.1 mm.
