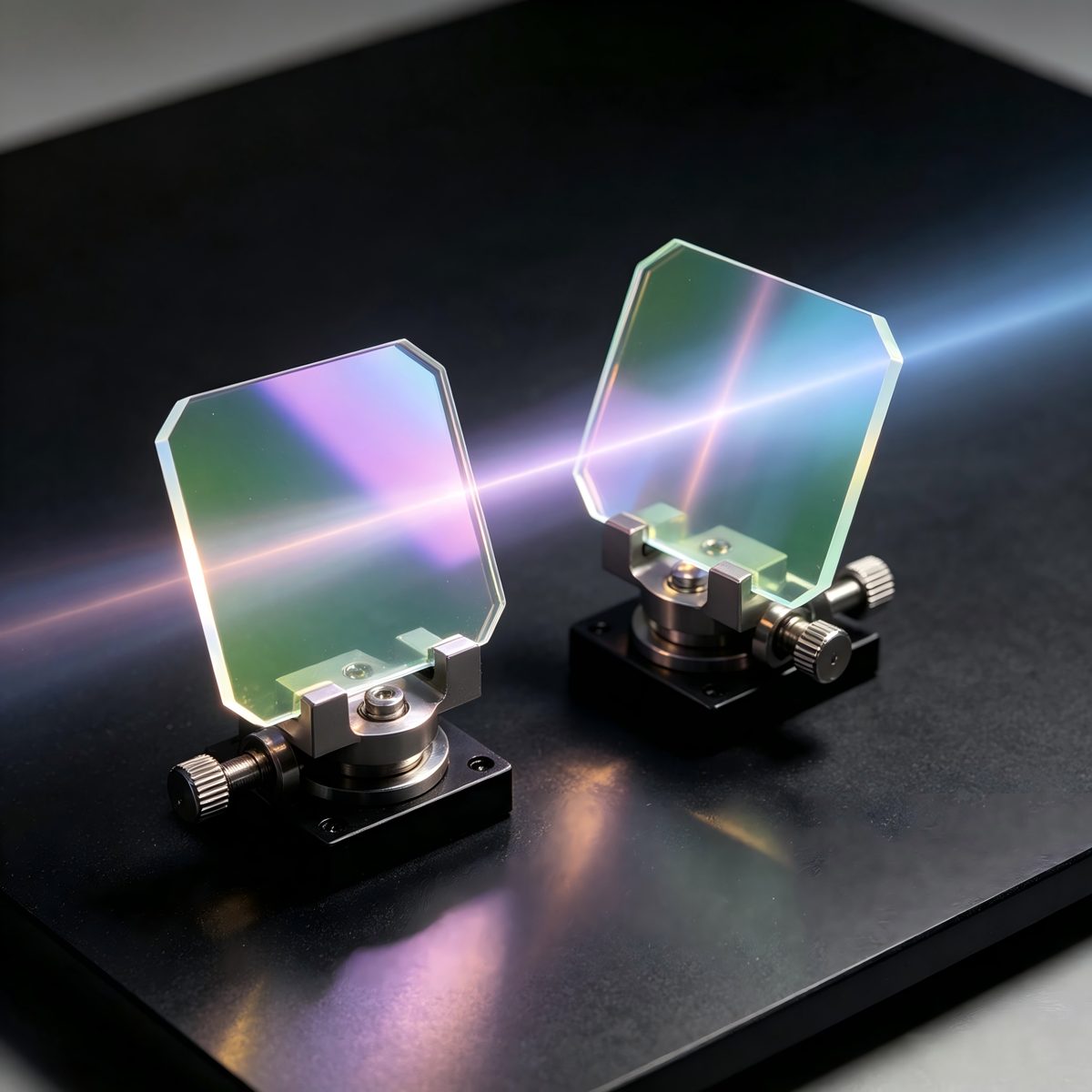

Custom Size Fused Silica Plate Beamsplitter

Product description

The Fused Silica Beamsplitter is designed for applications in laser systems, particularly at the 1064nm wavelength. Its high transmittance and reflection properties ensure efficient separation of polarized light, making it ideal for infrared polarization splitting. This beamsplitter withstands high laser power and offers reliable performance in demanding environments, addressing challenges in optical path alignment and system debugging.

Key Features

High transmittance (>95%) and low stray light (<0.5%) for optimal performance.

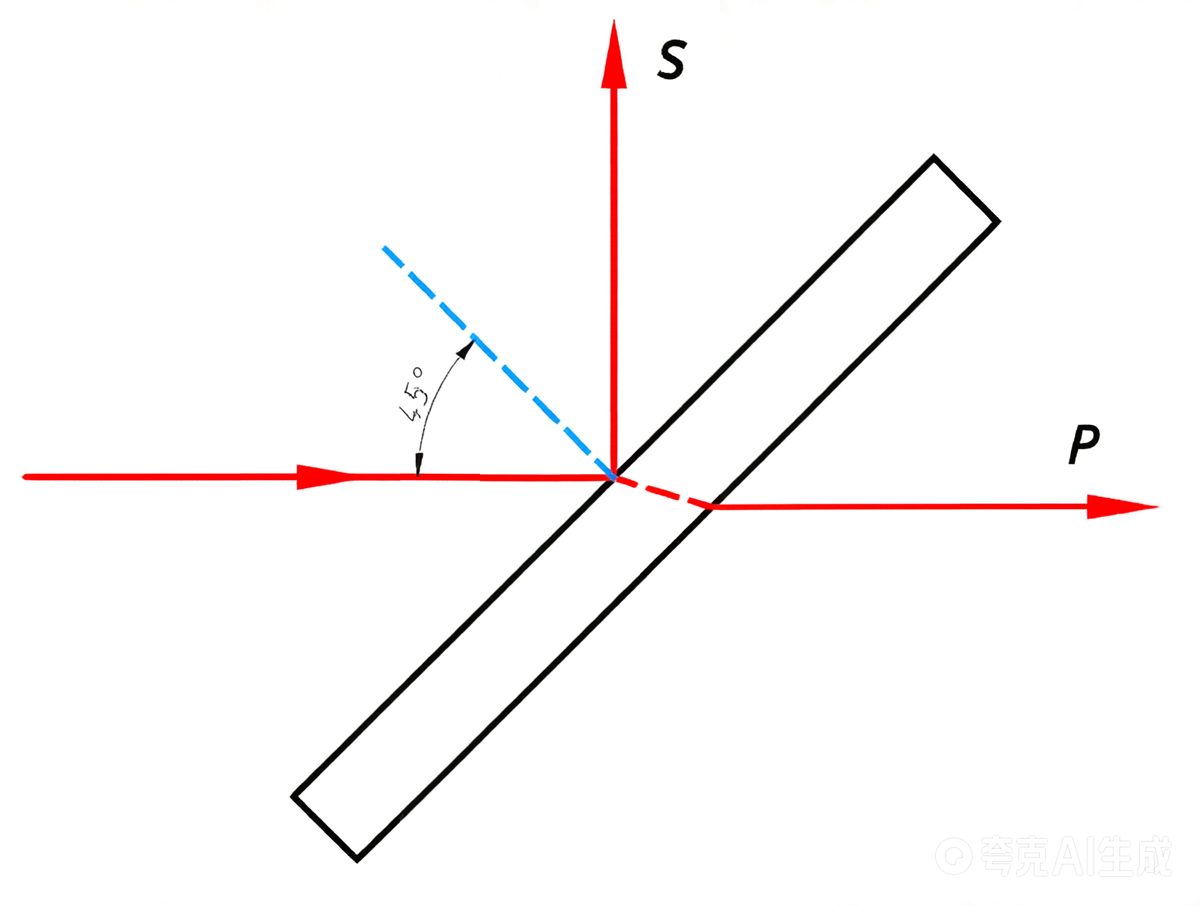

Extinction ratio of 200:1 effectively separates P and S polarized light.
Laser damage threshold exceeds 5J/cm², ensuring durability under high power.
Standardized design simplifies integration, while custom sizes and coatings are available.
Precision flatness of 1/8 @ 632.8nm minimizes wavefront distortion.

Applications

Laser

Specification Summary

Item	Value
Material	Fused Silica
Shape	Plate
Size	Custom
Thickness	Custom
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Power	>5J/cm2,20ns,20Hz,@1064nm
Wavelength Range	1064nm
Materail	Fused Silica
Transmission	TP > 95%,Ts<0.5%
Reflection	RS avg > 99%,Rp<5%
Flatness	1/8 @ 632.8nm per25mm
Laser Damage Threshold	>5J/cm2,20ns,20Hz,@1064nm
Extinction Ratio	200:1

FAQ

Can I get custom sizes?

Yes, custom non-standard sizes and coating wavelengths are available for OEM orders.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, supporting flexibility in procurement.
