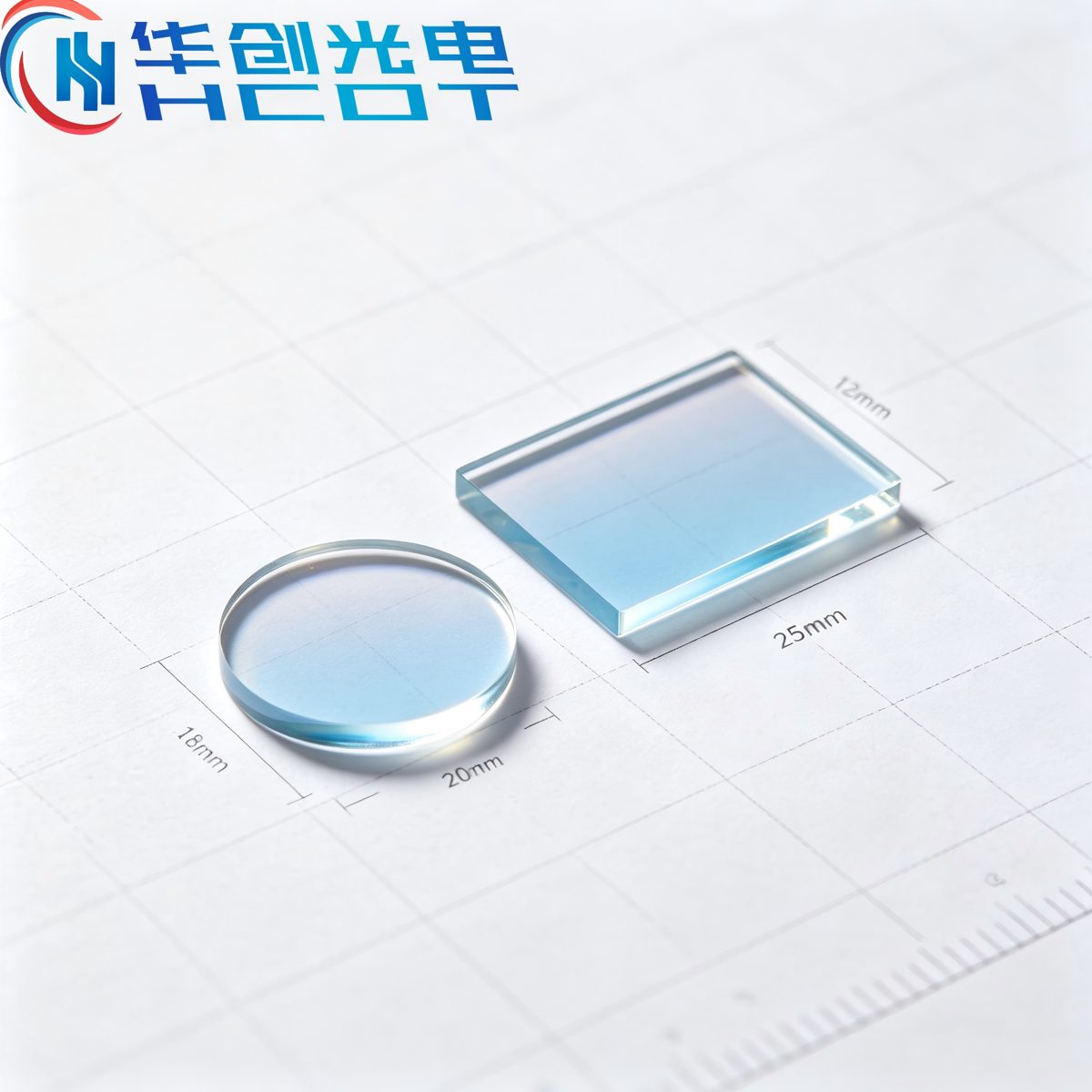

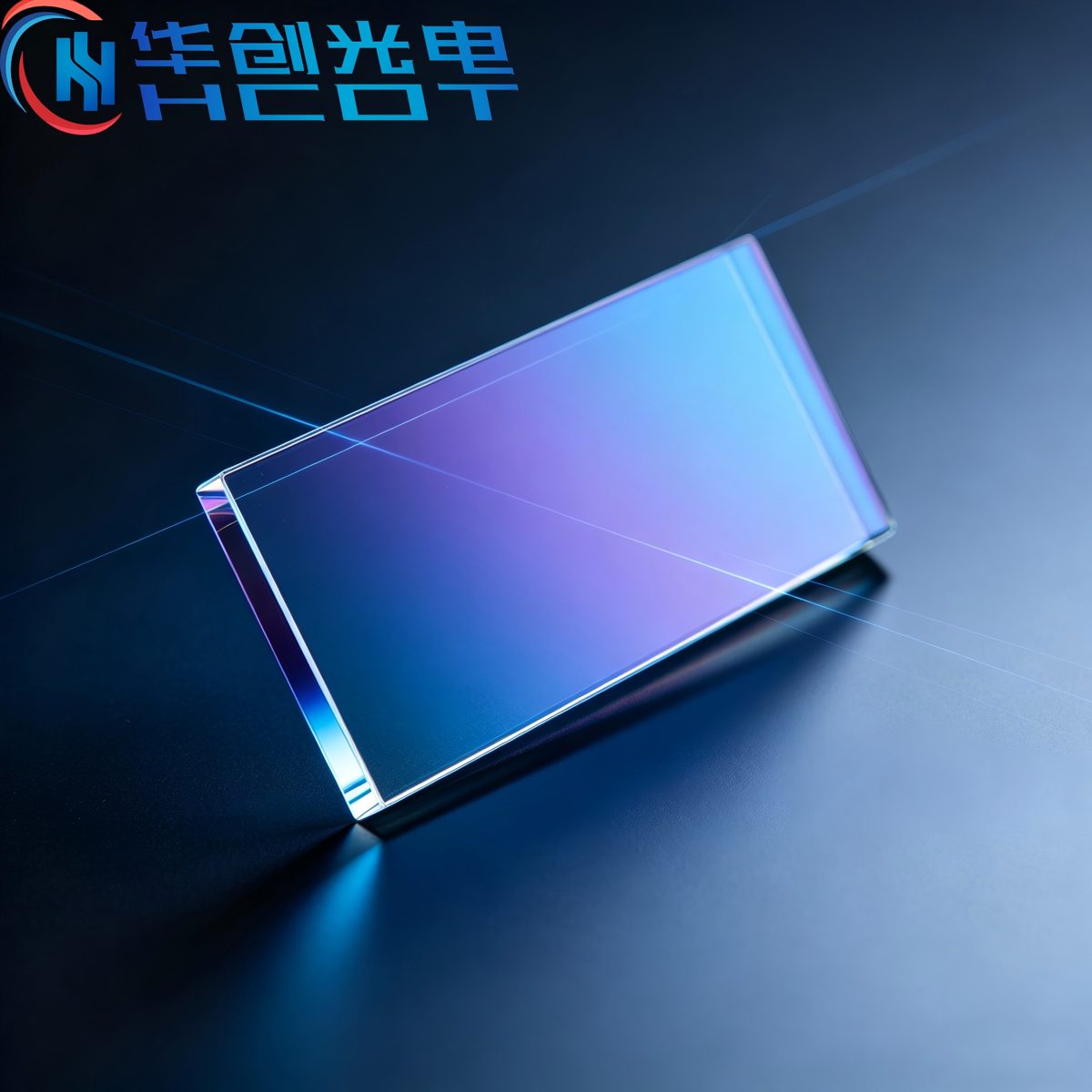

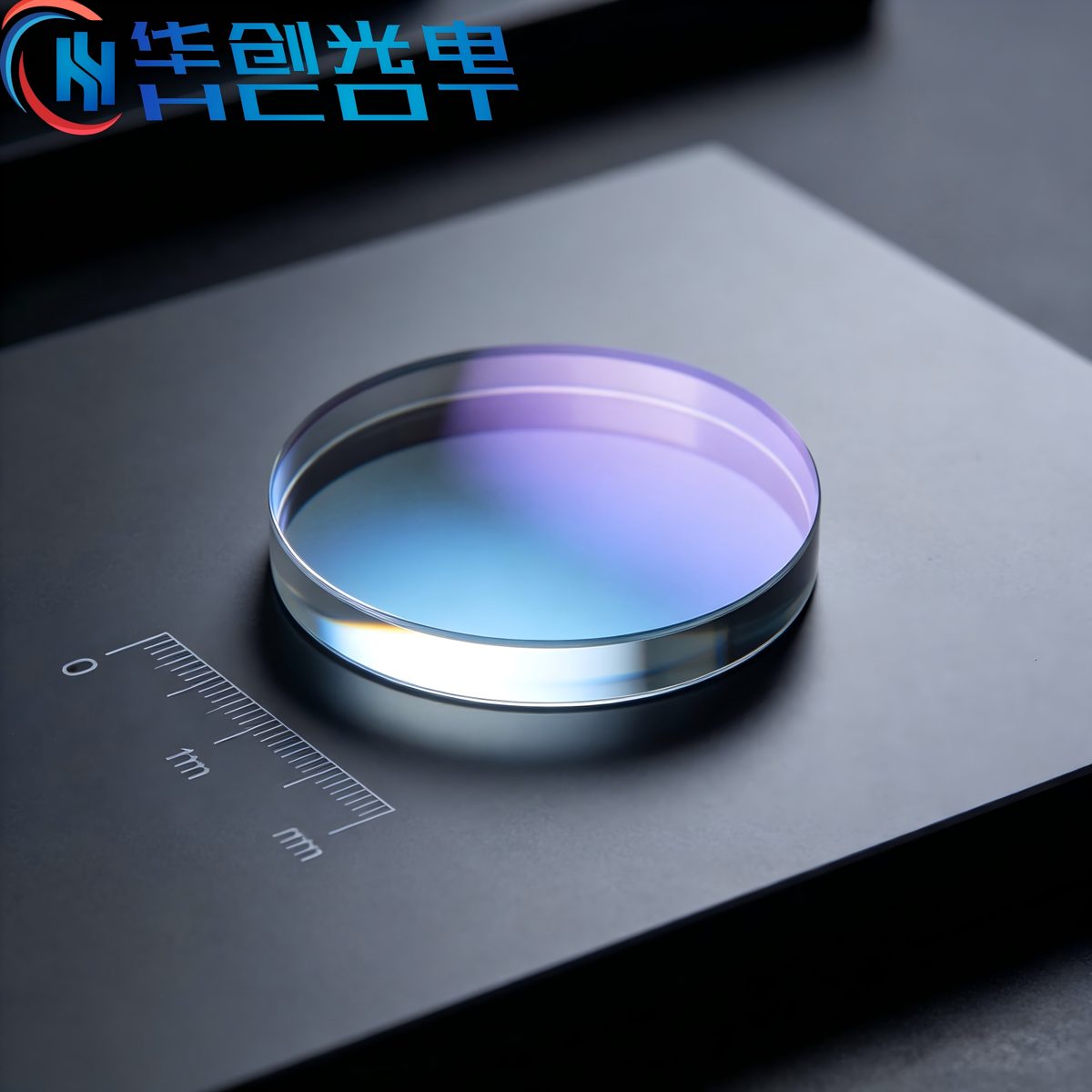

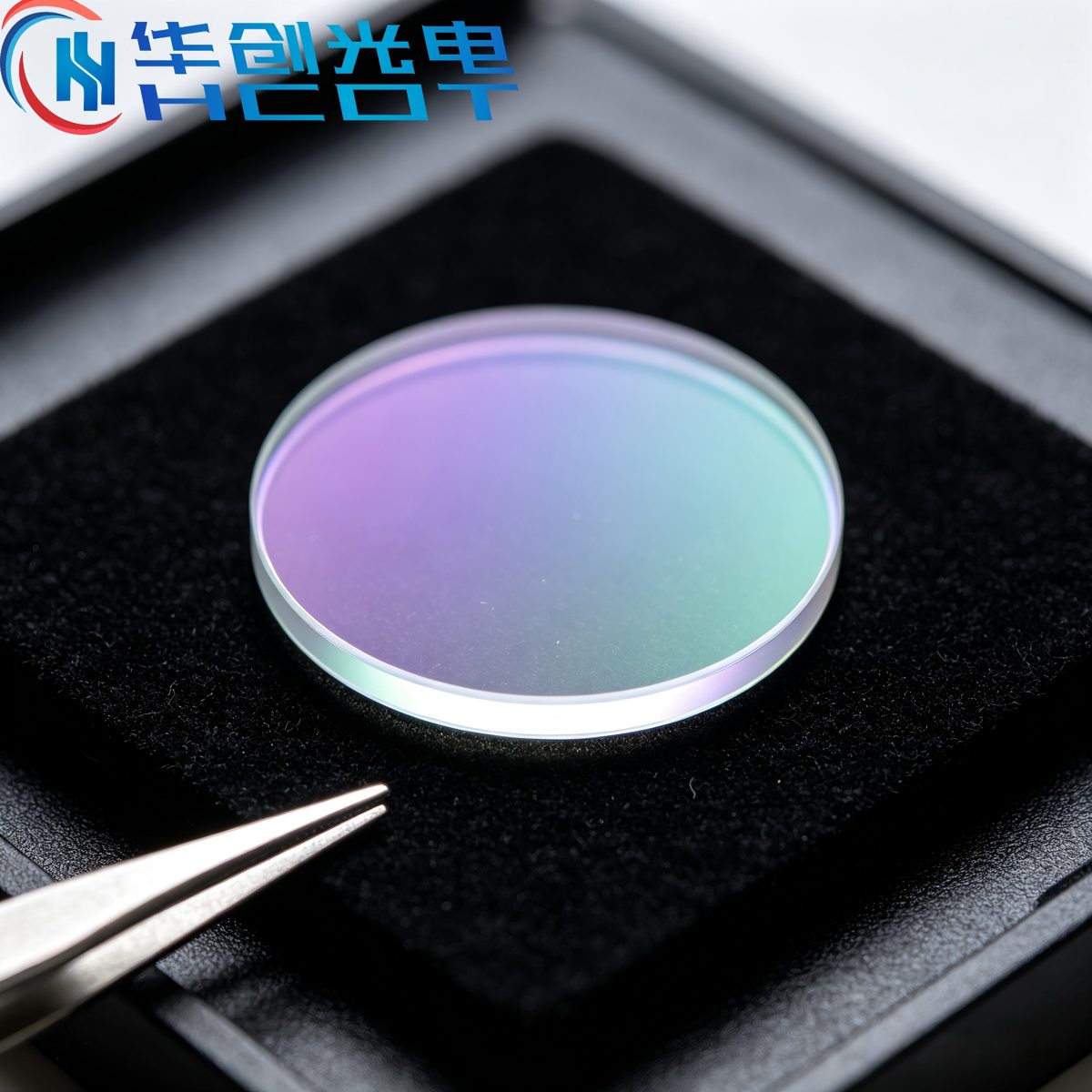

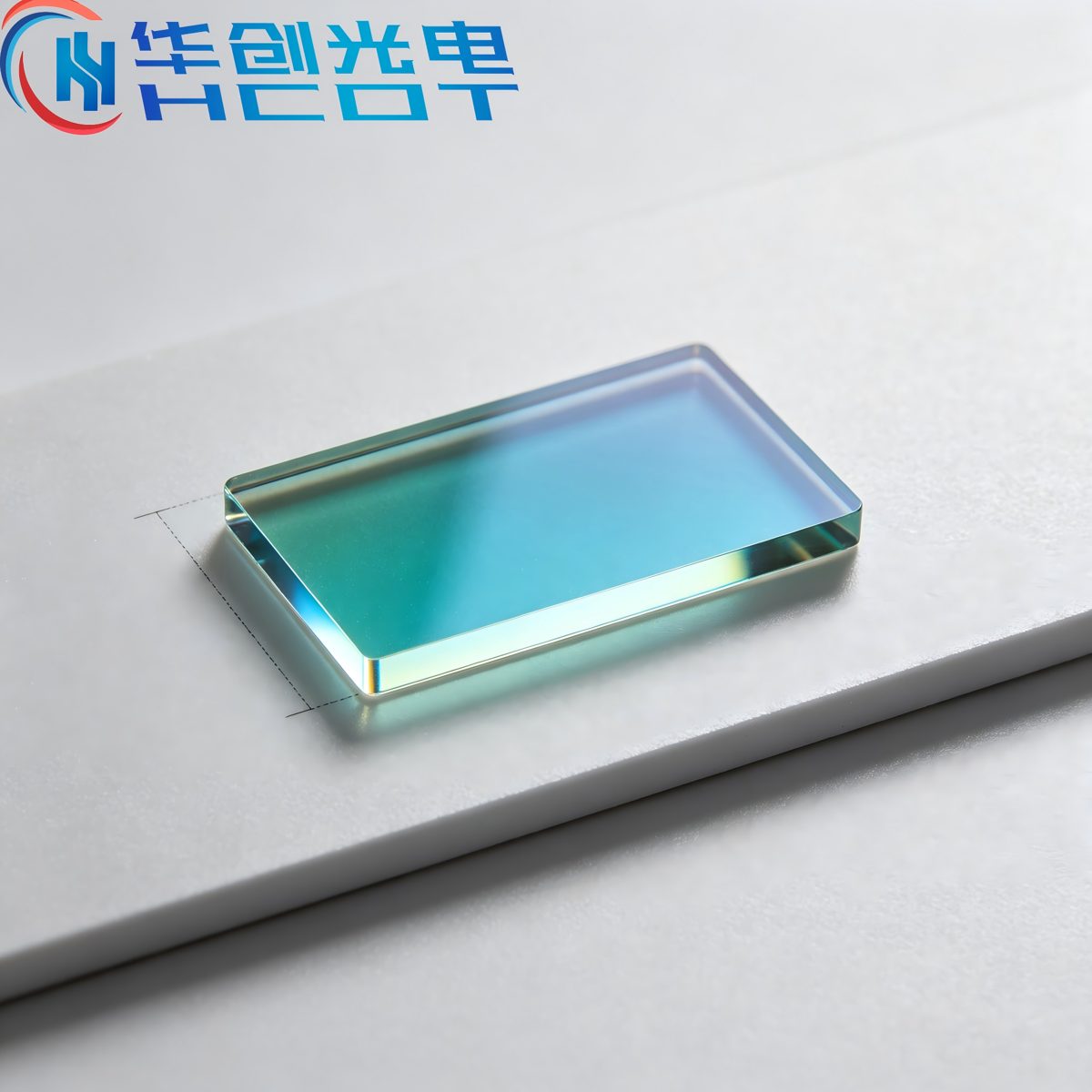

Custom Size Fused Silica Plate Beamsplitter
High-performance beamsplitter for laser and medical applications, offering high transmission and durability across a wide wavelength range.
Core attributes
- Material
- Fused Silica
- Shape
- Plate
- Size
- Custom
- Thickness
- Custom
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plate
- Size
- Custom
- Thickness
- Custom
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description

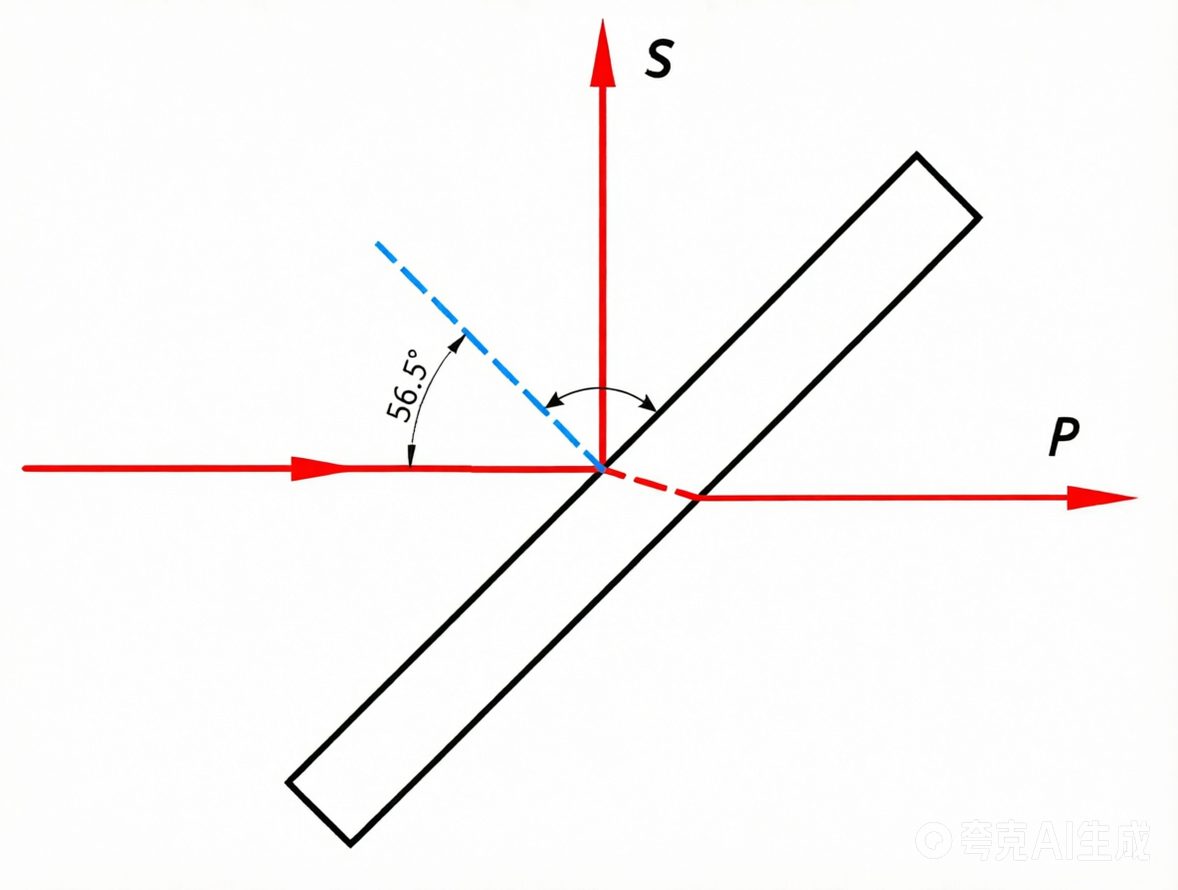

This beamsplitter is designed for high-precision optical systems in laser and medical applications. It effectively separates incident light into S and P polarized beams, optimizing performance across a wide wavelength range from 355 nm to 2000 nm. With a high transmission rate exceeding 95% and minimal light loss, it is ideal for demanding environments where precision and reliability are critical.
Key Features
- High transmission (>95%) ensures minimal light loss for optimal performance.
- Supports a wide wavelength range (355 nm - 2000 nm) for versatile applications.
- Compact flat structure allows easy integration into mini optical modules.
- Laser damage threshold of >5 J/cm² ensures durability in high-power applications.
- Extinction ratio of 200:1 provides effective polarization separation.
Applications
Laser, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plate |
| Size | Custom |
| Thickness | Custom |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Power | >5J/cm2,20ns,20Hz,@1064nm |
| Wavelength Range | 355nm-2000nm,532nm,633nm,780nm,850nm,808nm,975nm,1030nm, 1550nm,1940nm |
| Materail | N-SF1/Fused Silica/BK7 |
| Transmission | TP > 95%,Ts<0.5% |
| Reflection | RS avg > 99%,Rp<5% |
| Flatness | 1/8 @ 632.8nm per25mm |
| Laser Damage Threshold | >5J/cm2,20ns,20Hz,@1064nm |
| Extinction Ratio | 200:1 |
FAQ
Can I get custom sizes?
Custom sizes are not specified, but OEM and ODM options are available.
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified.
