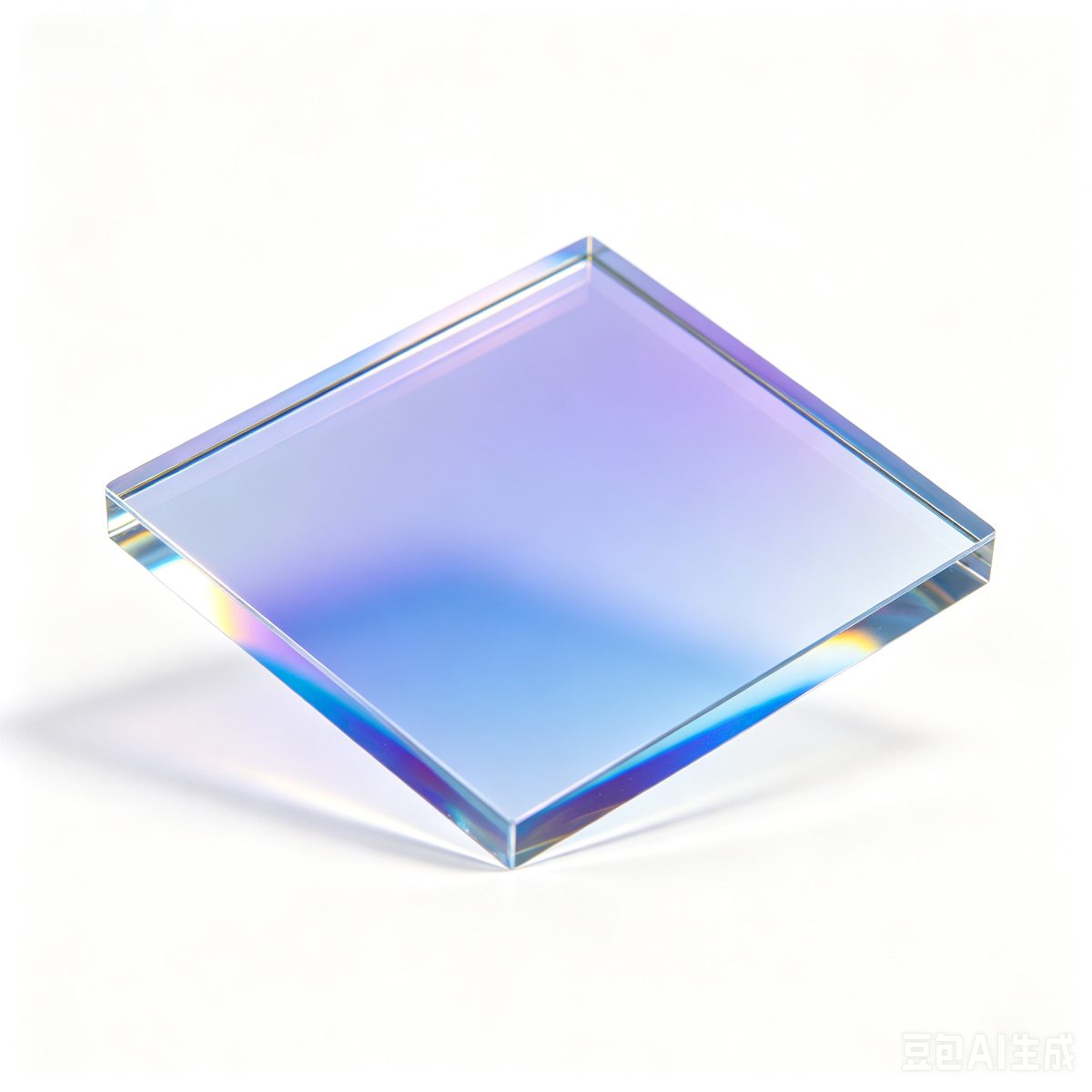

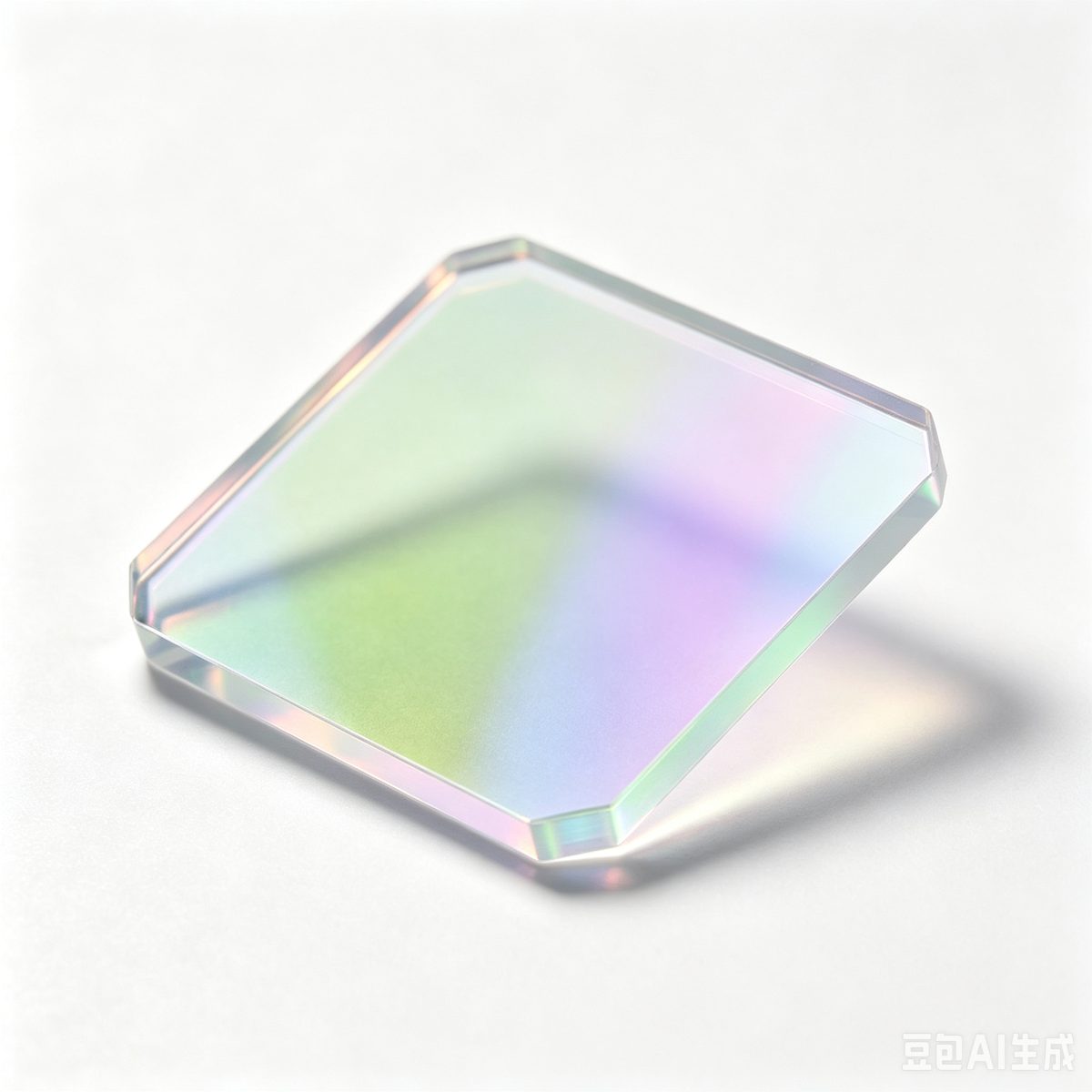

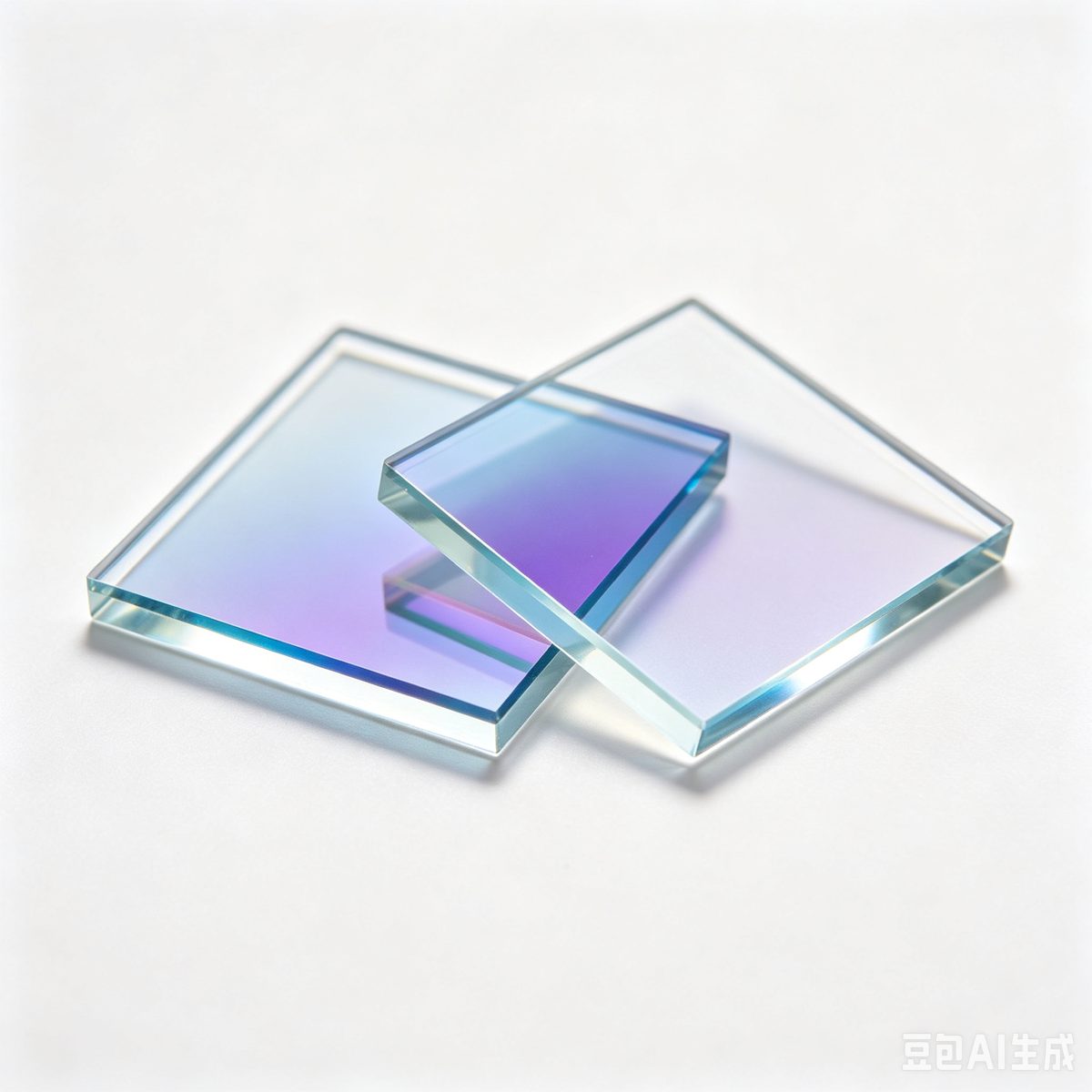

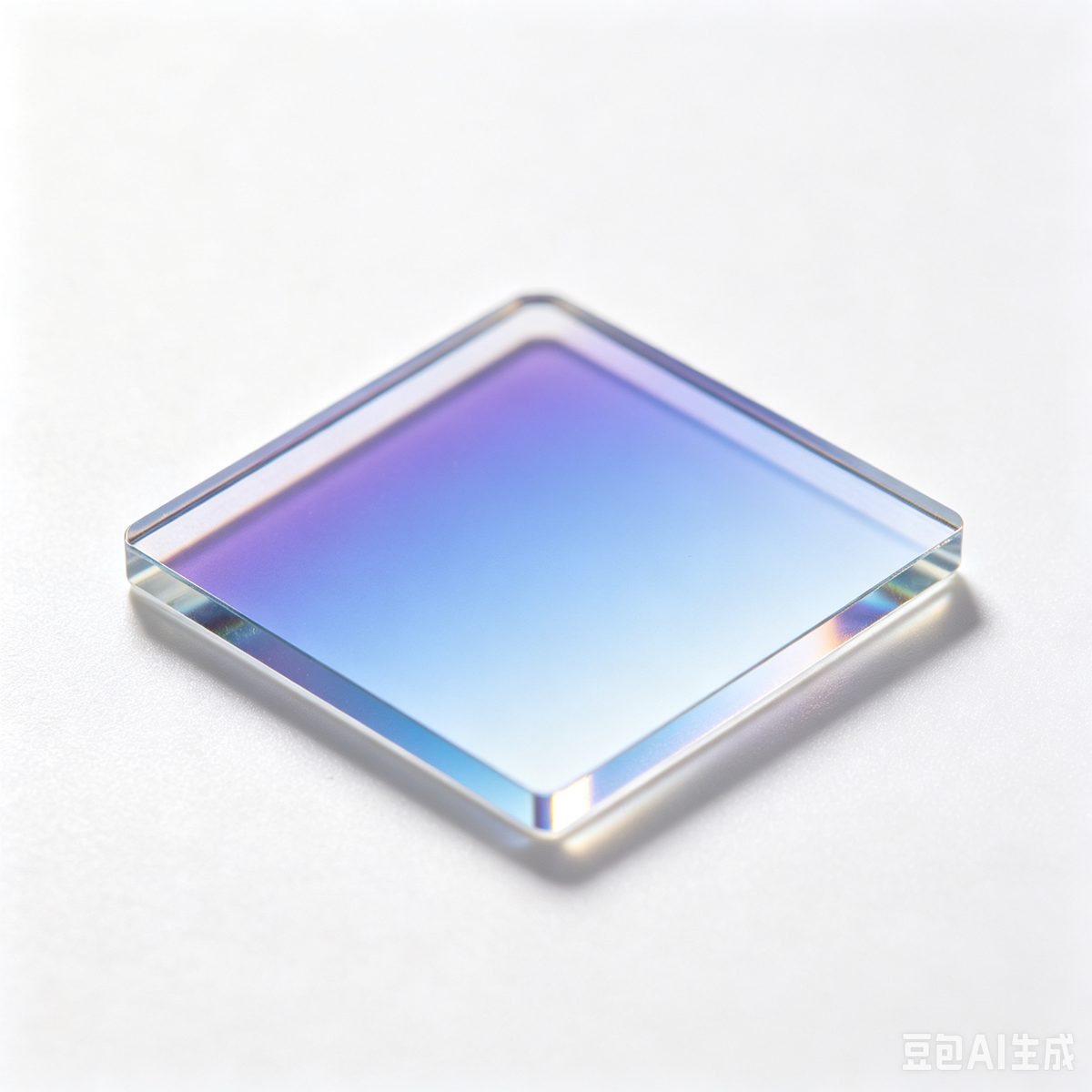

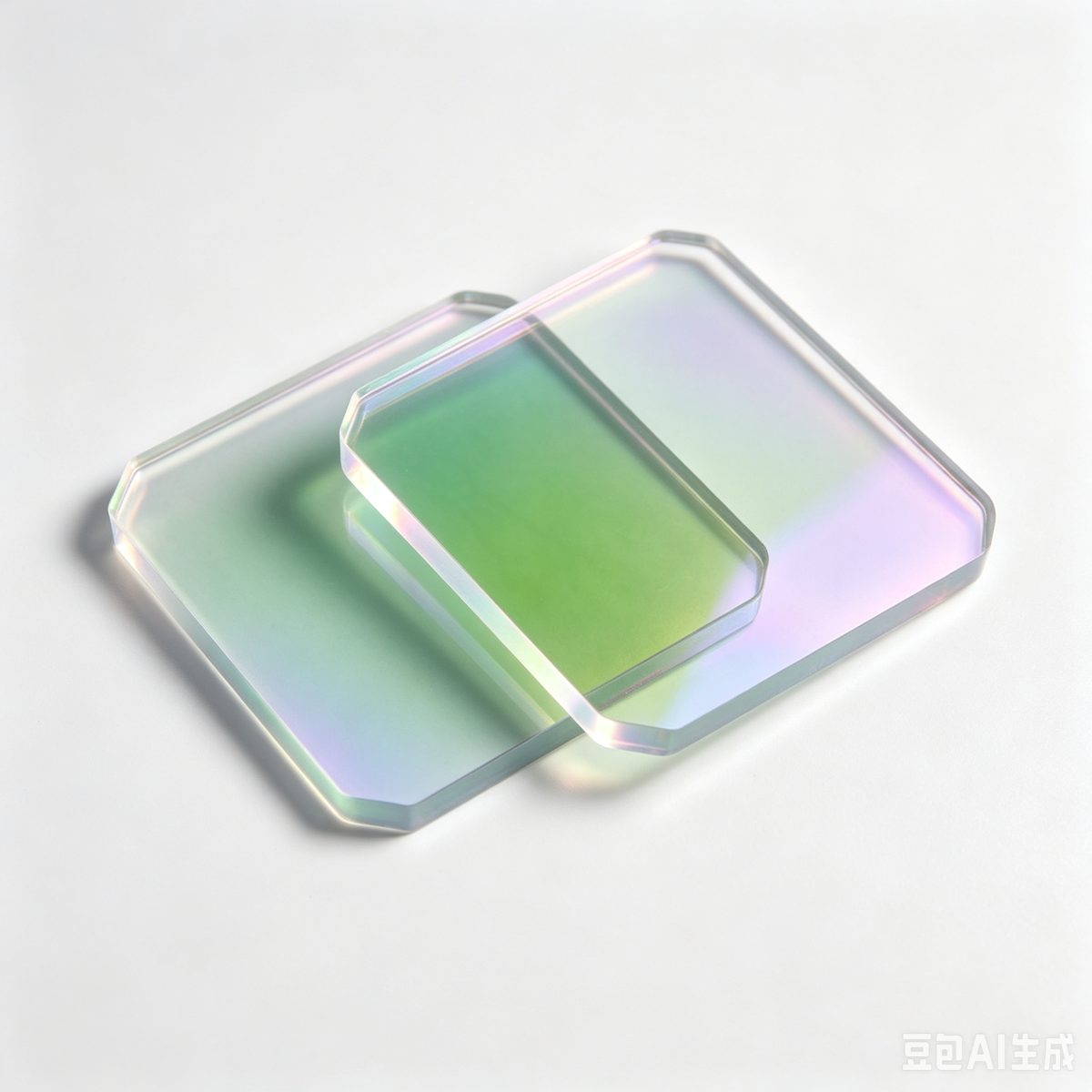

Custom Size Fused Silica Plate Beamsplitter
532nm polarizing beam splitter plate for laser and research applications with high transmission and reflection rates.
Core attributes
- Material
- Fused Silica
- Shape
- Plate
- Size
- Custom
- Thickness
- Custom
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plate
- Size
- Custom
- Thickness
- Custom
- Transmission bands
- VIS (400-700 nm)
Product description

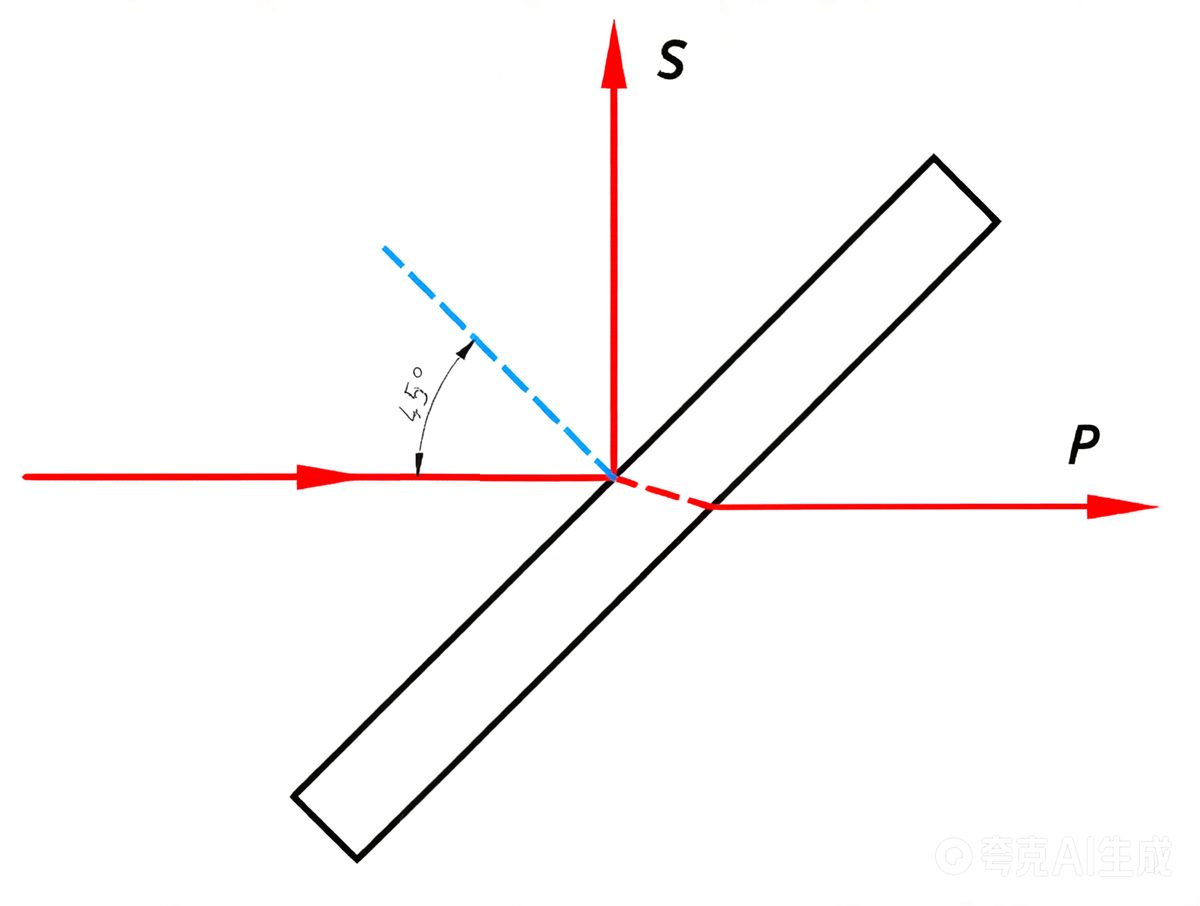

The 532nm polarizing beam splitter plate is designed for laser and research applications, effectively splitting polarized light at a 45-degree angle. With high transmission rates and minimal reflection losses, this fused silica beamsplitter ensures optimal performance for green laser systems. Its robust specifications, including a high extinction ratio and laser damage threshold, make it suitable for demanding environments, ensuring reliability in experimental setups.
Key Features
- Wavelength Range: 532nm for precise laser applications.
- Transmission: TP > 95% ensures efficient light passage.
- Reflection: RS avg > 99% minimizes light loss.
- Flatness: 1/8 @ 632.8nm per 25mm for superior optical performance.
- Extinction Ratio: 200:1 for effective polarization separation.
Applications
Laser, Research
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plate |
| Size | Custom |
| Thickness | Custom |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Power | >5J/cm2,20ns,20Hz,@1064nm |
| Wavelength Range | 532nm |
| Materail | Fused Silica |
| Transmission | TP > 95%,Ts<0.5% |
| Reflection | RS avg > 99%,Rp<5% |
| Flatness | 1/8 @ 632.8nm per25mm |
| Laser Damage Threshold | >5J/cm2,20ns,20Hz,@1064nm |
| Extinction Ratio | 200:1 |
FAQ
Is custom sizing available?
Customized support for OEM, ODM, and OBM is available.
What is the laser damage threshold?
5J/cm2, 20ns, 20Hz at 1064nm ensures durability.
