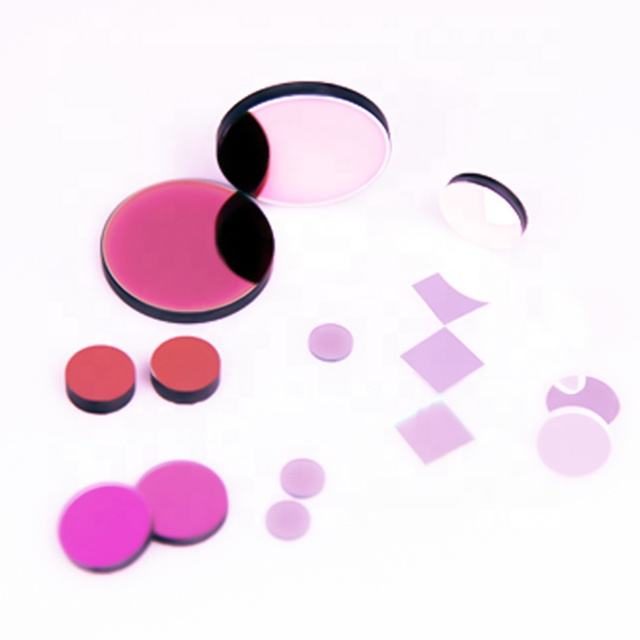

Custom Size Fused Silica Rectangle Optical Filter
Shortpass filter with 85% transmittance, ideal for applications in fluorescence microscopy and laser systems.
Core attributes
- Material
- Fused Silica
- Shape
- Rectangle
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 705nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Rectangle
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 705nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

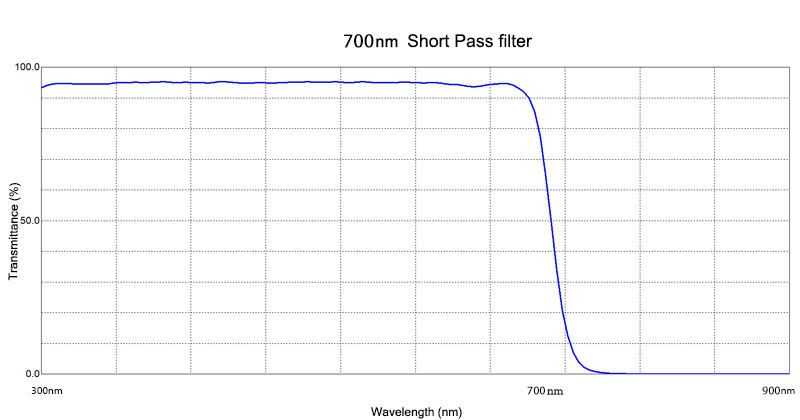

This shortpass filter is designed for applications requiring effective blocking of wavelengths above 705 nm while allowing transmission of shorter wavelengths. With a transmittance of 85% in the 0.7-1.7 μm range, it is ideal for fluorescence microscopy, laser systems, and other optical applications. The filter is made from durable fused silica and features high-quality coatings for enhanced performance.
Key Features
- Transmittance of 85% ensures efficient light transmission for optimal imaging.
- Shortpass filter type effectively blocks longer wavelengths, enhancing signal clarity.
- Available thicknesses of 0.3 mm to 5.0 mm cater to various application needs.
- Customizable options including OEM and ODM support for tailored solutions.
- High surface quality (40/20) guarantees minimal distortion and improved optical performance.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Rectangle |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | shortpass |
| Cwl | 705nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM, ODM, and OBM support.
What is the tolerance for this filter?
The tolerance for this filter is ± 0.10 mm.
