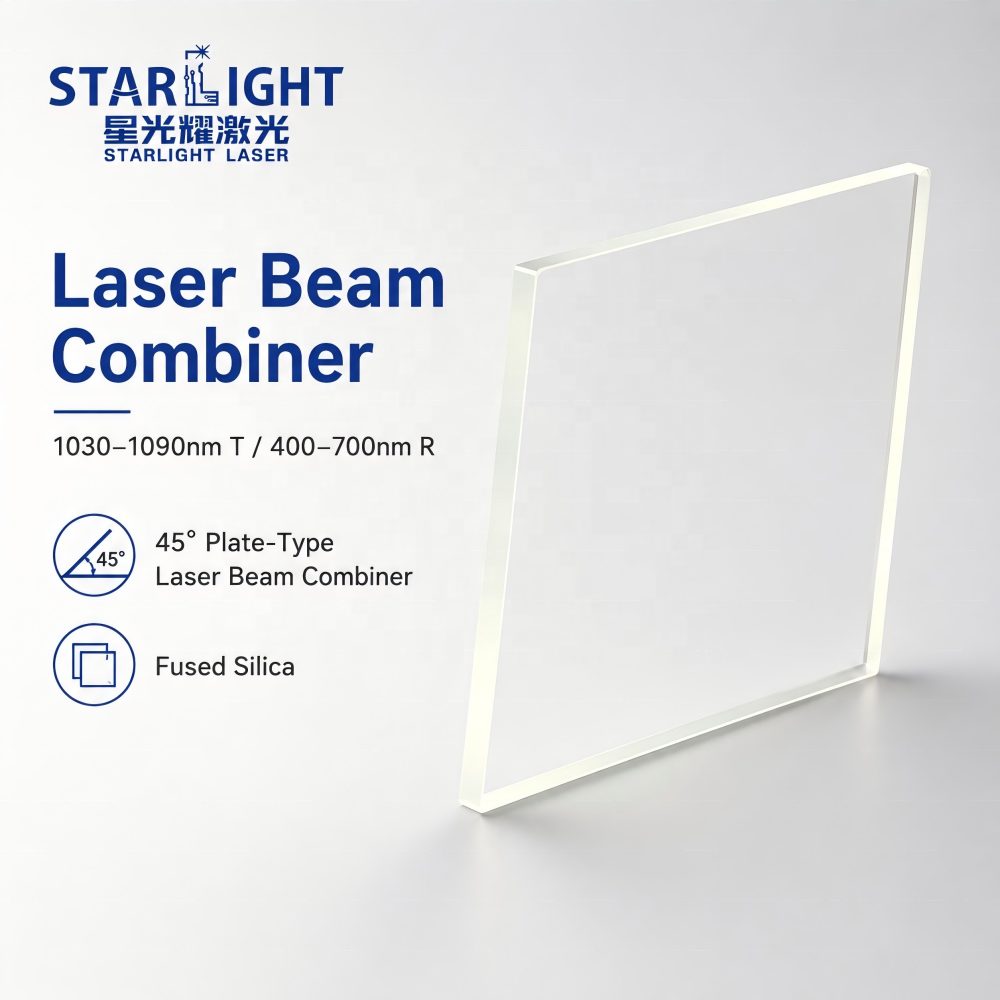

46x3 mm Fused Silica Rectangle Optical Mirror

Product description

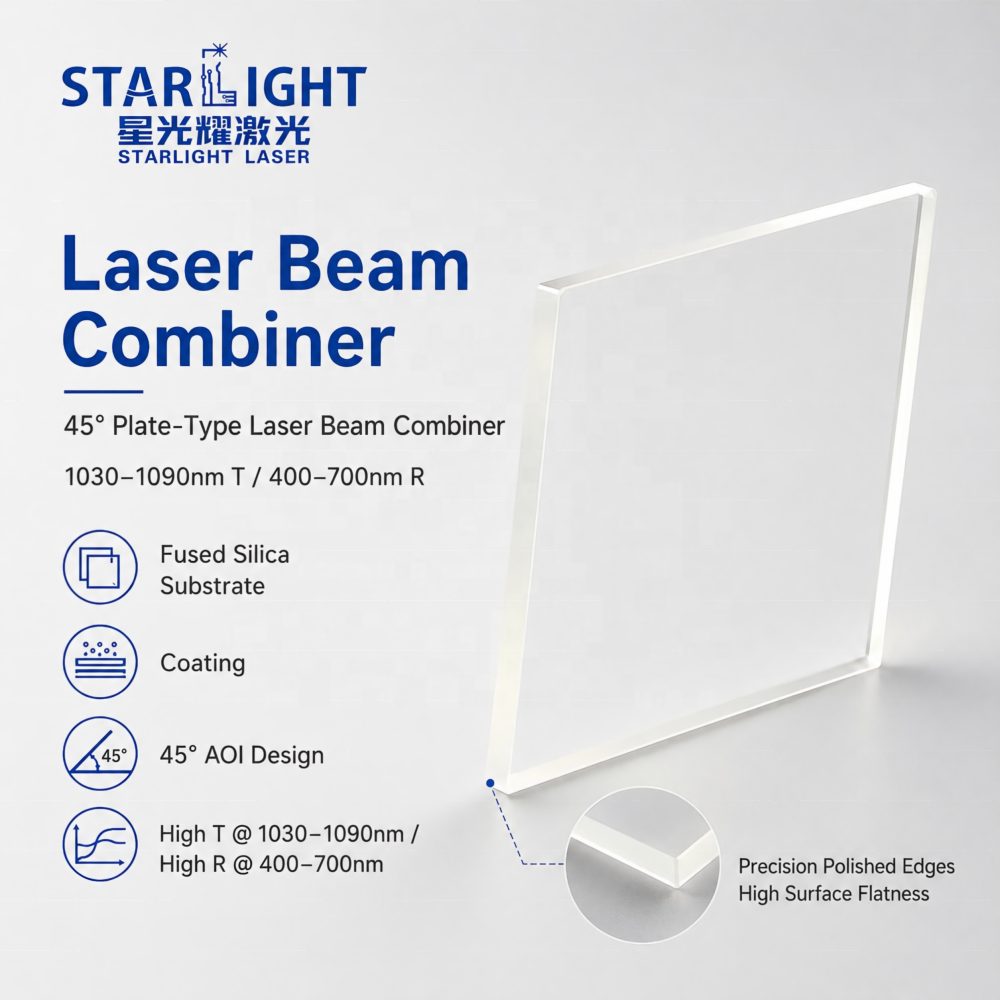

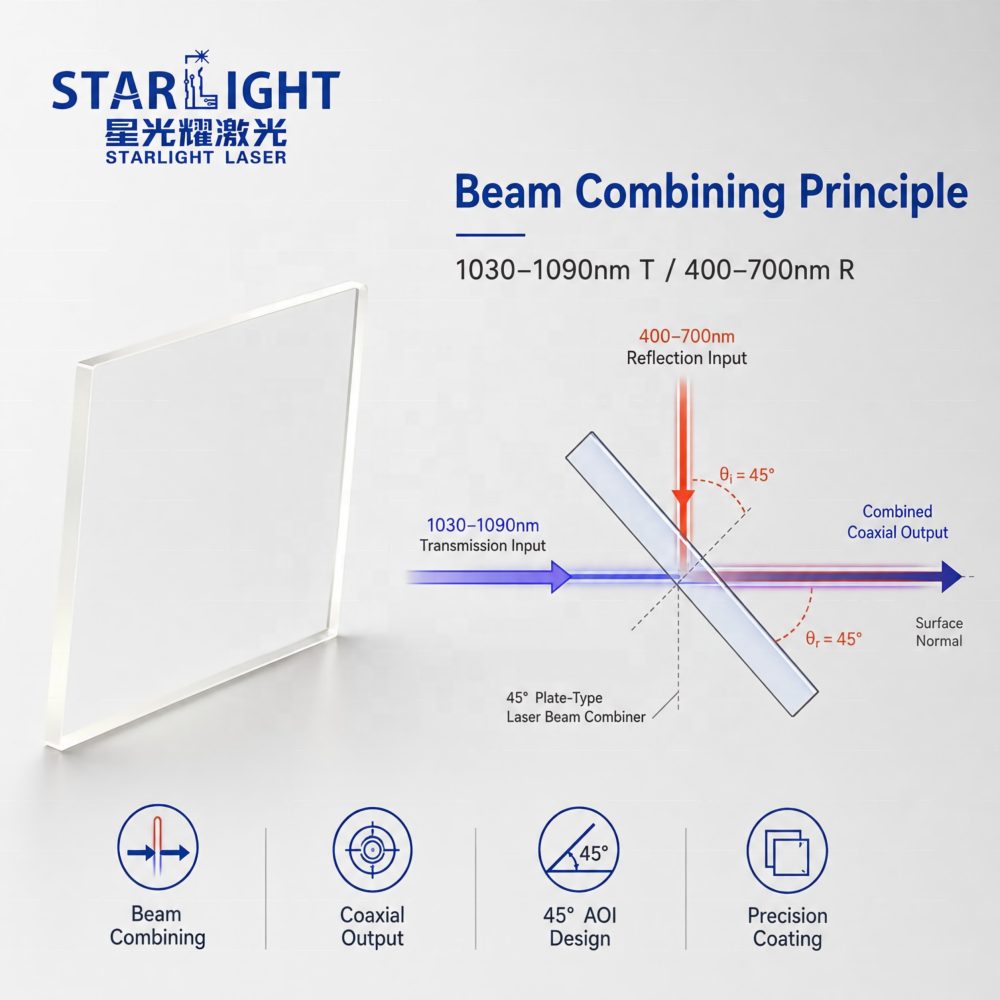

This rectangular laser beam combiner mirror is engineered to transmit wavelengths from 1030-1090 nm while reflecting visible light from 400-700 nm. Ideal for laser applications, it ensures optimal beam combining and alignment. Made from fused silica, it provides stable optical performance and durability, making it suitable for various optical systems. Custom sizes and configurations are available to meet specific requirements.

Key Features

Transmits 1030-1090 nm for effective laser beam combining.
Reflects 400-700 nm for auxiliary light path integration.
Constructed from fused silica for enhanced durability and performance.
Available in multiple rectangular sizes to fit diverse applications.
Customizable dimensions and coatings to meet specific optical needs.

Available Sizes

Size x Thickness (mm)
46 x 3

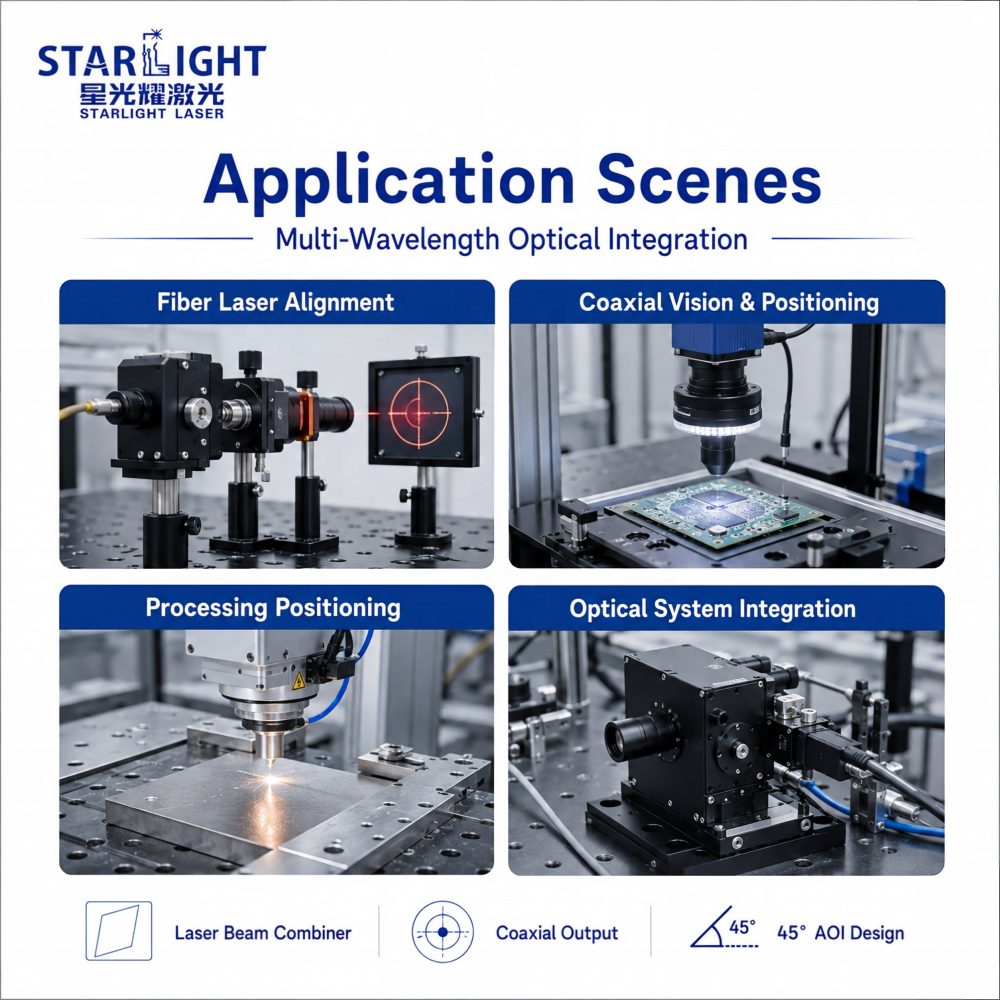

Applications

Laser

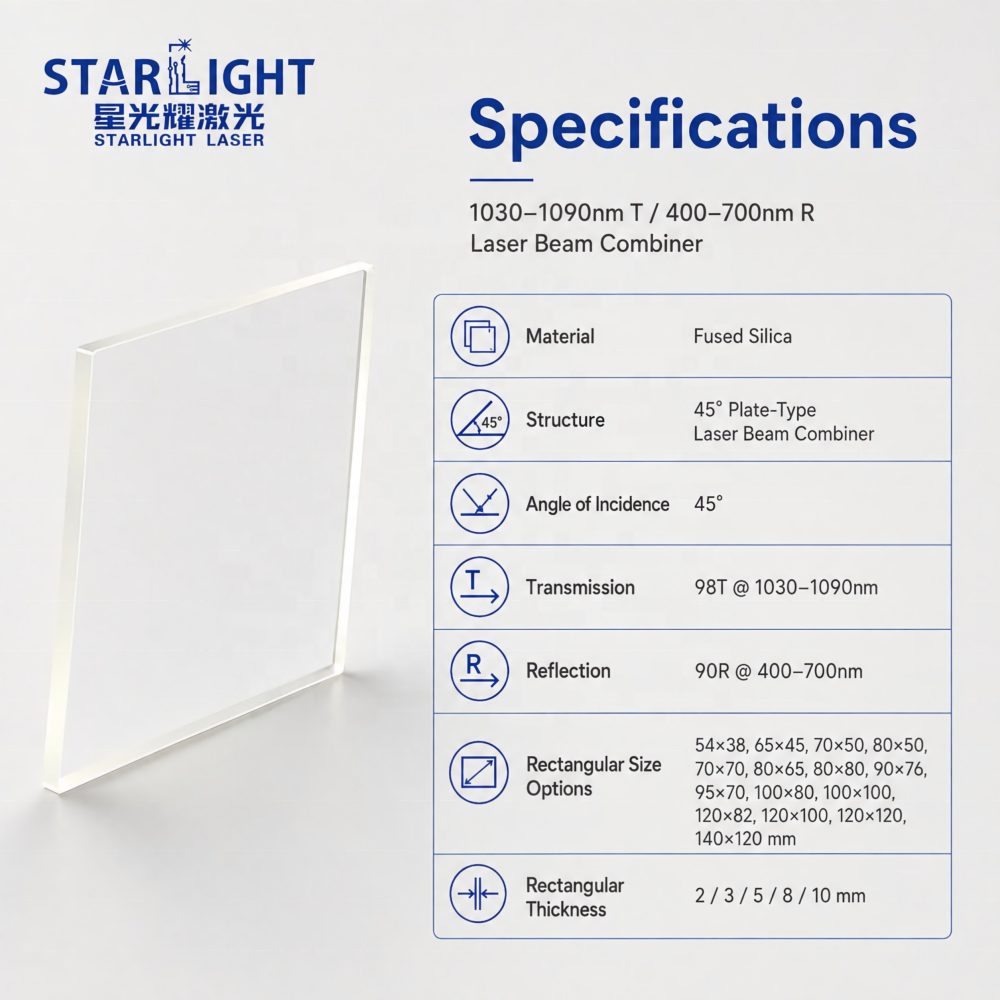

Specification Summary

Item	Value
Material	Fused Silica
Shape	Rectangle
Size	46 mm
Thickness	3 mm
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Wavelength	1030-1090nm
Warranty	Unavailable
Product Type	Rectangular Laser Beam Combiner Mirror

FAQ

What sizes are available for this mirror?

Standard sizes include 46x32 mm, 70x50 mm, 85x60 mm, and 100x80 mm.

Can I get a custom size for my application?

Yes, length, width, thickness, and coating designs can be customized.
