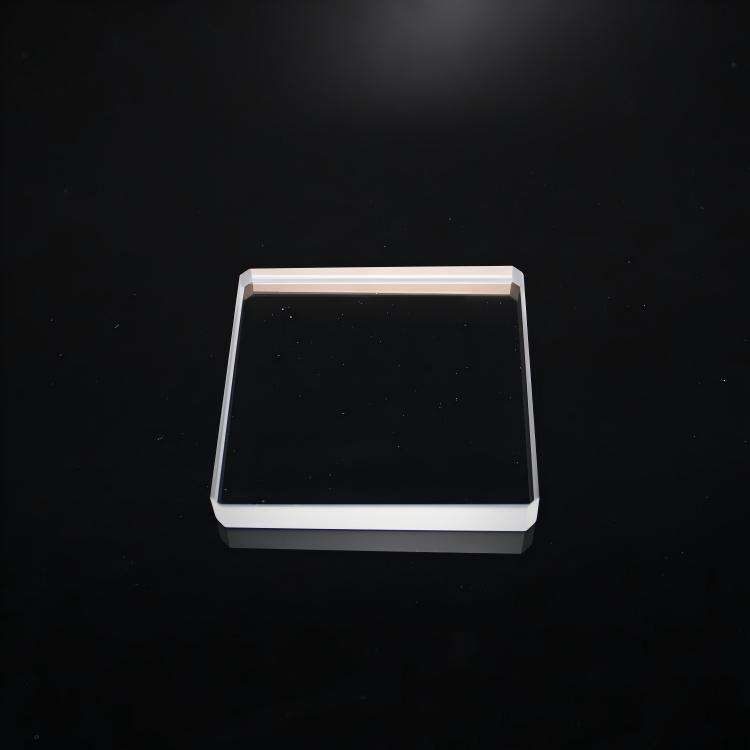

5 mm Fused Silica Rectangle Optical Window, AR Coated
Fused silica optical windows for medical applications, featuring AR coatings and customizable sizes. Diameter range: 5-300 mm.
Core attributes
- Material
- Fused Silica
- Shape
- rectangle
- Diameter range
- 5–300 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- rectangle
- Diameter range
- 5–300 mm
- Coating
- ar
Product description
Fused silica optical windows are ideal for medical applications requiring high transmittance in the 0.7-1.7 μm and 400-700 nm bands. With a surface quality of 60/40 and a diameter range of 5 to 300 mm, these windows are designed to meet precise optical requirements. The anti-reflective (AR) coatings enhance performance, ensuring optimal light transmission while maintaining durability.
Key Features
- Diameter range of 5.0 to 300.0 mm for versatile application fit.
- Surface quality of 60/40 ensures minimal distortion for accurate imaging.
- AR coating maximizes transmittance across specified wavelength bands.
- Diameter tolerance of 0.0-0.1 mm supports precise installation.
- Customizable options available through OEM and ODM services.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Rectangle |
| Diameter | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |

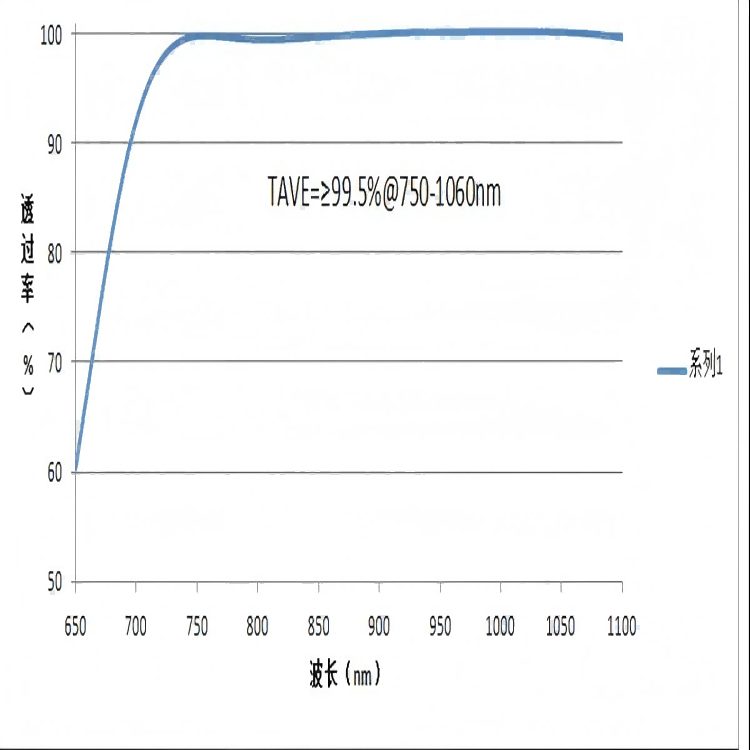

| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | opticalwindows |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg(1.10lb) |
| Diameter Tolerance | 0.0-0.1mm |
| Surface Flatness | 1/4 @632.8nm |
| Parallelism | 30 Arc Sec |
| Clear Aperture | 90% |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified.
Can I get custom sizes for the optical windows?
Yes, customizable options are available through OEM and ODM services.
