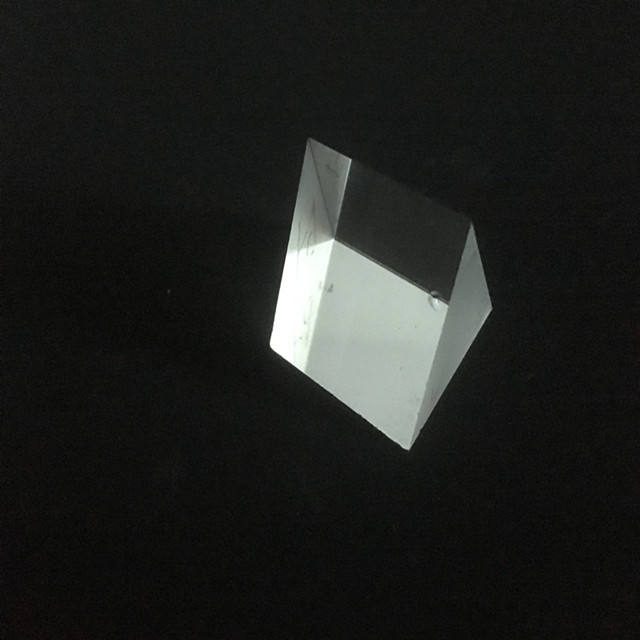

10 mm Fused Silica Right-angle Optical Prism

Product description

The right-angle prism is designed for precise beam deviation in optical applications, ensuring accurate light redirection with minimal distortion. Constructed from high-quality fused silica, it features a surface quality of 10/5 and a flatness of λ/8, making it suitable for applications requiring high wavefront integrity. With an angle tolerance of 3 arc minutes and a dimension tolerance of ±0.1 mm, this prism is ideal for integration into various optical paths.

Key Features

Right-angle geometry ensures accurate beam deviation for optical systems.
Surface quality of 10/5 guarantees minimal distortion for high-performance applications.
Angle tolerance of 3 arc minutes allows for precise alignment in optical setups.
Dimension tolerance of ±0.1 mm supports reliable integration into existing systems.
OEM support available for customized solutions to meet specific project needs.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Right-angle
Size	10 mm
Thickness	Custom
Surface Quality	10/5

Full Specifications

Parameter	Value
Prism Type	Right Angle Prism
Customized Support	OEM
Warranty	1 year
Bevel	0.1-0.3mm X45 Degree
Angle Tolerance	3 arc min
Dimension Tolerance	+/-0.1mm
Flatness	lamda/8

FAQ

Is custom sizing available?

OEM support is available, allowing for customized solutions to meet specific project requirements.

What is the angle tolerance?

The angle tolerance for this right-angle prism is 3 arc minutes.
