Custom Size Fused Silica Roof Optical Prism, AR Coated

Product description

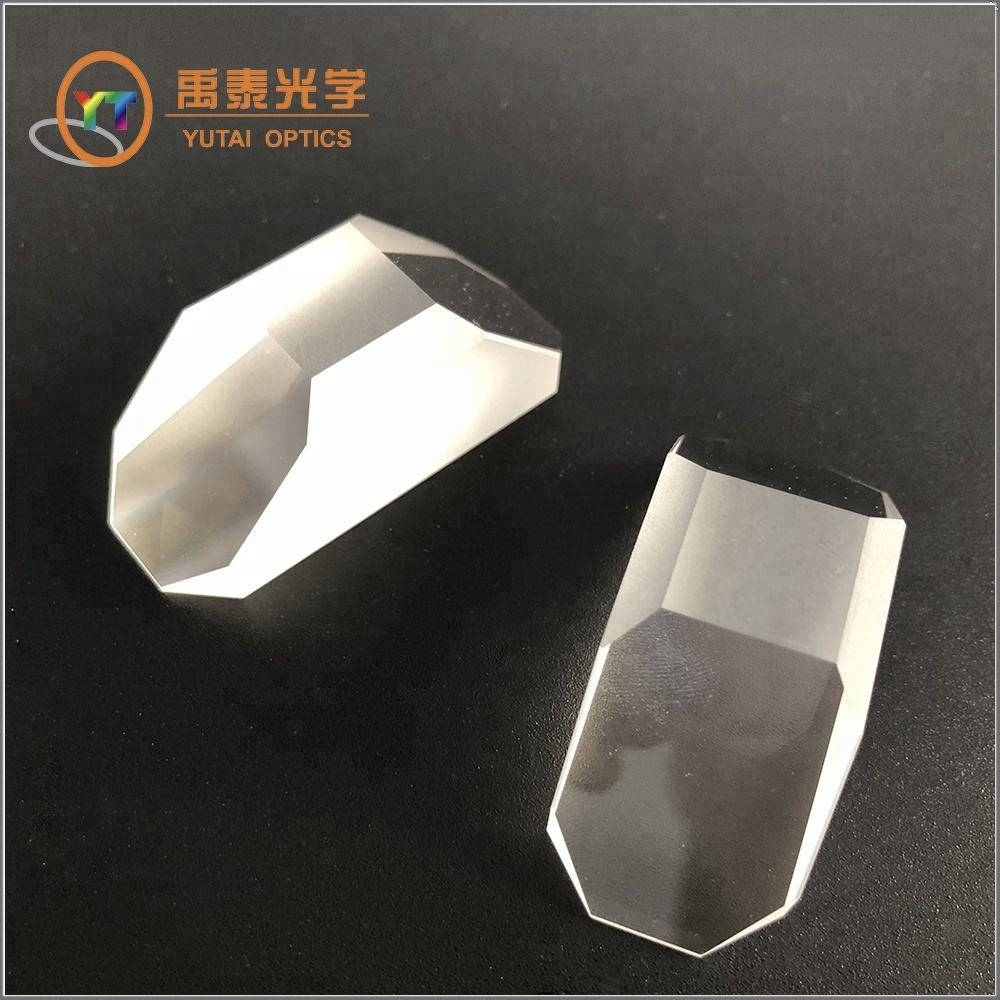

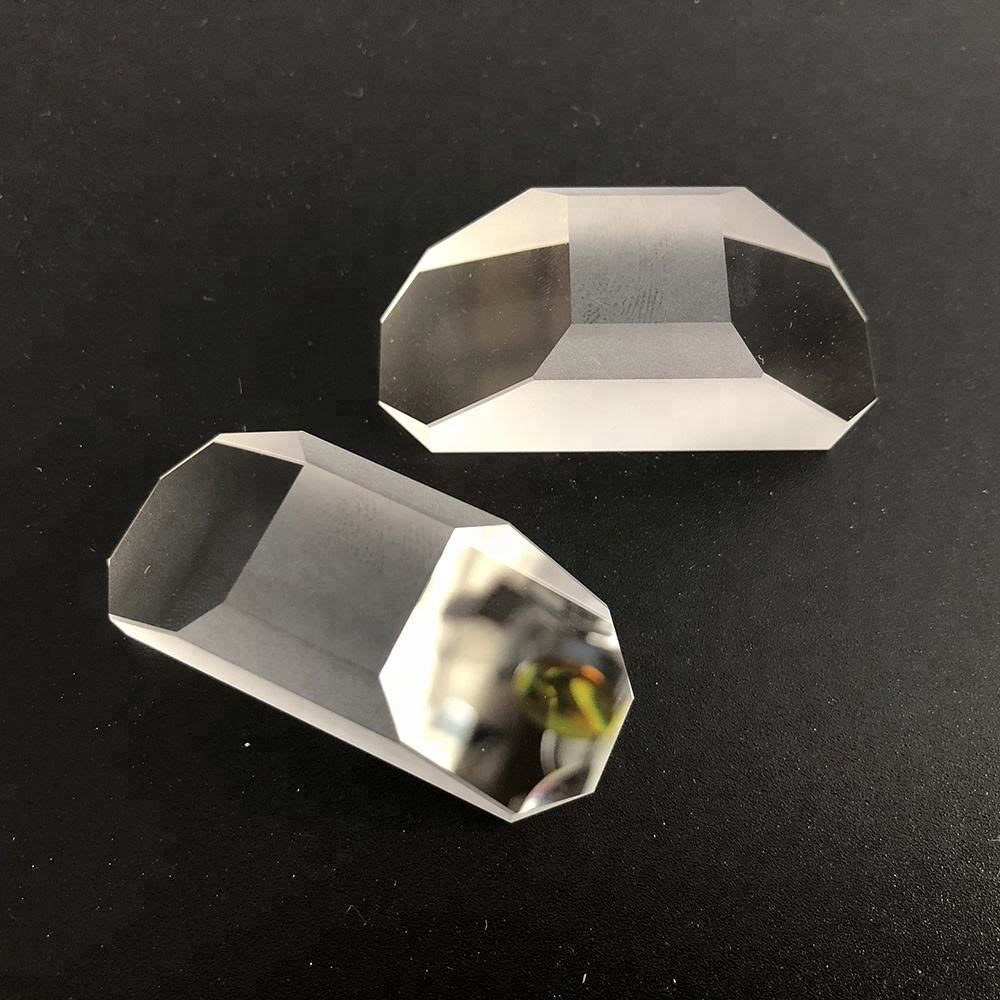

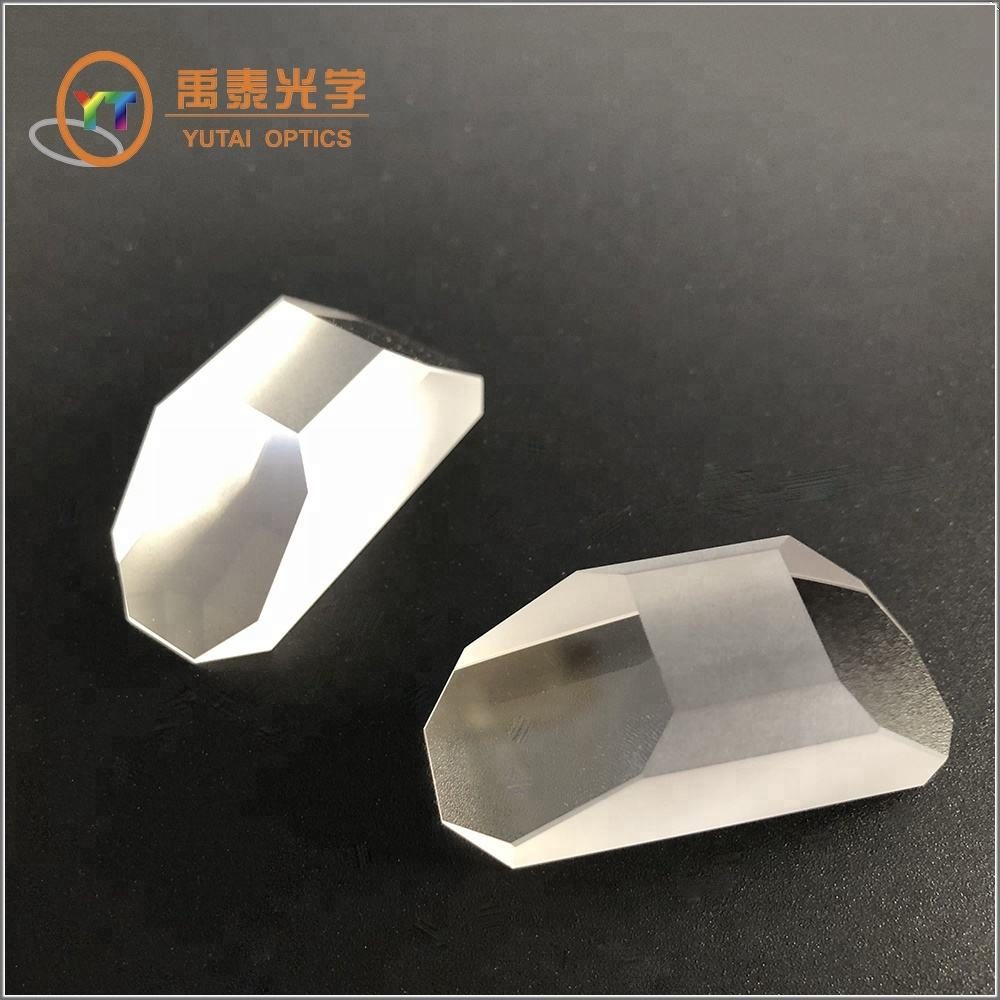

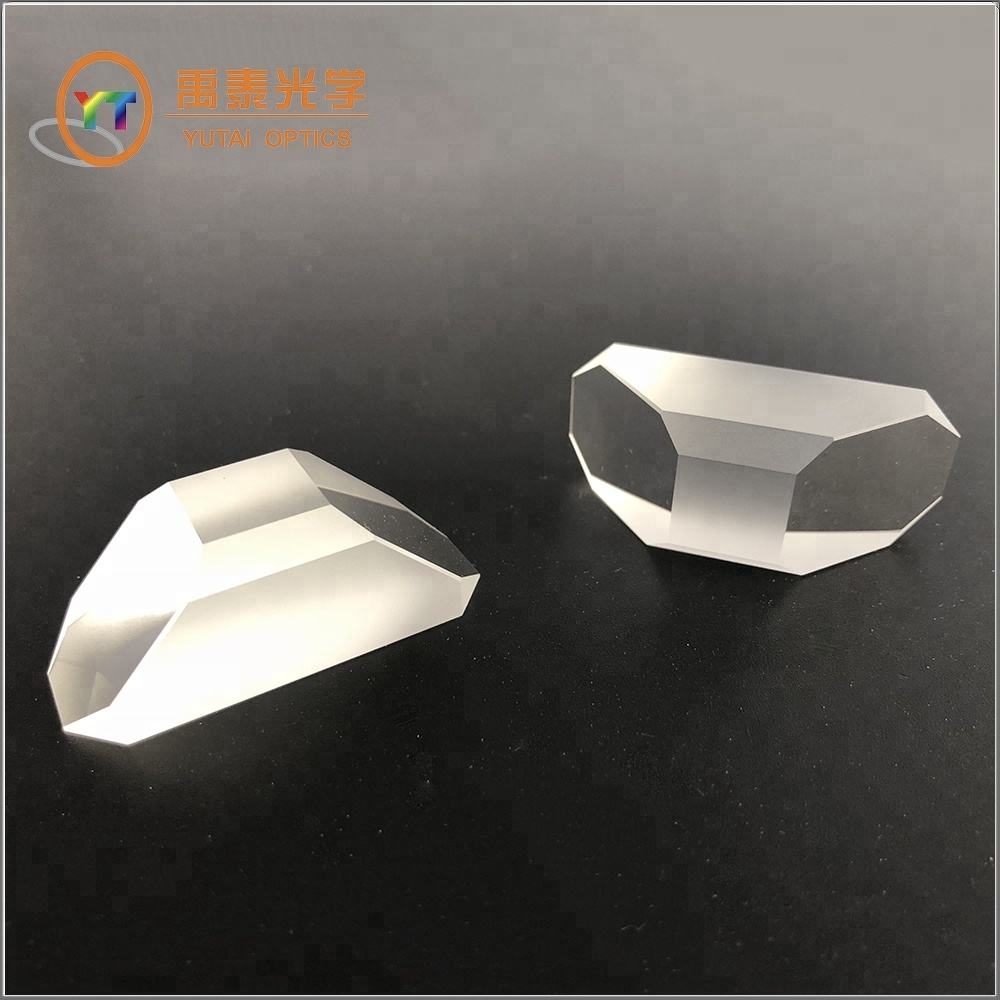

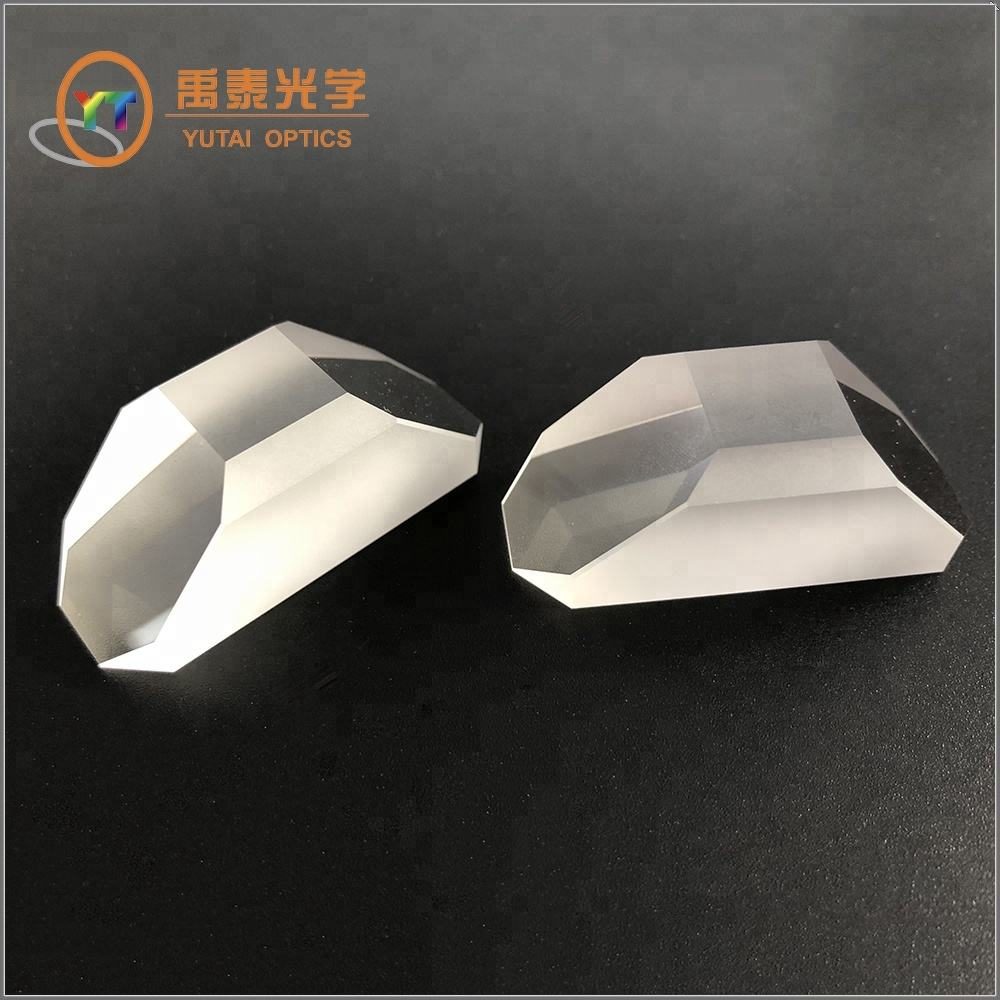

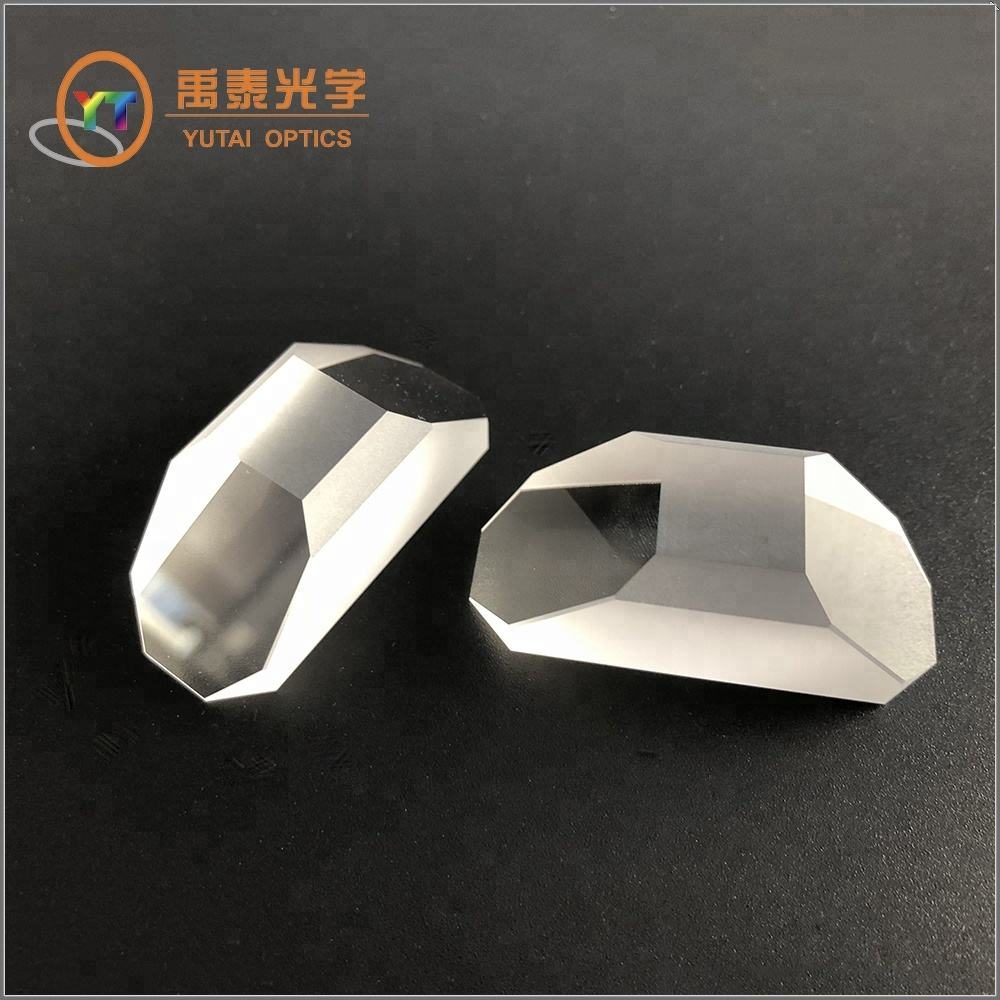

The Optical Glass Amici Roof Prism is designed for applications requiring precise beam deviation and high optical quality. Made from fused silica, this triangular prism features a surface quality of 40/20 and an angle tolerance of 3 arc minutes, ensuring reliable performance in optical paths. Its anti-reflective coating enhances light transmission, making it suitable for various optical systems.

Key Features

Surface quality of 40/20 for superior optical clarity.
Angle tolerance of 3 arc minutes for precise beam alignment.
Bevel of 0.25 mm at 45° to minimize light loss.
Flatness of L/4 to maintain wavefront integrity.
Customizable support available for OEM requirements.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Roof
Size	Custom
Thickness	Custom
Surface Quality	40/20
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	1 MONTH
Name	Optical Glass Amici Prism Roof Prism
Materail	fused silica
Dimension Tolerance	+-0.1mm
Angle Tolerance	3 arc
Flatness	L/4
Type	Triangular
Bevel	0.25 mm*45°
Chamfer	standard chamfers

FAQ

What is the angle tolerance of the prism?

The angle tolerance is 3 arc minutes, providing high precision for optical applications.

Is custom sizing available?

Custom sizing options are available to meet specific project requirements.
