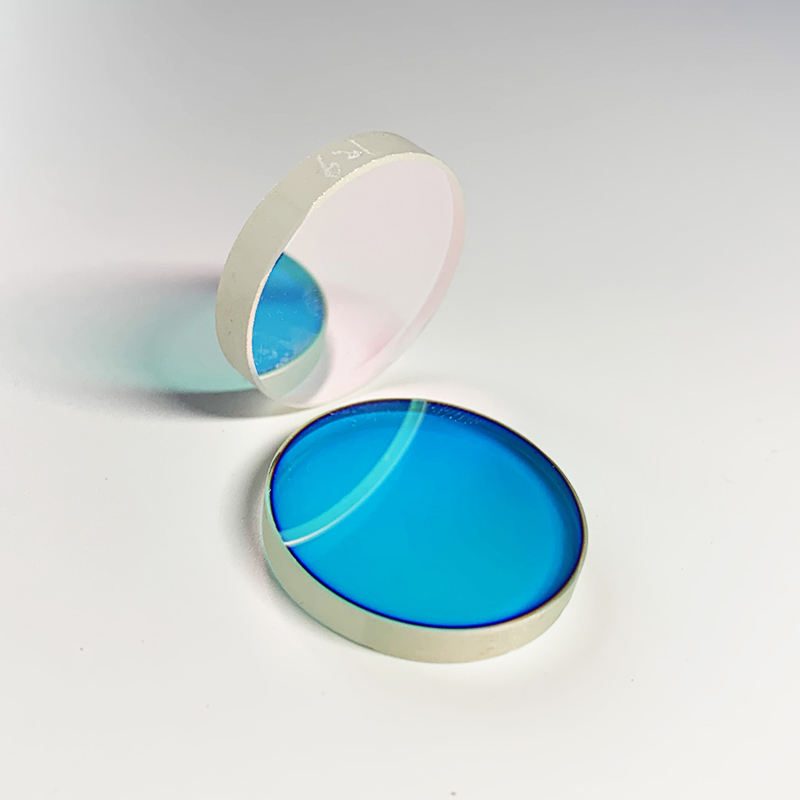

5 mm Fused Silica Round Optical Filter, AR Coated
Round fused silica filter with 60% transmittance at 254 nm, ideal for UV applications. Custom sizes available.
Core attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 60%
- Cwl
- 254nm
- Coating
- anti-reflective (AR)
- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 60%
- Cwl
- 254nm
- Coating
- anti-reflective (AR)
- Transmission bands
- UV (<400 nm)
Product description
This round fused silica filter is designed for applications requiring high transmittance in the ultraviolet range, particularly at a center wavelength of 254 nm. With a transmittance of 60% and a clear aperture greater than 80%, it effectively allows the desired wavelengths to pass while blocking unwanted light. The filter’s surface quality of 60/40 ensures minimal distortion, making it suitable for various optical applications.
Key Features
- Transmittance of 60% ensures effective light passage for UV applications.
- Center wavelength of 254 nm is ideal for fluorescence and analytical applications.
- Clear aperture greater than 80% maximizes usable light for enhanced imaging.
- Diameter tolerance of +0.0, -0.15 mm allows for precise fitting in optical setups.
- OEM support available for customized solutions tailored to specific needs.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Size | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmittance | 60% |
| Cwl | 254nm |
| Coating | anti-reflective (AR) |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 60% |
| Customized Support | OEM |
| Warranty | 3 months |
| Wavelength | CWL254nm |
| Transmission | >15% |
| Diameter Tolerance | +0.0,-0.15mm |
| Clear Aperture | >80% |
| Od | OD4 |
FAQ
Can I get custom sizes?
Custom sizes are supported through OEM options to meet specific requirements.
What is the diameter tolerance?
The diameter tolerance is +0.0, -0.15 mm, ensuring a precise fit.
