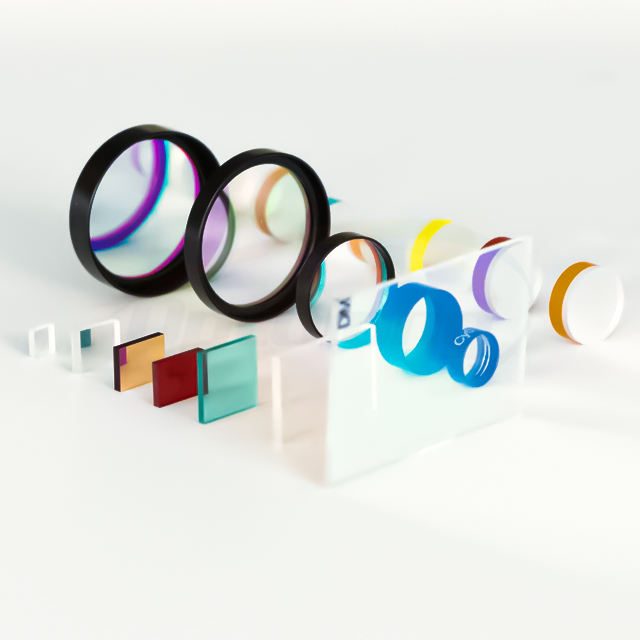

5 mm Fused Silica Round Optical Filter
Bandpass filter with 90% transmittance, optimized for laser applications at 635 nm. Durable hard-coated design.
Core attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 635nm
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 635nm
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This bandpass filter is designed for laser applications, specifically optimized for wavelengths around 635 nm. With a high transmittance of 90%, it ensures efficient light transmission while effectively blocking unwanted wavelengths, making it ideal for laser radar lenses. The hard-coated surface enhances durability, ensuring consistent performance in demanding environments.
Key Features
- High transmittance of 90% for optimal light efficiency.
- Bandpass filter type tailored for laser applications.
- Durable hard-coat for enhanced environmental resistance.
- Available in a compact round shape of 5.0 mm diameter.
- Customizable options for OEM, ODM, and OBM support.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Size | 5 mm |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 635nm |
| Coating | hard-coat |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Filter Type | Optical Filter 635nm 850nm 905nm 1064nm for laser radar lens |
| Coating Type | Hard Coated |
| Scratch-Dig | 40/20,60/40,80/50 |
| Center Wavelength | 635nm 850nm 905nm 1064nm |
| Peak Transmission(Tp) | >85% |
| Blocking Band | OD>4 |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity (MOQ) is not specified.
Can I get custom sizes?
Custom sizes are not listed, but support for OEM and ODM is available.
