5 mm Fused Silica Round Optical Filter
High-performance bandpass filter with 85% transmittance, 766 nm center wavelength, and durable hard-coating.
Core attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 766nm
- Fwhm
- 10nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 766nm
- Fwhm
- 10nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

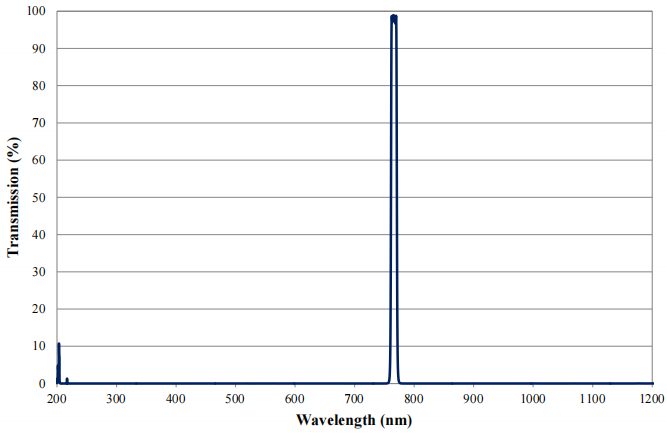

This bandpass filter is designed for applications requiring precise wavelength selection in the 0.7-1.7 μm range, with a center wavelength of 766 nm and a full width at half maximum (FWHM) of 10 nm. It features a high transmittance of 85%, ensuring efficient light throughput while effectively blocking unwanted wavelengths with an optical density greater than 3 in the 400-1200 nm range. The hard-coated fused silica material provides durability for various optical instruments, making it suitable for demanding environments.
Key Features
- Center Wavelength: 766 nm for precise spectral fit.
- Transmittance: 85% ensures high light throughput.
- Blocking Band: OD>3 in the 400-1200 nm range for effective light rejection.
- Durable Coating: Hard-coated for enhanced environmental resistance.
- Customization: Available for OEM, ODM, and OBM support.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Size | 5 mm |
| Thickness | Custom |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 766nm |
| Fwhm | 10nm |
| Coating | hard-coat, iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Type | Hard Coated |
| Scratch-Dig | 40/20,60/40,80/50 |
| Center Wavelength | 766nm |
| Peak Transmission(Tp) | >85% |
| Blocking Band | OD>3,400-1200nm |
| Use | Optical instrument |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Custom sizes are available for OEM, ODM, and OBM support.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing flexibility in procurement.
