1 / 6Optical Filters
5 mm Fused Silica Round Optical Filter
Discover a 365nm bandpass filter with 85% transmittance, ideal for UV applications in optical instruments.
Core attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 365nm
- Fwhm
- 75nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 365nm
- Fwhm
- 75nm
- Coating
- hard-coat, iad-pvd
- Transmission bands
- UV (<400 nm)
Product description

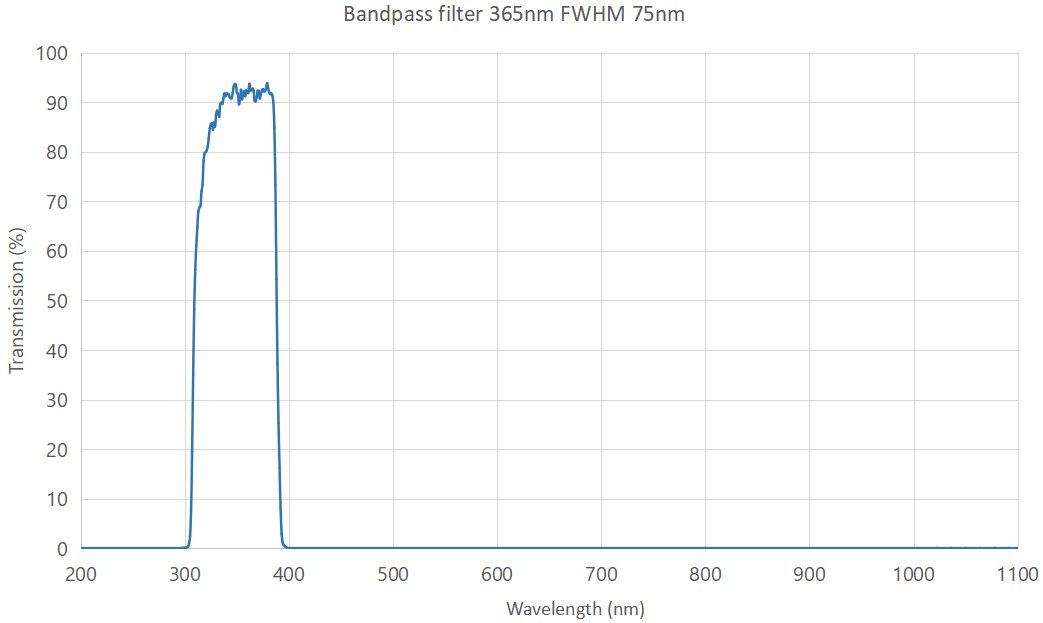

This 365nm bandpass filter is designed for applications requiring high transmission in the ultraviolet spectrum, specifically below 400 nm. With a full width at half maximum (FWHM) of 75nm and an impressive transmittance of 85%, it effectively isolates the desired wavelengths while blocking unwanted light. Ideal for use in optical instruments, this filter ensures reliable performance across various environments, thanks to its hard coating and durable construction.
Key Features
- 85% transmittance ensures effective light passage for optimal imaging.
- 365nm center wavelength tailored for UV applications, enhancing spectral fit.
- OD>4 blocking from 400-1200nm prevents interference from unwanted wavelengths.
- Hard-coated surface enhances durability and resistance to environmental factors.
- Customizable options available, supporting OEM, ODM, and OBM needs.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Size | 5 mm |
| Thickness | Custom |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 365nm |
| Fwhm | 75nm |
| Coating | hard-coat, iad-pvd |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Type | Hard Coated |
| Scratch-Dig | 40/20,60/40,80/50 |
| Center Wavelength | 365nm |
| Peak Transmission(Tp) | >85% |
| Blocking Band | OD>4,400-1200nm |
| Use | Optical instrument |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes for this filter?
Yes, customizable options are available, including OEM, ODM, and OBM support.
What is the minimum order quantity (MOQ) for this filter?
The minimum order quantity (MOQ) is not specified; please inquire for details.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
