1 / 6Optical Filters

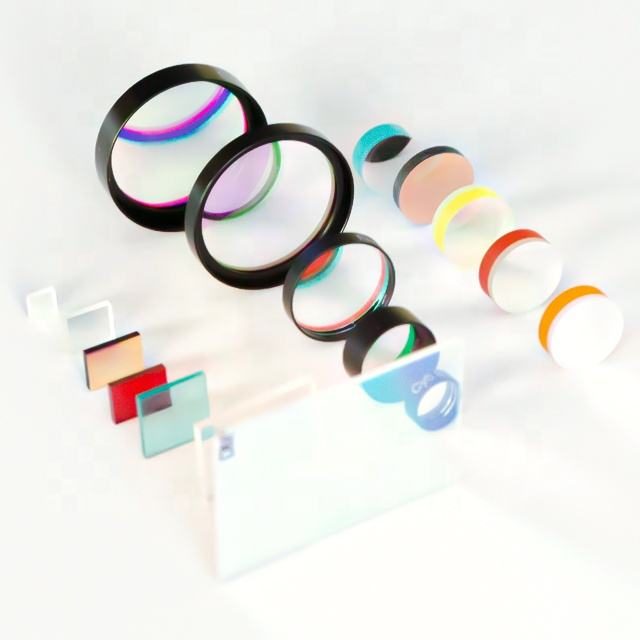

5 mm Fused Silica Round Optical Filter
Round bandpass filter at 475 nm with >85% transmission, hard-coated for durability, ideal for fluorescence and optical applications.
Core attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Filter Type
- bandpass
- Cwl
- 475nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Filter Type
- bandpass
- Cwl
- 475nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product description
This round bandpass filter is designed for applications requiring precise wavelength selection, specifically centered at 475 nm. With a peak transmission greater than 85%, it effectively transmits light in the 400-700 nm range while blocking wavelengths below 400 nm and above 1200 nm with an optical density greater than 4. The hard-coated surface ensures durability, making it suitable for various environments in fluorescence microscopy and other optical applications.
Key Features
- Center wavelength at 475 nm for optimal spectral fit in relevant applications.
- Peak transmission >85% ensures high light throughput.
- OD >4 blocking capability for effective suppression of unwanted wavelengths.
- Hard-coated for enhanced environmental durability.
- Custom sizing and OEM/ODM support available for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Size | 5 mm |
| Thickness | Custom |
| Filter Type | bandpass |
| Cwl | 475nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Filter Type | optical filter glass uv 365nm 405nm 445nm narrow bandpass filter |
| Coating Type | Hard Coated |
| Scratch-Dig | 40/20,60/40,80/50 |
| Center Wavelength | 475nm |
| Peak Transmission(Tp) | >85% |
| Blocking Band | OD>4,400-1200nm |
FAQ
Can I get custom sizes?
Yes, custom sizes are available to meet specific application needs.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
