1 / 6Optical Filters

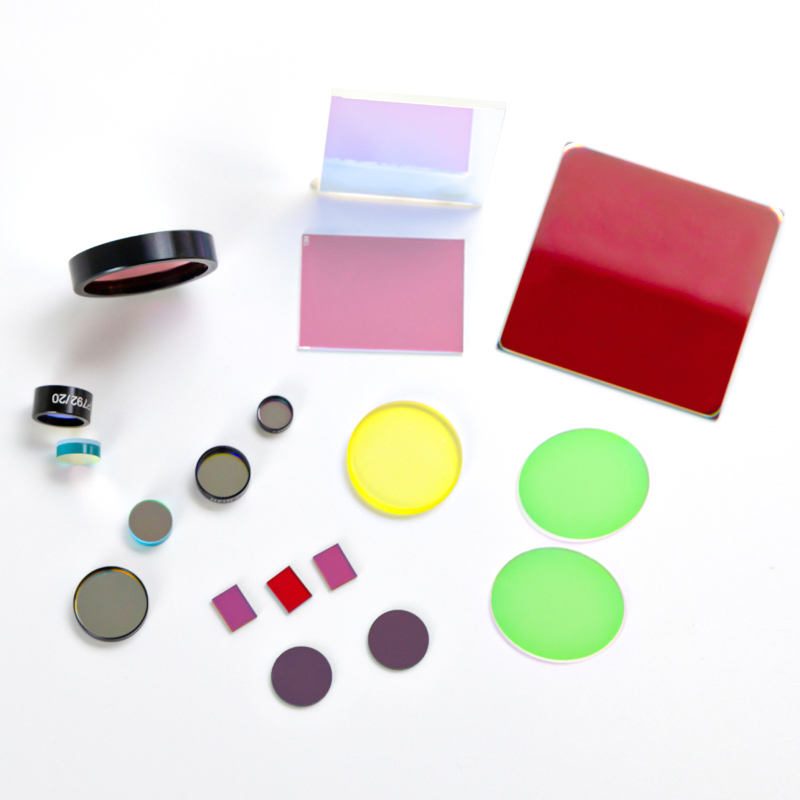

5 mm Fused Silica Round Optical Filter
650 nm bandpass filter with 85% transmittance, hard-coated for durability, ideal for optical instruments.
Core attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 650nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 650nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description

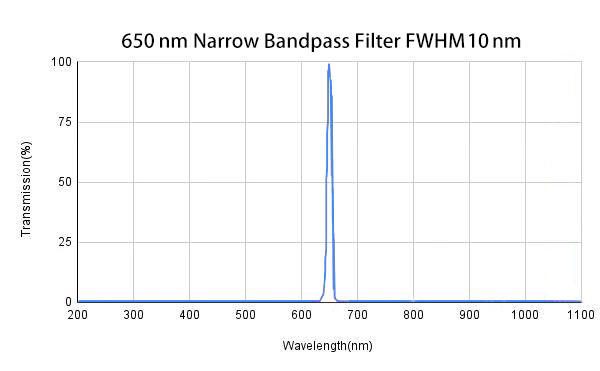

This 650 nm bandpass filter is designed for applications requiring efficient light transmission in the 400-700 nm range. With a transmittance of 85% and hard-coat protection, it ensures durability and reliability in optical instruments. The filter effectively blocks wavelengths outside its specified range, providing an optical solution for fluorescence microscopy and other precision applications.
Key Features
- Transmittance of 85% ensures high light throughput for optimal performance.
- Hard-coated surface enhances durability against environmental factors.
- Center wavelength of 650 nm tailored for specific fluorescence applications.
- Blocking band with OD>3 for superior rejection of unwanted wavelengths.
- Available for OEM, ODM, and OBM customizations to meet specific needs.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Size | 5 mm |
| Thickness | Custom |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 650nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Type | Hard Coated |
| Scratch-Dig | 40/20,60/40,80/50 |
| Center Wavelength | 650 nm |
| Peak Transmission(Tp) | >85% |
| Blocking Band | OD>3,400-1200nm |
| Use | Optical instrument |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM, ODM, and OBM support.
What is the minimum order quantity (MOQ)?
The MOQ details are not specified, please inquire for more information.
