1 / 6Optical Filters

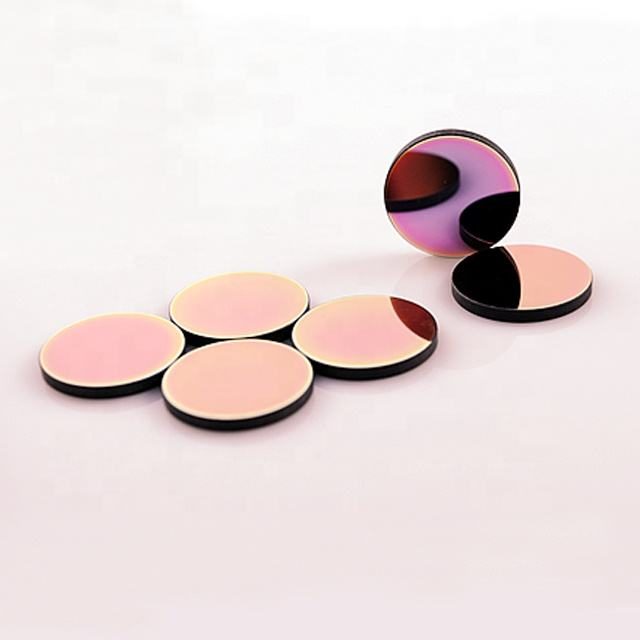

Custom Size Fused Silica Round Optical Filter
High-performance bandpass filter at 1064 nm with 85% transmittance, ideal for various optical applications.
Core attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 1064nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Round
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 1064nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This bandpass filter is designed for applications in the 0.7-1.7 μm range, particularly effective at a center wavelength of 1064 nm. With a high transmittance of 85%, it ensures optimal light passage while effectively blocking unwanted wavelengths. Ideal for fluorescence microscopy, laser applications, and other precision optical systems, this filter is crafted from fused silica and features an IAD-PVD coating for enhanced durability and performance.
Key Features
- Transmittance of 85% ensures efficient light transmission.
- Customizable options available for OEM, ODM, and OBM needs.
- Surface quality rated at 40/20 for minimal optical distortion.
- Tolerance of ± 0.10 mm for precise fitting in optical assemblies.
- Durable fused silica material suitable for demanding environments.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 1064nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >95% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Substrate | B270,D263T,Quartz Glass,Float glass,Color glass |
| Tolerance | ± 0.10mm |
| Certification | RoHS,ISO9001,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes for this filter?
Custom sizes are available for OEM, ODM, and OBM applications.
What is the tolerance for this filter?
The filter has a tolerance of ± 0.10 mm.
