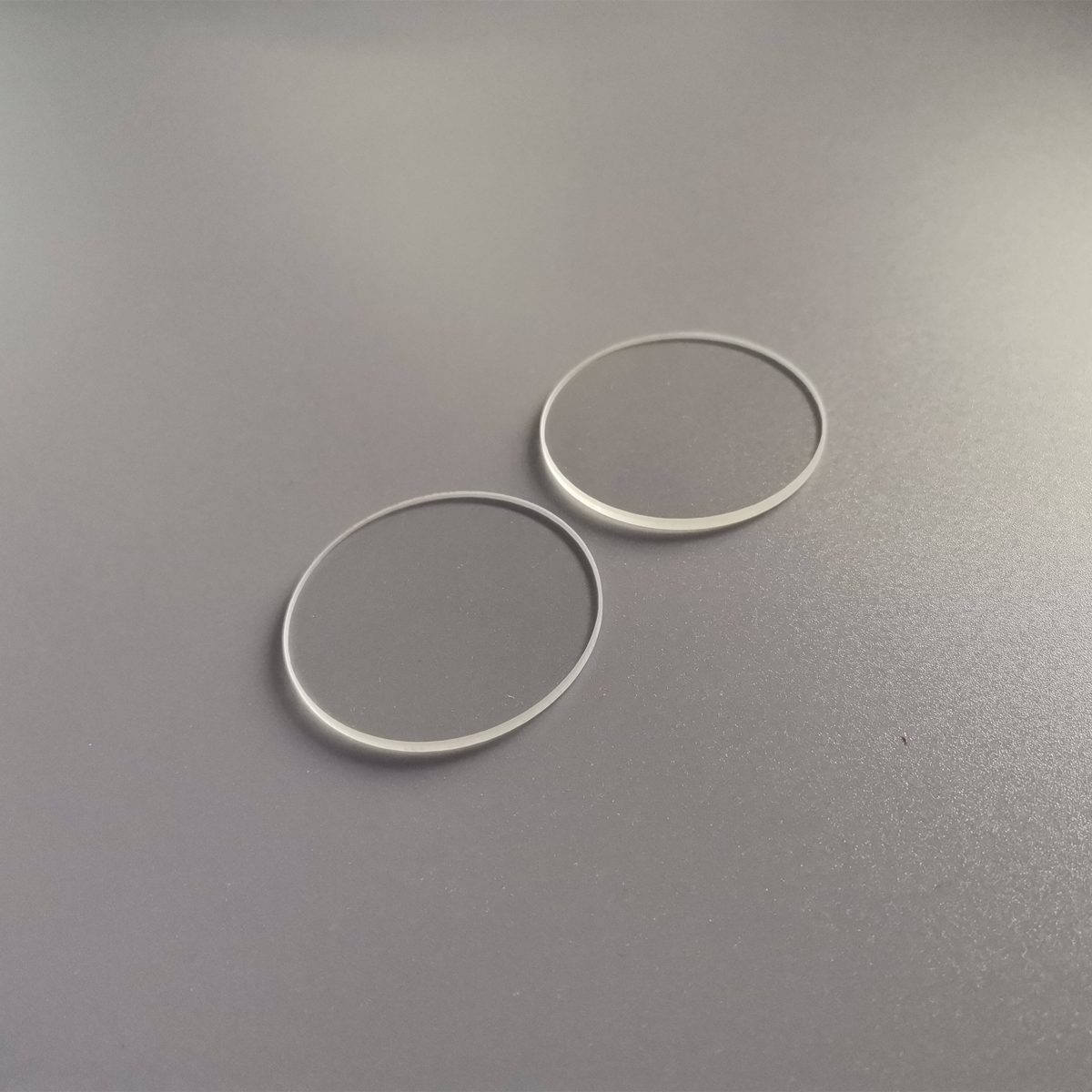

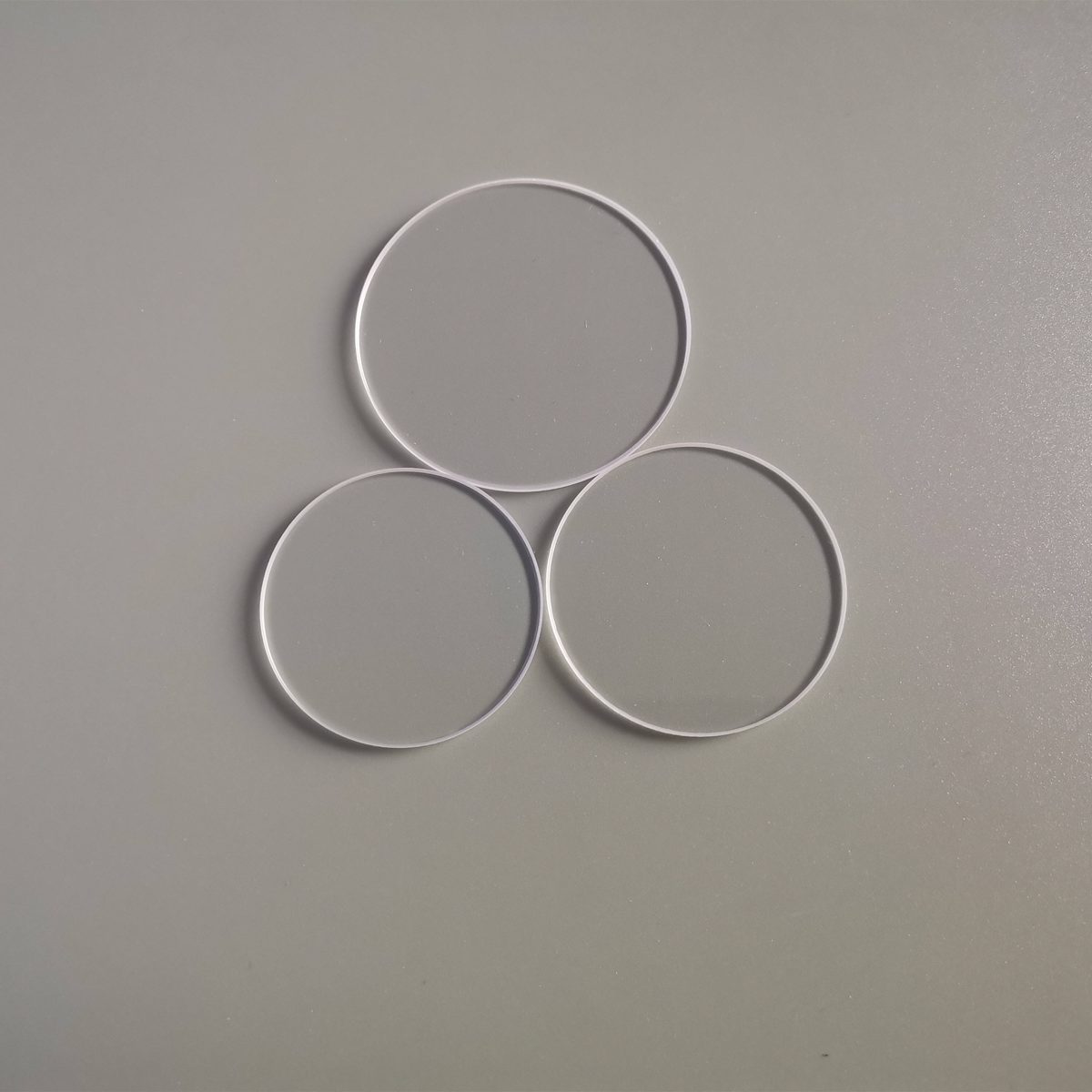

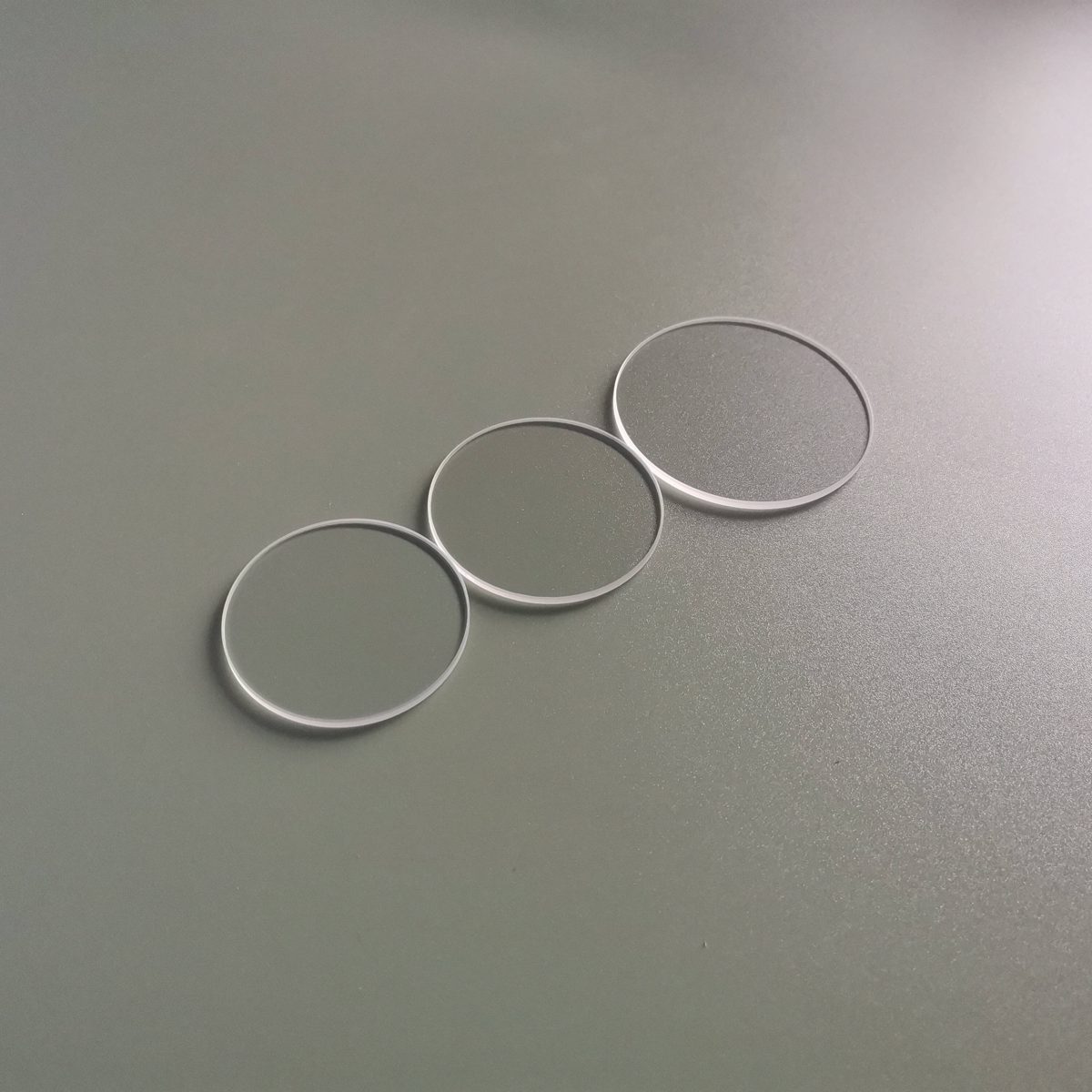

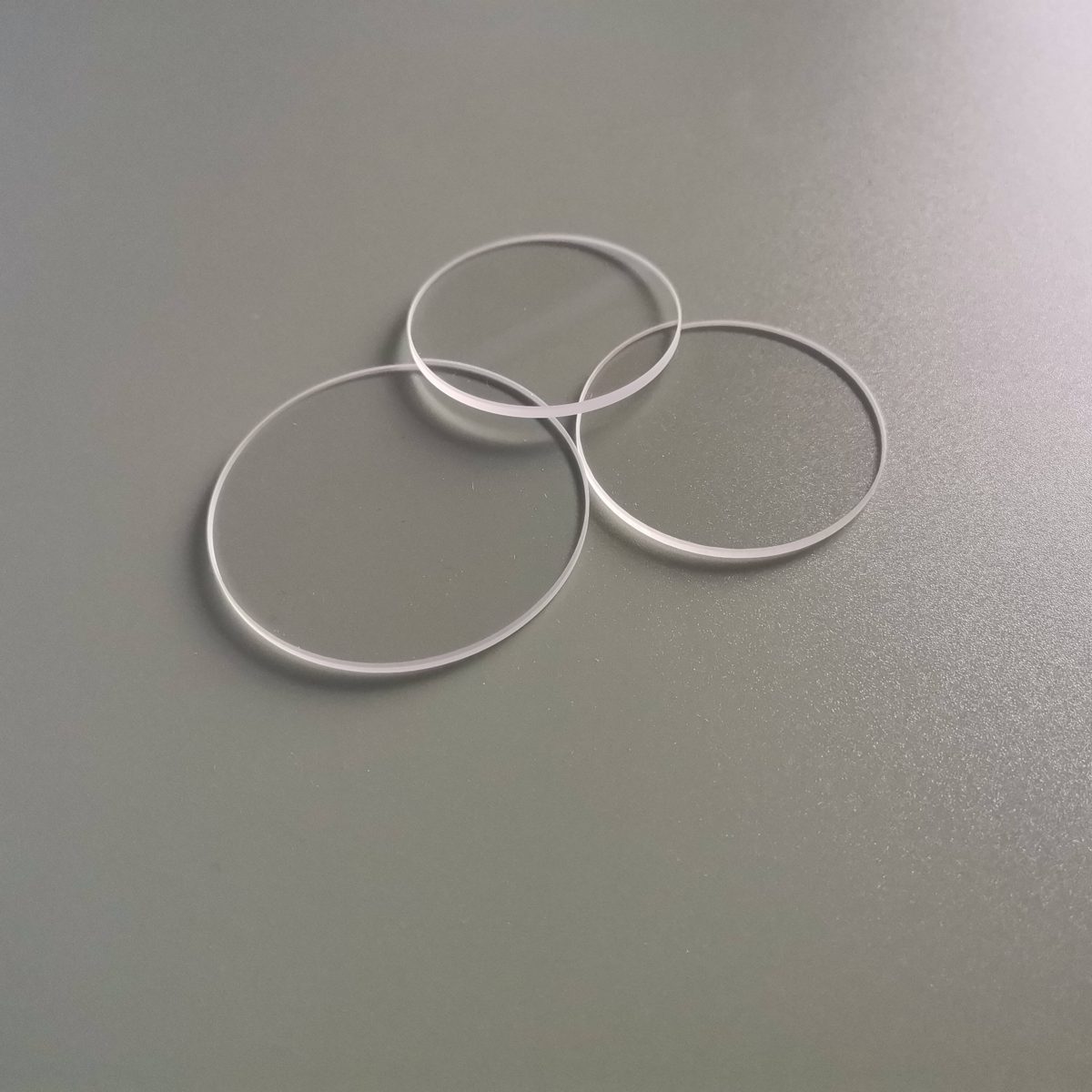

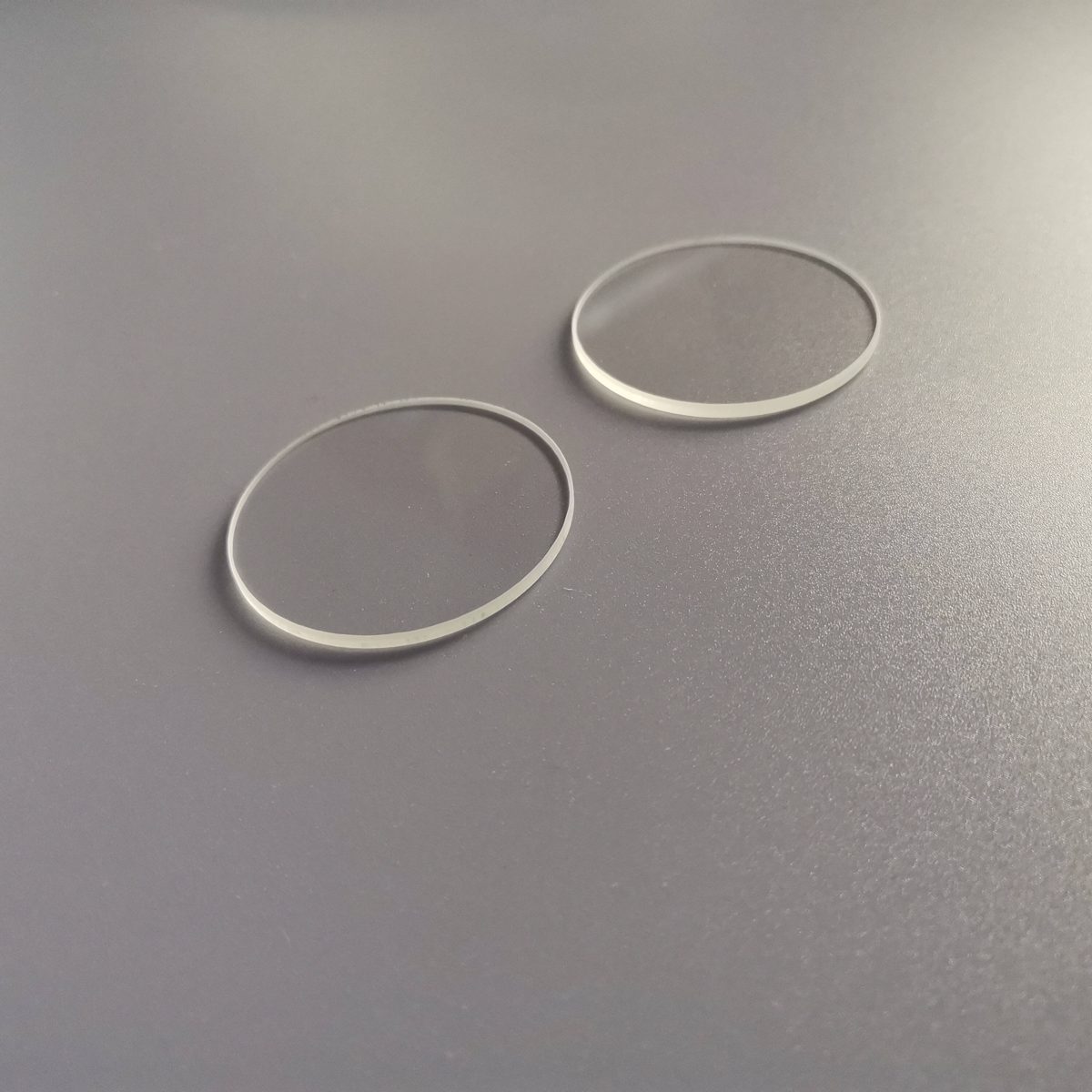

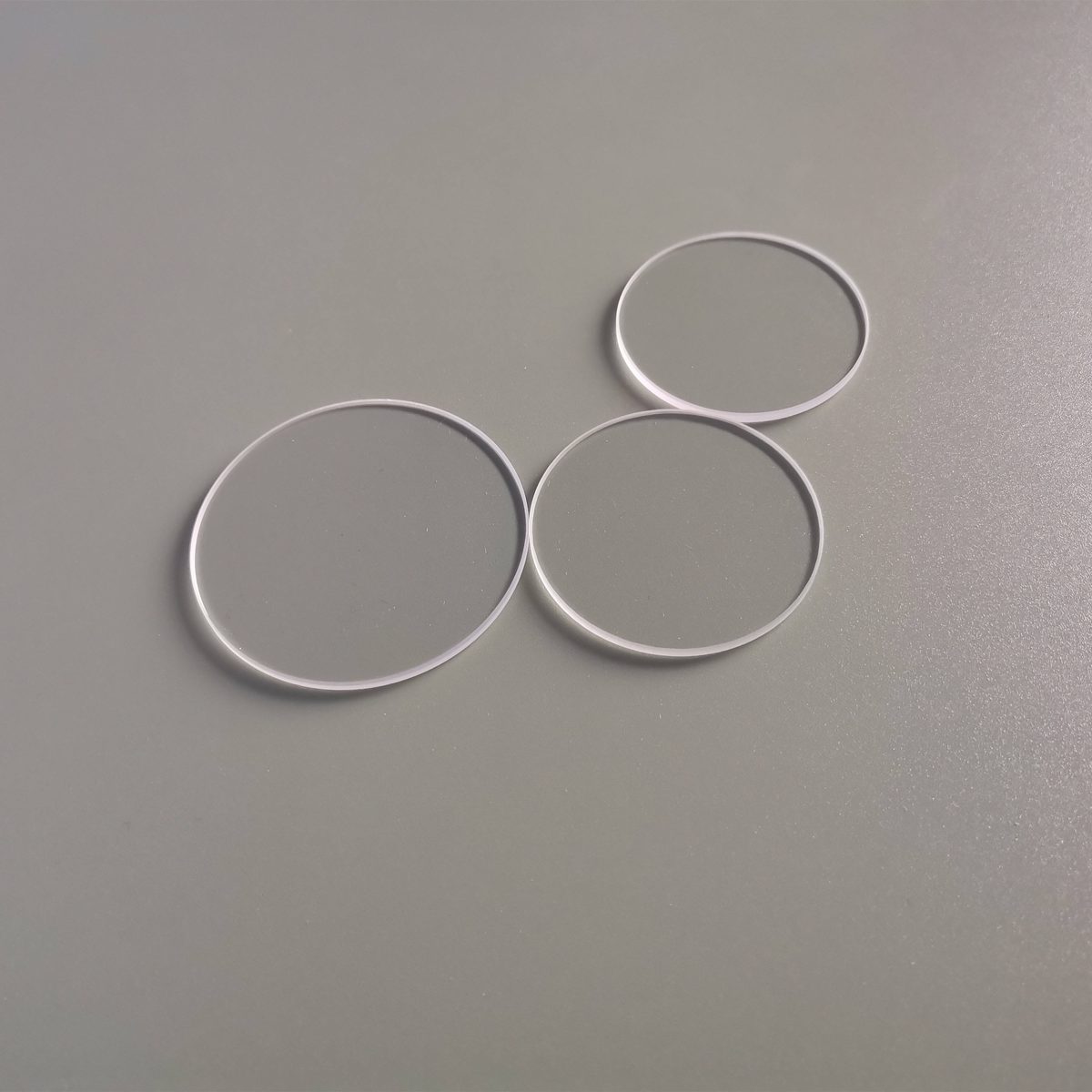

0.5 mm Fused Silica Round Optical Window, AR Coated
Explore our fused silica plano convex lenses for laser cutting and medical applications, with customizable sizes and high transmittance.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 0.5–300 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 0.5–300 mm
- Coating
- ar
Product description
This plano convex lens and window made from fused silica is designed for applications in laser cutting and medical devices, operating effectively across multiple wavelength bands including 0.7-1.7 μm and 400-700 nm. With a clear aperture of ≥90% and a surface quality of 60/40, it ensures high transmittance and minimal distortion. The lens is available in a wide diameter range from 0.5 mm to 300 mm, making it suitable for various integration needs in optical systems.
Key Features
- Diameter options from 0.5 mm to 300 mm for versatile application fit.
- Surface quality of 60/40 ensures minimal distortion for precise imaging.
- Clear aperture of ≥90% maximizes light transmission efficiency.
- Parallelism of 3’ supports alignment in demanding optical setups.
- OEM customization available to meet specific project requirements.
Applications
Laser Cutting, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 0.5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano Convex Lens; Plano Windows |
| Customized Support | OEM |
| Warranty | 1 Year |
| Weight | 10-500g(0.35-17.64oz) |
| Substrate | Fused Silica |
| Parallelism | 3' |
| Surface Flatness | L/2 |
| Bevel | Protective bevel as needed |
| Clear Aperture | ≥90% |
FAQ
Can I get custom sizes?
Yes, diameters range from 0.5 mm to 300 mm, allowing for custom size options.
What are the tolerances for surface quality?
The surface quality is rated at 60/40, ensuring minimal distortion.
