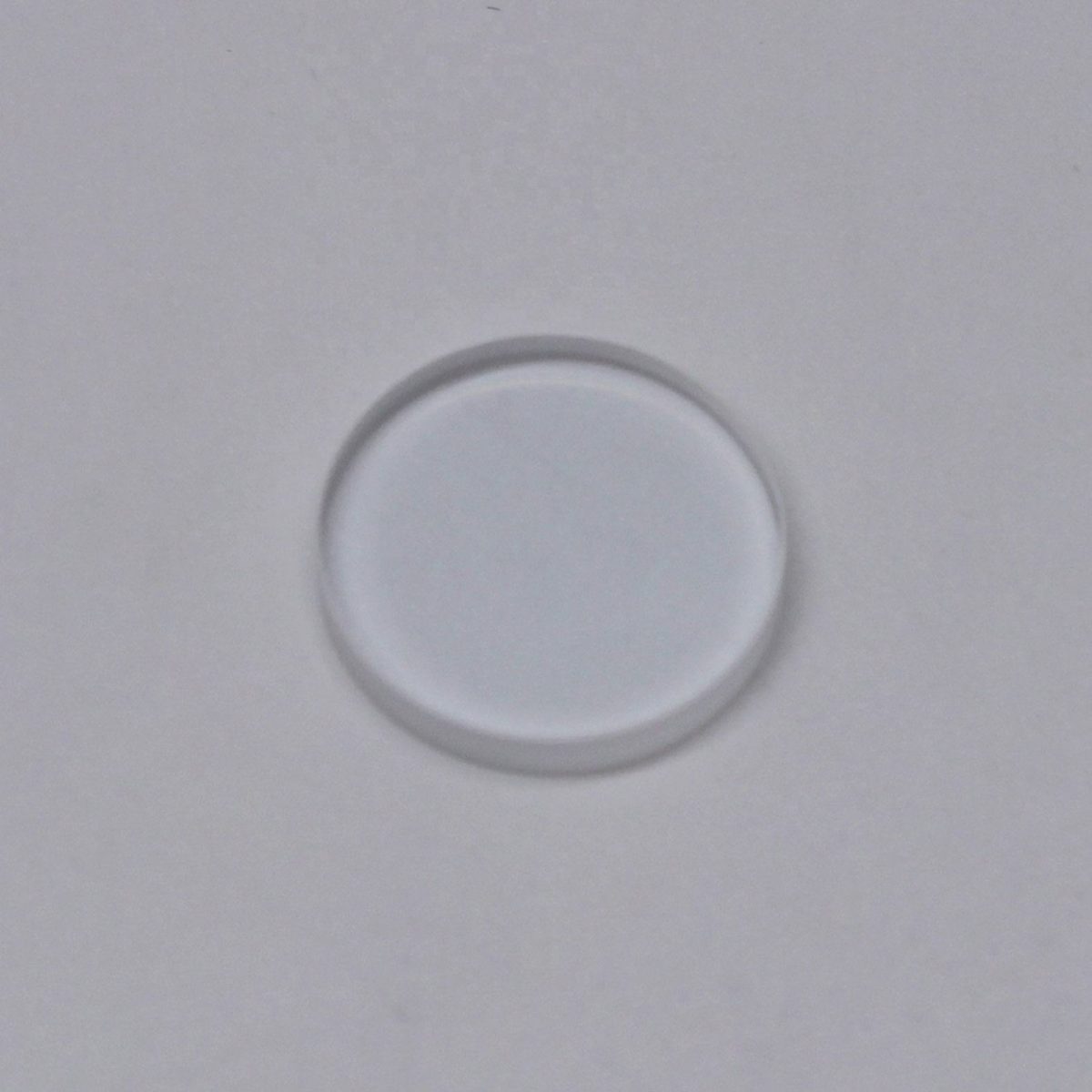

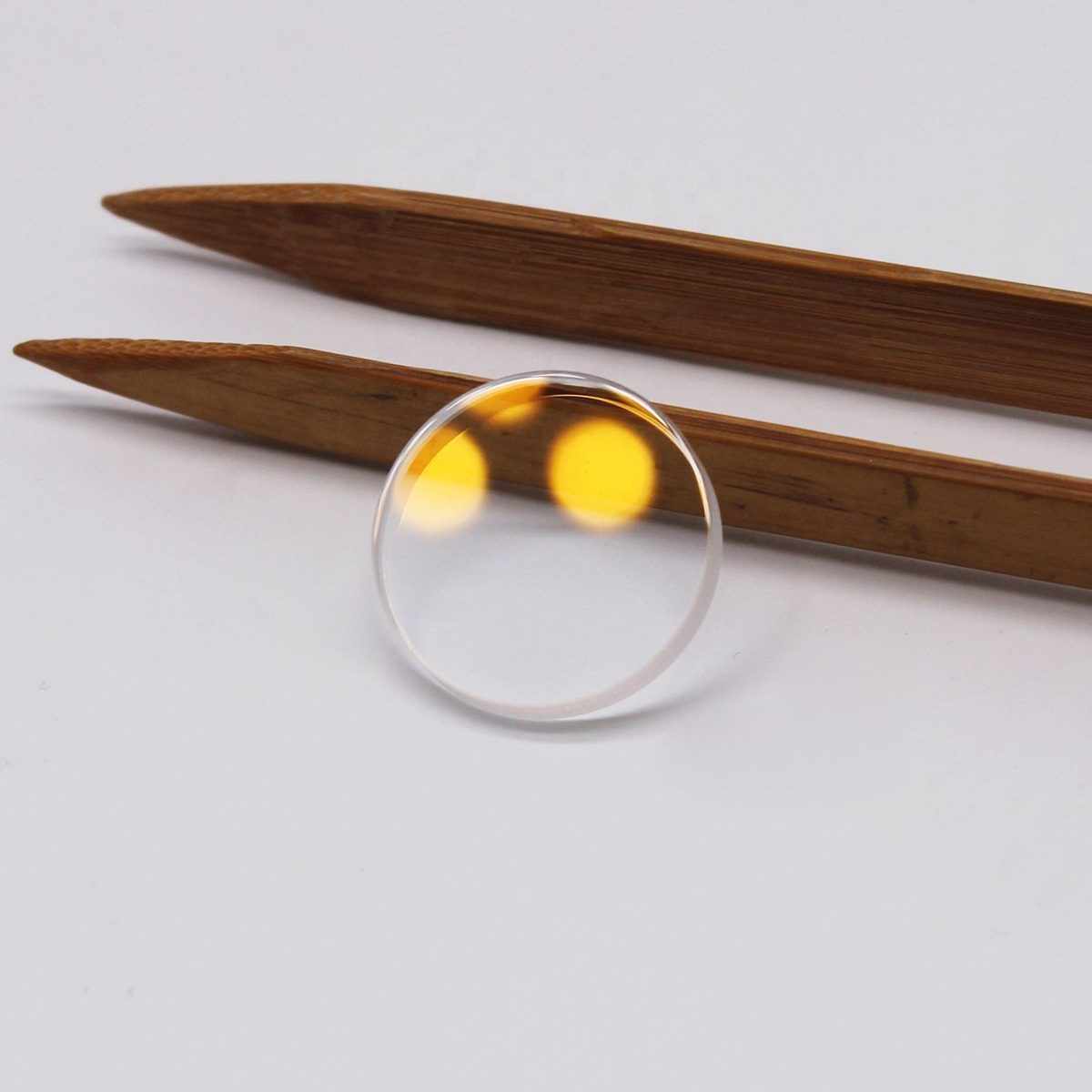

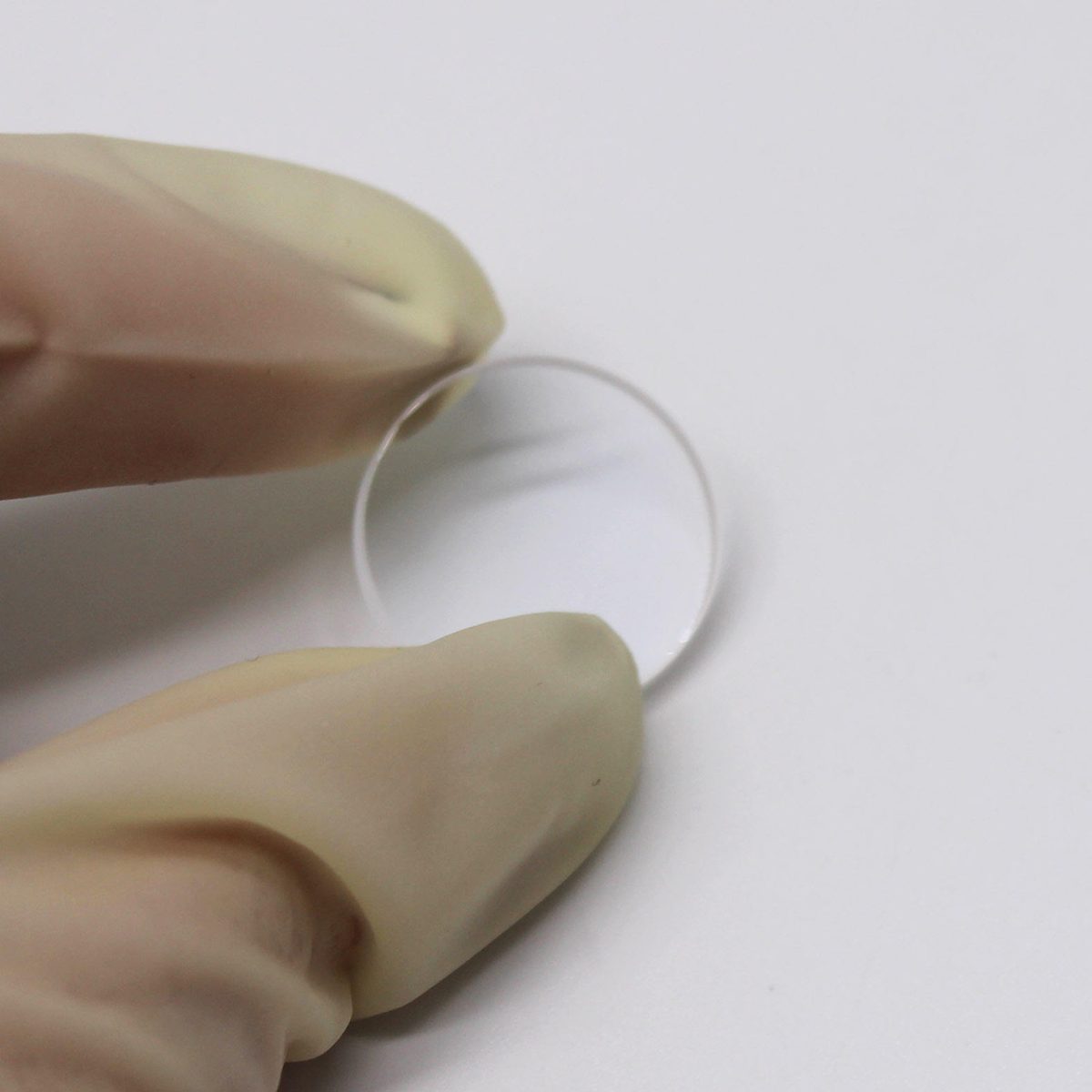

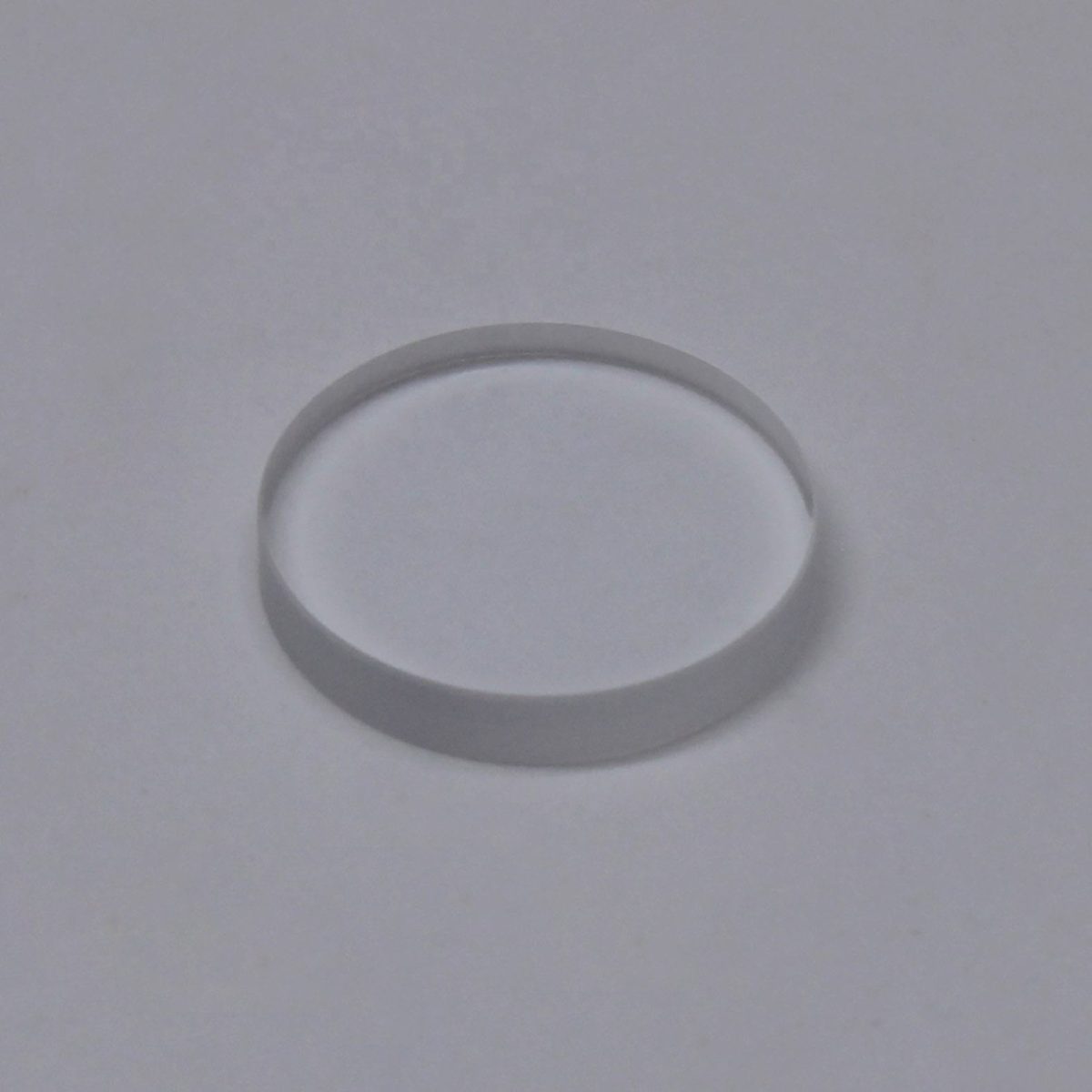

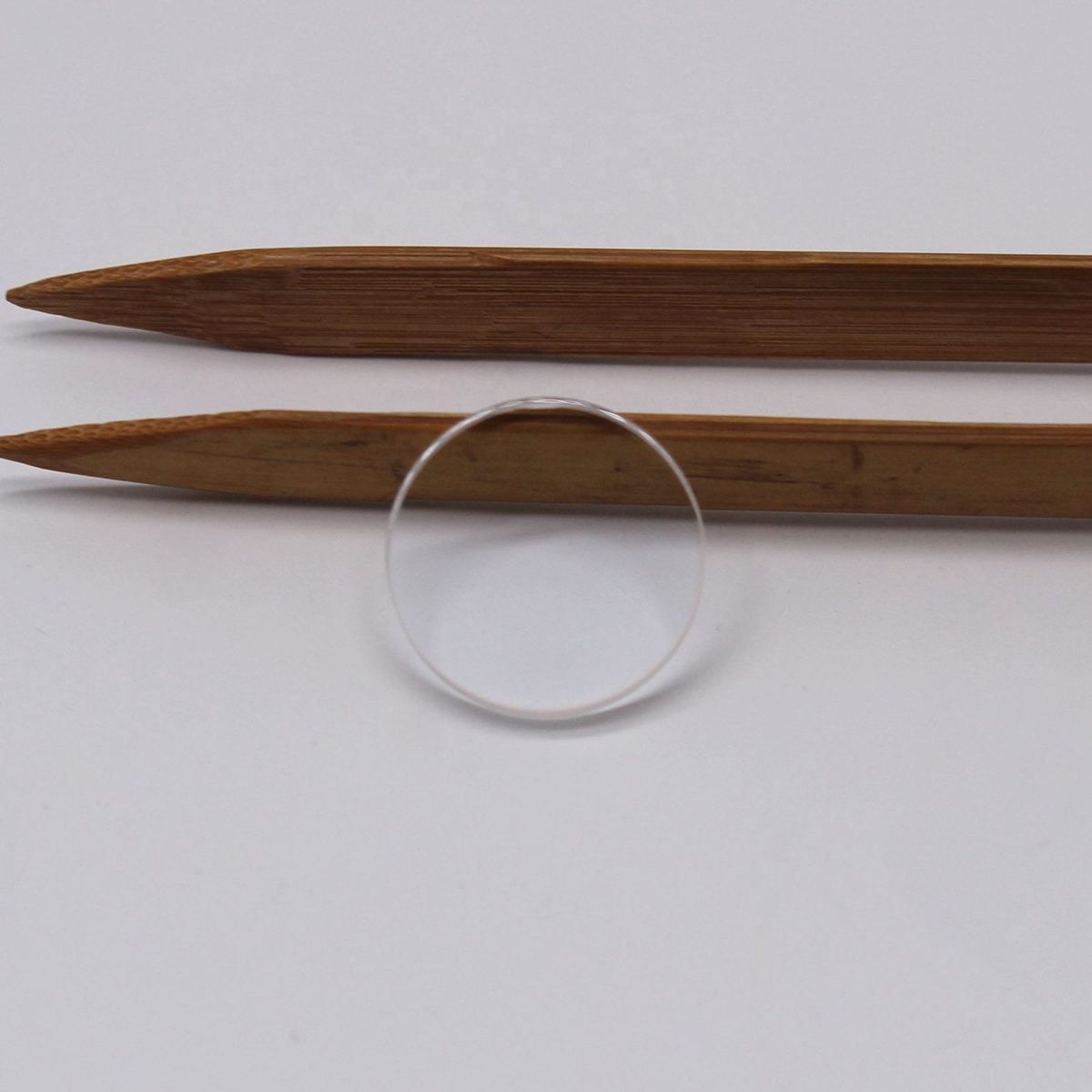

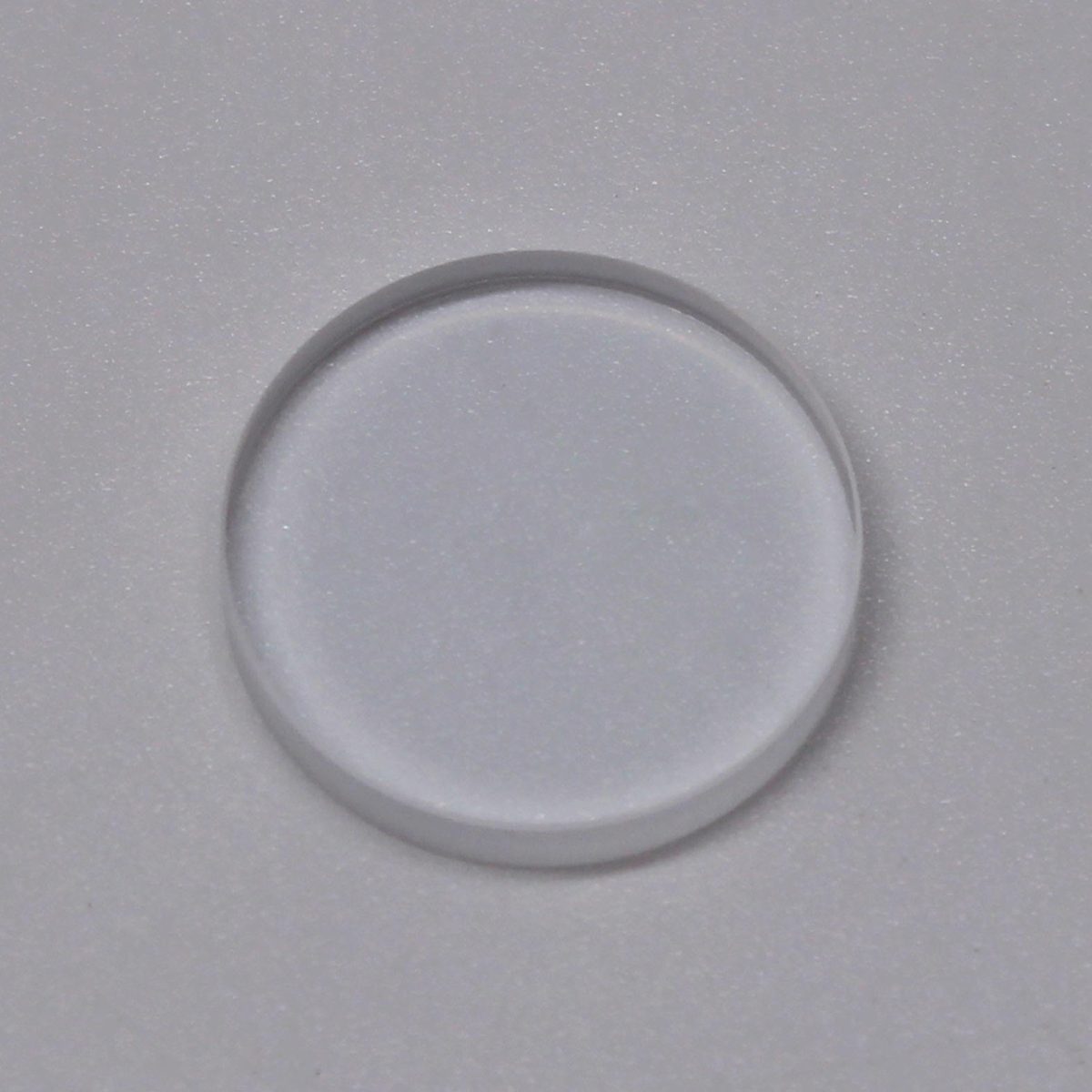

19x3 mm Fused Silica Round Optical Window, AR Coated
High-performance FS7980 Optical Window for thermal imaging and security, with customizable sizes and coatings.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 19 mm
- Thickness
- 3 mm
- Coating
- ar, dlc
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 19 mm
- Thickness
- 3 mm
- Coating
- ar, dlc
Product description
The FS7980 Optical Window is designed for thermal imaging and security applications, providing excellent transmission in the 8-14 μm wavelength range. Made from high-quality fused silica, this round optical flat minimizes wavefront distortion and offers outstanding durability. Optional coatings like AR and DLC enhance performance, making it suitable for IR imaging systems and laser protection.
Key Features
- Diameter: 19.0 mm, ensuring compatibility with standard optical setups.
- Thickness: 3.0 mm, providing a robust structure for demanding applications.
- Diameter Tolerance: +/-0.01 mm, ensuring precise fit for optical assemblies.
- Thickness Tolerance: +/-0.1 mm, maintaining consistent performance across batches.
- Customized Support: Available for OEM and ODM projects, catering to specific needs.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 19 x 3 |
Applications
Thermal Imaging, Security
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 19 mm |
| Thickness | 3 mm |
| Coating | anti-reflective (AR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | flat; Plate |
| Customized Support | OEM, ODM |
| Warranty | as requested |
| Weight | 0.15 |
| Name | Optical Window |
| Diameter Tolerance | +/-0.01mm |
| Thickness Tolerance | +/-0.1mm |
| Surface Figure | lamda/10 |
FAQ
What are the available custom sizes?
Custom diameters range from 10 mm to 200 mm.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please inquire for details.
