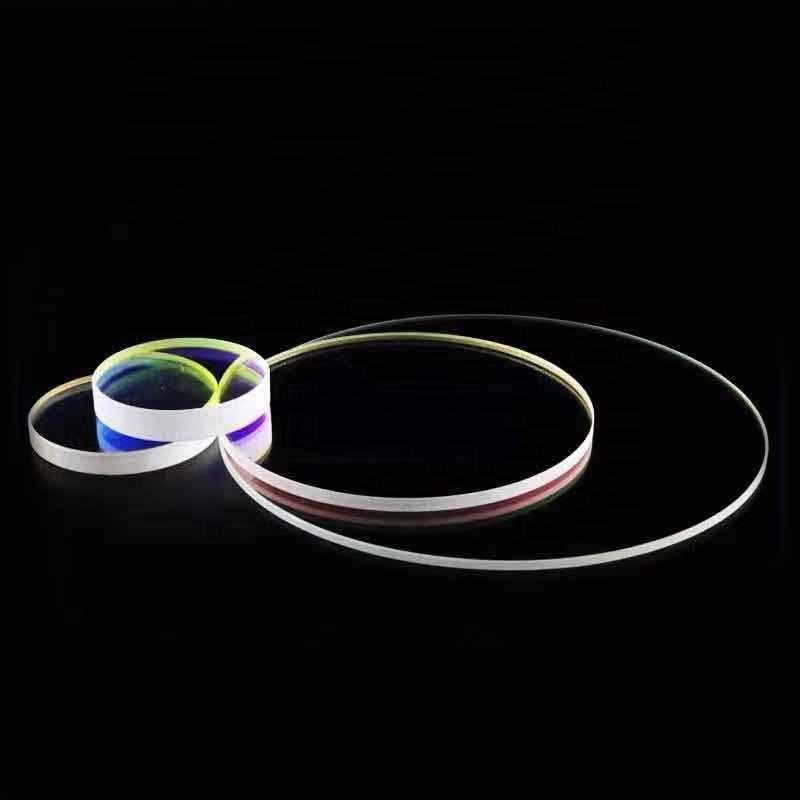

1x1 mm Fused Silica Round Optical Window

Product description

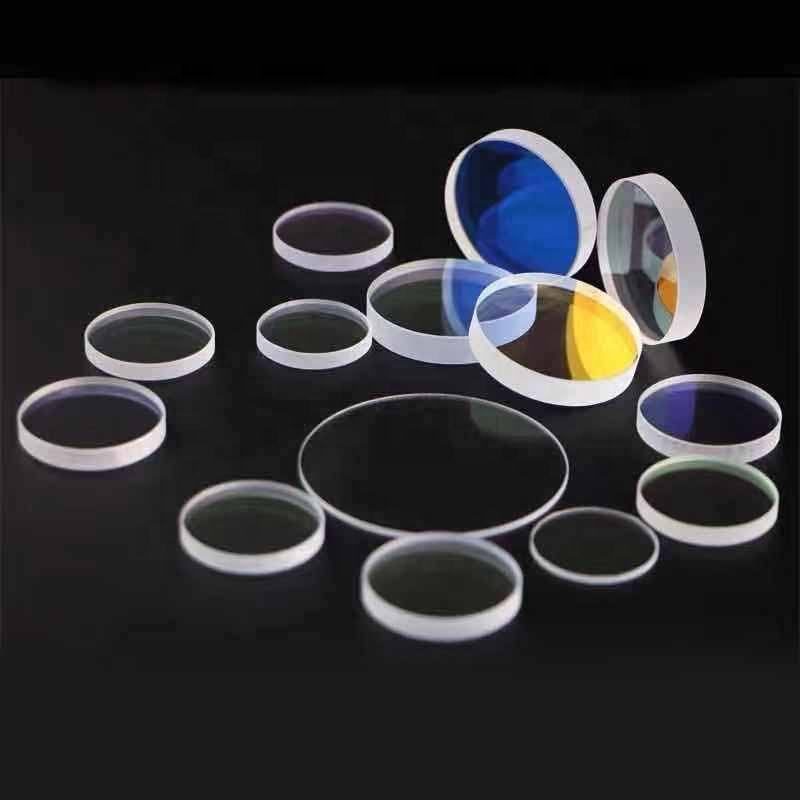

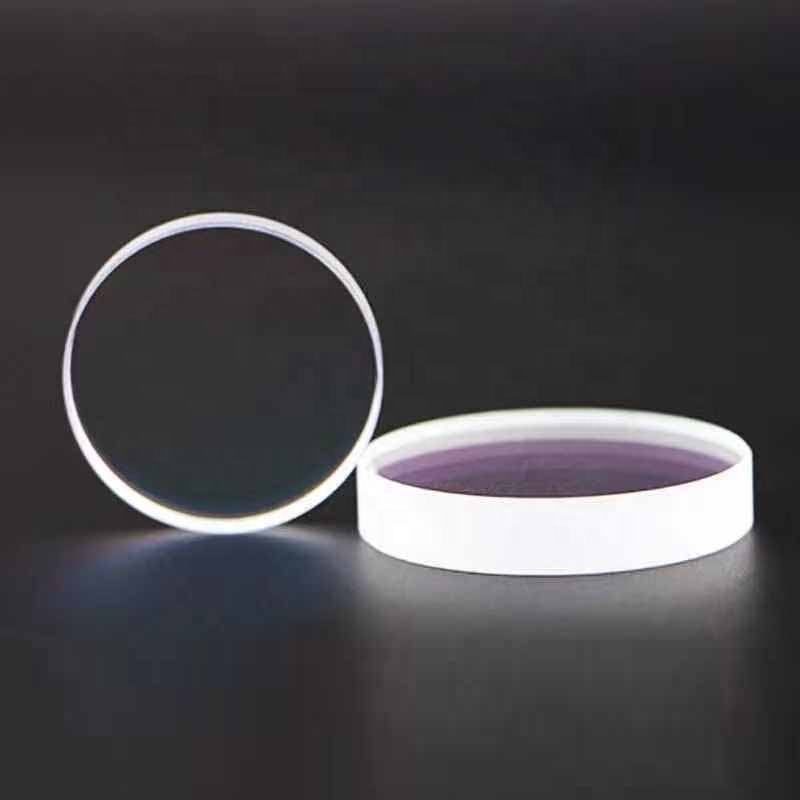

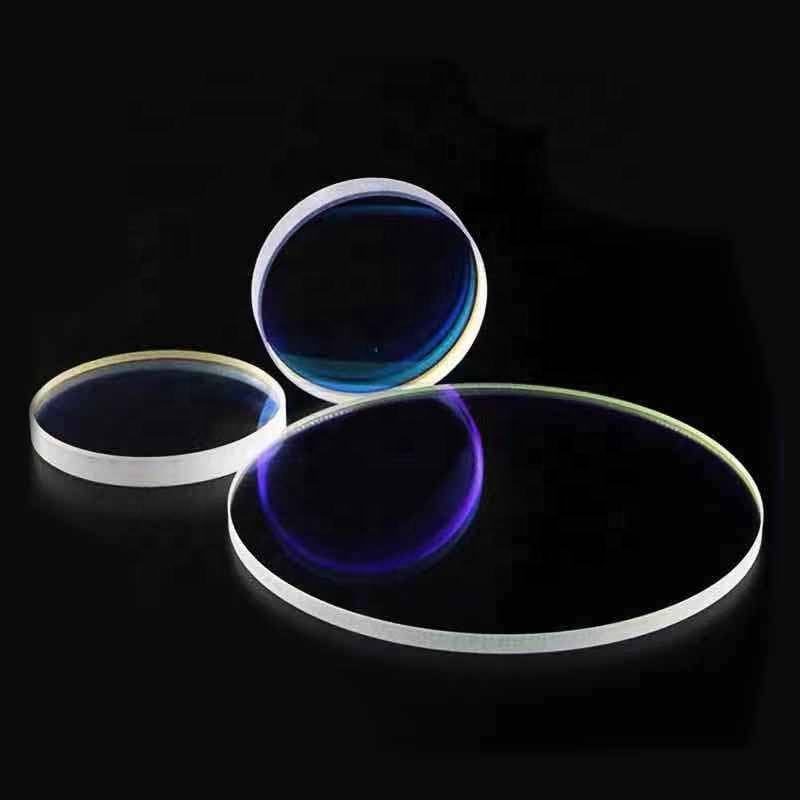

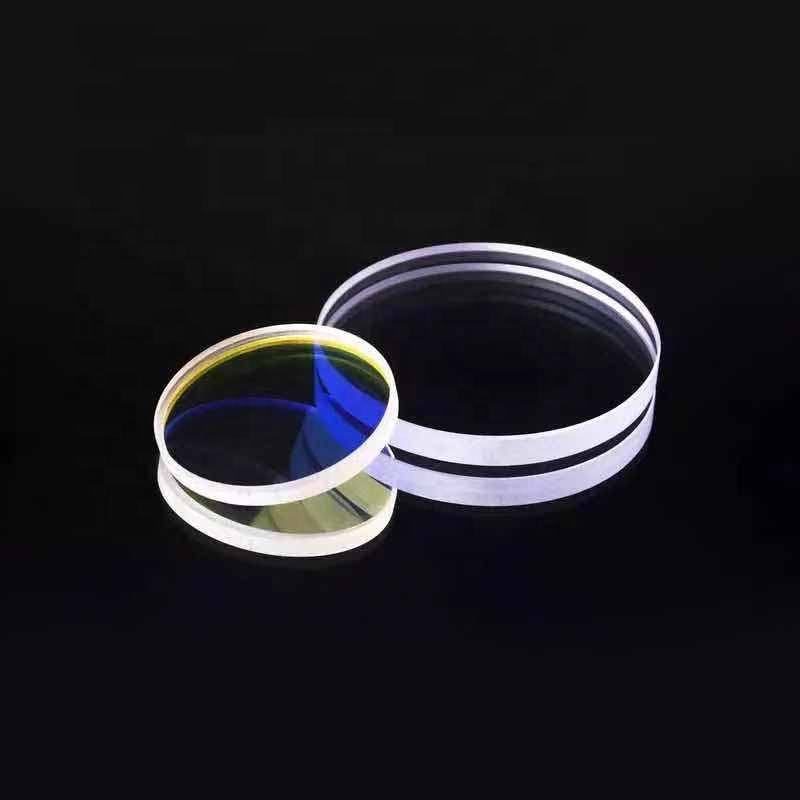

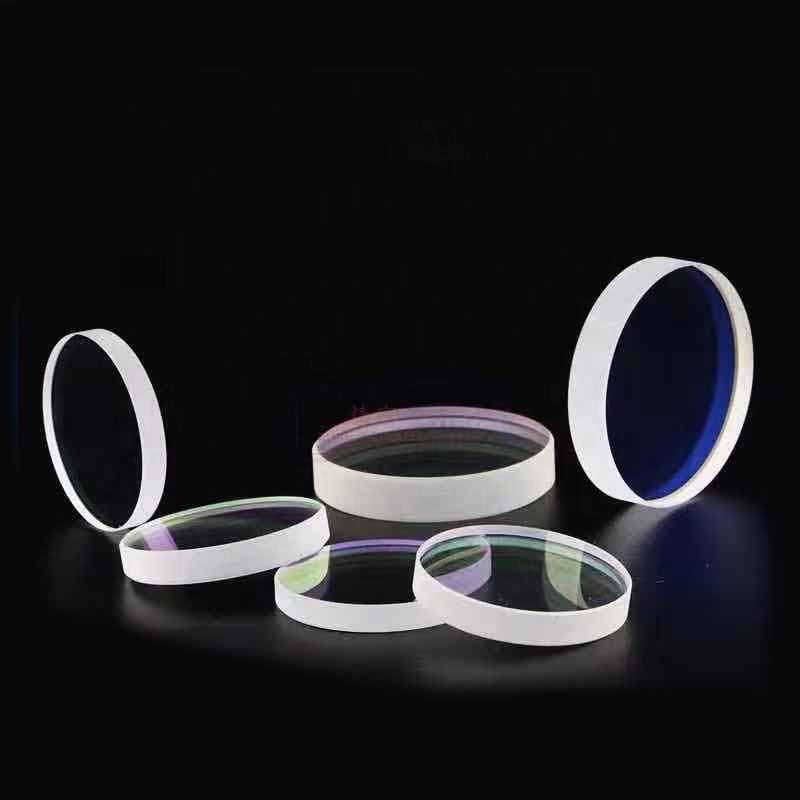

This round optical window made from Fused Silica is ideal for applications requiring high durability and excellent optical performance. With a diameter range from 1.0 mm to 300.0 mm and thickness options from 1.0 mm to 50.0 mm, it is suitable for various optical systems. The window features a surface quality of 40/20 and a surface flatness of 1/4@633nm, making it a reliable choice for precision applications.

Key Features

Diameter range of 1.0 mm to 300.0 mm for versatile application fit.
Thickness options from 1.0 mm to 50.0 mm to accommodate different design requirements.
Surface quality of 40/20 ensures minimal distortion and high clarity.
Custom sizes available, including a variant size of 150.5 mm diameter and 25.5 mm thickness.
Diameter tolerance of +/-0.1 mm for consistent batch quality.

Available Sizes

Diameter x Thickness (mm)
150.5 x 25.5

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	1 mm
Thickness	1 mm
Surface Quality	40/20
Coating	uncoated
MOQ	—

Full Specifications

Parameter	Value
Prism Type	optical window
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Diameter Tolerance	+/-0.1
Surface Flatness	1/4@633nm
Clear Aperture	>=central 80% of diameter

FAQ

Can I get custom sizes?

Yes, custom sizes are available, including a variant size of 150.5 mm diameter and 25.5 mm thickness.

What is the diameter tolerance?

The diameter tolerance is +/-0.1 mm, ensuring consistent quality across batches.
