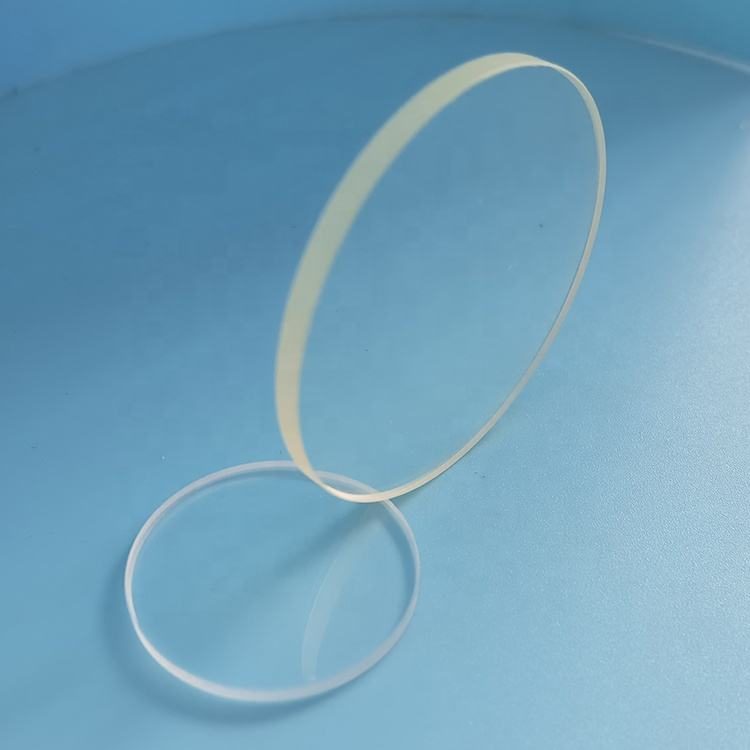

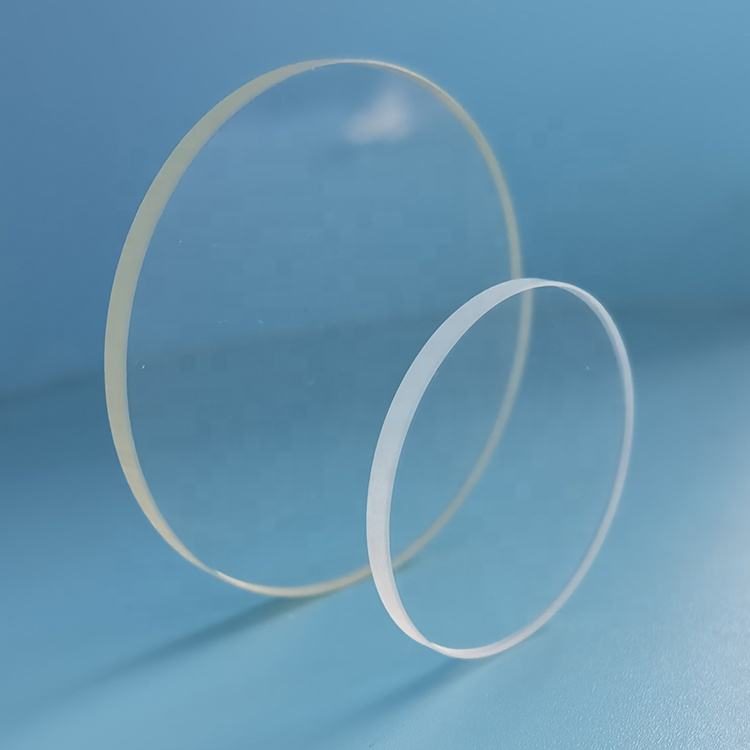

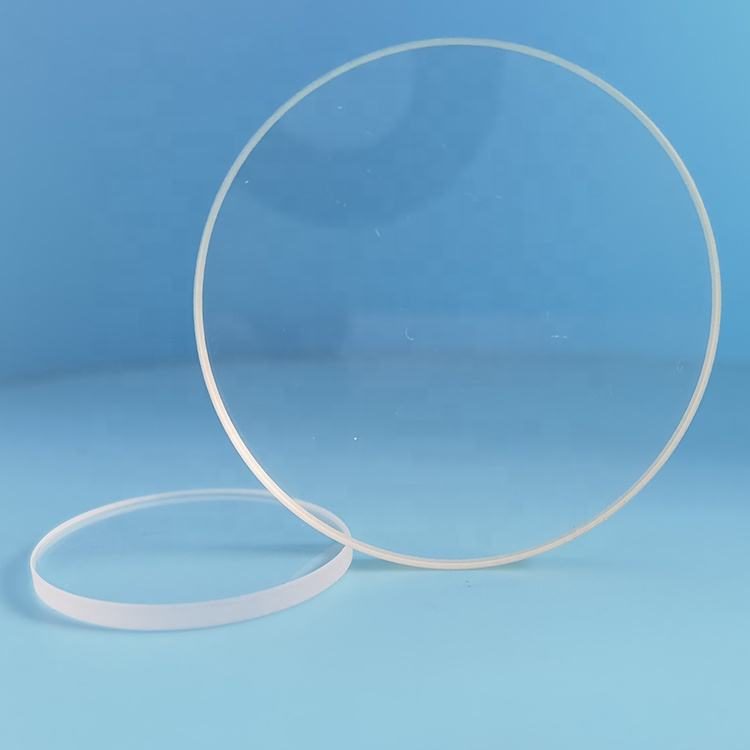

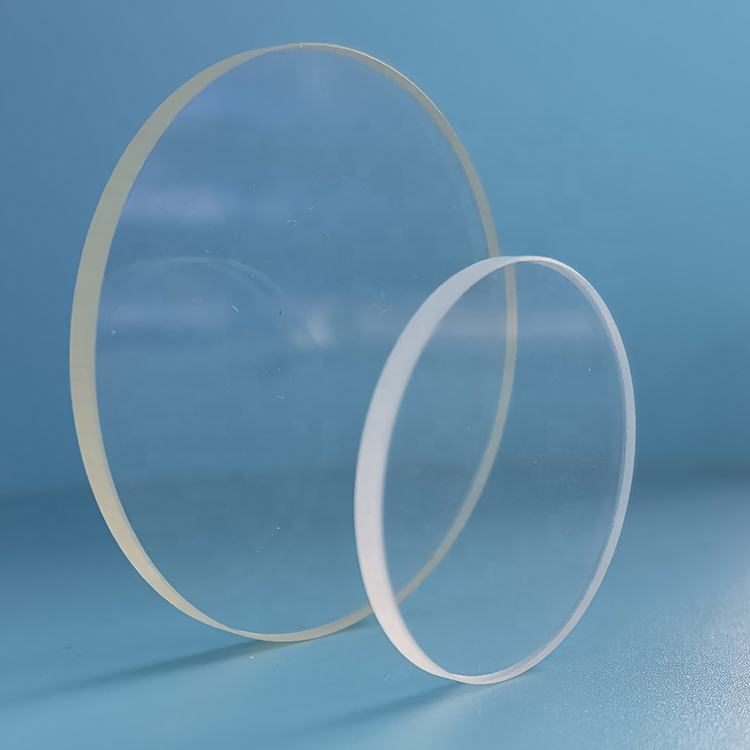

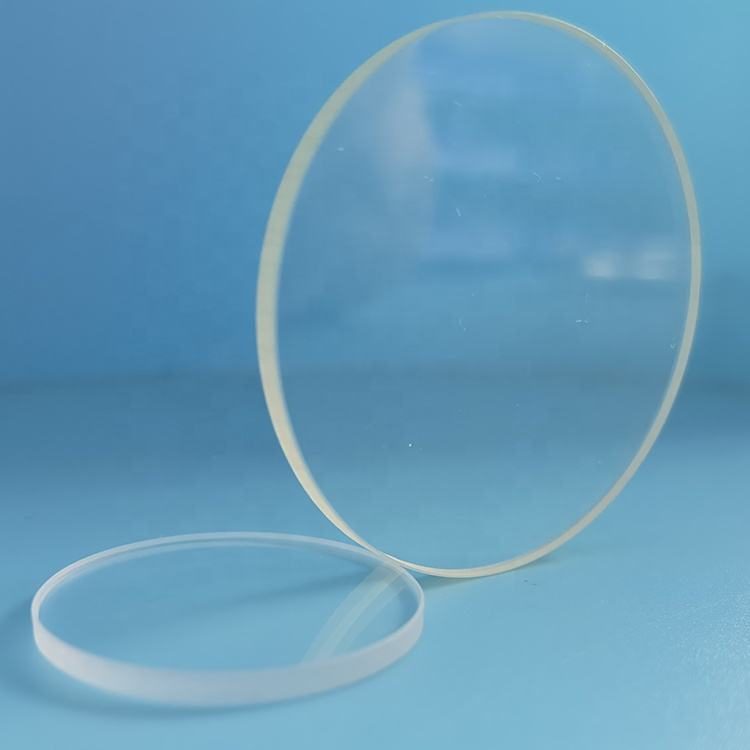

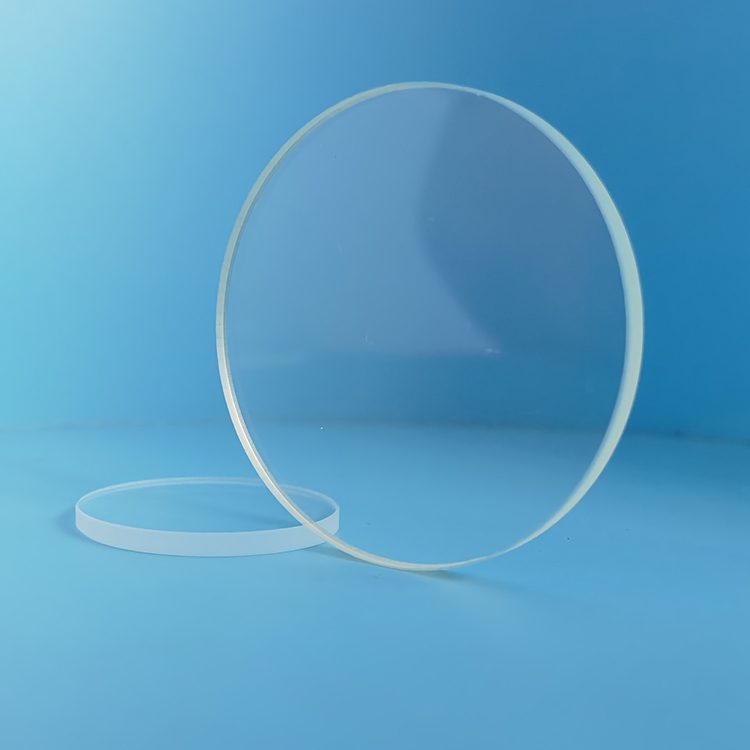

1 mm Fused Silica Round Optical Window, AR Coated
Explore our Quartz UV Fused Silica Window, ideal for medical applications with customizable sizes and high precision.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 1 mm
- Coating
- ar, uncoated
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 1 mm
- Coating
- ar, uncoated
Product description
The Quartz UV Fused Silica Window is designed for applications in the medical field, particularly where UV transmission is critical. With a diameter of 1.0 mm and a surface quality of 60/40, this window ensures high performance in demanding environments. It is available with anti-reflective (AR) coatings or uncoated options, making it versatile for various optical setups. The material’s excellent thermal shock resistance and chemical stability enhance its reliability in laboratory and medical applications.
Key Features
- Diameter: 1.0 mm for precise optical applications.
- Surface quality of 60/40 ensures minimal distortion.
- AR coating option enhances transmittance for UV applications.
- Custom dimensions available to meet specific project needs.
- Tolerance of +/-0.1 mm for consistent batch quality.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 1 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | FLAT |
| Customized Support | OEM |
| Warranty | 2 Months |
| Weight | 0.01KG(0.02lb) |
| Name | Quartz UV Fused Silica Silica Window |
| Substrate | fused silica, quartz, silica |
| Dimension | as design |
| Tolerance | +/-0.1mm |
| Clear Aperture | > 90% |
| Flatness | L/4 OR request |
| Parallelism | 30 arc min |
FAQ
Can I get custom sizes?
Yes, dimensions can be customized as per design requirements.
What is the tolerance for this window?
The tolerance is +/-0.1 mm, ensuring high precision in manufacturing.
