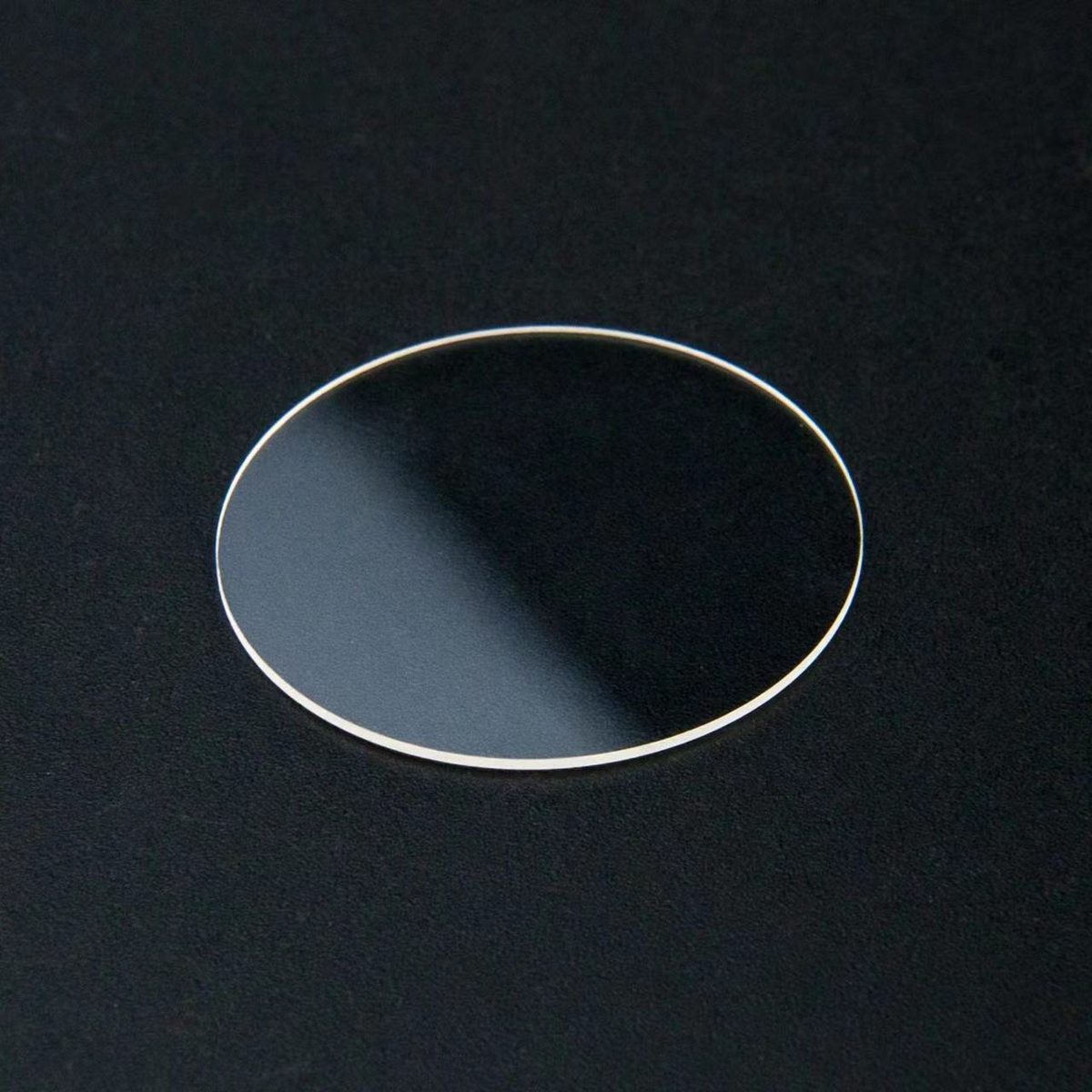

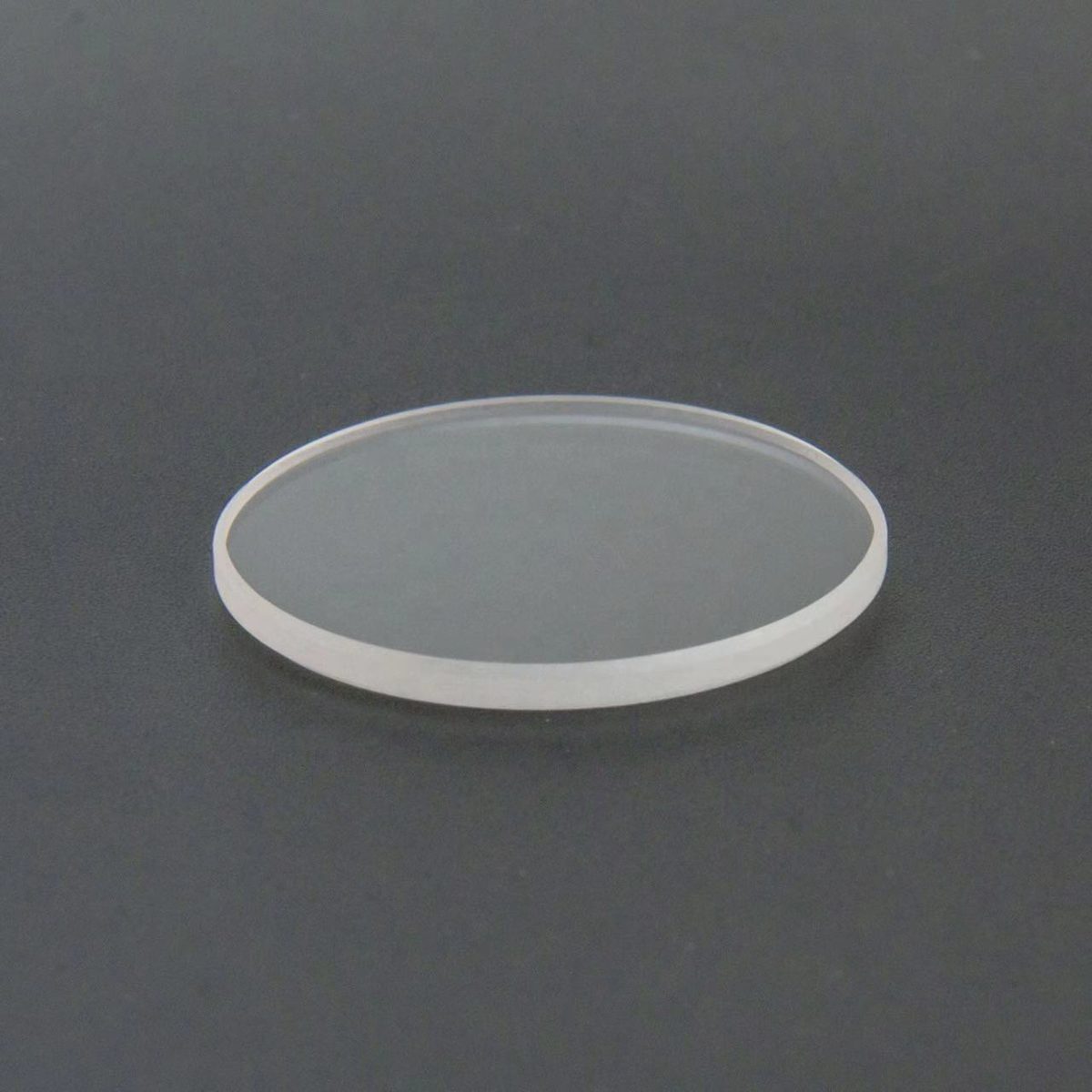

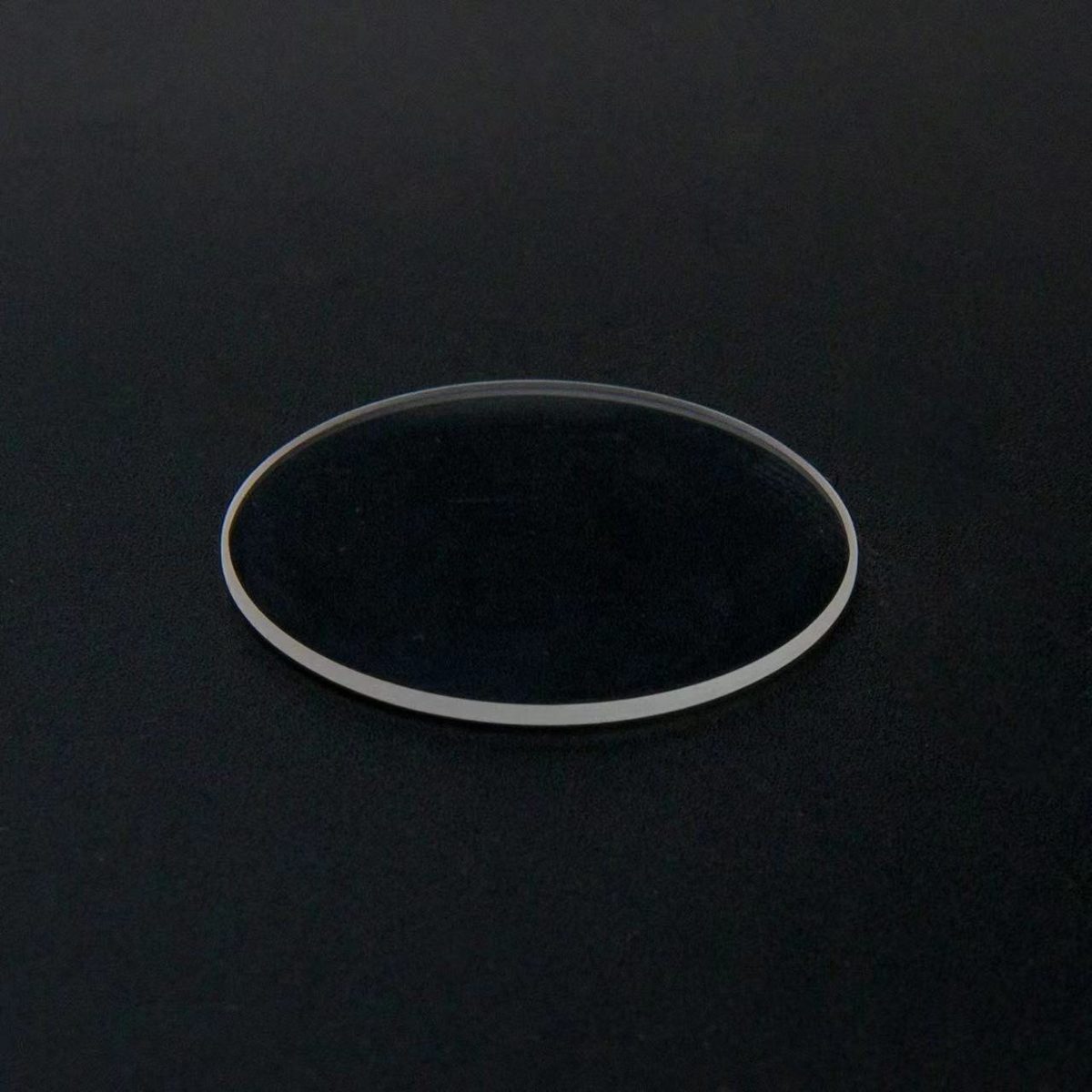

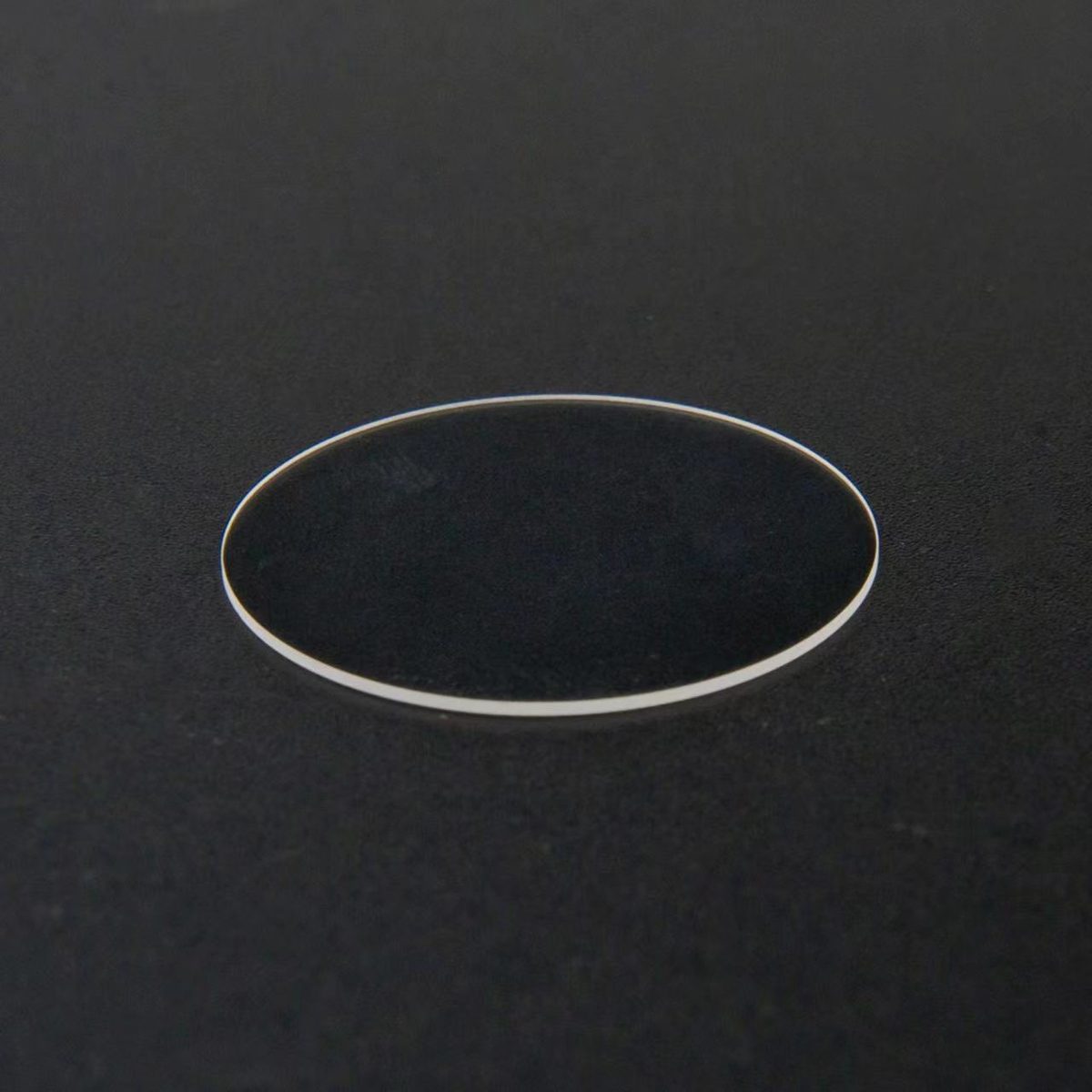

1 mm Fused Silica Round Optical Window

Product description

This optical window, made from high-quality fused silica, is designed for various applications requiring precise optical performance. With a diameter range of 1.0 to 600.0 mm and a surface quality of 40/20, it is suitable for use in optical equipment, ensuring minimal distortion and high clarity. The window’s uncoated surface allows for versatile application across different wavelengths.

Key Features

Diameter range: 1.0 to 600.0 mm for versatile application fit.
Surface quality of 40/20 ensures minimal distortion and high clarity.
Diameter tolerance of +/-0.01 mm for precise fitting in assemblies.
Customizable options available for OEM, ODM, and OBM projects.
Clear aperture of >=80% of diameter maximizes light transmission.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	1 mm
Thickness	Custom
Surface Quality	40/20
Coating	uncoated
MOQ	—

Full Specifications

Parameter	Value
Prism Type	optical window
Customized Support	OEM, ODM, OBM
Warranty	2 Years
Diameter Tolerance	+/-0.01
Thickness Tolerance	+/-0.0001
Surface Flatness	1/4@633nm
Clear Aperture	>=central 80% of diameter

FAQ

What is the minimum order quantity (MOQ) for custom sizes?

The MOQ is not specified, allowing for flexible ordering based on project needs.

What are the tolerances for diameter and thickness?

Diameter tolerance is +/-0.01 mm, and thickness tolerance is +/-0.0001 mm.
