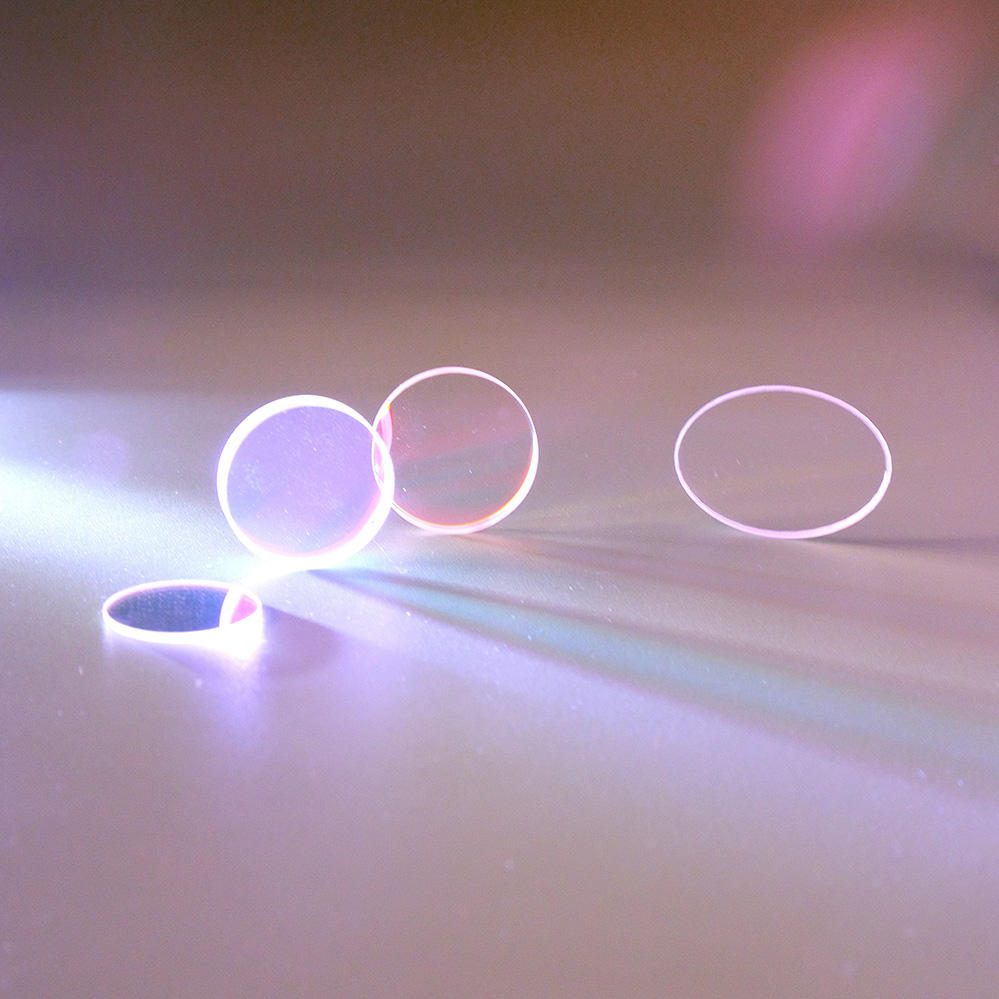

20x1 mm Fused Silica Round Optical Window, AR Coated

Product description

This round Fused Silica laser protective window is designed for applications in laser-cutting and medical fields, providing high transmittance across multiple wavelength bands including 0.7-1.7 μm and 400-700 nm. With a thickness range from 1.0 mm to 15.0 mm, it offers flexibility for various setups. The AR coating enhances performance by reducing reflections, making it ideal for critical optical systems where precision is paramount.

Key Features

Diameter of 20.0 mm ensures compatibility with standard optical setups.
Thickness options of 1.0 mm to 15.0 mm allow for tailored applications.
AR coating enhances transmittance at specified wavelengths, improving efficiency.
Flatness of L/2 and parallelism of 10 seconds ensure high optical quality.
Standard protective chamfer provides durability and ease of handling.

Available Sizes

Diameter x Thickness (mm)
20 x 8

Applications

Laser Cutting, Medical

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	20 mm
Thickness	1 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	1 month
Customized Support	OEM
Color	Transparent
S/D	40/20
Flatness	L/2
Parallelism	10secs
Chamfer	Standard protective chamfer
Wavelength	1064nm/ 1030nm/1070nm/532nm/755nm

FAQ

Can I get custom sizes?

Yes, variant sizes are available, including a diameter of 20.0 mm and thickness options.

What is the minimum order quantity?

Minimum order quantity information is not specified, indicating flexibility in procurement.
