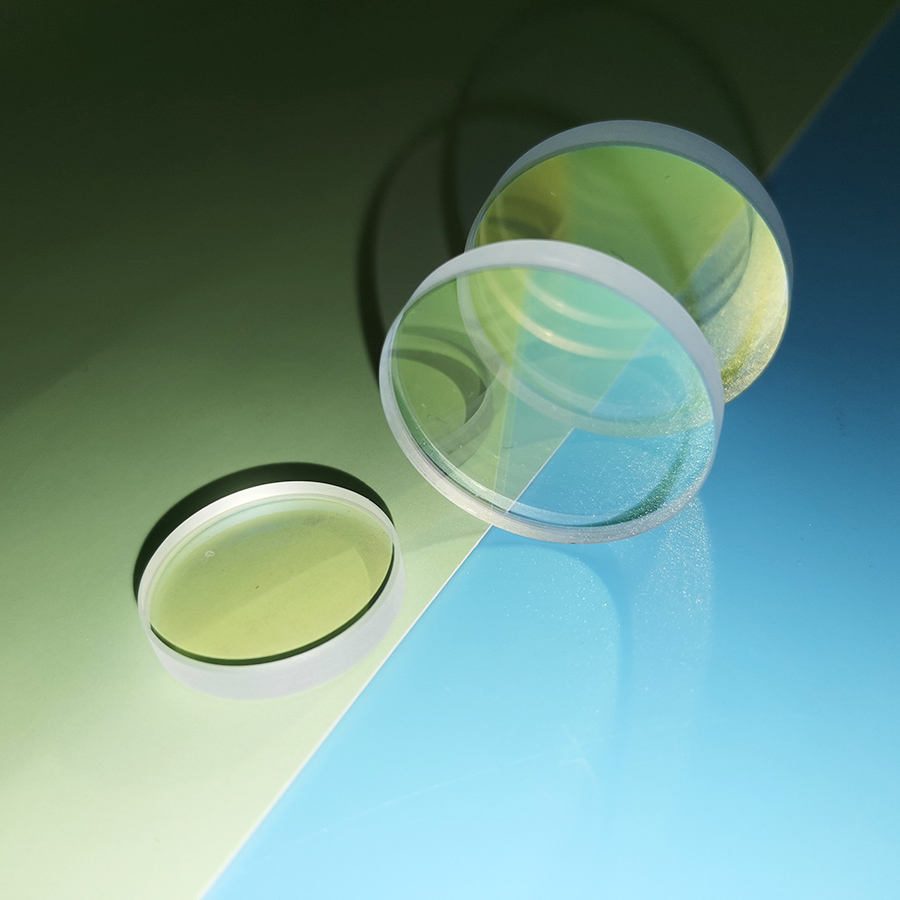

20x1 mm Fused Silica Round Optical Window, AR Coated

Product description

This round fused silica window is designed for applications in the medical field, offering high performance across multiple wavelength bands, including 0.7-1.7 μm and <400 nm. Its customizable thickness options (1.0 mm to 15.0 mm) make it suitable for various setups, ensuring optimal integration into your optical systems. The window is available with anti-reflective (AR) coatings, enhancing transmittance and minimizing losses, crucial for sensitive medical applications.

Key Features

Diameter of 20.0 mm ensures compatibility with standard optical setups.
Thickness options from 1.0 mm to 15.0 mm provide flexibility for different applications.
Available coatings include AR and uncoated options for tailored performance.
High parallelism of 10 seconds minimizes beam deviation, enhancing optical accuracy.
Custom OEM support available for specific project requirements.

Available Sizes

Diameter x Thickness (mm)
20 x 8

Applications

Medical

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	20 mm
Thickness	1 mm
Coating	anti-reflective (AR), uncoated, high-reflective (HR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	1 month
Customized Support	OEM
Power	/
Voltage	/
Color	Transparent
S/D	40/20
Flatness	L/2
Parallelism	10secs
Chamfer	Standard protective chamfer
Wavelength	1064nm/ 1030nm/1070nm/532nm/755nm

FAQ

Can I get custom sizes?

Yes, variant sizes are available, including a custom option of 20.0 mm diameter and 8.0 mm thickness.

What are the tolerances for thickness?

The thickness can range from 1.0 mm to 15.0 mm, allowing for various tolerances based on application needs.
