1 / 6Optical Windows

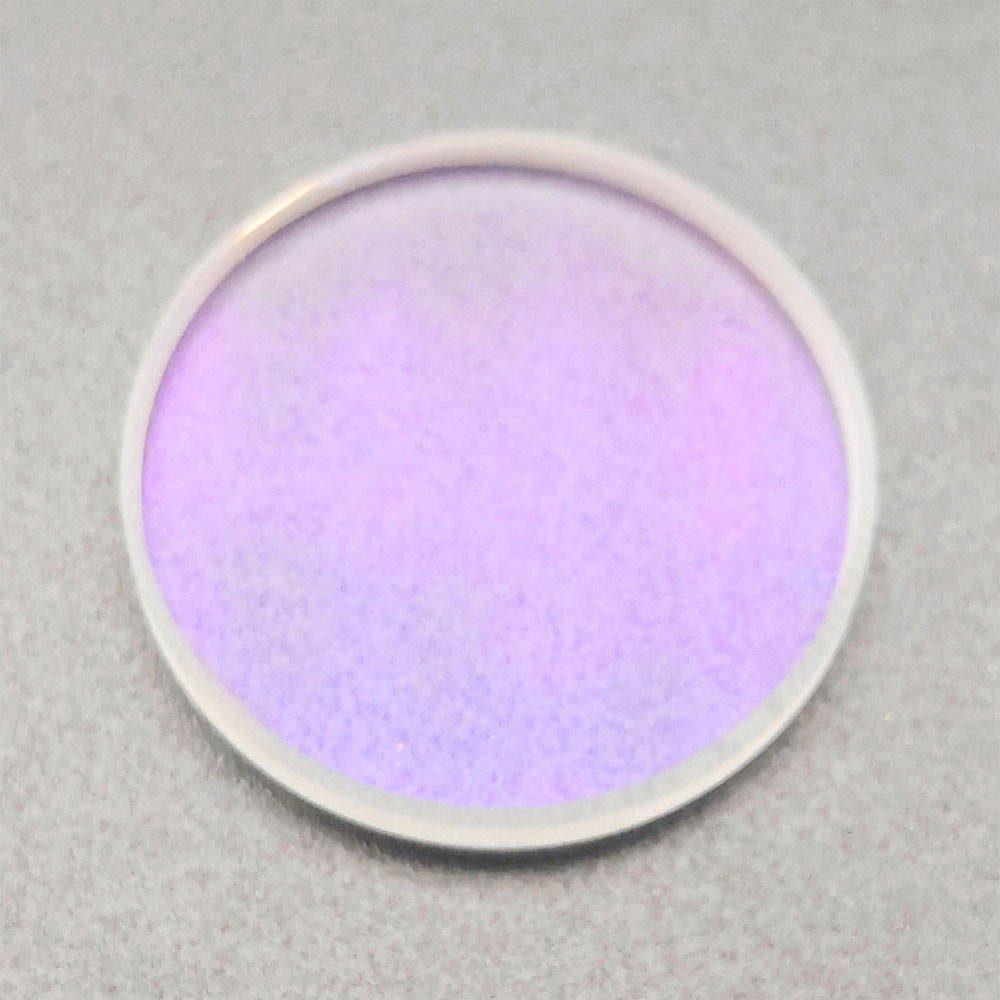

30x5 mm Fused Silica Round Optical Window, AR Coated
Fused Silica Optical Window for laser cutting with high transmittance and customizable options.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 30 mm
- Thickness
- 5 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 30 mm
- Thickness
- 5 mm
- Coating
- ar
Product description
This Fused Silica Optical Window is designed for high-performance applications such as laser cutting, providing exceptional transmission and durability. With a wavelength range of 0.7-1.7 μm and 400-700 nm, it ensures optimal performance in demanding environments. The round shape and precise dimensions (30 mm diameter, 5 mm thickness) make it suitable for various optical setups, while the AR coating enhances transmittance, exceeding 99.9% at 1030-1090 nm.
Key Features
- High transmittance: >99.9% at 1030-1090 nm, ensuring efficient light transmission.
- Precision dimensions: Diameter tolerance of ±0.1 mm and thickness tolerance of ±0.1 mm for consistent performance.
- Durable material: Fused silica offers excellent thermal properties and environmental durability.
- Customizable options: OEM and ODM support available for tailored solutions.
- Surface flatness of 1 λ enhances optical performance in critical applications.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 30 x 5 |
Applications
Laser Cutting
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 30 mm |
| Thickness | 5 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | protective lens |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| Weight | 0.01 |
| Transmission | T>99.9% 1030-1090nm at 45° |
| Diameter Tolerance | ±0.1mm |
| Thickness Tolerance | ±0.1mm |
| Flatness | 1 Lambda |
FAQ
Can I get custom sizes?
Yes, OEM and ODM support is available for customized solutions.
What are the tolerances for diameter and thickness?
Diameter tolerance is ±0.1 mm and thickness tolerance is also ±0.1 mm.
