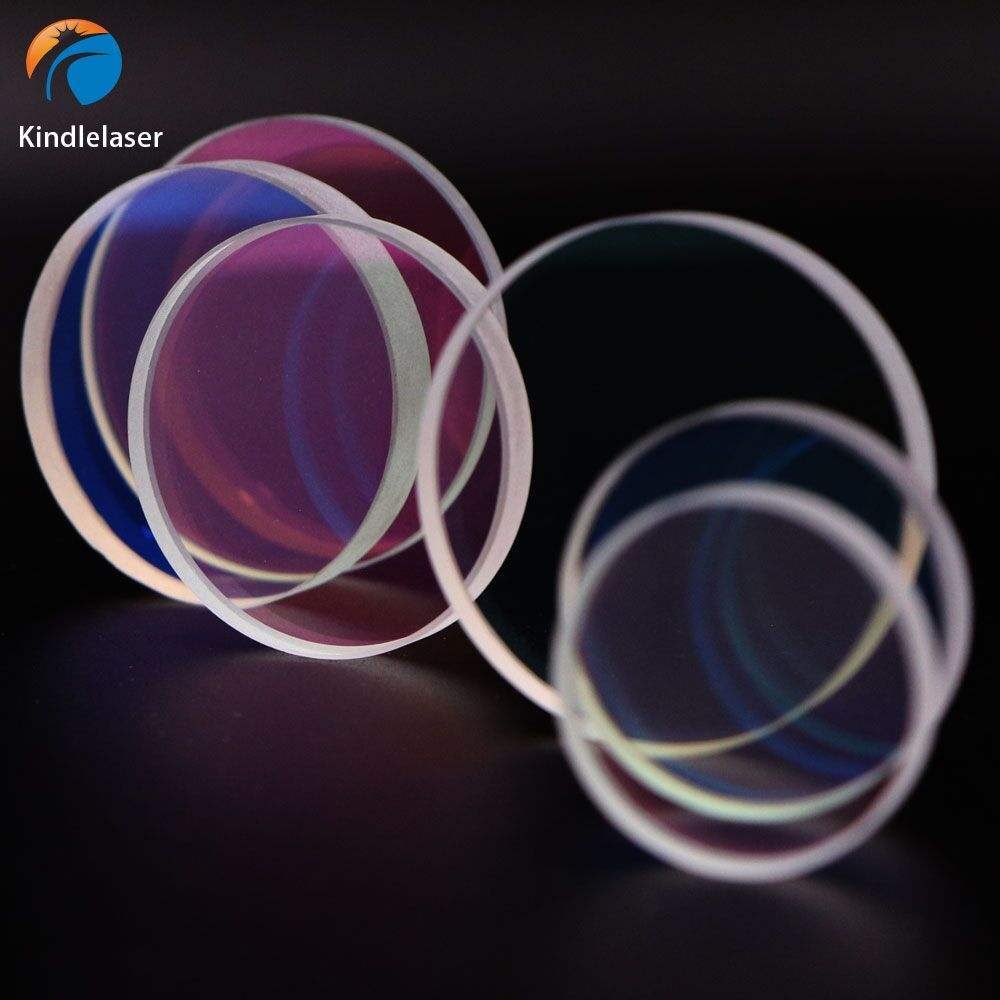

37x7 mm Fused Silica Round Optical Window

Product description

This round laser protective window made from fused silica is designed for applications such as laser cutting, providing essential protection for high-quality laser optics against material splatter. Operating effectively within the 0.7-1.7 μm and 400-700 nm bands, it ensures high transmittance and surface quality (40/20). With a diameter of 37 mm and thickness of 7 mm, this window is ideal for fiber laser systems, safeguarding your investment in laser technology.

Key Features

Diameter: 37 mm and thickness: 7 mm for precise fit in laser applications.
Surface quality rated at 40/20, ensuring minimal distortion and high clarity.
Compatible with wavelengths from 0.7-1.7 μm and 400-700 nm, suitable for various laser types.
Lightweight at 0.06 kg, facilitating easy handling and installation.
Thickness tolerance of 0.01’’ and diameter tolerance of +0.000’’, -0.05’’ for reliable performance.

Available Sizes

Diameter x Thickness (mm)
37 x 7

Applications

Laser Cutting

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	37 mm
Thickness	7 mm
Surface Quality	40/20
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Spare Parts Type	New
Wavelength	1064 nm; 1064nm
Accessory Type	Fiber Alignment Tool
Key Selling Points	Competitive Price
Warranty	Unavailable
Condition	New
Weight (Kg)	0.06
Thickness Tolerance	0.01’’/0.01''
Diameter Tolerance	+0.000’’,-0.05''
Keywords	laser protective window

FAQ

Can I get custom sizes?

Currently, only the specified size of 37 mm diameter and 7 mm thickness is available.

What are the tolerances for this window?

The thickness tolerance is 0.01’’ and the diameter tolerance is +0.000’’, -0.05’'.
