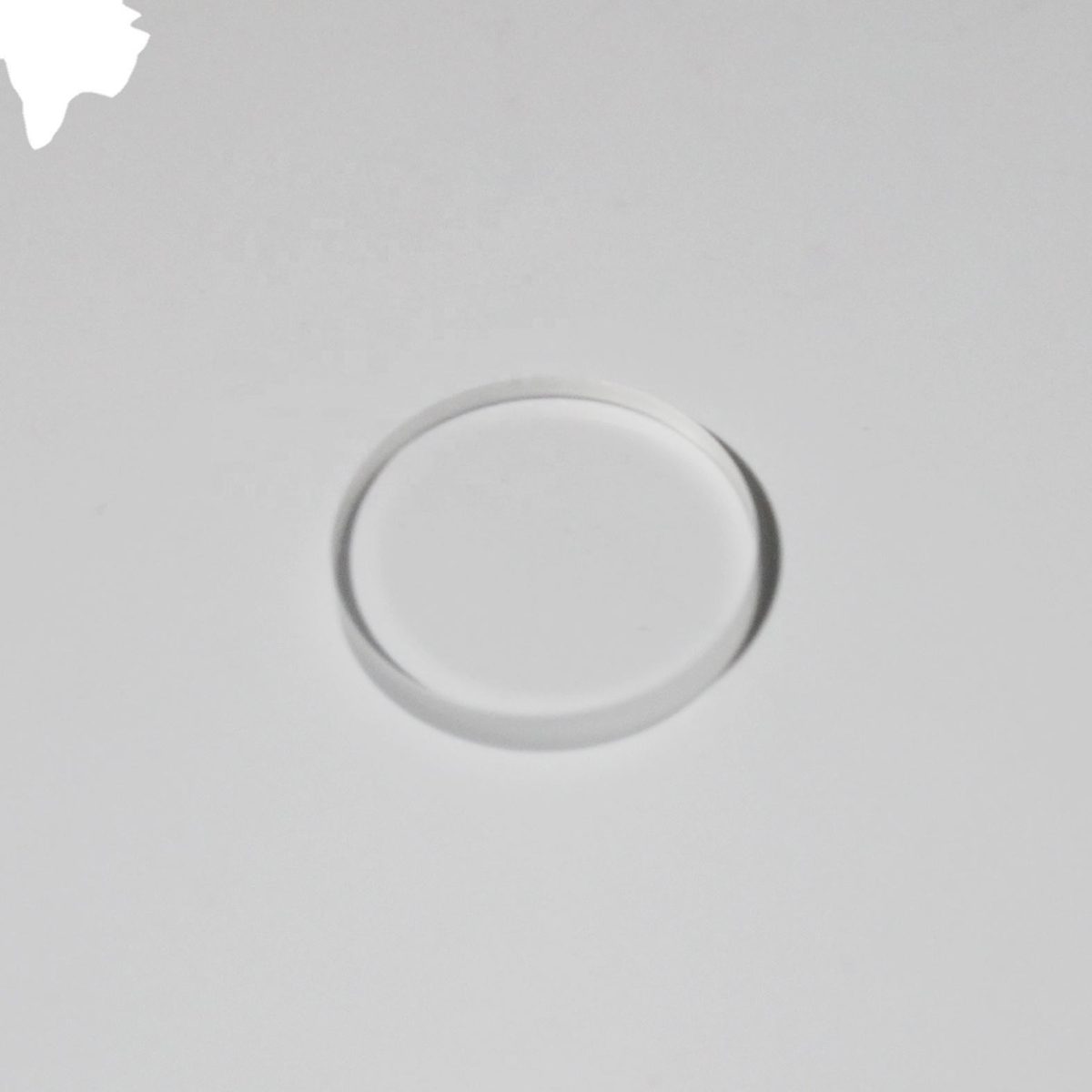

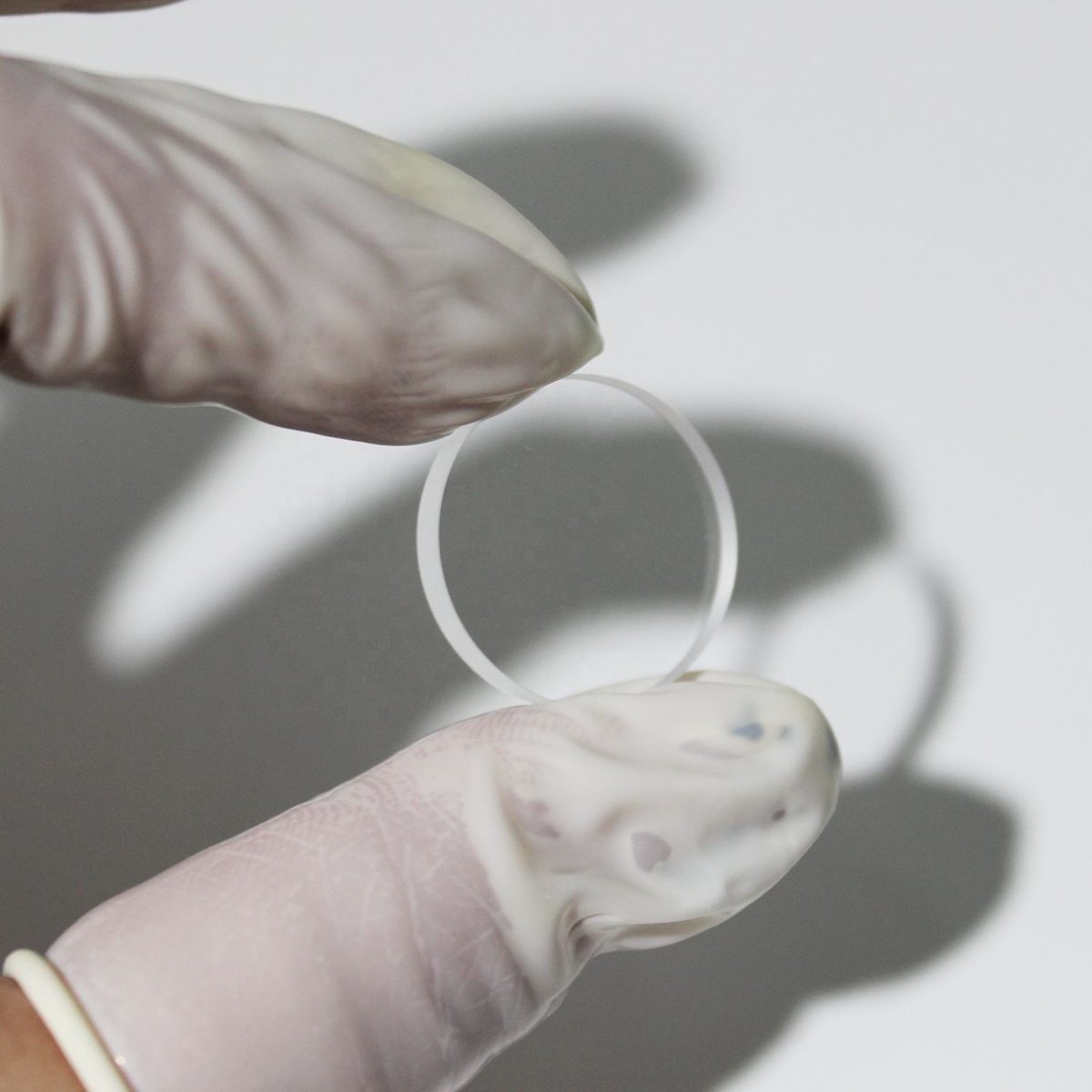

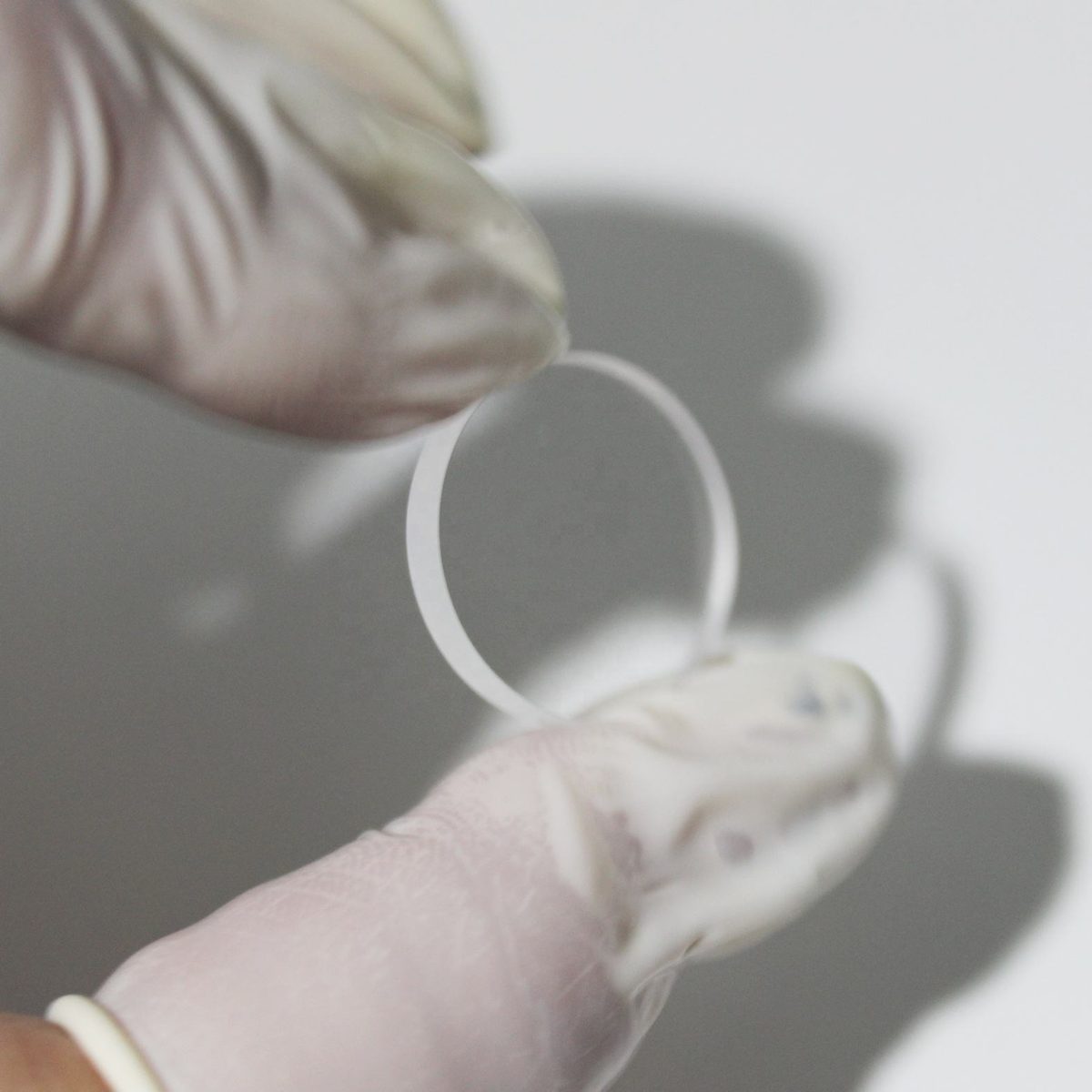

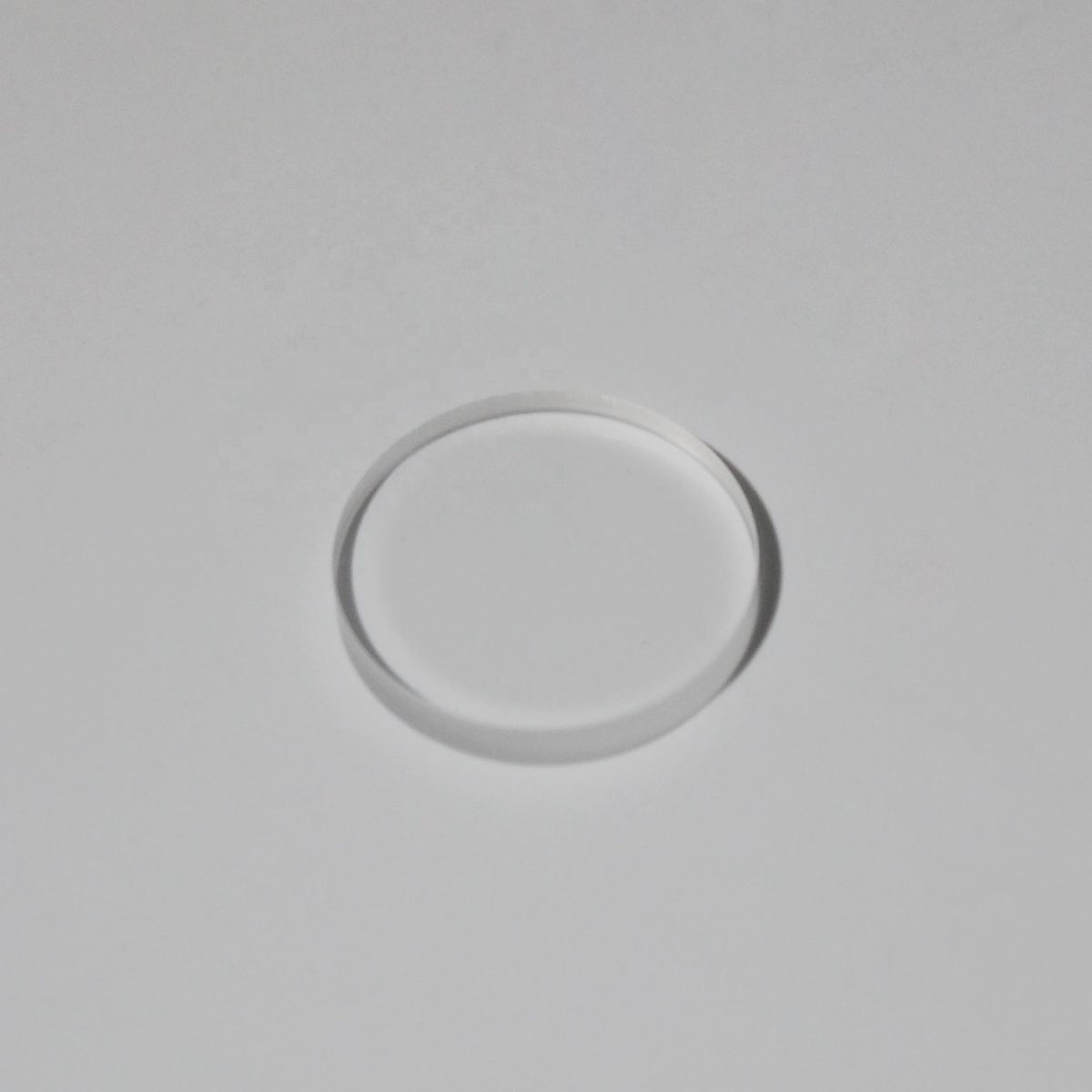

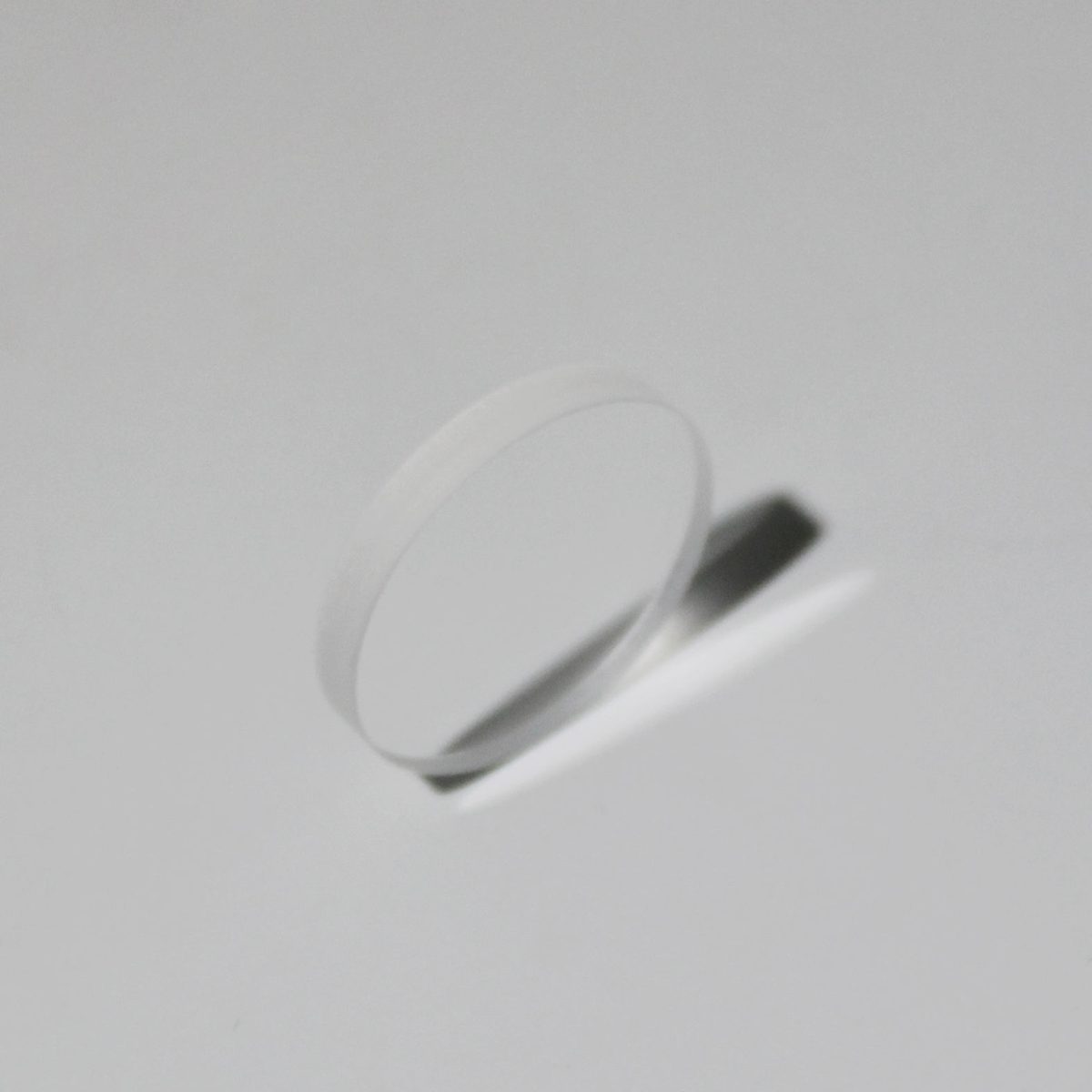

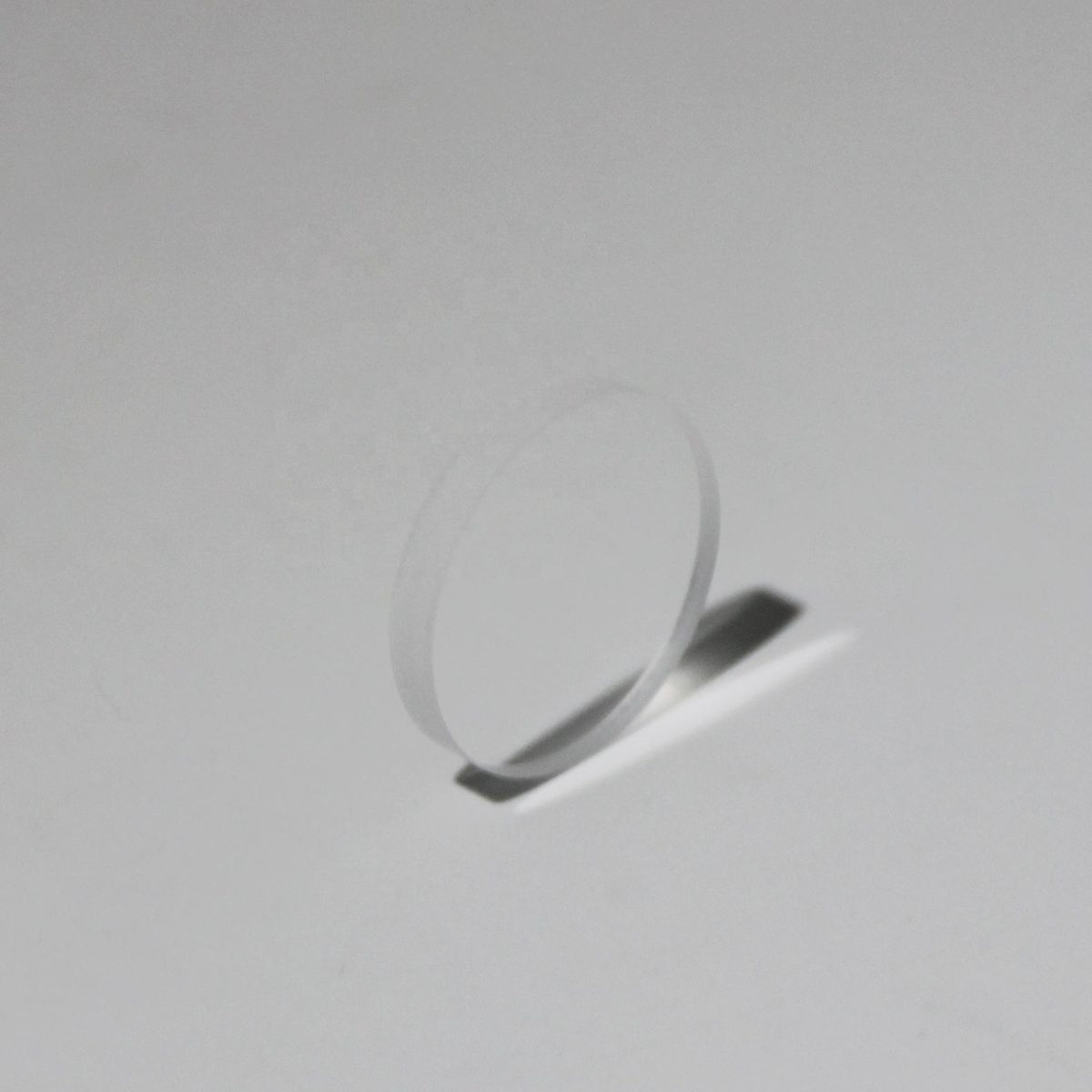

3x0.1 mm Fused Silica Round Optical Window, AR Coated

Product description

This round optical window made from Fused Silica is designed for security applications, providing high durability and reliability. With a diameter of 3.0 mm and a thickness of 0.15 mm, it offers excellent surface quality rated at 10/5, ensuring minimal distortion. The window can be customized to meet specific requirements, making it suitable for various optical setups.

Key Features

High surface quality (10/5) ensures clarity and minimal distortion for precise applications.
Diameter of 3.0 mm with a tolerance of +/-0.01 mm for consistent fit in optical systems.
Thickness of 0.15 mm with a tolerance of +/-0.1 mm for reliable performance.
Surface figure of λ/10 allows for superior flatness, enhancing optical performance.
Customizable options available for OEM and ODM projects to meet specific needs.

Available Sizes

Diameter x Thickness (mm)
3 x 0.1

Applications

Security

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	3 mm
Thickness	0.1 mm
Surface Quality	10/5
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Window; optical window
Customized Support	OEM, ODM
Weight	as request
Name	Glass Window
Diameter Tolerance	+/-0.01mm
Thickness Tolerance	+/-0.1mm
Surface Figure	lamda/10(PV flat surface can achieve 0.03um per 150mm)

FAQ

Can I get custom sizes?

Yes, this optical window can be customized in diameter and thickness, with variant sizes available.

What are the tolerances for diameter and thickness?

Diameter tolerance is +/-0.01 mm and thickness tolerance is +/-0.1 mm.
