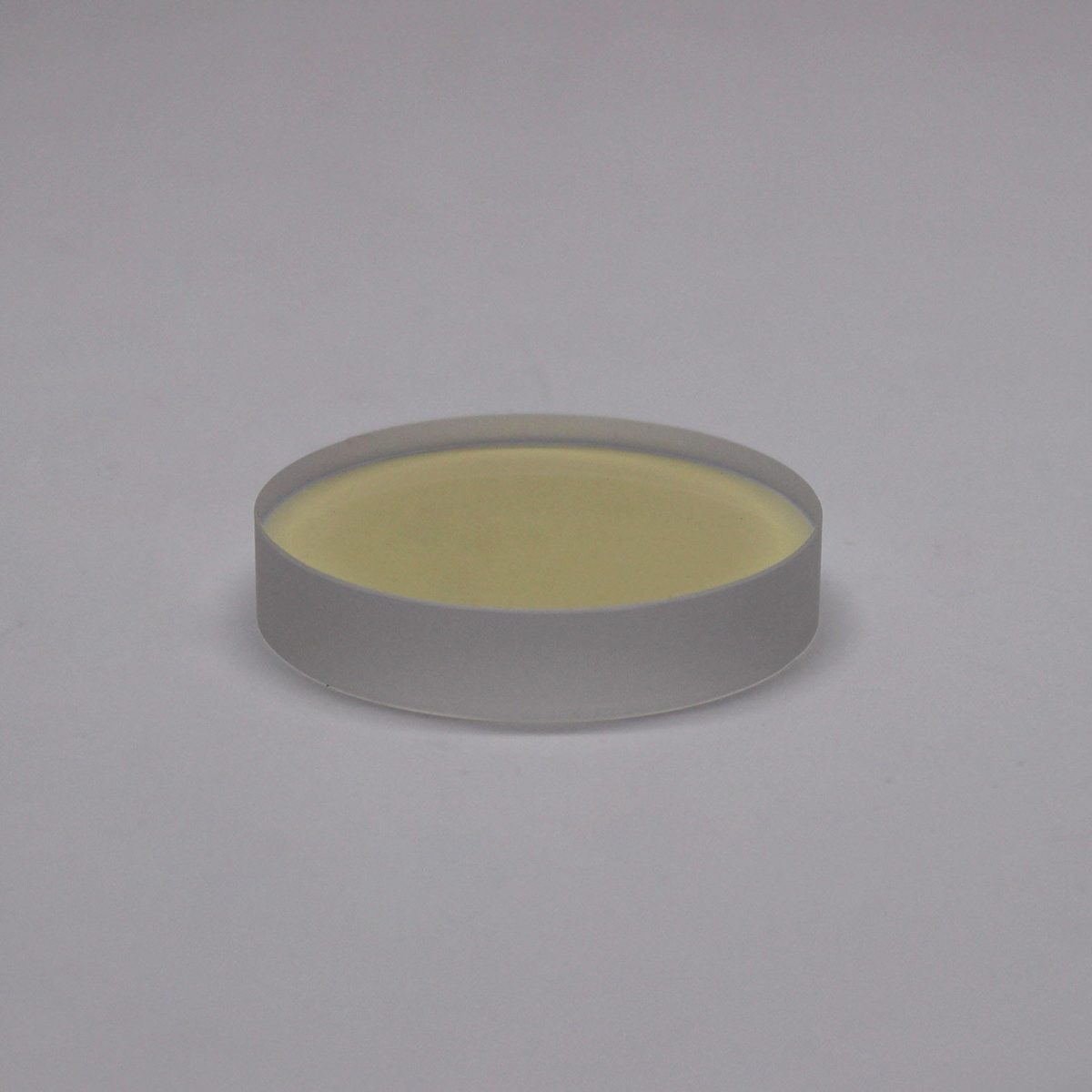

3x0.1 mm Fused Silica Round Optical Window, AR Coated

Product description

The Optical JGS1 Glass Window is designed for high-performance applications in security and semiconductor industries. Made from high-purity fused silica, it operates effectively across a broad spectral range of 1.7-3 μm and <400 nm. Its robust construction ensures minimal light loss and distortion, making it an ideal choice for precision optics in demanding environments.

Key Features

High transmittance over 90% in UV to near-infrared range, enhancing performance in optical applications.
Diameter tolerance of +/-0.01mm ensures precise fitting for various systems.
Thickness tolerance of +/-0.1mm supports consistent performance across batches.
Customizable options available, including OEM and ODM services for tailored solutions.
Surface quality rated at 10/5, ensuring minimal distortion and high clarity.

Available Sizes

Diameter x Thickness (mm)
3 x 0.1

Applications

Security, Semiconductor

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	3 mm
Thickness	0.1 mm
Surface Quality	10/5
Coating	anti-reflective (AR)
Transmission bands	SWIR (1.7-3 μm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	optional
Customized Support	OEM, ODM, OBM
Logo/Graphic Design	3D Printing
Power	optional
Voltage	optional
Name	Optical JGS1 Glass Window
Type	Plate
Diameter Tolerance	+/-0.01mm
Thickness Tolerance	+/-0.1mm
Surface Figure	lamda/10

FAQ

What are the available custom sizes?

Variant sizes include a diameter of 3.0 mm with a thickness of 0.15 mm, with potential custom options.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement options.
