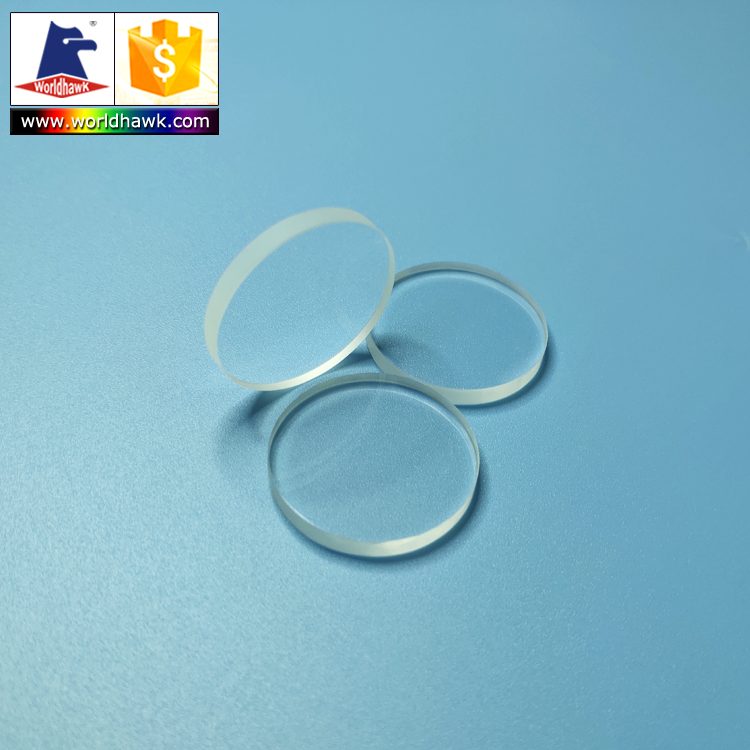

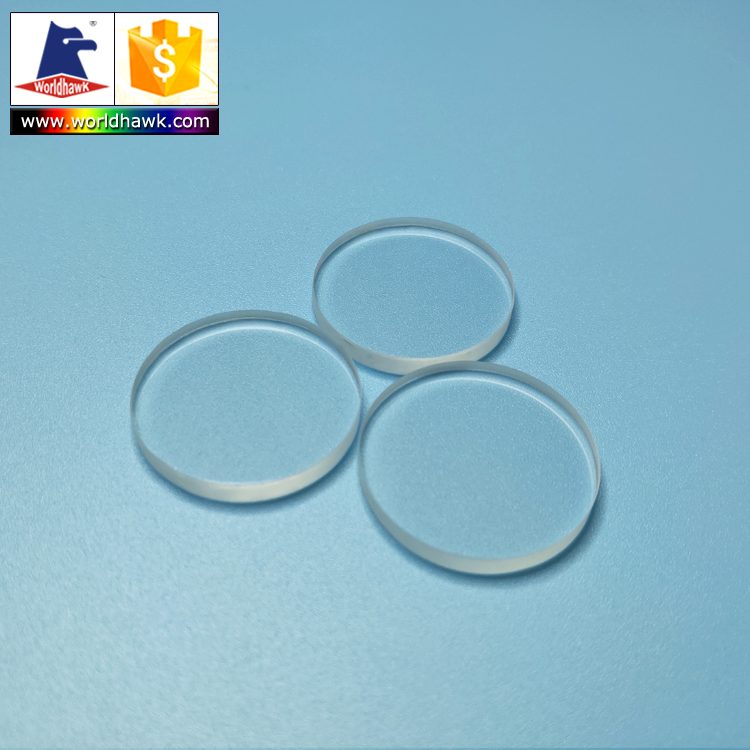

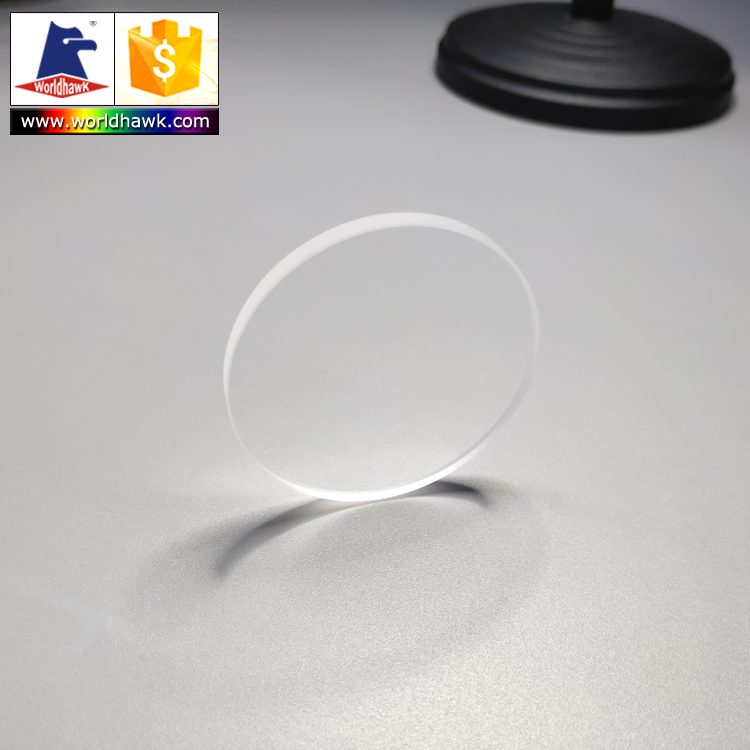

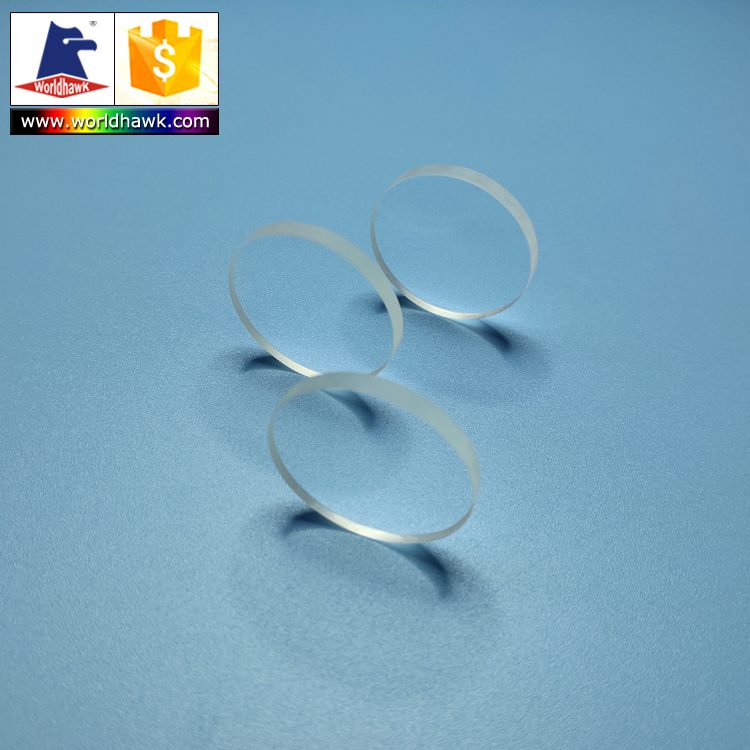

3x0.5 mm Fused Silica Round Optical Window, AR Coated

Product description

This fused silica optical window is designed for applications requiring high precision and durability, such as laser technology and IR imaging. With a diameter range of 3.0 to 580.0 mm and thickness from 0.5 to 50.0 mm, it provides versatility for various setups. The window features a surface quality of 1/4 and a clear aperture greater than 90%, ensuring optimal light transmission while isolating different physical environments. Custom sizes are available, making it suitable for specific project requirements.

Key Features

Diameter range: 3.0 - 580.0 mm for flexibility in applications.
Thickness range: 0.5 - 50.0 mm to accommodate diverse design needs.
Surface quality of 1/4 ensures minimal light distortion.
Clear aperture >90% maximizes light transmission.
Customizable options available for tailored solutions.

Available Sizes

Diameter x Thickness (mm)
291.5 x 25.2

Specification Summary

Item	Value
Material	Fused Silica
Shape	Round
Diameter	3 mm
Thickness	0.5 mm
Surface Quality	1/4

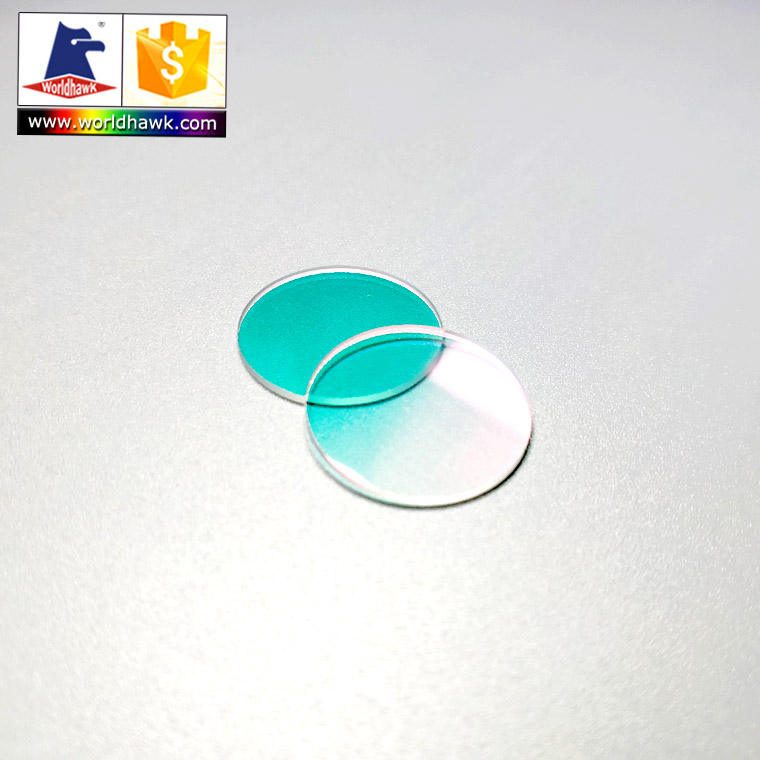

Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Warranty	1 Year
Customized Support	OEM
Power	no
Voltage	3-12V
Tolerance	+/-0.1mm
Clear Aperture	>90%
Parallelism	30'
Bevel	0.1~0.3mm x 45 degree

FAQ

What are the tolerances for diameter and thickness?

Diameter tolerance is +/-0.1 mm, and thickness tolerance is also +/-0.1 mm.

Can I order custom sizes?

Yes, custom sizes can be provided within the diameter range of 3.0 to 580.0 mm and thickness from 0.5 to 50.0 mm.
