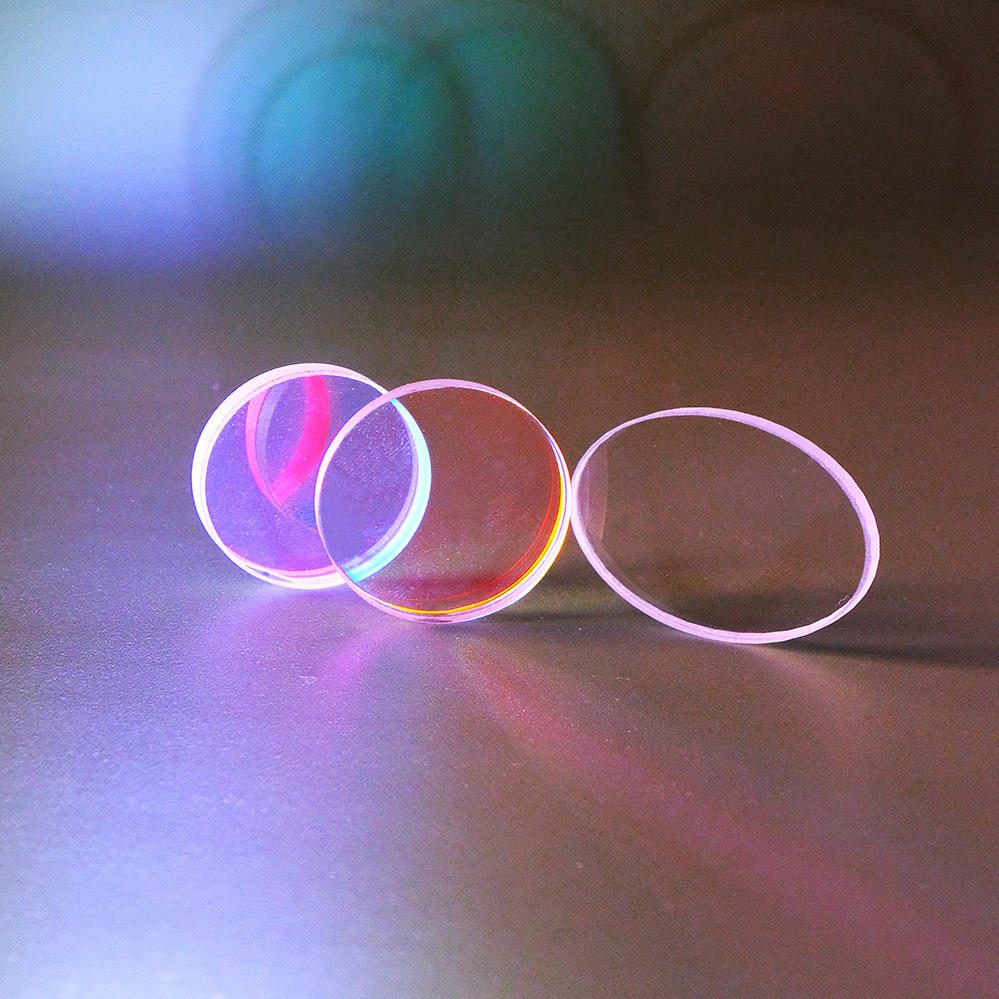

3 mm Fused Silica Round Optical Window, AR Coated
Explore high-quality fused silica plano windows for semiconductors and medical applications, customizable and available in various sizes.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 3–300 mm
- Coating
- ar, uncoated
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 3–300 mm
- Coating
- ar, uncoated
Product description
Fused silica plano windows are essential for applications in semiconductors and medical devices, offering high thermal stability and excellent optical properties. These windows support a wide wavelength range from 0.4 to 1.7 μm, making them suitable for various optical systems. With diameters ranging from 3 mm to 300 mm and customizable options, these windows provide flexibility for different project requirements while ensuring high transmittance and surface quality.
Key Features
- Diameter options from 3.0 mm to 300.0 mm for versatile application fit.
- Surface quality of 60/40 ensures reliable performance in demanding environments.
- Customizable with OEM support to meet specific project needs.
- Parallelism of 3’ enhances optical alignment in precision applications.
- Clear aperture ≥90% maximizes light transmission for optimal efficiency.
Applications
Semiconductor, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 3 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano-Plano; Plano Windows |
| Customized Support | OEM |
| Warranty | 1 month |
| Weight | 10-500g(0.35-17.64oz) |
| Substrate | Fused Silica |
| Parallelism | 3' |
| Surface Flatness | L/2 |
| Bevel | Protective bevel as needed |
| Clear Aperture | ≥90% |
FAQ
What are the available coatings for these windows?
Coatings include anti-reflection (AR), uncoated, and BBAR options.
What is the minimum order quantity (MOQ) for these windows?
The MOQ is not specified; please contact for details.
