1 / 6Optical Windows

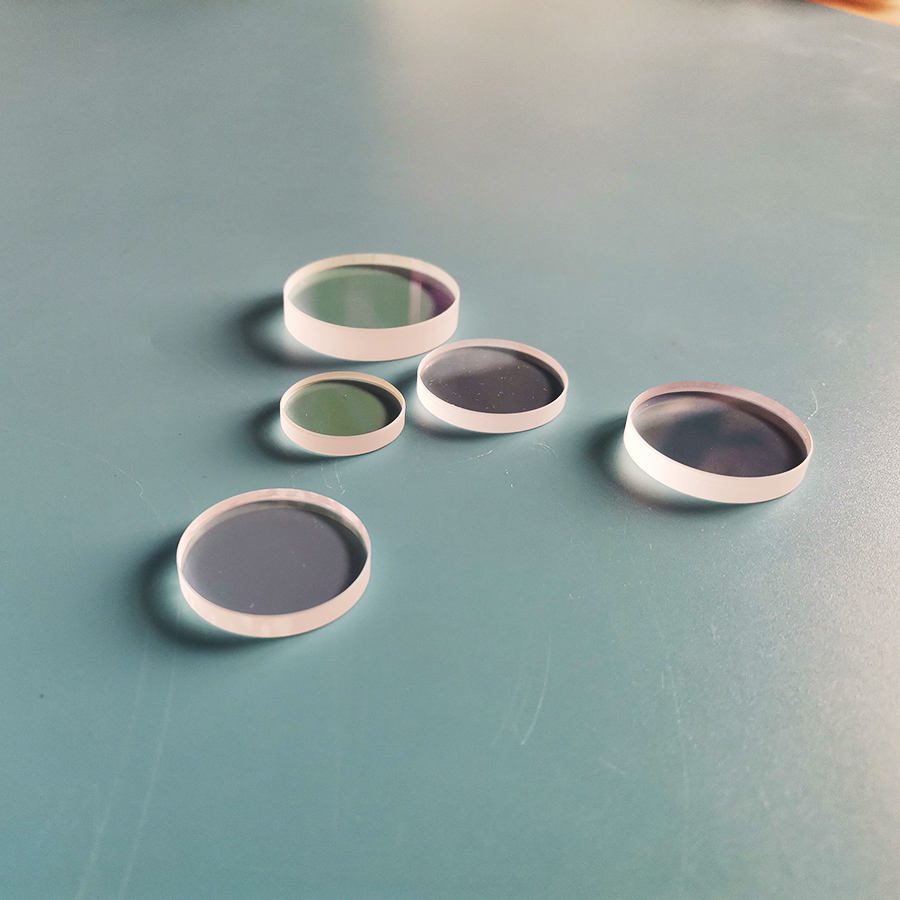

3 mm Fused Silica Round Optical Window, AR Coated
Fused silica plano windows for medical applications, customizable sizes, and coatings. High clarity and durability across 400-700 nm.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 3–300 mm
- Coating
- ar, uncoated, hr
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 3–300 mm
- Coating
- ar, uncoated, hr
Product description
Fused silica plano windows are ideal for medical applications, providing high clarity and durability across the 400-700 nm and <400 nm bands. With a diameter range of 3.0 to 300.0 mm, these round windows are designed to meet stringent optical standards, ensuring reliable performance in critical environments. Their customizable options and various coatings, including anti-reflective, enhance transmittance and minimize reflections, making them suitable for diverse optical setups.
Key Features
- Diameter range: 3.0 mm to 300.0 mm for versatile application fit.
- Surface quality of 60/40 ensures high clarity and minimal distortion.
- Parallelism of 3’ guarantees precise alignment in optical systems.
- Clear aperture of ≥90% maximizes light transmission.
- Available coatings: uncoated, AR, and HR for tailored performance.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 3 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated, high-reflective (HR) |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM |
| Warranty | 1 month |
| Substrate | Fused Silica |
| Type | Plano Windows |
| Parallelism | 3' |
| Surface Flatness | L/2 |
| Bevel | Protective bevel as needed |
| Clear Aperture | ≥90% |
FAQ
Is custom sizing available?
Yes, the plano windows can be customized in diameter from 3.0 mm to 300.0 mm.
What is the minimum order quantity?
The minimum order quantity (MOQ) is not specified; please inquire for details.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
