1 / 6Optical Windows

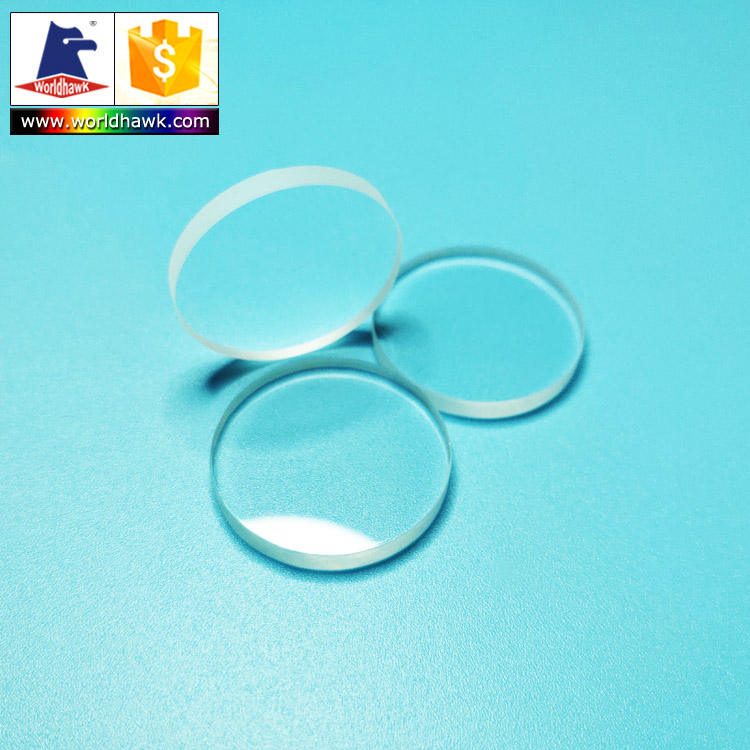

50x10 mm Fused Silica Round Optical Window, AR Coated
Achromatic lens in Fused Silica for <400 nm applications, featuring 60/40 surface quality and customizable sizes.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 50 mm
- Thickness
- 10 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 50 mm
- Thickness
- 10 mm
- Coating
- ar
Product description
This round achromatic lens made from UV-grade Fused Silica is designed for applications requiring high precision and durability in the <400 nm wavelength range. With a thickness of 10 mm and a diameter of 50 mm, it ensures superior optical performance with a surface quality of 60/40. Ideal for use in laser technology, IR detection, and imaging systems, this lens allows for effective isolation of different physical environments while maintaining optimal light transmission.
Key Features
- Diameter of 50 mm and thickness of 10 mm for versatile applications.
- Surface quality of 60/40 ensures minimal distortion and high clarity.
- AR coating enhances transmittance for improved optical performance.
- Clear aperture greater than 85% for effective light passage.
- Thickness tolerance of ±0.1 mm or ±0.02 mm for precise fitting.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 50 x 10 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 50 mm |
| Thickness | 10 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Warranty | 3 Years |
| Logo/Graphic Design | no |
| Weight | 0.05 |
| Thickness Tolerance | ± 0.1 mm or ±0.02 mm |
| Clear Aperture | >85% |
| Parallelism | ±3’, ±30'' |
| Bevel | 0.1~0.3mm *45 degree |
FAQ
Can I get custom sizes?
Yes, custom sizes are available with dimensions ranging from 0.2 mm to 300 mm.
What is the thickness tolerance?
The thickness tolerance is ±0.1 mm or ±0.02 mm.
