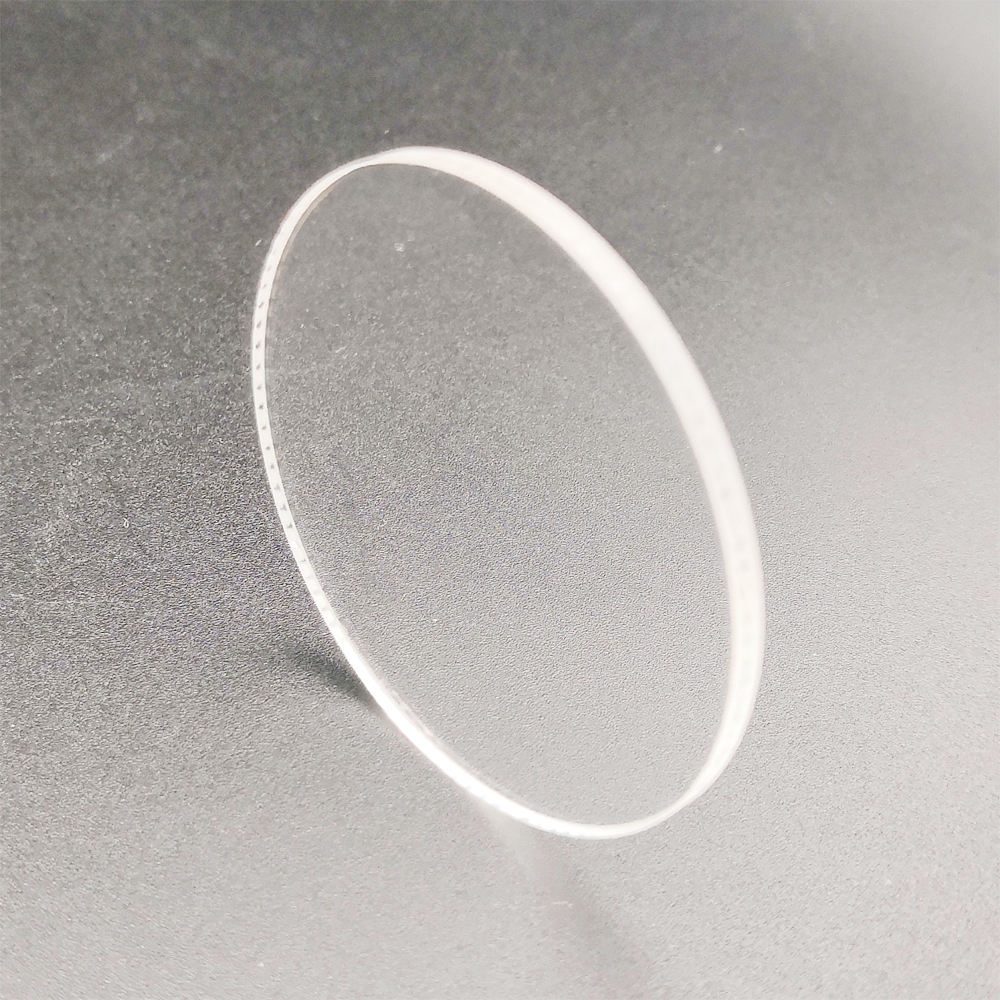

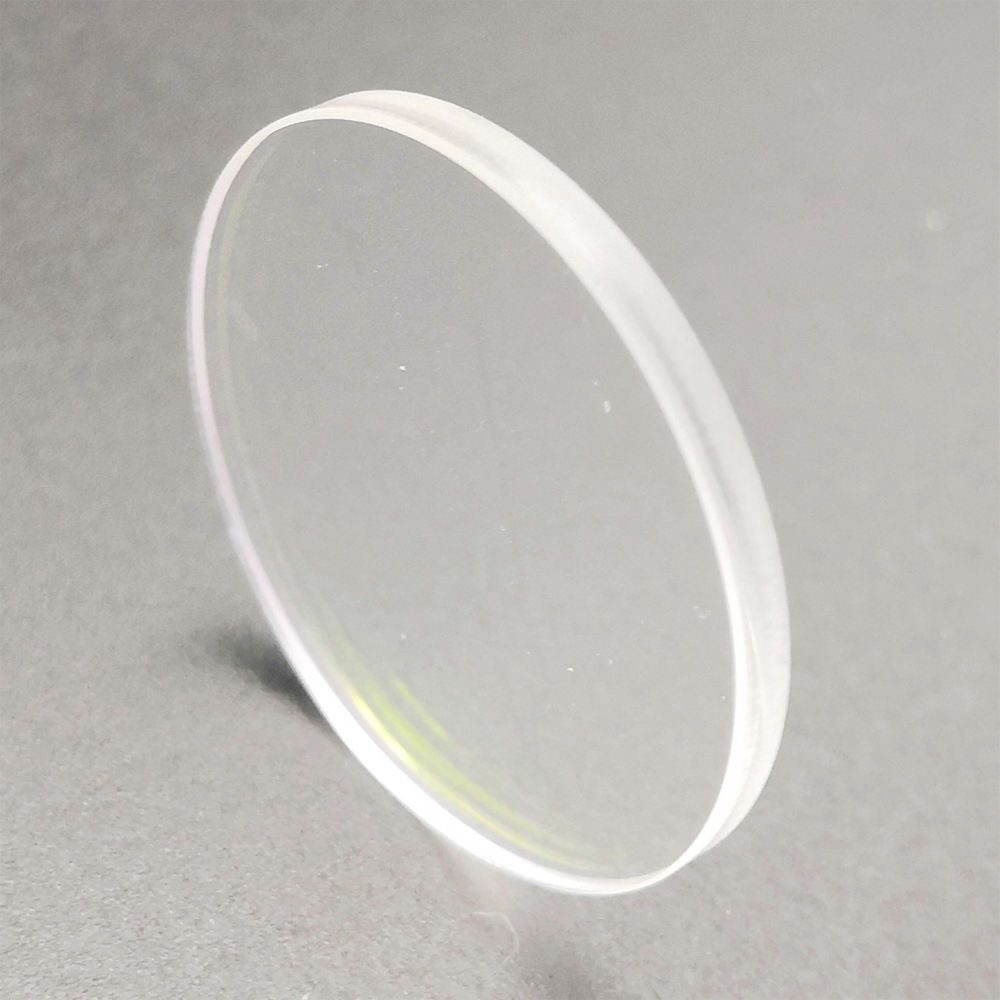

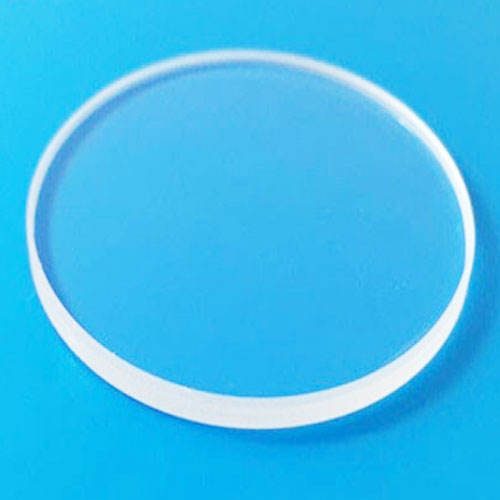

5x0.5 mm Fused Silica Round Optical Window, AR Coated
Fused Silica round protective windows with customizable sizes and coatings for IR imaging, laser, and medical applications.
Core attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 5–500 mm
- Thickness
- 0.5–50 mm
- Coating
- ar, uncoated, hr, dlc
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- round
- Diameter range
- 5–500 mm
- Thickness
- 0.5–50 mm
- Coating
- ar, uncoated, hr, dlc
Product description
This round protective window made from Fused Silica is designed for various applications across the 0.4-14 μm wavelength range, including IR imaging and laser systems. Its customizable dimensions from 5 mm to 500 mm in diameter and 0.5 mm to 50 mm in thickness make it suitable for diverse project requirements. The window features multiple coating options, including anti-reflective (AR) and high reflection (HR) coatings, ensuring optimal performance in specific applications. With precise tolerances and high clarity, this window is ideal for demanding optical setups.
Key Features
- Customizable diameter from 5 mm to 500 mm for versatile application fit.
- Thickness options ranging from 0.5 mm to 50 mm to meet specific design needs.
- AR, HR, and DLC coatings available for enhanced performance across various wavelengths.
- Dimension tolerance of ±0.1 mm ensures high precision and batch consistency.
- Clear aperture greater than 90% for optimal light transmission.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 252.5 x 25.2 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Round |
| Diameter | 5 mm |
| Thickness | 0.5 mm |
| Coating | anti-reflective (AR), uncoated, high-reflective (HR), diamond-like carbon (DLC) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), NIR (0.7-1.7 μm), VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | protective window |
| Customized Support | OEM, ODM, OBM |
| Weight | customization |
| Dimension | 5-500mm |
| Dimension Tolerance | ±0.1mm |
| Flatness | Lamda/2-Lmada/10 @633nm |
| Parallelism | ≤ 3 arcmin |
| Clear Aperture | >90% |
| Bevel | Protective Bevel |
FAQ
Can I get custom sizes?
Yes, the window can be customized in diameter from 5 mm to 500 mm and thickness from 0.5 mm to 50 mm.
What are the tolerances for dimensions?
The dimension tolerance is ±0.1 mm, ensuring high precision in manufacturing.
